Summary of Contents for Vantron HCAM26

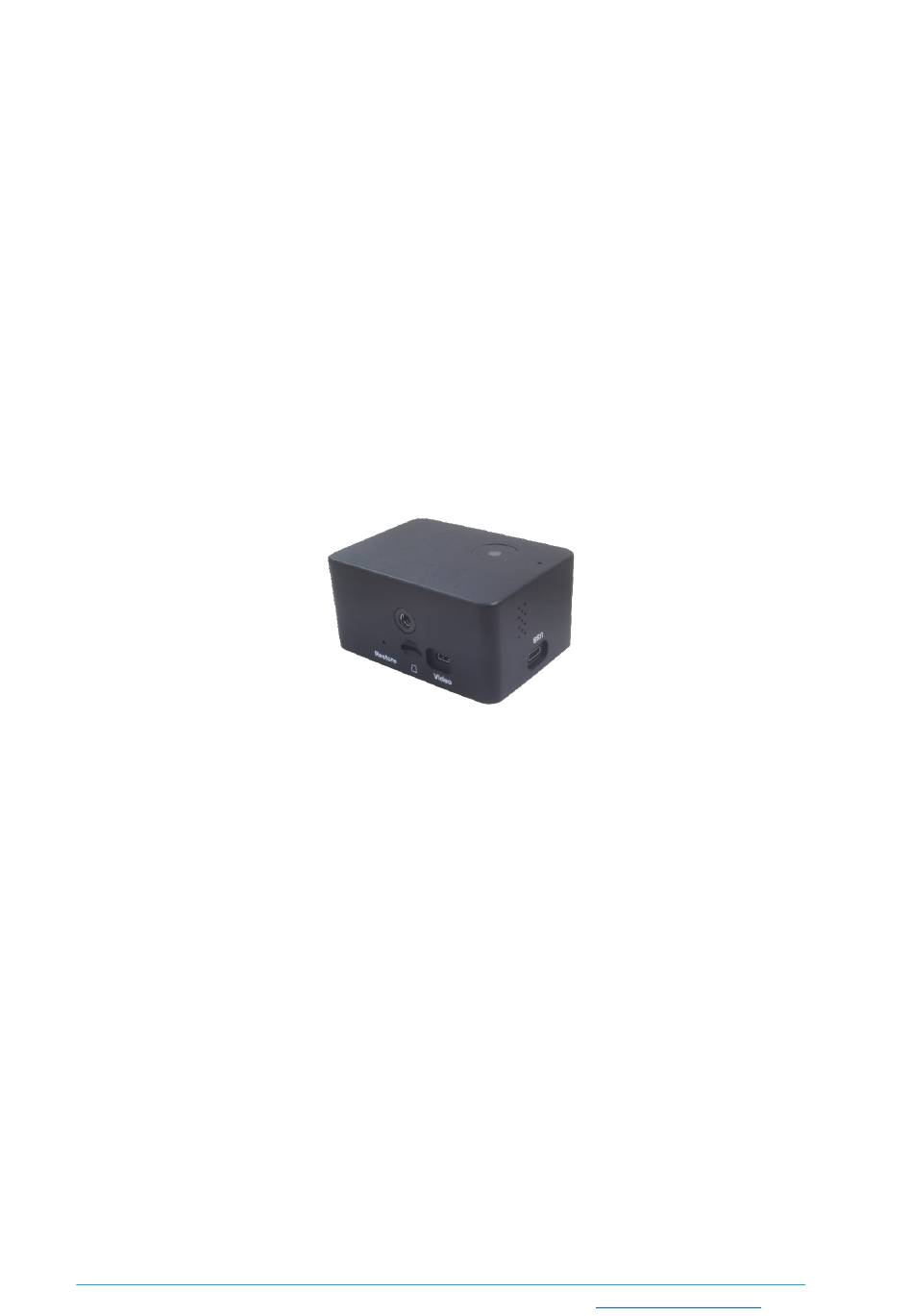

- Page 1 Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions HCAM26 Wi-Fi HaLow IP Camera Quick Start Guide Version: 1.3 © Vantron Technology, Inc. All rights reserved. www.vantrontech.com Vantron | Public...
-
Page 2: Table Of Contents
Device Setup ......................6 2.2.1 Manually assign an IP to the USB Ethernet adapter ..........6 2.2.2 Connect the camera to a HaLow access point ............7 Real-time Video Streaming ..................10 SSH Login ........................12 www.vantrontech.com Vantron | Public... -
Page 3: Revision History
Added description for USB Ethernet video streaming Aug. 20, 2024 V1.1 V1.2 Added a section for SSH login of the device Oct. 9, 2024 Replaced the command method with a UI-based web for HaLow V1.3 Apr. 1, 2025 connection www.vantrontech.com Vantron | Public... -
Page 4: Foreword
IEEE 802.11ah (Wi-Fi HaLow) standard. The camera operates in HaLow station mode and is typically designed to pair with a Wi-Fi HaLow access point such as Vantron HAP101 or HAP103 to ensure long-distance, reliable Wi-Fi HaLow connectivity. -
Page 5: Usb Ethernet Connection
• 1.2 Device Setup Briefly press the Power button on HCAM26 to turn it on, and the PWR indicator will turn solid green upon device bootup; If the PWR indicator remains off, the camera may have a low battery. Try connecting it to the host computer using a USB cable and pressing the power button again. -
Page 6: Real-Time Video Streaming
Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions Manually assign an IP address for the USB Ethernet adapter that is within the same IP segment as HCAM26 (provided on the product label); Click OK to exit. 1.3 Real-time Video Streaming 1. - Page 7 World-leading provider of embedded/IoT products and solutions 5. Open the video streaming window (Media > Open Network Stream); 6. Enter the camera’s RTSP URL (rtsp://cameraI IP:554/live/video_stream); 7. Click Play, and you’ll be able to view the live video on the host computer. www.vantrontech.com Vantron | Public...
-
Page 8: Wi-Fi Halow Connection
A USB Type-A to Type-C cable • A Windows computer HCAM26 and the host computer are on the same USB Ethernet IP segment for connecting • HCAM26 to HAP101/HAP103 via HaLow The Wi-Fi HaLow access point, HCAM26, and the host computer are on the same Wi-Fi •... -
Page 9: Device Setup
2.2 Device Setup 2.2.1 Manually assign an IP to the USB Ethernet adapter 1. Briefly press the Power button on HCAM26 to turn it on, and the PWR indicator will turn solid green upon device bootup; If the PWR indicator remains off, the camera may have a low battery. Try connecting it to the host computer using a USB cable and pressing the power button again. -
Page 10: Connect The Camera To A Halow Access Point
World-leading provider of embedded/IoT products and solutions 2.2.2 Connect the camera to a HaLow access point 1. Keep HCAM26 connected to the host computer, with the USB Ethernet adapter on the same IP segment as HCAM26; 2. Enter HCAM26's IP address (on the device label) in your browser's address bar and press Enter to access the configuration portal;... - Page 11 Vantron Embedded in your success, Embedded in your better life World-leading provider of embedded/IoT products and solutions (DHCP protocol) (Static Protocol) 4. Click Commit to complete the settings. www.vantrontech.com Vantron | Public...
- Page 12 IP segment as the camera using either of the following IPs: USB IP of HCAM26, when HCAM26 is connected to the host computer via a USB cable (refer •...
-
Page 13: Real-Time Video Streaming
3. Make sure the camera, the HaLow AP, and the host computer are on the same IP segment; 4. Download a media player for Windows, such as VLC media player; 5. Double click the program to install the media player; 6. Grant necessary permissions and run the media player; www.vantrontech.com Vantron | Public... - Page 14 World-leading provider of embedded/IoT products and solutions 7. Open the video streaming window (Media > Open Network Stream); 8. Enter the camera’s RTSP URL (rtsp://cameraI IP:554/live/video_stream); 9. Click Play, and you’ll be able to view the live video on the host computer. www.vantrontech.com Vantron | Public...
-
Page 15: Ssh Login
2. Launch an SSH session using the Ethernet IP of the camera provided on the device label; 3. After you successfully enter the shell of the camera, you will be able to further configure the device. www.vantrontech.com Vantron | Public...
