- Page 1 N DOR/ Manual v1.0 User Manual N DOR...
-
Page 2: Precautions Before Installation
N DOR/ Manual v1.0 1. Precautions before installation Describes basic precautions that users should be aware of when installing and using the product in case of a situation that may cause bodily harm. Therefore, before installing or using the product, be sure to familiarize yourself with the information described here. - Page 3 N DOR/ Manual v1.0 FCC Compliance Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 N DOR/ Manual v1.0 1. INTRODUCTION NDOR is an H.264/HEVC encoder, streamer, and recorder capable of NDI HX2/3, SRT, RTMP streaming, and lightweight MP4 recording. By selecting a device with these capabilities, you can efficiently manage and stream two simultaneous video streams from HDMI and SDI inputs, ensure high-quality output, record in MP4 format, and share recordings via SAMBA, facilitating easy access and collaboration over the network.
-
Page 5: Table Of Contents
N DOR/ Manual v1.0 Contents 1. Product Introduction ------------------------------------------------------ 2. Interface ----------------------------------------------------------------- 3. Components ------------------------------------------------------------- 4. Dimensions -------------------------------------------------------------- 5. Configuration Structure -------------------------------------------------- 6. Configuration Overview -------------------------------------------------- 7. Operation Descriptions by Location-------------------------------------- 7.1 Operating Status -------------------------------------------------------- 7.2 Front Dial Operation ---------------------------------------------------- 7.3 Main Menu Configuration Items----------------------------------------... -
Page 6: Product Introduction
N DOR/ Manual v1.0 1. Product Introduction N DOR can encode video up to 4K 30p via HDMI input or up to 1080P60 via 3G-SDI input into multi-protocols such as NDI HX3/NDI HX2/SRT/RTMP, for remote transmission and live streaming or recording. -
Page 7: Interface

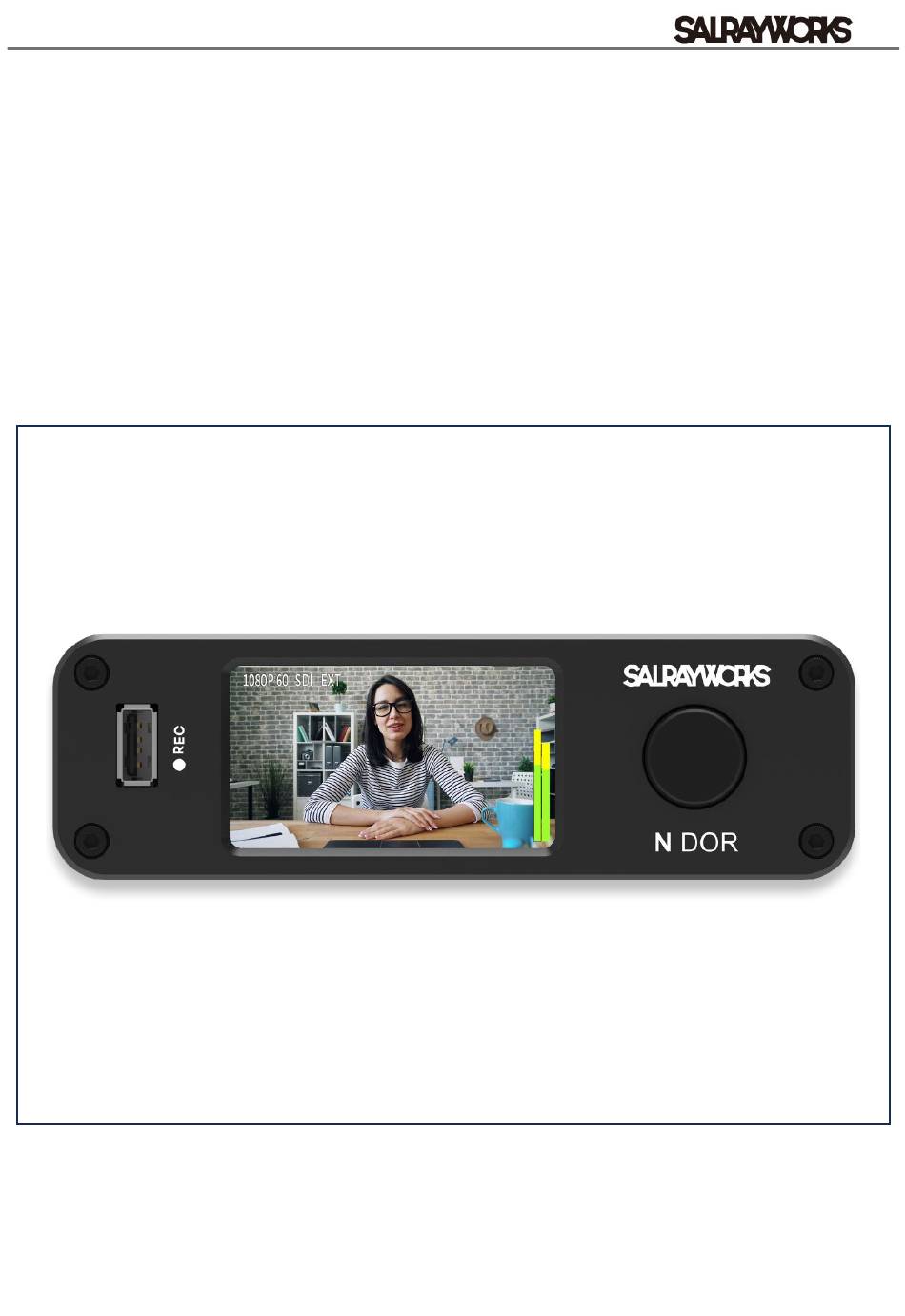

N DOR/ Manual v1.0 2. Interface < FRONT VIEW > ① Recording Port Menu Button ② 2.7in LCD Display ① USB - Recording MP4 to USB storage. ② 2.7-inch LCD Display - Displays output video, HDMI/SDI input modes, input resolution, output resolution, and displays audio level meter and recording status. -
Page 8: Components
N DOR/ Manual v1.0 ① DC POWER : DC Power input (DC +7 to +18V) ② ON/OFF Switch : DC Power ON/OFF switch ③ Ethernet : Ethernet Gigabyte Port (RJ-45 Connector)/PoE+ ④ SD CARD : Micro SD Recording (Micro SD Connector) ⑤... -
Page 9: Dimensions
N DOR/ Manual v1.0 4. Dimensions Video Input HDMI Input : (HDMI) x 1 - HD : 1080p30/1080p29.97/1080p25/1080p24/1080p23.98/ 1080i60/1080i59.94/1080i50/720p60/720p59.94/720p50 - Full HD : 1080p60/1080p59.94/1080p50 - UHD : 2160p30 SDI Input : (BNC 75Ω) x 1 - HD : 1080p30/1080p29.97/1080p25/1080p24/1080p23.98/ 1080i60/1080i59.94/1080i50/720p60/720p59.94/720p50 - Full HD : 1080p60/1080p59.94/1080p50... -
Page 10: Configuration Structure
N DOR/ Manual v1.0 5. Configuration Structure Sub-setting Submenu Status Main Menu <INPUT> <INPUT> >> MAIN MENU << >> INPUT << >VIDEO IN : HDMI 1080P 60Hz HDMI >INPUT >VIDEO IN: HDMI | > HDMI ENCODER AUDIO IN: HDMI ETHERNET... -
Page 11: Configuration Overview
N DOR/ Manual v1.0 6. Configuration Overview Submenu Settings Options Function HDMI Select video input port (*When selected, the audio input port is VIDEO IN automatically converted to the appropriate input port.) HDMI Select audio input port INPUT AUDIO IN... -
Page 12: Operation Descriptions By Location
N DOR/ Manual v1.0 Operation Descriptions by Location 7.1 Operation Status Input Resolution Port Input Audio Level Meter Display Information 1080P60 HDMI Front Dial Operation Turn to the right Turn to the left Press for less than 2 Press for longer than... -
Page 13: Main Menu Configuration Items
N DOR/ Manual v1.0 7.3 Main Menu Configuration Items INPUT >> INPUT << submenu >VIDEO IN: HDMI AUDIO IN: HDMI PATTERN: BLUE - - ESC - - ENCODER >> ENCODER << submenu >VID CODEC: H264 >> MAIN MENU << AUD CODEC: AAC >INPUT... -
Page 14: Input Submenu And Settings
N DOR/ Manual v1.0 7.4 INPUT Submenu and Settings >VIDEO IN : HDMI | > HDMI >> INPUT << >VIDEO IN: HDMI >AUDIO IN : HDMI | > HDMI AUDIO IN: HDMI PATTERN: BLUE - - ESC - - > PATTERN: BLUE... -
Page 15: Encoder Submenu And Settings
N DOR/ Manual v1.0 7.5 ENCODER Submenu and Settings >VID CODEC: H264 | > H264 HEVC > VID BTR : 5,000 Kbps 60,000 Kbps (MAX) | > 5,000 Kbps >> ENCODER << 1,000 Kbps (MIN) >VID CODEC: H264 AUD CODEC: AAC VID BTR : 5,000 Kbps >... -
Page 16: Recorder Submenu And Settings
N DOR/ Manual v1.0 7.6 RECORDER Submenu and Settings > STATUS >> RECORDER << START >STATUS: STOP | > STOP STORAGE: USB - - ESC - - > STORAGE SD CARD | > USB Settings Functions Select START/STOP. STATUS Select Storage location. -
Page 17: System Submenu And Settings
N DOR/ Manual v1.0 7.8 SYSTEM Submenu and Settings >> SYSTEM << >> LOAD DEFAULT >VERSION: v0.9.1 |> NO IP: 192. 168. 0. 100 LOAD DEFAULT REBOOT >> REBOOT - - ESC - - |> NO Settings Functions Displays Firmware information... - Page 18 N DOR/ Manual v1.0 SHARON FINDER SHARON Finder allows you to discover Salrayworks NDI devices on the same network and find their IP addresses, MAC addresses, change their hostname or IP settings, and restart the devices. It also enables resetting the web server password. By clicking on the IP address, you can access the web server.
- Page 19 N DOR/ Manual v1.0 You can monitor the status of NDOR and adjust the video or audio inputs You can select the video and audio encoding settings menus...
- Page 20 N DOR/ Manual v1.0 These are the features and settings according to the NDI standards. You can start streaming simultaneously by entering up to two streaming addresses, supporting RTMP or SRT streaming...
- Page 21 N DOR/ Manual v1.0 You can record as MP4 video files to the storage space on a USB or SD card and copy the stored files from the USB to your PC over the same network via SAMBA. You can rename the device or reconfigure its IP address and settings.
