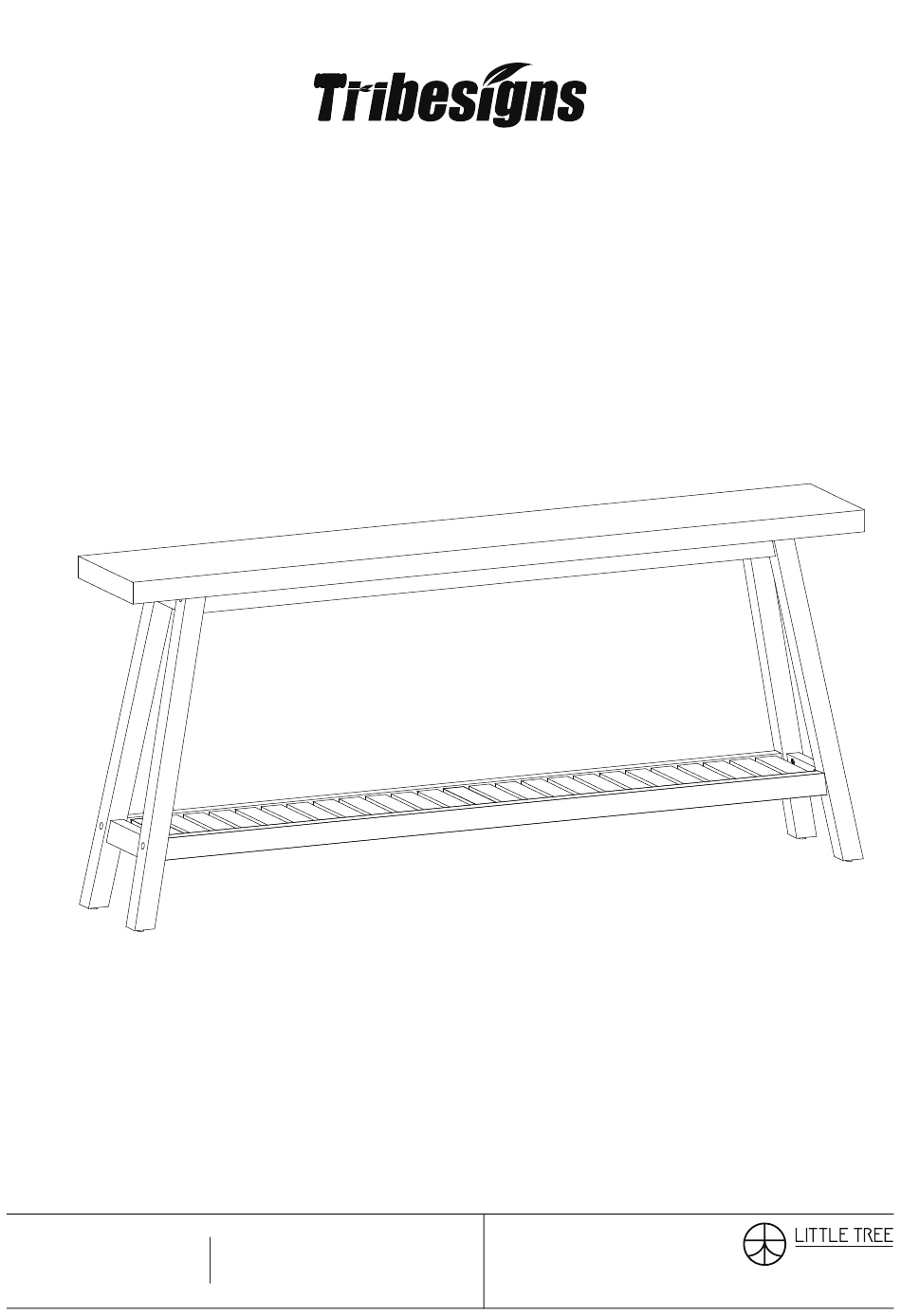

- Page 1 DESIGNED FOR LIFE Assembly Instructions Model No. HOGA-JW0835/JW0836/ Sofa Table Little Tree by Tribesigns JW0889/JW0962 www.tribesigns.com P-01...
- Page 2 DESIGNED FOR LIFE Contact Us We're here to help you. support@tribesigns.com 1-424-220-6888 Contact us anytime except 12:00 AM to 8:00 AM EST. Your satisfaction is our top priority. If you encounter any issues with this product, such as original packaging and take photos of the packaging and the product, then contact us as soon as possible.
- Page 3 DESIGNED FOR LIFE We recommend using hand tools for assembly. If an electric screwdr r is used, reduce power and torque to a oid damage to the product. Install the Anti-Tip Straps Using the anti-tip straps can reduce the risk r, but can not eliminate it.
- Page 4 DESIGNED FOR LIFE Caution Make sure all parts are included. Most board parts are labeled or stamped on the raw edge. Contact us for a free replacement if you encounter any damaged or missing parts. P-01 P-03...
-
Page 5: Parts List
DESIGNED FOR LIFE Parts List 1 pc 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 2 pcs 3 pcs 22 pcs Hardware List M6x40mm ∅8x30mm M6x50mm M6x55mm ∅ 15x12mm 21 pcs 97 pcs 9 pcs 1 pc 9 pcs 4 pcs 21 pcs 13 pcs... - Page 6 DESIGNED FOR LIFE Installation of Cams and Pins Screw the pin into the hole. To set the cams correctly, ensure that the arrow on the cam is opening to the hole of the pin it is locking. Lock the cam by turning the cam head with a screwdri er until it is tightened.
- Page 7 DESIGNED FOR LIFE M6x40mm 20 pcs Notice: Press "A" firmly into the hole of the board, and then tighten it with a screwdriver. ∅ 15x12mm ∅ 8x30mm 4 pcs 4 pcs P-01 P-06...
- Page 8 DESIGNED FOR LIFE ∅15x12mm ∅ 8x30mm 4 pcs 4 pcs Notice: The installation direction of #8 must be consistent with the illustration. ∅ 15x12mm 6 pcs P-01 P-07...
- Page 9 DESIGNED FOR LIFE ∅8x30mm 88 pcs P-01 P-08...
- Page 10 DESIGNED FOR LIFE ∅15x12mm 6 pcs M6x55mm 1 pc 4 pcs Notice: Just tighten the screw to 60% instead of fully tightened to avoid other screws not aligning with the holes. P-01 P-09...
- Page 11 DESIGNED FOR LIFE M6x55mm 4 pcs 1 pc M6x50mm Rotate 9 ° 0 1 pc 8 pcs Notice: Tighten all screws completely untill you ensure that they are all fit into the holes. P-01 P-10...
- Page 12 DESIGNED FOR LIFE 4 pcs 12 pc 2 pcs Rotate 180° P-01 P-11...
- Page 13 DESIGNED FOR LIFE Wall Step1 Step2 Step3 Wall P-01 P-12...
- Page 14 DESIGNED FOR LIFE Thank you for your support! 1-424-220-6888 support@tribesigns.com Contact us anytime except www.tribesigns.com 12:00 AMto 8:00 AMEST. Follow Tribesigns Instagram WhatsApp Facebook Pinterest Twitter YouTube TikTok P-01...
