18 : 12 : 00
CH2
BDC-E4
Status
OK
C
DC 24V
F
Specification
Model
Operating Voltage DC 24V
Operating Current 50 mA
Dry contact
11/23
Program
OFF
Dry Contact Station
D
E
Output 24V
4
-
+
G
H
BDC-E4 / BDC-I4
Normally open, maximum working voltage current of 30V 1A.
Dry Contact Station
I
RS 485 IN

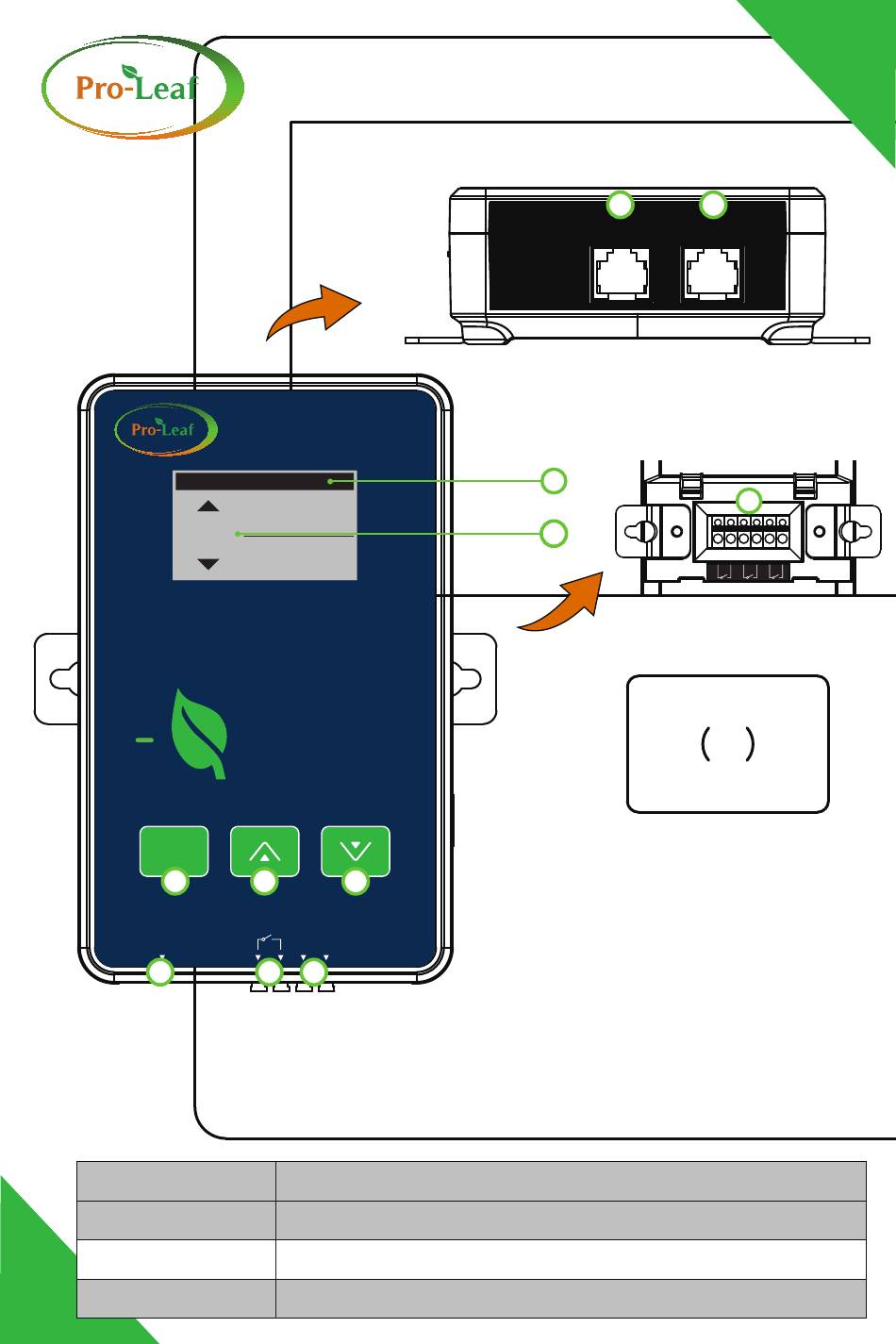

Top View
A
B
A.
Date and time
B.
Channel status
C.
Confirm button
D.
Up button
E.
Down button
F.
Power input (When connecting more
than 10 BDC-4 to the host, a 24V
adapter needs to be plugged in)
G.
CH4 dry contact output
H.
Output power is only available when
an adapter is connected in F
I.
Connect to BeHive host
J.
Connect to the next device
K.
CH1, CH2, CH3 dry contact outputs
respectively
BeLeaf
J
RS 485 OUT
K
1
2
3
Bottom View
Advertisement
Summary of Contents for Pro-Leaf BeLeaf BDC-E4
- Page 1 BeLeaf Dry Contact Station RS 485 IN RS 485 OUT Top View 18 : 12 : 00 11/23 Program Bottom View Date and time Channel status BDC-E4 Confirm button Status Up button Dry Contact Station Down button Power input (When connecting more than 10 BDC-4 to the host, a 24V adapter needs to be plugged in) CH4 dry contact output...
- Page 2 Package Contents BeLeaf Dry Contact Station Expansion Screw Set 5 Meters RJ12 Cable Hanging Plate Manual Small Screws Installation Expansion Screw (L): Fix the expansion screw set on the wall, and hang the product on it. Hanging Plate (M+N): First use small screws to lock the hanging plate on the back of the product, and then lock the hanging plate on the wall.
