Summary of Contents for Sylvan SL45E

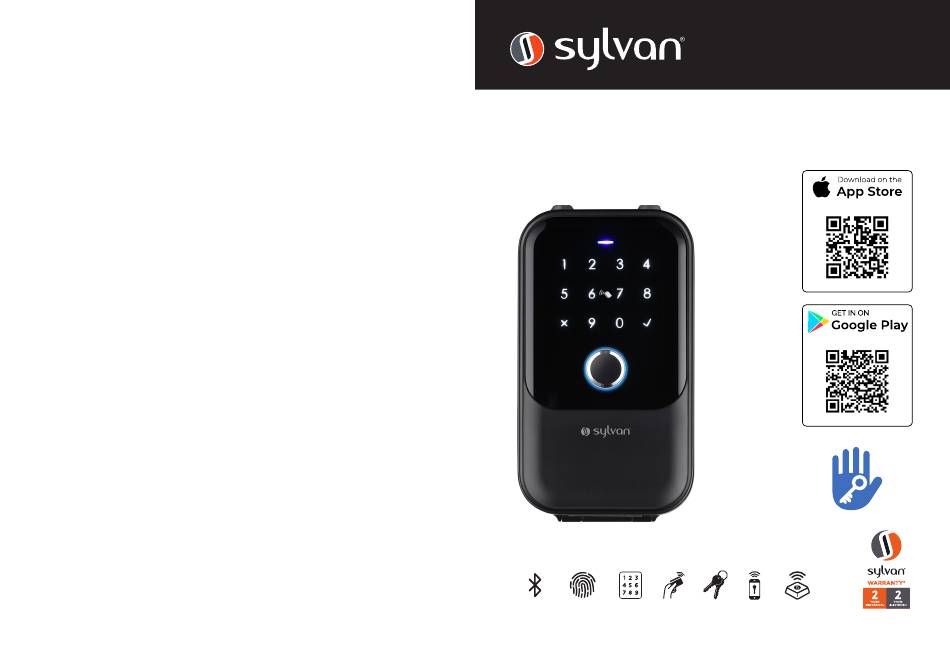

- Page 1 SL45E Scan QR Code to download the app USER MANUAL - SMART KEY BOX Bluetooth Fingerprint Password RFID Tag Smart Hub Version 1...
- Page 2 SL45E Packing List Product specification Front: Indicator Light Keypad Card reader area Fingerprint Sensor KeyPad Manual Key Wood Screw Wall Plug Qty x1 Qty x2 4x30mm x4 6x30mm x4 RFID Tag Manual USB-C CABLE Shackle USB-C Port Manual Key Override...
- Page 3 Product specification Inside: System Shackle Release Main material Aluminum alloy,zinc alloy, tempered glass Available Color Black Installation Type Wall mounting or work with knob lock by shackle Communication BLE5.0 Support OS LOS 7.0 or above, Android 4.3 or above Main Housing Battery Life 5000 times normal unlock (10-12 months - Energizer Max Plus Batteries)
-
Page 4: Factory Reset
Factory Reset Factory Reset There is a reset button on the back of the front shell; After the device is powered on, long press the button for 3 seconds, and the voice prompts “Please enter the initialization passcode (000✔)”; If the passcode is successfully entered, voice prompts “Delete Administrator successfully”. - Page 5 Installation: Wall Mount - Masonry Step 2: Using the key box as a guide, mark 4x holes. Mount in a suitable location Plug Masonry Step 1: Push through hole plugs.
- Page 6 Step 3: Using a masonry drill bit, drill 4x 6mm holes 40mm deep ø Step 4: Install 4x wall plugs Masonry drill bit plus hammer drill Step: 5 Using the 4x supplied screws, mount the key box to the wall...
- Page 7 Installation: Wall Mount - Timber Step : 4 Step 1: Step 2: Step 3: Push through hole plugs. Using the key box as a Drill 4x 6mm pilot Using the 4x supplied ø screws, mount the guide, mark 4x holes. holes 40mm deep key box to the wall Plug...
-
Page 8: Battery Installation
Battery Installation Functional Test Remove the battery cover and install 4x AAA Alkaline • Open protection cover • Test the key to unlock properly follow the arrow direction. Batteries, we recommend using Energizer Max Plus Batteries • Do not leave the override keys •... - Page 9 Hanging Key box Step 3: Step 4: Slide the shackle To remove: Push over the neck of the unlock button the knob and lock hard upwards, and Step 1: into the key box as detach the key box Remove the 2x Rubber Plugs shown below from the shackle Unlock...
- Page 10 Functional Test • Open protection cover • Test the key to unlock properly follow the arrow direction. • Do not leave the override keys • Press fingerprint or passcode inside the key box. to unlock the key box. All fingerprints will unlock as •...
- Page 11 App Function...
-
Page 12: Add Fingerprint
Add Fingerprint Add User Passcode... - Page 13 Add eKeys...
- Page 14 Important! If unsuccessful, power o and power on the gateway. Under the lock setting, turn on the remote unlock function as below, then click the unlock sign near the round circle, now press unlock and the door will unlock remotely.
- Page 15 Is it possible to remotely unlock my door key box? mobile? Answer: By adding a Sylvan SLG02 remote gateway (sold separately) Answer: Please remove this device from your mobile App you can and installing on a 2.4ghz WiFi connection, remote unlocking can click the “Delete”...
