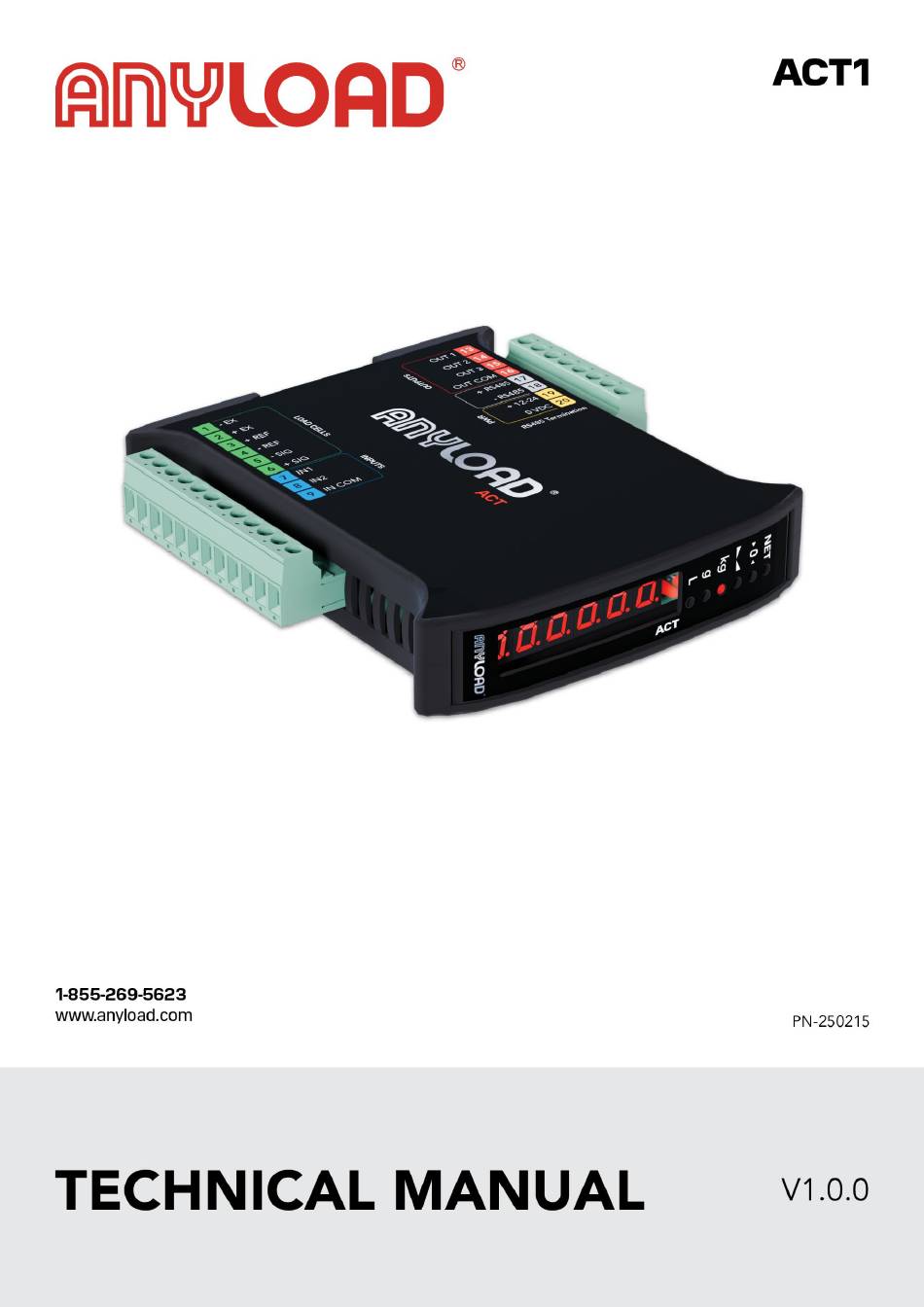

Anyload ACT1 Technical Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACT1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Anyload ACT1

  • Page 2: Legal Notice

    ANYLOAD Weigh & Measure Inc. disclaims all warranties not expressly stated in the Warranty Policy, including but not limited to implied warranties of merchantability and fitness for a particular purpose. ANYLOAD shall not be liable for any direct, indirect, incidental, or consequential damages arising from the use or inability to use this equipment.

  • Page 3: Table Of Contents

    5.14 Zero Tracking ............................17 Unit Configuration ..........................18 5.15 Unit Configuration ..........................19 5.16 Outputs and Inputs Configuration ..................... 21 5.17 Outputs Configuration ........................ 21 5.17.1 www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 4 10. Reserved For Installer ......................38 10.1 Menu Locking ............................38 10.2 Temporary Menu Locking ........................38 10.3 Data Deletion And Program Selection ....................38 10.4 Keypad Or Display Locking ........................ 39 www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 5: Revision History

    First public release version. The most current version of this document, along with any software, firmware, and other product updates, can be found on our website: www.anyload.com www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 6: User Warning

    RS485: Up to 1000 meters using AWG24 shielded and twisted cables. • Analog current output: Up to 1000 meters using AWG24 shielded and twisted cables. • Analog voltage output: Up to 300 meters with 0.5 mm2 cable www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 7: Recommendations For Proper Installation (Load Cells)

    Avoid performing welding while the load cells are installed. If welding cannot be avoided, position the welder's ground clamp as close as possible to the welding point to prevent electrical current from passing through the load cell body, which could cause damage. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 8 While improper earthing may not immediately affect the operation of the weighing system, it can lead to long-term damage to both the load cells and the connected instrumentation. FAILURE TO FOLLOW THE INSTALLATION RECOMMENDATIONS WILL BE CONSIDERED A MISUSE OF THE EQUIPMENT www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 9: Quick Load Cell Input Test

    Apply a load to the cell and verify that the signal increases accordingly. IF ONE OF THE ABOVE CONDITIONS IS NOT MET, CONTACT THE TECHNICAL ASSISTANCE SERVICE. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 10: Specifications

    N. 3 - max 30 VAC, 60 VDC; 150 mA Relay Outputs -20 °C +60 °C Working Temperature Equipment to be powered by 12-24 VDC LPS or Class 2 power source. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 11: Electrical Connections

    Two inputs (default: Input 1 = Semi-Automatic Zero, Input 2 = Net/Gross) configurable for the following functions: Semi-Automatic Zero, Net/Gross, Peak, or Remote Control (see the Outputs and Inputs Configuration section). www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 12: Terminals Legend

    INPUT No. 2 (+VDC min 5 V max 24 V) RS485: - INPUT COMMON (-VDC 0 V) +SUPPLY (12/24 VDC) +ANALOG OUTPUT 0-20 or 4-20 mA -SUPPLY (12/24 VDC) RS485: SHIELD, GND (ACT Analog only) www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 13: Led And Key Functions

    Preset tare settings (press immediately followed by) In menu mode, the LEDs light up in sequence to indicate that the display is not showing a weight value. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 14: Configurations

    ANYLOAD Technical Manual – ACT – (V1.0.0) 5. Configurations In the menu mode, changes are applied immediately after pressing the key, with no further confirmation required. 5.1 Set Point 5.2 System Parameters www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 15: Configuring System Settings

    The value can be manually adjusted between 0.0001 to 100, with selectable increments of x1, x2, x5, or x10. • Modifying the theoretical full scale or sensitivity will cancel the real calibration, making the theoretical calibration the only valid one. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 16: Maximum Capacity

    WARNING: Perform this procedure only if resetting the tare of the weighed structure is not possible, such as when the system contains product that cannot be unloaded. Set the estimated zero value within the range 0 to 999999 (default: 0). www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 17: Span Calibration (Physical Weights)

    • If the applied correction modifies the previous full scale by more than 20%, all parameters containing settable weight values will be reset to default. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 18: Linearization Option On Max 8 Points

    The table below shows the relationship between the filter value, response time, and display/serial port refresh frequency. Display and Serial Port Filter Value Response Times (ms) Refresh Frequency (Hz) 4 (default) 12.5 1700 12.5 2500 12.5 4000 6000 7000 www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 19: Anti Peak

    Example: If the parameter is set to 5 and is set to 2the weight will be automatically dIUI5 trAC O reset to zero for deviations of 10 divisions ( www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 20: Unit Configuration

    (see the related section). COEFF COEFF To activate it must be enabled by closing the input (refer to the Outputs and Inputs Configuration section for details). www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 21: Unit Configuration

    WARNING: All other settings (setpoint, hysteresis, calibration ...) are expressed in weight value. If you want to convert them to the new unit of measurement, perform one of the following procedures for changing the system calibration. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 22 If required, set UNIT = Liter (see Setting Units of Measure section) to display "l" instead of "kg" on the screen. This procedure ensures that the system correctly measures and displays weight in the selected unit. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 23: Outputs And Inputs Configuration

    3. POSNEG – The relay switches for both positive and negative weight values. 4. POS – The relay switches only for positive weight values. 5. NEG – The relay switches only for negative weight values. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 24 Setpoint = 0 and switching = NEG – The relay switches when the weight is ≤ 0 and switches again when the weight goes above 0, considering hysteresis. See examples on the following page. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 25 ANYLOAD Technical Manual – ACT – (V1.0.0) Example: www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 26: Inputs Configuration

    When input is closed: The displayed weight is adjusted based on the set coefficient (see Units of Measure and Coefficient Settings). • When input is open: The display shows the standard weight value. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 27: Semi-Automatic Tare (Net/Gross)

    When the key is released, the display will return to net weight. Semi-automatic tare is not allowed when the gross weight is zero. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 28: Preset Tare (Subtractive Tare Device)

    To use this input for detecting sudden peak variations, the FILTER ON THE WEIGHT parameter to 0. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 29: Analog Output

    For a full-scale value of 10,000 kg, if you require 4 mA at 5,000 kg and 20 mA at 10,000 kg, set the minimum analog output weight to 5,000 kg instead of zero. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 30 0-5 V -0.150 5.500 ±10 V -10.300 10.200 ±5 V -5.500 5.500 0-20 mA -0.200 22.000 4-20 mA -0.200 22.000 NOTE: Reverse Analog Output Configuration (See next page.) www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 31 • For voltage outputs, the minimum load resistance must be at least 10 kΩ. • For current outputs, the maximum load resistance must not exceed 300 Ω. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 32: Serial Communication Settings

    : The HERTZ parameter defines the maximum transmission frequency for weight data when HErt2 using the CONTIN transmission protocol. Available frequency options include 10, 20, 30, 40, 50, 60, 70, 80, 100, 200, and 300 Hz (default: 10 Hz). www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 33 : Sets the number of stop bits used in transmission (1 or 2, default: 1). For more information about protocols and methods of communication, request the proper manual to technical assistance. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 34: Rs485 Serial Communication

    If the network includes different instruments or converters, refer to their specific manuals to determine whether termination resistors are required. Proper termination prevents signal reflections and ensures stable communication over long distances or at high baud rates. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 35: Rs485 To Rs232 Direction Connection

    : Tests the current output. VOLt : Tests the voltage output. Milivolt Test: NU-CEL : The analog signal will range between minimum and maximum values, starting from the minimum. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 36: Info Menu

    : The analog signal will range between minimum and maximum values, starting from the minimum. • lnStrN : Instrument Model • SU COd : Software Code • FU UEr : Software Version • SEr nu : Serial Number www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 37: Setpoint Configurations

    The relay activates when the weight exceeds 100. • The relay deactivates when the weight drops below 90. This prevents rapid relay switching due to minor fluctuations around the setpoint. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 38: Setpoint Configurations

    MODBUS xx1xxxxx a “value not valid” error (error code ASCII &aa#CR RIP* HDRIP-N _ERCEL _ER_OL _ER_AD ###### _ER_OF O__SET CONTIN _ERCEL _ER_OL _ER_AD ^^^^^^ _ER_OF O__SET www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
  • Page 39 RANGE 0-20 mA 4-20 mA 0-5 V 0-10 V ±10 V ±5 V Output -0.2 mA 3.5 mA -0.5 V -0.5 V value www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 40: Reserved For Installer

    For the approved programs listed above, please contact technical assistance to obtain the required manual and follow the correct approval procedures. You will need to provide the hardware code and serial number (see the Instrument Commissioning section for details). www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.

  • Page 41: Keypad Or Display Locking

    : Keypad and display lock – When activated, the keypad is locked, and the display will show only the instrument model instead of the weight. Pressing any key will display "BLOC" for 3 seconds. www.anyload.com | +1 (855) 269-5623 ©03/2025 ANYLOAD. Content subject to change without notice.
