Richell 30015 Instruction Manual

Thank you for choosing Richell's product. Please read this Instruction Manual carefully before use, and use the
product properly. Please also keep this manual intact and in a convenient location for all to see and read. The gures
used in this manual are to show operation method or structure, and may look di erent from the actual product. If
you give this product to someone else, please also give this Instruction Manual to the new owner.
This product is an accessory to extend installation width
of Richell Cat Safety Gate up to 50".
Combination of this product and Cat Safety Gate can
extend the installation width to 39.5" - 50". Store any
unused parts out of reach of children.

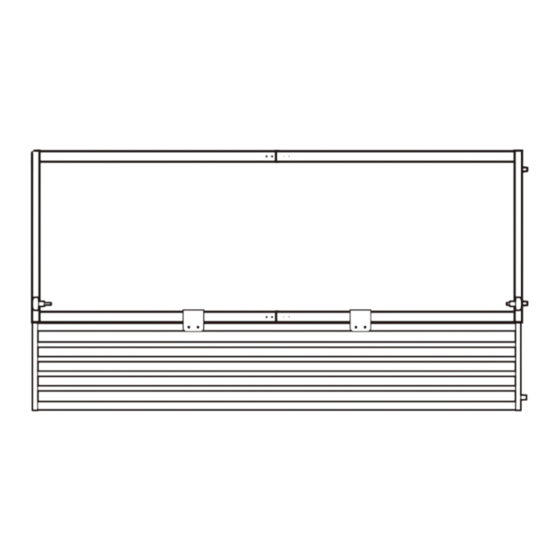

Refer to the Instruction Manual for the Cat Safety Gate to assemble the Outer Frame.
１
Attach the Extension Panel
①
Insert the Joint into the Outer Frame.
※
The Joint and Extension Panel can be installed on either the left or right.
②
Place the Extension Panel as shown in the gure.
Correct
Hole
Instruction Manual
Before assembling this product, make sure the
following parts are included:
※
If the Cat Safety Gate is already installed, remove the
Locking Members, Door, and Adjuster Bolts, and lay it at
as shown in the gure.
Rubber
Feet
1
Extension Panel
(1)
Connector
Bolt
(2)
(8)
Joint
Incorrect
30015
Joint
(2)
