Summary of Contents for RunCam WiFiLink 2
- Page 1 WiFiLink 2 Installation and User Guide Web Reference Link https://昀氀owus.cn/share/c178693d-9f6f-4717-a090-f8a010f4bf11...
-
Page 2: Product Features

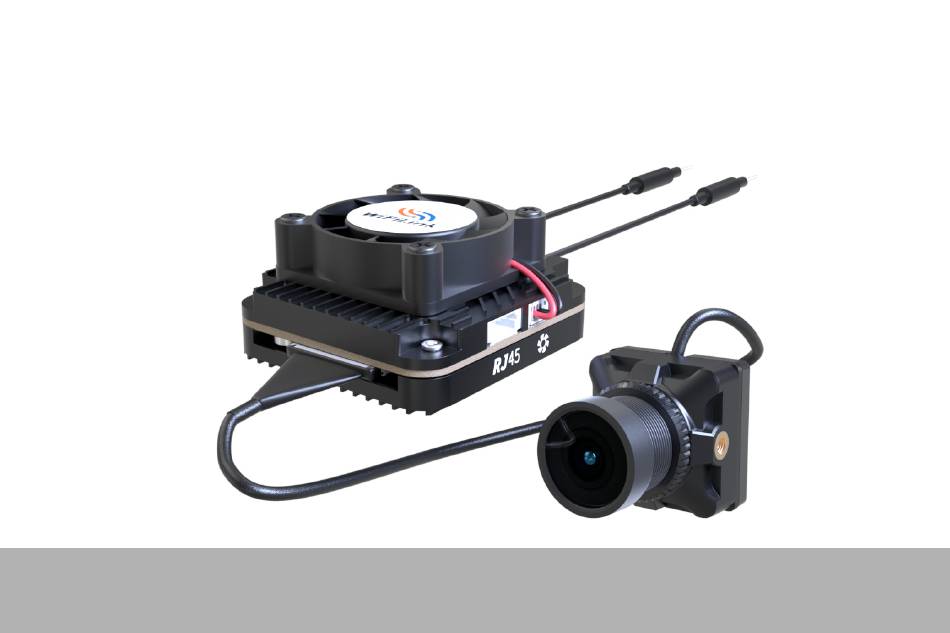

Product Features M1.68 Screws Antenna Plate Antenna Cooling Fan M1.64 Screws Fan Power Connector CM1.2*2 Screws 6Pin Connector CNC Cover 26P Cable RJ45 Port M12 Lens... -
Page 3: Antenna Installation
Installation ＆ Operation Notes Antenna Installation When installing the WiFiLink 2 on the aircraft, pay attention to the following two points: Antenna Layout: Ensure that the two tail antennas are fully spread apart to avoid entanglement and reduce signal interference. - Page 4 Installation ＆ Operation Notes 6PIN Power Cable Connection Connect the 6PIN power cable to the flight controller's DJI 6PIN interface.
- Page 5 Light Introduction Light Status Indication Green Off Audio off Green Green Solid Audio on Blue Green Fast Flash Firmware upgrade Green Slow Flash Recording on Blue Solid WiFiLink Startup Blue Fast Flash WiFi Error Blue & High Temp Warning (>90°C) Green Alternating Flash...
-
Page 6: Usage Instructions
Usage Instructions Install the APP PixelPilot Download Link: https://github.com/OpenIPC/PixelPilot/releases Set Parameters Set the Channel to 161 and the Video Codec to h265. Current:161 Current:161 Current:h265... - Page 7 Auxiliary Tools Links OTG Cable Reference Link: https://item.jd.com/10087520840342.html#crumb-wrap 8812AU Wireless Adapter Reference Link: https://item.taobao.com/item.htm?id=597898122636 How to Flash WiFiLink 2 Card Flashing Steps: ①Prepare Files Copy WiFiLink-part0.bin and WiFiLink-part1.bin to the root directory of an empty SD card. ②Upgrade Steps Insert the SD card into the camera mainboard and power it on. The camera will enter upgrade mode (about 15 seconds), with the green light flashing.
-
Page 8: How To Set Parameters
Usage Instructions How to Set Parameters It is recommended to use Notepad++ to edit the user file. Only the parameters listed under "Available values" can be modified, including: Channel Codec ResolutionRatio Bitrate Mirror Flip Rotate Contrast Saturation Luminance ..How to Use the Ethernet Port Default Settings: IP Address 192.168.1.10... - Page 9 Usage Instructions How to Use with a PC Ground Station Program Download: https://github.com/OpenIPC/fpv4win/releases Follow these steps: ①Step One Insert the 8812AU wireless adapter into the computer and reconfigure the driver using the Zadig program. Note this ID. ②Step Two Double-click the fpv4win program, select the network card, Channel, and Codec, then click START to use.
- Page 10 Usage Instructions How to Use with Radxa ZERO 3W Visit:https://support.runcam.com/hc/en-us Contact our technical support team for detailed guidance. What to Do if There Is No Display Check if the power supply is normal and verify that the Channel and Codec settings are correct.
- Page 11 Usage Instructions What to Do if FC OSD Information Is Missing ①Check Configuration Verify that the configuration settings are correct. The three parameters should be: 115 (corresponding to 115200), 0, 1, or 2 (corresponding to Mavlink1 or 2). ②Check the Serial Port Confirm that the FC serial port data is normal and available, and the wiring is correct, with TX and RX cross-connected.
-
Page 12: Specifications
Specifications Model WiFiLink 2 Sensor IMX415 160° Resolution 1080P@60FPS/1080P@90FPS/720P@120FPS Power Supply 9-22V(3S-4S) Lens Module 19*19mm/M12 Lens/MIPI Cable 130mm Hole Distance 25.5*25.5mm PCB Size 30.6mm*33mm Weight 30g (with fan) / 25g (without fan) Antenna 2dB/IPEX1 （ 5G） Power 5.8 GHz:≤28dBm (FCC),≤20dBm(CE)
