DeLOCK 62545 User Manual

Declaration of conformity
Products with a CE symbol fulfill the EMC directive (2014/30/EU) and
RoHS directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_62545/merkmale.html
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
effective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo
on the device and the package indicates that the device should not be disposed
in the normal household garbage. You are responsible for taking the disused
electrical and electronical devices to a respective collecting point. A separated
collection and reasonable recycling of your electrical waste helps handling the
natural resources more economical. Furthermore recycling of electrical waste is
a contribution to keep the environment and thus also the health of men. Further
information about disposal of electrical and electronical waste, recycling and
the collection points are available in local organizations, waste management
enterprises, in specialized trade and the producer of the device.
Cet appareil
se recycle
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can find current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 03/2025
User manual
Mode d'emploi
Uživatelská příručka
Manuale utente
Manual de utilizare
Korisnički priručnik

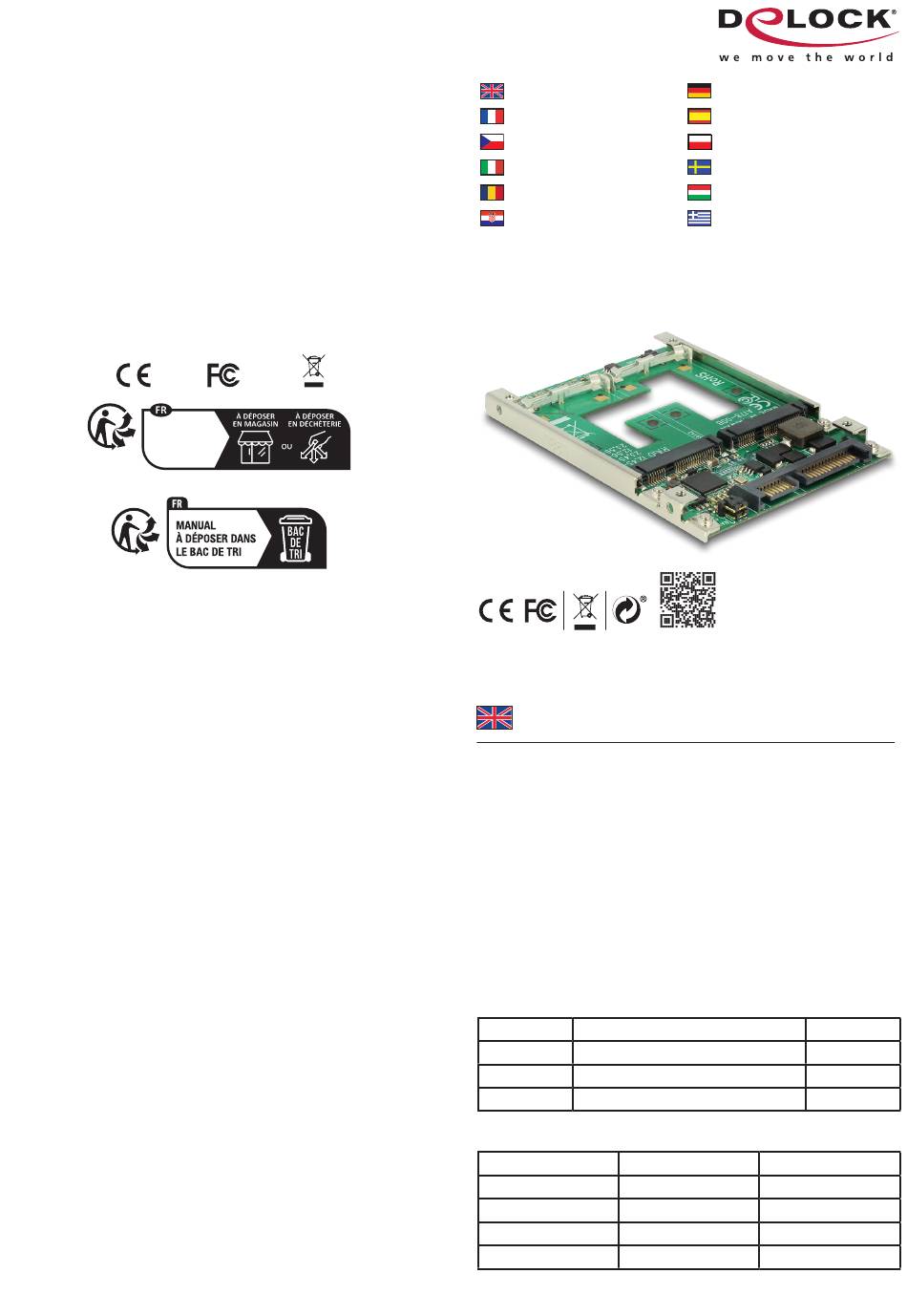

2.5" Converter SATA to mSATA
2 x mSATA with RAID
English
Description
This Delock converter enables you to connect up to two mSATA SSD which can
be used as a 2.5" HDD. The converter can be installed into your system internally
through the SATA 22 pin interface.
Technical details
• Connectors:
1 x 22 pin SATA plug
2 x mSATA slot (full size)
1 x jumper for RAID mode
• Form factor: 2.5"
• For 3.3 V mSATA module
• Also half size modules fit in
• Supports RAID 0, 1, JBOD, SPAN, Mirror
• Supports Port Multiplier (not supported for SATA 1.5 Gb/s)
• Dimensions (LxWxH): ca. 100 x 70 x 7 mm
• OS independent, no driver installation necessary
RAID Information
RAID Mode Description
R1 RAID 1, Mirror
SP SPAN, JBOD
PM Port Multiplier, RAID Initial Mode
LED Activity and fail indication
Description ACT1 & ACT2 LED
Device unplugged OFF
Device plugged ON
Device accessing Flash (ON)
Device failed OFF
Bedienungsanleitung
Manual del usuario
Instrukcja obsługi
Bruksanvisning
Használati utasítás
Εγχειρίδιο χρήστη
Product-No: 62545
User manual no: 62545-a
www.delock.com
Short Pins
2-3, 4-5
1-2, 5-6
2-3, 5-6
FAIL1 & FAIL2 LED
OFF
OFF
OFF
ON
