Summary of Contents for Artize ASU-NAW-1102A220

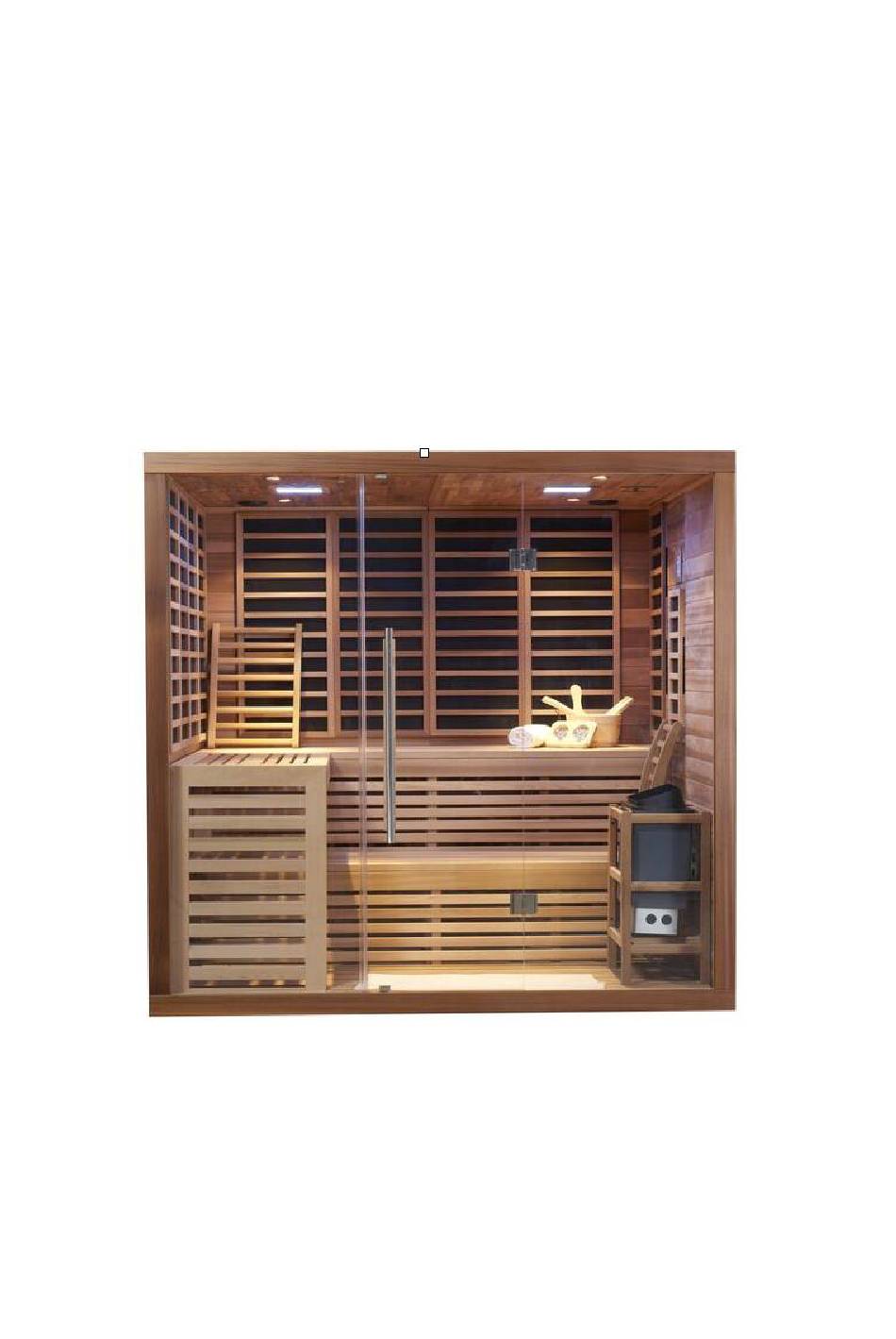

- Page 1 SAUNA OWNER’S MANUAL THIS MANUAL IS FOR MODEL ASU-NAW-1102A220 Thank you for choosing our Sauna!
- Page 2 Welcome Thank you for purchasing our sauna products, we congratulate you on your new path to better health. We are striving to become the best infrared sauna supplier in the world; our list of consumers increase daily and we believe your success is our success. We attribute this growth and success entirely to our customer satisfaction, the recognized health benefits, and the quality of our workmanship.
- Page 3 Introduction We congratulate you on your new path to better health! Thousands of users enjoy the benefits of combo sauna (infrared combine with traditional sauna) every day. Now you can enjoy the great benefits of far-infrared heat within the privacy of your own home. Please read this manual carefully and thoroughly before using an combo Sauna for the first time.
-
Page 4: Installation Requirements
Installation Requirements 1. Do not plug any other appliances into the outlet with your sauna. 2. Install the sauna on a completely level floor. 3. Do not spray the exterior with water. 4. Do not store flammable objects or chemical substances near the sauna. 5. - Page 5 Screws List 8 pieces 4 pieces……Connect the bottom beam (A1) and left/right side beam (A2+A3) of front panel, 2pcs each side 4 pieces……Connect the top beam(A4) and left/right side beam of front panel, 2pcs each side piece 1 piece……Connect the left side bench and backrest (G6) 13 pieces 5 pieces……Connect the left and right roof panel (H1+H2) 8 pieces……Connect the wooden frame for heater (Step 21)
- Page 6 Assembly Instructions Assembly of the sauna requires at least 3 adults to complete. Please read the instructions thoroughly before and during assembly to ensure proper installation of the sauna. <1> LOCATION OF SAUNA When you find a good location for your sauna, please notice the following. A.
- Page 7 <3> INSTALL THE GLASS PANELS Slide the left and right side glass panels into the left and right side beam along the grooves until they touch the bottom beam totally. <4> INSTALL THE TOP BEAM Connect the top beam to the left side and right side beam with the provided screws and make sure that the two glass panels be embedded into the groove of the top beam securely.
- Page 8 <6> INSTALL THE LEFT SIDE PANEL Connect the fie first piece left side panel to the front panel with the inside buckles. Then connect the second piece to the first left side panel also with inside buckles. <7> INSTALL THE RIGHT SIDE PANEL Connect the first piece right side panel to the front panel with the inside buckles.
- Page 9 <8> INSTALL THE BACK PANEL Connect two pieces back panels together with inside buckles and then connect the whole piece back panel to left side panel and right side panel with the outside buckles. <9> PLACE THE BOTTOM PANEL Place the bottom panel on the floor inside the sauna room and make sure it’s front side touch the front panel closely.
- Page 10 <10> INSTALL THE BENCH BAFFLE Install the bench baffle and screw it to the two side panels with the provided screws. <11> INSTALL THE SUPPORTOR Put the supportor between the back panel and bench baffle. <12> INSTALL THE BACKREST Install the backrest and screw it to the two side panels with the provided screws.
- Page 11 <13> INSTALL THE LOWER BENCH PANEL Put the lower bench panel onto the lower bench baffle and make sure they are connected by the dowels at right place. <14> PLACING THE LEFT SIDE SIPPORTER Placing the left side supportor on the rest of bottom panel. Connect the supportor and left side panel with provided screws.
- Page 12 <16> PLACING UPPER BENCH PANEL Put the upper bench panel onto the backrest and make sure they are connected by the dowels at right place. <17> PLACING SMALL BOTTOM PANEL Put the small bottom panel on the rest of bottom. <18>...
- Page 13 <19> THE MAIN POWER CONNECTION ON THE ROOF PANEL The main control box is on the roof panel. The roof panel has some small holes. Pls pull the wires that from the front/ side/ back panels through the holes of roof panel. 1.
- Page 14 <21> INSTALL THE WOODEN FRAME FOR STOVE Install the wooden frame with provided screws. <22> PUT THE STOVE IN THE SAUNAS ROOM Put the wooden frame in the right of sauna room, and then put the stove heater in the wooden frame. Pull the wire through the hole of right side panel.
- Page 15 Power on your sauna and stove heater. Turn on the radio, grab some towels, a glass of water and step into your sauna and enjoy the benefits of the sauna!! Digital Control Panel Operating Instructions 1. Power on/off Plug the main power cord into the wall outlet. Press the “On/Off”...
- Page 16 The reading lights can be turned on or off by pressing button at anytime; The square color lights can be turned on or off by pressing button, also you can use the re-mote controller to change the color of the color lights. 4.
-
Page 17: Operating Recommendations
range is 00:00-23:59. Operating Recommendations 1. Set up the desired session temperature and time using the control panel. ( suggested 100℉-130 ℉) 2. Allow approximately 10~15 minutes for the sauna to warm up before beginning a session. 3. Recommend sauna session use is around 30-45 minutes. 4. -
Page 18: Recommendations For Use
Recommendations for Use 1. To regulate the temperature inside the sauna during your session, use the roof vent or open the door to circulate the fresh air. 2. If you are still too warm, simply leave the door open until the air around you feel comfortable. 3. - Page 19 Safety Read all health and safety instructions. If in doubt as to the advisability of using your infrared sauna, consult with your physician prior to use. If you feel light-headed or heat exhaustion during session, leave the sauna immediately. 1. Read and follow all instructions carefully. 2.
-
Page 20: Important Safeguards For Your Sauna
Important Safeguards For Your Sauna 1. READ INSTRUCTIONS -- All the safety and operating instructions should be read before the sauna is installed and operated. 2. RETAIN INSTRUCTIONS -- The safety and operating instructions should be retained for future reference. 3. -
Page 21: Cleaning And Maintenance
Cleaning and Maintenance Before using your infrared sauna for the first time, clean the inside of the sauna with a damp cloth. If the smell of the sauna is strong at first, that is normal and please open the door while the sauna is working. The smell will diminish within a weekend. -
Page 22: Troubleshooting Guide
Troubleshooting Guide Problems Explanations Solutions 1.Check for power to the outlet. Power cord is not plugged-in 2. Check connection between power Power indicator cord and main control unit. light not on The fuse is burned out Check or replace the fuse. The corresponding indicator light is Repair or replace the control broken or burned out. - Page 23 Warranty One-year limited warranty on electrical, heater and cabinetry. THIS UNIT IS MEANT FOR INDOOR USE ONLY. WARRANTY IS VOIDED IF OUR INFRARED SAUNA IS PLACED IN AN OUTDOOR ENVIRONMENT. Limited warranty on our Infrared Sauna replacement parts. We warrant our products to be free of defects in material and workmanship.
- Page 24 Infrared Sauna Warranty Card Please register your product to receive a full warranty. Please fill out the following information and mail the form to your local dealer within 30 days from the date of purchase: First Name: _________________________ Last Name: __________________________ Home Address: __________________________________________________________ City _______________________________________State__________ Zip__________ Phone: ______________________________ Fax: _________________________...
