Netrixx Installation and Wiring Instructions
Package Contents Checklist
☐ Netrixx LED Display (1)
☐ Ethernet Cable, 10ft (1)
☐ 5VDC Power Supply (1)
☐ WAGO Connectors (2)
☐ Power Wire with Circular Connector (1)
☐ USB-A to USB-B Cable (1)
☐ Netrixx User Manual (1)
☐ This Installation Guide
Product Overview
The Linortek Netrixx LED display is a versatile visual
messaging system that can:
- Operate as a standalone device
- Integrate with Linortek Netbell series for automated
alerts
- Display count-down/count-up timers
- Use as a large digital clock
Installation Steps
Step 1: Physical Mounting
- Select an appropriate indoor mounting location
- For drywall installation:
o Use drywall anchors rated for minimum 10
pounds
o Mark mounting points using the two tabs on
top of frame
o Install anchors according to manufacturer
specifications
o Verify secure mounting before proceeding

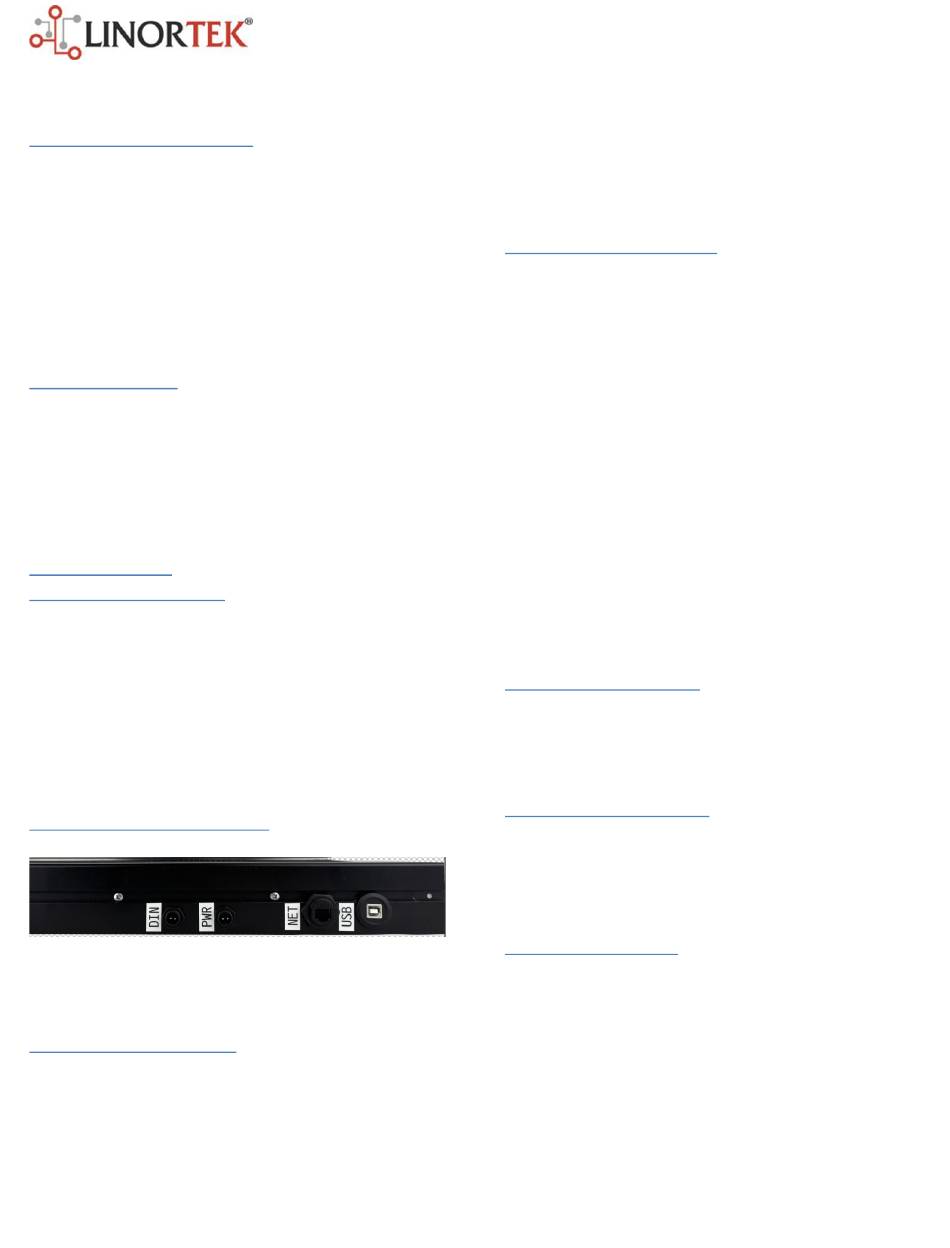

Step 2: Connector Identification
The Netrixx has four connectors (left to right):
- Digital Input (DIN) - External device integration
- Power (PWR) - 5VDC power input
- Ethernet (NET) - Network connector
- USB - Configuration interface
Step 3: Initial Configuration
NOTE: Current version supports USB configuration
only. Network configuration will be available in future
updates.
- Connect the provided USB cable:
1
o Plug the USB-B end (square-shaped connector)
into the USB port on Netrixx display
o Plug the USB-A end (flat rectangular connector)
into any available USB port on your PC
- Install Netrixx Writer desktop application
- Complete initial configuration through the Netrixx
Writer app
Step 4: Network Connection
- Connect one side of the Ethernet cable to the ETH
port on Netrixx display
- The other side of the cable to an available port on
your network switch/router
-
The display will obtain IP address via DHCP
To find the display's IP address:
Method A: Using Netrixx Writer
- Open Netrixx Writer application
- Click "Quick Commands" button
- Select "Display IP Address"
-
IP address will appear on LED display
Method B: Using IP Scanner
- Download IP scanner from:
https://angryip.org/download/#windows
- Scan your network
-
Look for device with Port 8080 (no hostname)
TIP: Consider setting up DHCP reservation on your
router for consistent IP addressing
Step 5: Power Connection
- Connect the provided power supply to PWR port
- Plug power supply into AC outlet
WARNING: Use ONLY the provided 5VDC power
supply. Incorrect voltage will damage the LED display.
Step 6: Startup Verification
After power connection, the display will show:
- With network connection: Shows current time in
EST (HH:MM:SS)
- Without network connection: Shows 00:00:00
(HH:MM:SS)
Troubleshooting Guide
- Display Not Powering On
o Verify power supply connection
o Check AC outlet functionality
- No Network Connection
o Confirm Ethernet cable connections
o Verify network switch/router operation
o Check IP address assignment
- Can't Configure the Display from Writer
o Ensure USB cable is properly connected
o Verify Netrixx Writer software installation
