Summary of Contents for Airtecnics ADVANCED PRO RJ11

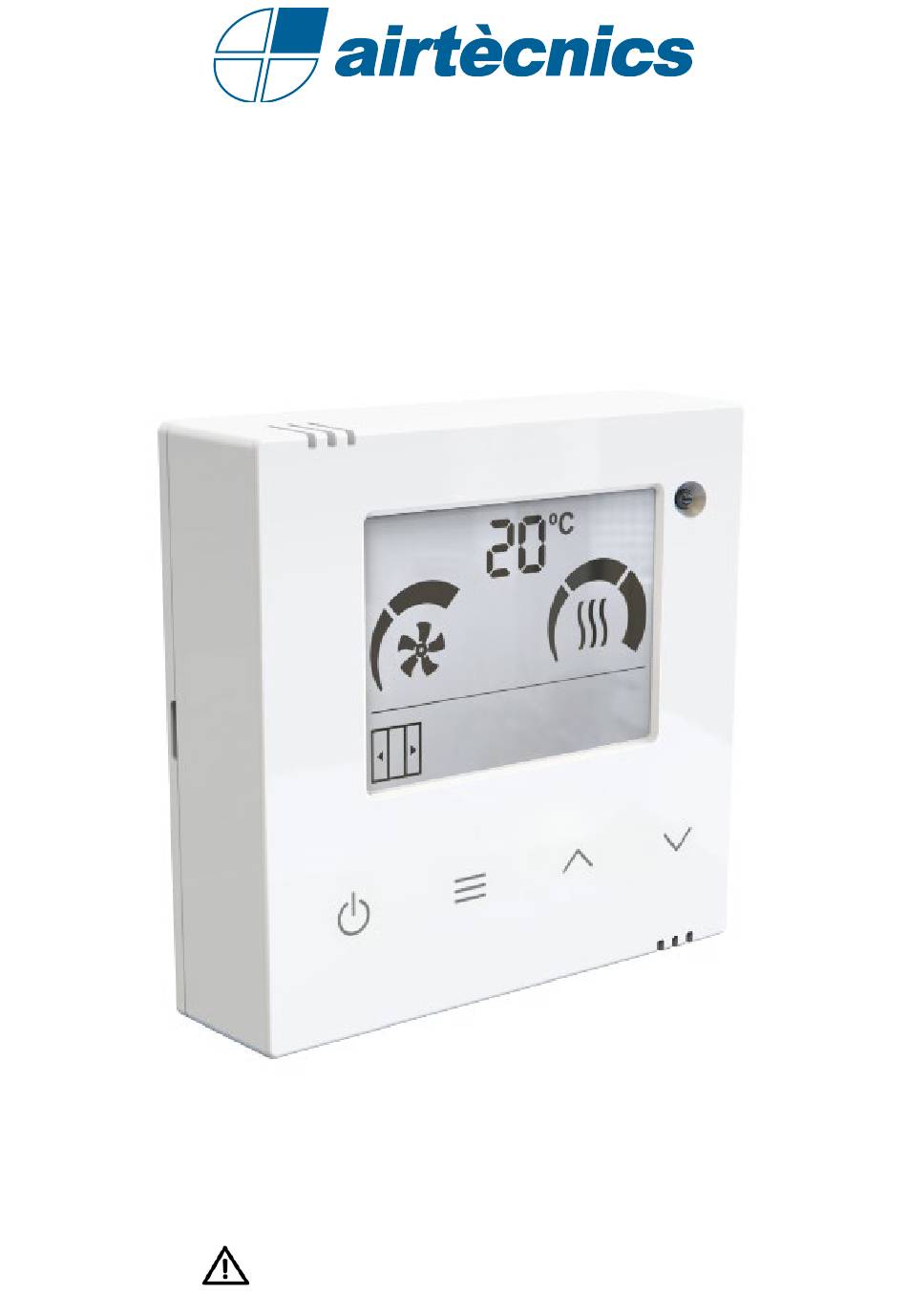

- Page 1 ADVANCED PRO RJ11 Control INSTALLATION AND OPERATION MANUAL ¡Attention, Do not switch on the device without the cover on!
-
Page 2: Table Of Contents
INDEX 1. INTRODUCTION .........................3 1.1. Description ...........................3 1.2. Main Features ........................3 1.3. Screen and Buttons ......................3 2. USER FUNCTIONING .........................4 2.1. Parameter Variables ......................4 2.2. Device Initialization ......................5 2.3. LCD User Menu Workflow ....................6 2.4. Control Locking ........................10 3. COOLING, AUTOCOOLING, EXTERNAL CONTROL AND BOOST FUNCTION ..... 11 4. -
Page 3: Introduction
Once connected, it will detect the model of the air curtain and configure itself automatically (number of spe- eds and type of heating). The ADVANCED PRO RJ11 control allows the selection of different speeds and heating stages for door open and door closed. -
Page 4: User Functioning
2. USER FUNCTIONING 2.1. Parameter Variables The display will know what functional limits exists and will only show the parameters that we can modify. - Temperature SET: the desired temperature can be set between 10ºC and 35ºC. Below 10ºC and above 35ºC, you can select “no”... -
Page 5: Device Initialization
2.2. Device Initialization When the control is powered, the display will show the firmware version and subversion, the input/output program it is working on and how many PCBs are connected to the control. Example: Displays show with a V01.02 version, a P1 configuration of inputs/outputs and 2 PCBs connected. Space between version and sub- ADVANCED PRO version: 01 version. -
Page 6: Lcd User Menu Workflow
2.3. LCD User Menu Workflow Once the control has been initialised, the user can select the ventilation speeds and heating stages at which the air curtain is wanted to operate. To do this, the user may follow the diagram below: Menu Flow for Only Air (Non-heated) models: Fan Speed Menu... - Page 7 Menu Flow for heated air curtains models (it’s the same process for electric heated, water heated or heat pump units) with CD control: Fan Speed Menu Configuration (Only if it is turned off) OPEN DOOR (*) Flashing ON When turn on the unit or power supply is restored: if memory is ON, it will return to the configura- tion it had before turn off or exter-...
- Page 8 Heating Heating Menu Configuration Configuration (To validate) OPEN DOOR (*) CLOSED DOOR (*) Flashing ON Flashing ON Menu Temperature Menu (To validate) (To validate) Flashing ON (*) If the door contact is not detected, the door open and door closed icons will not appear. Only one speed and one heating will be available.
- Page 9 Fast access for temperature setting (only for heated models): Up/Down Temperature Set (Only if it is turned off) Flashing ON When turn on the unit or power supply is restored: if memory is ON, it will return to the configura- tion it had before turn off or exter- nal incident (power supply fail).
-
Page 10: Control Locking
2.4. Control Locking The control can be locked, but the air curtain will still operate normally. To lock the device, the user needs to press the following key combination: Beep hold down MENU ON/OF DOWN ON/OFF Hold down the menu button until the beep sounds and press the ON/OFF button 4 times and release the MENU button. -
Page 11: Cooling, Autocooling, External Control And Boost Function
3. COOLING, AUTOCOOLING, EXTERNAL CONTROL AND BOOST FUNCTION Cooling: When the discharge (or internal sensor on 5-speed PCB) temperature is lower than the ambient temperature, Cooling mode starts working and limits to the third fan speed. The fan icon will flash intermittently. Flashing ON Autocooling: Autocooling is only available for Electric heating. -
Page 12: Alarms And Errors
4. ALARMS AND ERRORS To indicate an alarm (A) or an error (E), it will be displayed with a letter and a number in the same place as the temperature. 4.1. Alarms Alarms will remain fixed on the display because it affects to the device functioning. A2 - Heating Blocked (only electrical heated) A1 - Overheating (only electrical heated) Flashing ON... -
Page 13: Errors
4.2. Errors Errors will not remain on the display, they will alternate with the ambient temperature. Unit operation remains working normal or adapted. E1 - Filter/maintenance E2 - Missing device One of the working units is not found. Indicates filter change or cleaning / Please consult service to check the maintenance. -
Page 14: Configuration
5. CONFIGURATION To access the advanced menu, hold down the menu button (until a beep is heard) then press the DOWN button 4 times and release the MENU button. Beep hold down ON/OFF MENU DOWN 1- Door Delay (0,5,10...90)(seconds) 2- Maximum speed (limit) 3- Maximum speed (limit) 4- Maximum heating (limit) 15 sec by default... -
Page 15: Input/Output Configuration
6. INPUT/OUTPUT CONFIGURATION Depending on the operating program, change the configuration of the PCB and LCD inputs and outputs. P1 - Only Air P1 - Electrical Heating, Water and CD Digital Input: Digital Input: DIN1 - OFF DIN1 - OFF DIN2 - n/a DIN2 - Heating OFF DIN3 - Fire Alarm... - Page 16 Conca de Barberà, 6 - Pol. Ind. Pla de la Bruguera E-08211 Castellar del Vallès (Barcelona) Spain ☏ + 34 93 715 99 88 airtecnics@airtecnics.com www.airtecnics.com AIRDOM05800-R3(04/25) ORIGINAL USER MANUAL Airtècnics reserves the right to modify some of the specifications in this manual.
