ACC910
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACC910 and is the answer not in the manual?

Questions and answers

Related Manuals for Acer ACC910

Summary of Contents for Acer ACC910

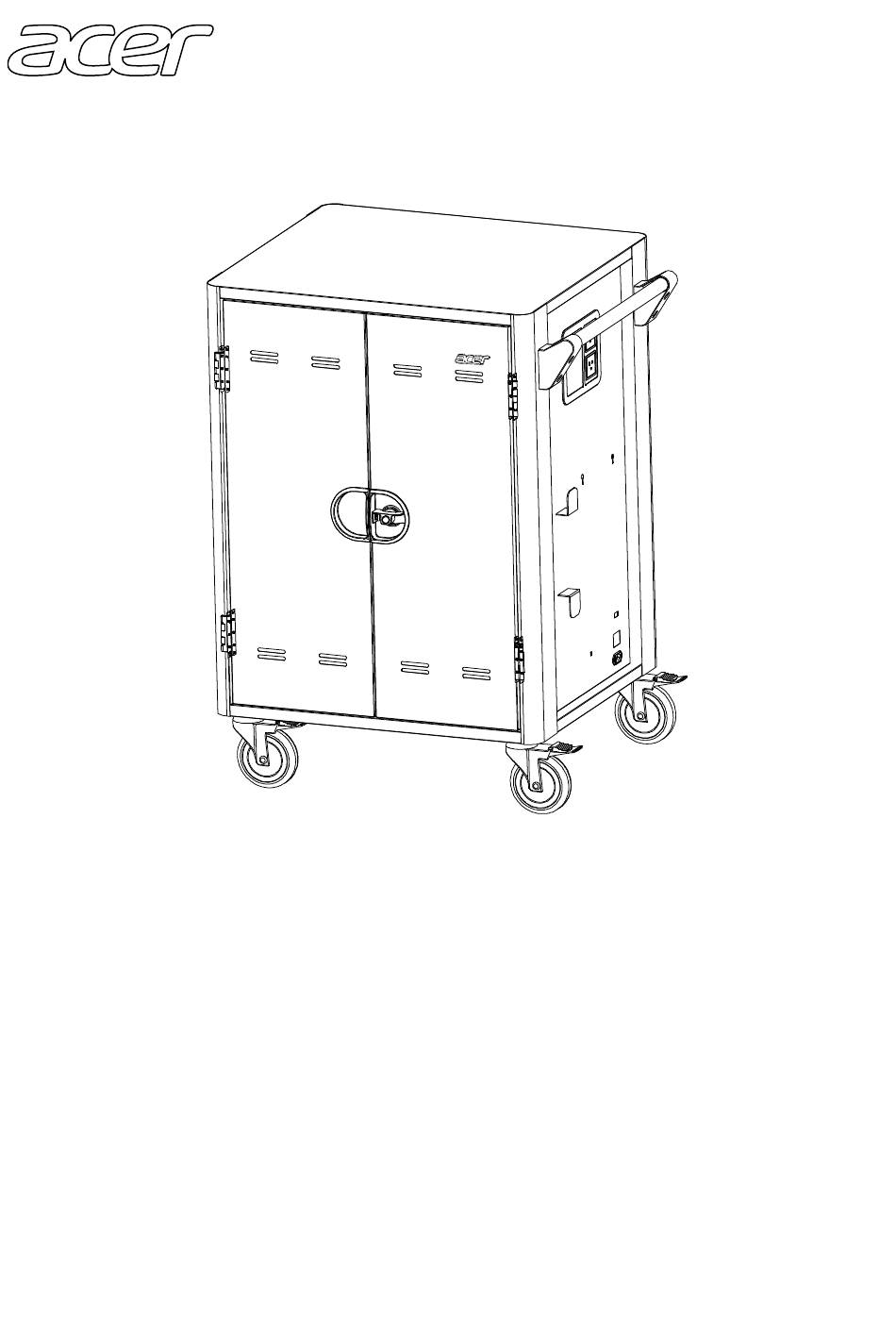

  • Page 1       ACC910 User Manual...
  • Page 2 WARNING AVERTISSEMENT ALWAYS FOLLOW SAFETY PRECAUTIONS RESPECTEZ TOUJOURS LES CONSIGNES DE SÉCURITÉ    Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
  • Page 3 To reduce risk of electric shock ONLY use indoors. Pour réduire le risque de décharge électrique, n’utilisez le chariot QU’À L’INTÉRIEUR.   NEVER climb, sit ONLY ADULTS should or stand on the cart. move the cart. Personne ne doit s'asseoir, Le chariot ne doit être déplacé...
  • Page 4 CAUTION   DO NOT allow anyone to sit, stand or climb on the cart.   DO NOT lift the cart.  DO NOT block the ventilation holes used for air circulation.  DO NOT overload objects on the cart shelves. (work platform maximum loading = 20kg / 44.1lbs;...
  • Page 5 FCC NOTICE (Class A) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Federal Communications Commission Statement NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 6 COPYRIGHT ©2019 Acer Inc. All rights reserved. All rights of this object belong to Acer Inc. Reproduced or transmitted in any form or by any means without the prior written permission of Acer Inc. is prohibited. All information or specifications are subject to change without prior notice.

  • Page 7: Table Of Contents

    Contents   Package Contents ....................1  Dimensions ......................1  Diagram ........................ 2  LED Indicators ...................... 3  Secure the Cart ..................... 5  Door Lock ......................4  Cable Management ....................6  Charging Cart ....................... 8  Intelligent Timer ....................9  Firmware ....................... 9  Troubleshooting ....................

  • Page 8: Package Contents

    Package Contents The following items are included in the package. Please check if each item is available before using. Door key x4 User Manual Power Cord ACC910 Dimensions 790.8mm(31.13") 634.2mm(24.97")

  • Page 9: Diagram

    Diagram   Front Side Back 7. Auxiliary outlets 14. Ventilation holes 1. Work platform 2. Handle 8. LED panel 15. Door lock 16. Security hook 3. Ventilation holes 9. Power cable wrap 4. Door lock brackets 5. 5" locking caster 10.

  • Page 10: Led Indicators

    LED Indicators Status ACC910 1. Solid Green: ON 2. Flashing Orange/ Red: Power x1 Abnormal situation ( please check below table for details ) 1. OFF: No Charging Device Status x3 2. Solid Blue: Charging Status Description Flashing Green and...

  • Page 11: Door Lock

    Door Lock  Unlock the door Use key to unlock the door. The number on the key must match the number on the door lock     Turn the door lock to vertical position to open the door.    Lock the door To lock the door, close the door and turn the door lock back to horizontal position.

  • Page 12: Secure The Cart

    Secure the Cart...

  • Page 13: Cable Management

    Cable Management [Note] 1. It is recommended to use cable ties (optional) to secure and manage cables. 2. It is recommended to allocate 2 persons for efficient device cabling. Back  DC-end cable AC-end cable 1. Open the rear door. 2. Place the power adapter in to the individual adapter compartment. 3.
  • Page 14 Front 1. Open front double doors 2. Pull out each shelf until it is fully extended. 180°   3. Release the cable clamp by pulling locking feature (A). 4. Route the adaptor DC-end cable. Along with the V-shape routing groove.  ...

  • Page 15: Charging Cart

    Charging Cart Wall outlet Connect power cord to the cart and wall outlet Set the power switch to “ON” to begin charging   [Note] 1. Set the power switch to the OFF position before plugging the cart to wall outlet. 2.* Auxiliary outlet and power inlet type may vary as they are country dependent.

  • Page 16: Intelligent Timer

    Intelligent Timer 36 bays for ACC910 are divided into 3 zones (12 bays for each zone). Zone 1 Zone 2 Zone 3 Firmware Firmware can be upgraded with typical USB thumb drive via with external Type-A USB port. Please follow the steps below to upgrade your firmware: 1.

  • Page 17: Troubleshooting

    GREEN ORANGE in cycle, and the device charging status LED will always turn ON (Solid Blue). 6. Turn OFF ACC910, remove the USB thumb-drive. [Note] ACC910 supports USB thumb-drive for the following criteria: 1. FAT or FAT32 filesystem (need to format if necessary).

  • Page 18: Specifications

    Specifications Model ACC910 Capacity 36 (three shelves, 12 bays per shelf) Supported Devices Mobile devices up to 15" AUX Outlets Power LED: Green LEDs Status Indicators Status LED (x3): Solid Blue: Charging AC Adaptive Intelligent Charging Charging Type AC IN: 100~120V, 50/60Hz,12A...
  • Page 19 Model ACC910 Cart Dimensions 790.8 (W) x 634.2 (D) x 1070.5 (H) mm 31.13”(W) x 24.97”(D) x 42.15”(H) (W x D x H) Slot Dimensions 36(W)x 380(D) x 260(H) mm (W x D x H) 1.42”(W) x 14.96”(D) x 10.24”(H) Weight without Devices 80 Kg (176.38lbs)

  • Page 20: Service And Warranty

    If you need further clarifications, we can be contacted by the following ways: Service Website: http://www.acersupport.com Service Phone Number: 866-695-2237 (United States) 866-706-2237 (Canada) Or you can contact Acer service center: Centro Nacional de Servicio Acer México Av. Ejército Nacional No.579 Piso 1 Colonia Granada C.P. 11520 México, Ciudad de México.
  • Page 21 Urb. Alexander Von Humbolt Miraflores – Lima – Perú Tel: 0800-54495 www.acer.com www.highservice.com.pe Centro Nacional de Servicio Acer Costa Rica Sauter Infomax Calle 11, entre Ave.Central y Segunda Edif. Bellavista, 2° Piso San José - Costa Rica. 13243 Tel: (506) 258-5280 www.acer.com...
  • Page 22 Centro Nacional de Servicio Acer Nicaragua STG / Soporte Técnico Global Nicaragua S.A. Km 4.5 Carretera a Masaya Frente a edificio Pellas Managua, Nicaragua Tels:(505) 2277-5889 www.acer.com Centro Nacional de Servicio Acer Honduras Centro Autorizado de Servicios S.de R.L. Blvd. Sta.Cristina, Edificio HCT.
  • Page 23 Centro Nacional de Servicio Acer Venezuela TecnoAsist C.A. Centro Comercial Caurimare Mezzanina, Local 33 Urb.Caurimare, El Cafetal Caracas – Venezuela Tels: (58-212) 987-7223 / 985-6990 www.acer.com Centro Nacional de Servicio Acer Ecuador Cosideco LTDA Av. 6 de Diciembre N31-89 y Whimper...
  • Page 24 Centro Nacional de Servicio Acer El Salvador Profesionales en Computación SA de CV Calle y Colonia Roma Núm.189 San Salvador - El Salvador. Tel:(503) 2298-6499 www.acer.com www.profcomp.com Centro Nacional de Servicio Acer República Dominicana Techcomm Wireless Avenida Rómulo Betancur Num.1310 Bella Vista, República Dominicana - Santo Domingo...
