MODEL:GT404
PRODUCT SIZE(LxWxH):406x406x272cm
PLEASE READ CAREFULLY BEFORE ASSEMBLY
Assembly Instructions
AL No.1
AL No.2
1PKG
1PKG
1PKG
1PKG
1PKG
1PKG
1PKG
1PKG
etc.
etc.
Packing List
AL No.3
AL No.4
1PKG
1PKG
1PKG
2PKGS
1PKG
3PKGS
1PKG
4PKGS
etc.
etc.
PC Roof 1 &
AL No.5
Glass Wall 1
1&1PKG
1PKG
1&1PKG 1&1PKG
2PKGS
1&1PKG
3PKGS
1&1PKG
4PKGS
etc.
etc.
PC Roof 2 &
Glass Wall 2
2&2PKGS
3&3PKGS
etc.
Advertisement
Related Manuals for AVERTO GT404
Summary of Contents for AVERTO GT404

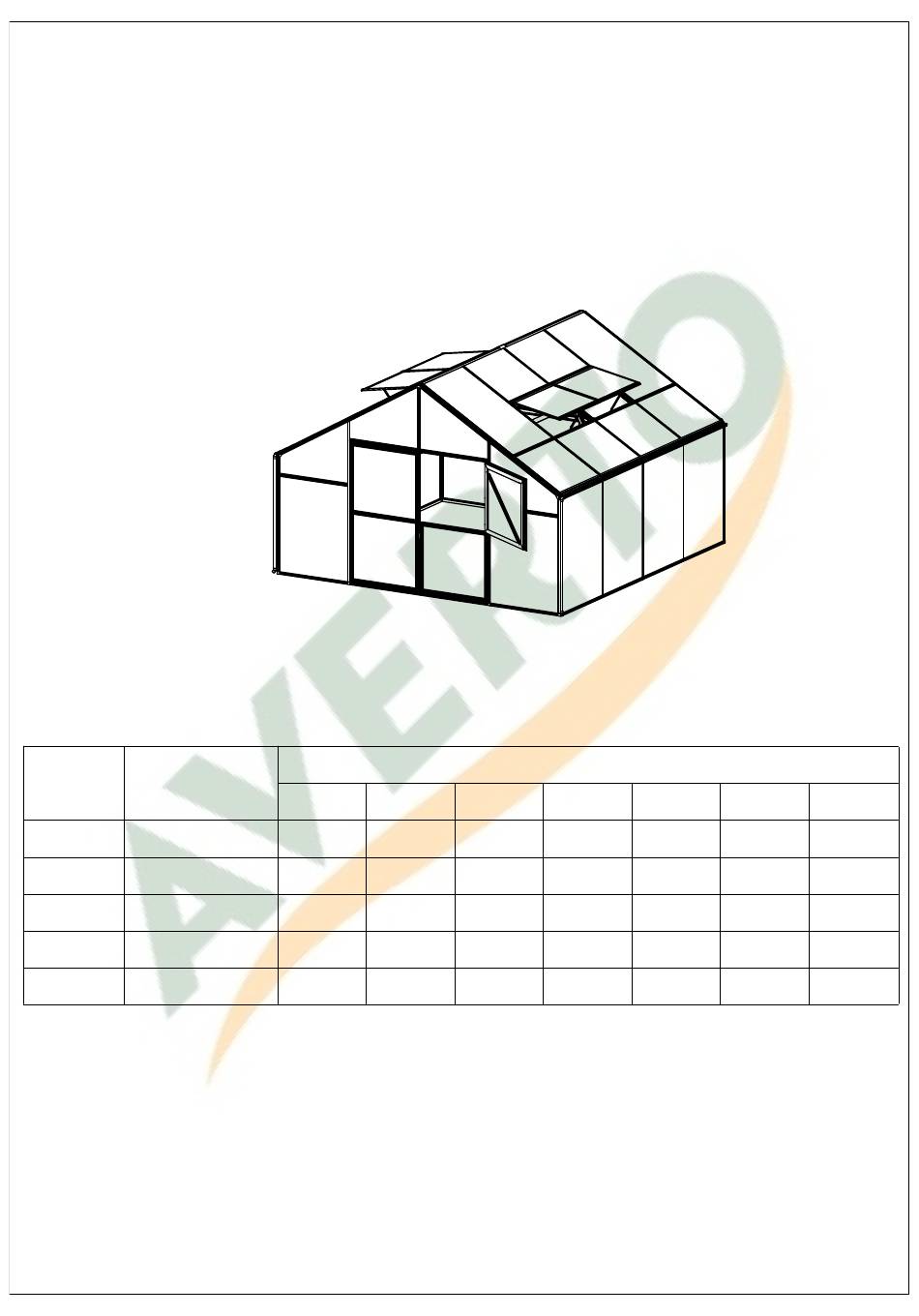

- Page 1 PC Roof 1 & (L*W*H) AL No.1 AL No.2 AL No.3 AL No.4 AL No.5 Glass Wall 1 Glass Wall 2 1&1PKG 1PKG 1PKG 1PKG 1PKG 1PKG GT404 406*406*272CM 1&1PKG 1&1PKG 1PKG 1PKG 1PKG GT406 606*406*272CM 2PKGS 2PKGS 1PKG 1PKG 1&1PKG 2&2PKGS 1PKG...
- Page 2 Assembly and Maintenance Advice 1. For safety purposes, we strongly recommend that this product is assembled by at least two people. 2. Some components have sharp metal edges. Please be careful when handling metal components. Please wear gloves, shoes and safety goggles during assembly. 3.
- Page 3 4. The greenhouse can be easily extended at any stage in 2m long sections as detailed in the table of Front Page. 5. Base anchor brackets are included as standard with expanding bolts to ensure a secure fixing into concrete or paving. Alternatively, you can use the brackets to fix into a timber base with wood screws (not provided).
- Page 4 GT404 (ALU. BOX NO. 1) PART L01B L01C L02B L02D L03C L03D L03E L03F L03B L06B L07B L08B L09B...
- Page 5 GT404 (ALU. BOX NO. 2) PART PART L01A H152 L01D L01E D47-1 L02A M4X50 L05B L16A L16B L16C L16D L16E L16F L16G L16H L18A L18B L18C L23A...
- Page 6 GT404 (ALU. BOX NO. 3) PART PART PART L02C L04A J53R L04B J53L L05A L08A L15A L19A M6X12 Cross Screwdriver x 1 M4X10 Open Ended Spanner x 1 M8X60 M4.2X16 Ø4X16D M4.8X16 Socket Spanner x 1...
- Page 7 GT404 / GT4-2EXT. (ALU. BOX NO. 4) PART L02B L11B L05B L05E L06B L07B L08B L09B...
- Page 8 GT404 / GT4-2EXT. (ALU. BOX NO. 5) PART PART L02A L11A L04A L15A L19A D129 M6X10 M4X10 M8X60 M4.2X16 Ø4X16D...
- Page 9 GT404 PC Roof & Glass Wall 1 PART PART NO J108 105M Rubber for walls only (Provided for Glass Panels only) Glass Wall No. 1 PART PC Roof No. 1...
- Page 10 GT4-2EXT. PC Roof & Glass Wall 2 PART NO PART NO J108 15.7M Rubber for walls only (Provided for Glass Panels only) Glass Wall No. 2 PART NO PC Roof No. 2...
- Page 11 10mm Expansion screw/Concrete ground It is essential the dimensions a + b are the same to ensure the base is square. Support at the corners only is inadequate.
- Page 12 GT404 (4 x 4M) Back Assembly Front Assemby 4 Section Assemby Dim/Model GT404 GT406 GT408 GT410 GT412 GT414 etc. (mm) 4064.6 4064.6 4064.6 4064.6 4064.6 4064.6 (mm) 4064.6 6068.6 8072.6 10076.6 14084.6 12080.6 (mm) 9038.1 5748.2 7304 10865.5 12746 14659.4 (mm) 10748.5...
- Page 13 GT404 + GT4-2EXT. KIT (6 x 4M) Back Assembly Front Assemby GT4-2EXT. KIT GT404 *The basic model, GT404, can be easily extended by adding a '2 section Assembly' each time for a longer size.
- Page 14 PART M8X60 1000 1000 1000 1000 1000 Front Back GT4-2EXT. KIT GT4XX * This shows a layout for D07's positions where it is placed in the middle of the glazing panel for each section.
- Page 15 PART NO Door-L Assembly L18C Insert Connector D77 into each end of the profiles L16A & L16G & L16H & L18C. L16A L16G L16G L16H L23A M5X12 L23A L18C M6X12 L16A M4.2X16 L23A L16H 20MM 30MM Then mark the distance from each end about 20/30MM. Lastly, secure them with screws Z08 using the powered screw-driver.
- Page 16 PART NO Door-R1 Assembly Insert Connector D77 into each end of L18A the profiles L16B & L16D & L16E & L18A, and then mark the distance L18B from each end about 20/30MM. L16B Lastly, secure them with screws Z08 using the powered screw-driver. L16C 20MM L16D...
- Page 17 Door-R2 Assembly 20MM 30MM Insert Connector D77 into each end of the profiles L16C & L16F & L18A & L18B, and then mark the distance from each end about 20/30MM. Lastly, secure them with screws Z08 using the powered screw-driver. L18B L18A L16F...
- Page 18 PART H152 H152 D47-1 M4X50 L16F Extenal view Once the doors are completed, insert D47-1 into the lock hole of L16F to install H152. Make sure the latch of H152-1 faces towards the edge of L16F, then align the square holes of H152-1/2 with D47-1 before the final assembly. Lastly, use S77 to secure them firmly and put on the plastic caps.
- Page 19 PART QTY. Window Assembly L15A L19A L15A L19A M4 X10 M4.2X16 Ø4X14D L19A...
- Page 20 Slide the whole vent into the groove of L10, leaving each side of L15 11MM longer than L10. Then secure L15A onto L10 using Z08, 100MM distance from each end of L15A. L15A Slide 2 x A01 window arms into L21, 100MM distance from each end of L21.
- Page 21 PART NO L08A L08B L08B L08B L08A L08A L08A L08B L08B L08A L08B L08A L08B L08A...
- Page 22 PART NO L01A L01D L01E L01A L02D L01A L03C L03D L01D L03E L01E L03F M6X10 L02D L03C L03D L03E L03F L03C/D/E/F L02D L08A/B L08A/B...
- Page 23 Insert the cap J95 into one end of each L05A & B as shown below. PART NO L11A L05A/B L05A L05B L07B L05B L05B M6X10 L05A L05A L05A/B L05B L05B L05B L05B Screw the upper holes of L05A & B onto each profile using bolts & nuts, leaving the underneath holes for the later assembly of L04B.
- Page 24 PART NO Insert the panel Y5 into the channel of the profiles as shown. L04B M6X10 Install each L04B through the underneath holes of each L05A & B using S05 & M03. L04B L04B L04B L04B L04B...
- Page 25 PART NO L05B L02A L02A L02A M6X10 L02A L02A L02A L05B L05B L05B Insert the cap J95 into one end of each L05B as shown on figure 4. L11A L02A L05B L05B L05B L05B L05B...
- Page 26 PART NO L02C L03B Insert the panel Y6 into the channel of the profiles as shown. M6X10 L02C L03B L02C L03B L03B...
- Page 27 PART NO Insert the related panels as shown. L01B L01C L11B M6X10 L01C L01B L11B L01B L11B L01C L01B/C L11B L01B L11B L01C L01B/C L01B/C L11B L07B L07B L11A *Bolt L01B & C onto L03C & D & E & F through the below hole only. L03C/D/E/F...
- Page 28 PART NO L02B L06B L06B M6X10 L11B L06B L06B L06B L06B L11B L02B L02B L07B L06B L02B...
- Page 29 PART NO L05E D129 M4.2X16 D129 M6X12 D129 L05E When installing the L05E before tightening the nuts and bolts, push up fromunder the ridge near the join to ensure the entire ridge is straight. L05E L05E L05E L05E L06B L05E...
- Page 30 PART WINDOW L05B L05B M6X10 L05B Insert the cap J95 into one end of each L05B as shown on figure 2 L05B L11B L05B L05B L05B L05B Use Silicone to avoid leaking (not provided). L02B L05B Face up 2*S05 L02B/L11B...
- Page 31 PART NO L04A M6X10 Insert the panel Y8 as shown. L04A L04A 2*S05 L04A L04A...
- Page 32 PART NO L04A M6X10 L04A 6*S05 L04A L04A Face down S05 M03 Place A03 & A04 to a proper position that can lock with A01, then secure them using bolts & nuts. L04A L04A S28/M02 L04A S05/M03 This shows how to install Automatic Opener.
- Page 33 PART NO Once L04A & L10 are in place. Use Silicone to avoid leaking (not provided). Insert the panel Y7 as shown.
- Page 34 L09B M4.8X16 M5X12 M6X12 L09B L09B L09B DOOR-R1 DOOR-L DOOR-R2 Once all panels are in place. Then tap each L09B gently into the groove of each L07B with a rubber mallet. L09B L07B...
- Page 35 PART NO J53R J53L M4.2X16 Ø4X16D J53R/L To avoid leaking, using silicone Drill one hole on each L01A & D & E approx 700mm up from the bottom, Dia. 3.2mm, on J53R / L, J93, J94 and L30. then tighten J92 with Z08, and push L30 into the channel of J92 as shown above.
