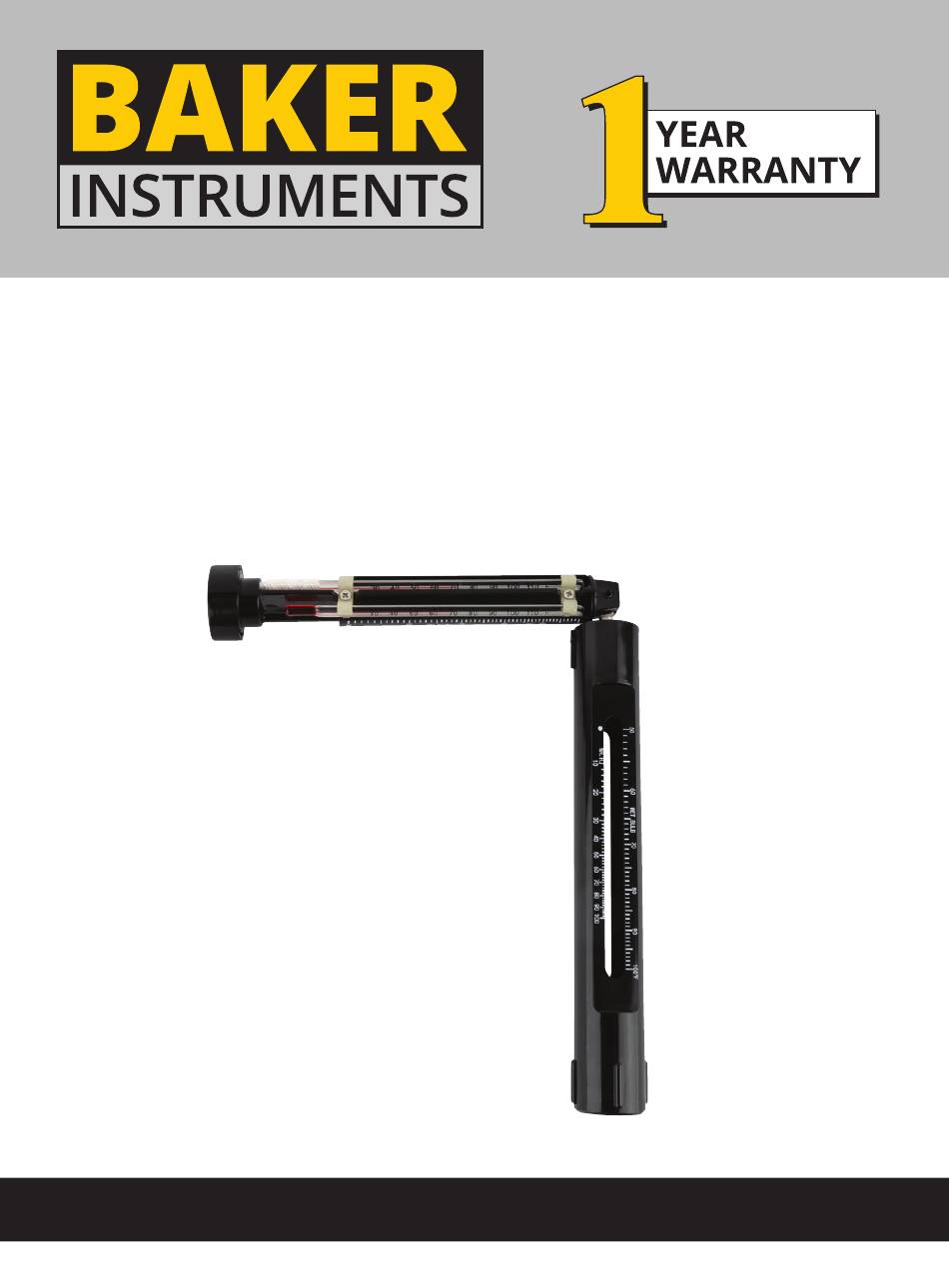

- Page 1 B6040 Model Sling Psychrometer, Fahrenheit Scale Instruction Manual www.Baker-Instruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Care and Maintenance ..............8 Accessories and Replacement Parts ..........8 Introduction Thank you for purchasing your BAKER B6040 Sling Psychrometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your product will provide years of reliable service. -
Page 3: Features
Features • Foldable design allows for portability • Durable metal hinge ensures long-lasting use • Converts wet and dry bulb readings into relative humidity without needing external tables • Built-in water reservoir holds enough water for several hours of testing •... -
Page 4: Instrument Description
Instrument Description 1. End Cap 2. Thermometer Clips 3. Psychrometer Body 4. Dry Bulb Thermomete 5. Tube 6. Roll Pin 7. Screws 8. Wet Bulb Thermometer 9. Wick www.Baker-Instruments.com GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 5: Operating Instructions
Operating Instructions 1. Saturating the Wick: To ensure the WICK is thoroughly saturated and properly covers the red spirit reservoir on the WET BULB THERMOMETER, remove the END CAP and immerse the PSYCHROMETER BODY into water, submerging it up to the thermometer reservoirs until the WICK is fully soaked. - Page 6 4. Whirling the Psychrometer: While holding the TUBE, spin the BODY at a rate of two to three revolutions per second (approximately 120 to 180 RPM). 5. Stabilizing the Temperature: Continue whirling the psychrometer for approximately 90 seconds or until the temperatures stabilize. 6.
-
Page 7: Applications
Applications • Ensure consistent environmental conditions in laboratories • Track humidity levels in healthcare facilities to maintain safe environments • Monitor temperature and humidity to maintain product quality and manufacturing conditions • Safeguard the wellbeing of athletes by measuring environmental conditions during indoor and outdoor activities Application Notes Always read the wet-bulb temperature first and as quickly as possible... -
Page 8: Care And Maintenance
Care and Maintenance Keep the wick clean. when it becomes dirty, trim the wick just below the wet bulb thermometer, and pull a clean section from the end cap to slide over the wet bulb. A wick replacement kit is available for purchase (refer to the parts list).
