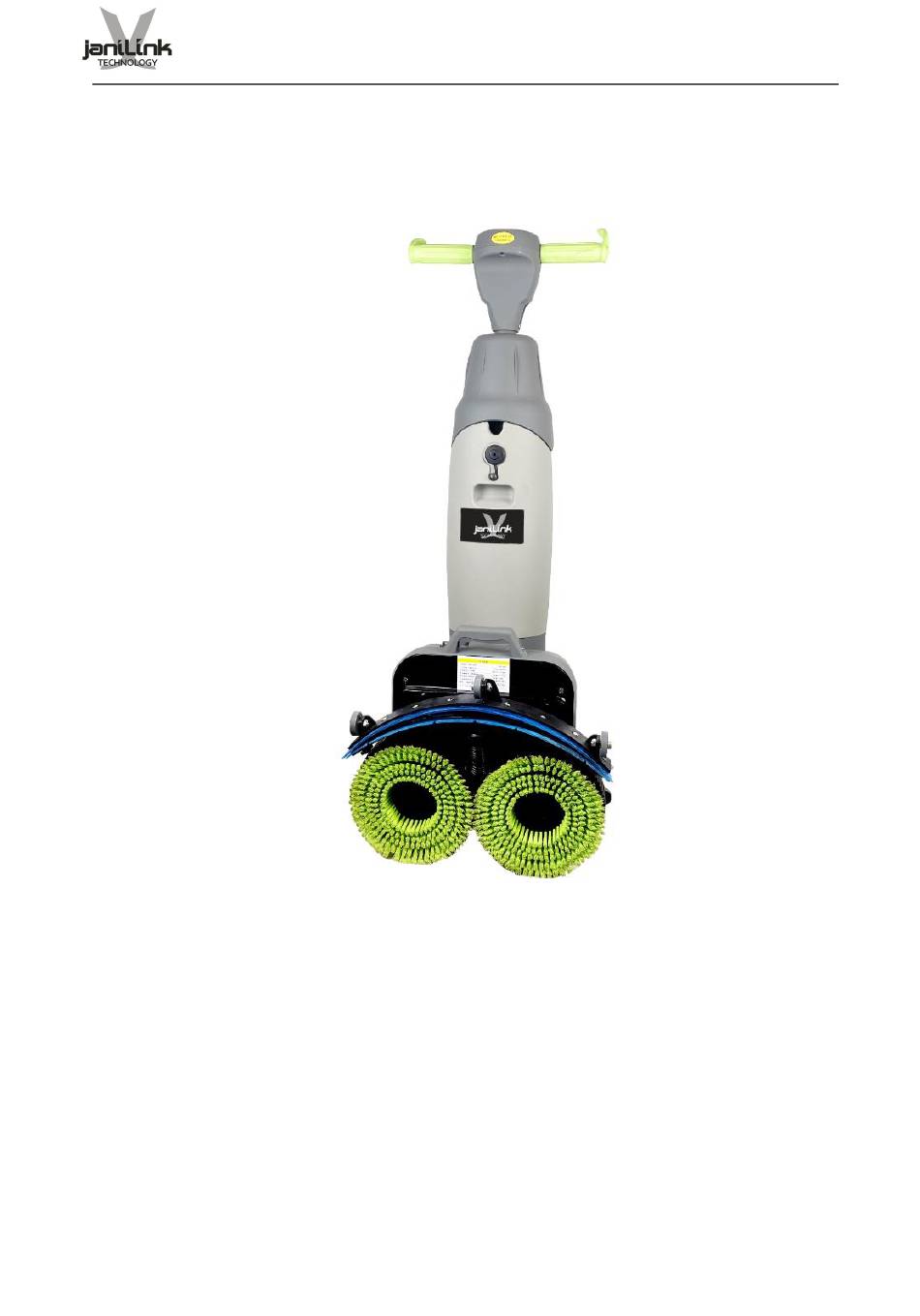

- Page 1 U-mop Pro JL100H Mini Auto Floor Scrubber User Manual 1 / 20...
-
Page 2: Table Of Contents
U-mop Pro JL100H TABLE OF CONTENTS Preface ......................3 Readingguide ....................4 Introduction ..................... 5 Specifications ....................6 Warranty ......................7 Description ....................... 7 Safety ......................... 8 Operation......................9 At the job site ....................13 Cleaning and storage..................15 Maintenance .................... -
Page 3: Preface
U-mop Pro JL100H Preface Thank you for choosing our mini electric-Scrubber, the industrial auto cleaning machine that cleans faster, cleaner, safer, greener and is better for everyone. The compact design allows you to clean right to the edge and under obstacles, minimizing manual scrubbing. -
Page 4: Readingguide
U-mop Pro JL100H Reading Guide The following symbols and terms are used throughout this manual to alert the reader to safety issues and important information: SYMBOL TERM EXPLANATION Indicates a hazardous situation which, if the safety instructions are not followed,... -
Page 5: Introduction
U-mop Pro JL100H Introduction The mini scrubber is an easy and safe machine to use. This manual helps you to get started and explains the operation and maintenance procedure. You will be pleasantly surprised by the fast and effective use of the battery-operated mini scrubber.The batteries must be fully charged before use. -
Page 6: Specifications
U-mop Pro JL100H Modifications It is not permitted to make modifications to the design of the mini scrubber without consultation and permission from the manufacturer. This affects the warranty. Specifications ITEM DATA SHEET Rated voltage DC-36V Working efficiency 800-1200 ㎡/h... -
Page 7: Warranty
U-mop Pro JL100H Warranty The mini scrubber should be used as intended and described in this manual. Using the mini scrubber outside will void the warranty on the product. Description The consists of two main parts: mini scrubber The body that contains the motors (one vacuum motor, two brush motors), cleaning solution tank, recovery tank,handle and control panel with 3 functional buttons &... -
Page 8: Safety
U-mop Pro JL100H Safety Safety comes first. Therefore, please take your time to read and understand these safety instructions. Improper use can cause harm or void the manufacturer’s warranty. General Safety instructions Sweep before scrub Remove objects from the floor that can be propelled by the rotating brushes. -
Page 9: Operation
U-mop Pro JL100H Strong magnets Please be aware of the integrated magnets that hold the fluid tanks in place. Warning Operators and maintenance crew wearing pacemakers should keep a minimal distance of 6 in/15 cm. Battery Pack Always use the automatic battery charger provided by the manufacturer. - Page 10 U-mop Pro JL100H Careful when parking Do not park the mini scrubber on ramps or slopes. Always Park the mini scrubber on a level, hard surface. Risks after operation Remove battery pack It is best practice to remove the battery before executing any cleaning or maintenance task, or before Storage.
- Page 11 U-mop Pro JL100H Assembly and installation The mini scrubber almost does not require the assembly, you will have to get the wire connectors inserted in place in the battery pack box after taking the machine from the box. Unboxing The mini scrubber with one charger and 2 tool sets are packed in a box.
-
Page 12: Operation Procedure
U-mop Pro JL100H Operation procedure Walking to the job site To move the mini scrubber from one location to another one in a building: 1. Put the in park position (refer to the below image). mini scrubber 2. Hold the handle with one hand (refer to the below image). - Page 13 U-mop Pro JL100H Packing position stop one of the castors Lift the scrub on other hand wheels by holding the carrying It is in the park position and get the main body tilted forward properly, then holding the properly, then holding the top...
-
Page 14: At The Job Site
U-mop Pro JL100H At the job site 1. Crouch down while holding the carrying handle of the scrub deck firmly with one hand. 2. Push the handle forward with your other hand. 3. Bring the scrub deck slowly down to the floor. - Page 15 U-mop Pro JL100H MODE 6: Brush + water/cleaning solution (Pressing down both the middle button and the right button), the product will not move forward automatically, MODE 7: Brush + water/cleaning solution+ Vacuum (Pressing down all 3 buttons), the product will move forward automatically and cleaning the floor with water cleaning and vacuum automatically.
-
Page 16: Cleaning And Storage
U-mop Pro JL100H Warning! Do not operate the at greater than arm's length. Operating below a mini scrubber 45- degree angle can cause water to run into the vacuum engine. Dispose water or cleaning solution from both tanks in an appropriate drain. Even though the recovery tank is bigger，empty it each time the cleaning solution tank is... -
Page 17: Maintenance
U-mop Pro JL100H Maintenance Brushes replacement 1. Put the in the park position. mini scrubber 2. The brushes connect on the machine by magnetic force. So simply grab the left and right side of the brushes (stripping pads holder) by two hands and pull the brush out against machine;... - Page 18 U-mop Pro JL100H 2. Take off the squeegee rear plate. 3. Once the plastic part is removed, you can easily take off the rear rubber blade. 4. Push the 8 screws through the front blade in order to remove the squeegee front plate.
- Page 19 U-mop Pro JL100H Hose connector 1. Detach the squeegee as described in above sections. 2. Remove the solution tank. You can see where the vacuum hose is connected at the handle. mini scrubber 3. Hold the scrub deck firmly with one hand，...
-
Page 20: Troubleshooting
U-mop Pro JL100H Before disposal please: 1. Flush the machine properly. 2. Remove the battery pack for separate disposal. 3. Remove all loose components like brushes, tanks and squeegee 4. Dispose all items according to your local laws and regulations...
