Summary of Contents for Buehler EnvironMet 49-2500

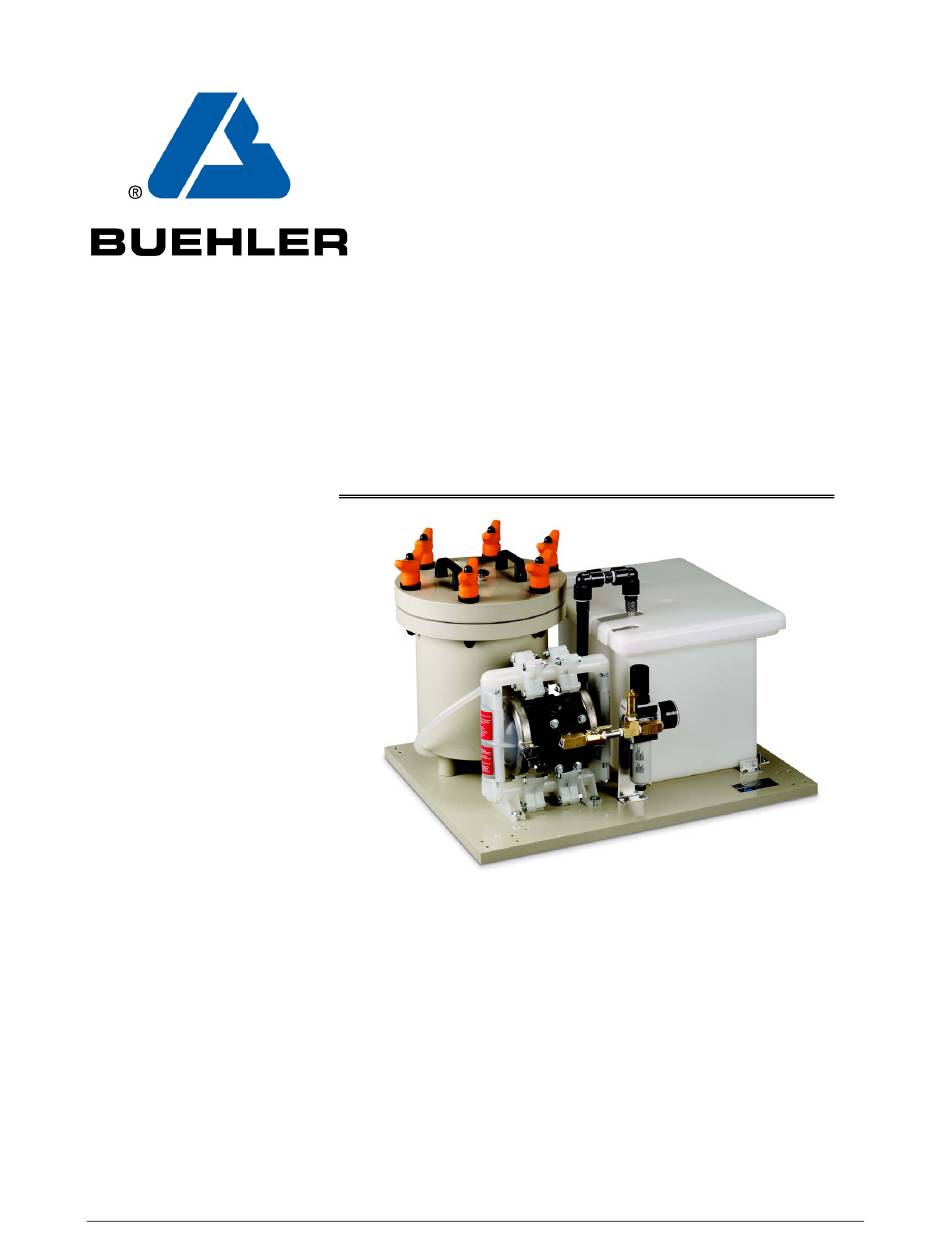

- Page 1 EnvironMet™ Filtering & Recirculating & EnvironMet™ Filtering System MA492500_12.6 4/2017...
- Page 2 Buehler Worldwide Mission Statement MA492500_12.6 [Original Instructions] 4/2017...
-
Page 3: Ec Declaration Of Conformity
The information contained in this communication is intended only for the use of the individual or entity to which it is addressed and may contain information that is privileged, confidential and exempt from disclosure under applicable law. © 2017 Buehler, a division of Illinois Tool Works Inc. All rights reserved. MA492500_12.6... -
Page 4: Table Of Contents
Table of Contents Buehler Worldwide Mission Statement ......................ii EnvironMet Systems ............................. 1 Warranty ................................ 1 Specifications ..............................1 Safety Information ............................2 Machine Use and Care ........................... 2 Safety Terms ............................3 Unpacking ..............................3 Installation ..............................4 Air ................................4 Plumbing .............................. -
Page 5: Environmet Systems
This warranty covers all Buehler costs associated with the replacement of defective materials (e.g., parts and labor). If for any reason this unit must be returned to Buehler for warranty service, please contact Buehler Service at www.Buehler.com... -
Page 6: Safety Information
All operators should be trained in the use of the EnvironMet Systems. If training is needed contact Buehler at 800.BUEHLER (800.283.4537) or your local Buehler Sales Representative. Always use safety glasses. Flying debris and liquids can cause severe eye injury. -
Page 7: Safety Terms
Carefully unpack and check the contents. If any components are missing or damaged, save the packing list and materials and advise the carrier and Buehler of the discrepancy. Carefully unpack and check that the following items have been received: •... -
Page 8: Installation
Plumbing When connecting water to the EnvironMet System observe local water regulations and use a Buehler connection kit if using a pressure reliever and a non-return valve from the water source. 49-2500 EnvironMet System Water Connections for PowerPro™ Grinder Polishers 1. -
Page 9: 49-2500 Environmet System Water Connections For Ecomet™ Grinder-Polishers
49-2500 EnvironMet System Water Connections for EcoMet™ Grinder-Polishers 1. Connect one end of the supplied ¼-inch water hose to the Water Outlet Fitting located on the top of the EnvironMet Filtering Tank (see Figure 1). 2. Connect the other end of the water hose to the grinder-polisher water inlet port. 49-2500 EnvironMet System Water Connections for Phoenix Grinder-Polishers The Water Outlet Fitting on the top of the EnvironMet Filtering Tank will accept a ½-inch OD plastic hose. -
Page 10: 49-2501 Environmet System Water Connections
49-2501 EnvironMet System Water Connections 1. Connect one end of the supplied ¼-inch water hose to the Water Outlet Fitting located on the top of the EnvironMet Filtering Tank. 2. Connect the other end of the water hose to the grinder-polisher sink drain outlet. Grinder-Polisher Drain Connections 1. -
Page 11: Filter Installation
Filter Installation 1. Loosen and remove all six orange handles on top of the EnvironMet Filtering Tank (see Figure 4). Orange Handles Securing the Filtering Tank Filtering Tank Figure 4 EnvironMet Filtering Tank 2. Gently lift and remove the Inner Chamber. 3. - Page 12 CAUTION Equipment Damage. Do not open the EnvironMet Filter System unless the water flow has stopped and the Filter Chamber is not under pressure. Filter Water Outlet Air Control Gauge & Regulator Air Stop Valve Figure 6 EnvironMet Pump Connections MA492500_12.6 [Original Instructions] 4/2017...
-
Page 13: Operation
Operation 40-2500 EnvironMet Filtering and Recirculating System 1. Close all water control valves on the associated grinder-polisher connected to the EnvironMet System. 2. Close the Air Stop Valve (see Figure 6). 3. Connect an air-line to the EnvironMet System. 4. Fill the 6-gallon Water Reservoir with approximately 5 gallons (18.9 L) of water. 5. -
Page 14: 40-2501 Environmet Recirculating System
40-2501 EnvironMet Recirculating System 1. Close all water control valves on the associated grinder-polisher connected to the EnvironMet System. 2. Close the Air Stop Valve (see Figure 6). 3. Connect an air-line to the EnvironMet System. 4. Fill the 6-gallon Water Reservoir with approximately 5 gallons (18.9 L) of water. 5. -
Page 15: Maintenance
Maintenance The EnvironMet System will continue to perform at optimum levels with proper care, daily cleaning, and general maintenance. Changing Filter Discs CAUTION Equipment Damage. The Filter Chamber is under extreme pressure and should not be opened until the Air Stop Valve is closed and water flow to the grinder-polisher has been activated and is allowed to run until the pressure in the Filter Chamber reaches zero. -
Page 16: Environmet Accessories
Buehler machine. For End Of Life on Buehler machines, if recycling and disposal facilities are not available in your area, please call Buehler Service at 1.800.BUEHLER (283.4537) or email at service@buehler.com. We will provide options on how to properly recycle and dispose of your Buehler machine. - Page 17 EnvironMet™ System Drawings Note: Drawings and part numbers are subject to change without notice. Figure 7 EnvironMet Filtering and Recirculating System Assembly Diagram (2500S900A) MA492500_12.6 [Original Instructions] 4/2017...
- Page 18 EnvironMet™ System Drawings Note: Drawings and part numbers are subject to change without notice. Figure 8 EnvironMet Filtering and Recirculating System Packaging Diagram (2500S900B) MA492500_12.6 [Original Instructions] 4/2017...
- Page 19 EnvironMet™ System Drawings Note: Drawings and part numbers are subject to change without notice. Figure 9 EnvironMet Filtering System Assembly Diagram (2501S900A) MA492500_12.6 [Original Instructions] 4/2017...
- Page 20 EnvironMet™ System Drawings Note: Drawings and part numbers are subject to change without notice. Figure 10 EnvironMet Filtering System Packaging Diagram (2501S900B) MA492500_12.6 [Original Instructions] 4/2017...
- Page 21 49-2500 EnvironMet™ Filtering and Recirculating Sys Parts List Part Number Description Note: Drawings and part numbers are subject to change without notice. MA492500 MANUAL, INSTRUCTION ENVIRONMET R0362 PIPE PLUG 1/4IN HEX CTRSUNK R0611W WASHER, #10 FLAT R0614W WASHER, 1/4IN R0617W WASHER, 5/16IN R0618J NUT, 5/16-18 HEX JAM SS...
- Page 22 49-2501 EnvironMet™ Filtering System Parts List Part Number Description Note: Drawings and part numbers are subject to change without notice. MA492500 MANUAL, INSTR ENVIRONMET R0611W WASHER, #10 FLAT R0614W WASHER, 1/4IN R0618J NUT, 5/16-18 HEX JAM SS R11044 VALVE, AIR FLOW CONTROL BRASS R1297 SCREW, SET 10-32 X 5/8 SS R2255...
- Page 23 13A, No. 88, Xin Jun Ring Road Caohejng HI-TECH PARK Pujiang Town Minhang District Shanghai, 201114, China Tel: 400 000 3418 Fax: 86 21 6410 6671 Website: www.buehler.com E-mail: info.cn@buehler.com For all other service inquiries visit Buehler at www.buehler.com. MA492500_12.6 [Original Instructions] 4/2017...
- Page 24 Notes MA492500_12.6 [Original Instructions] 4/2017...
