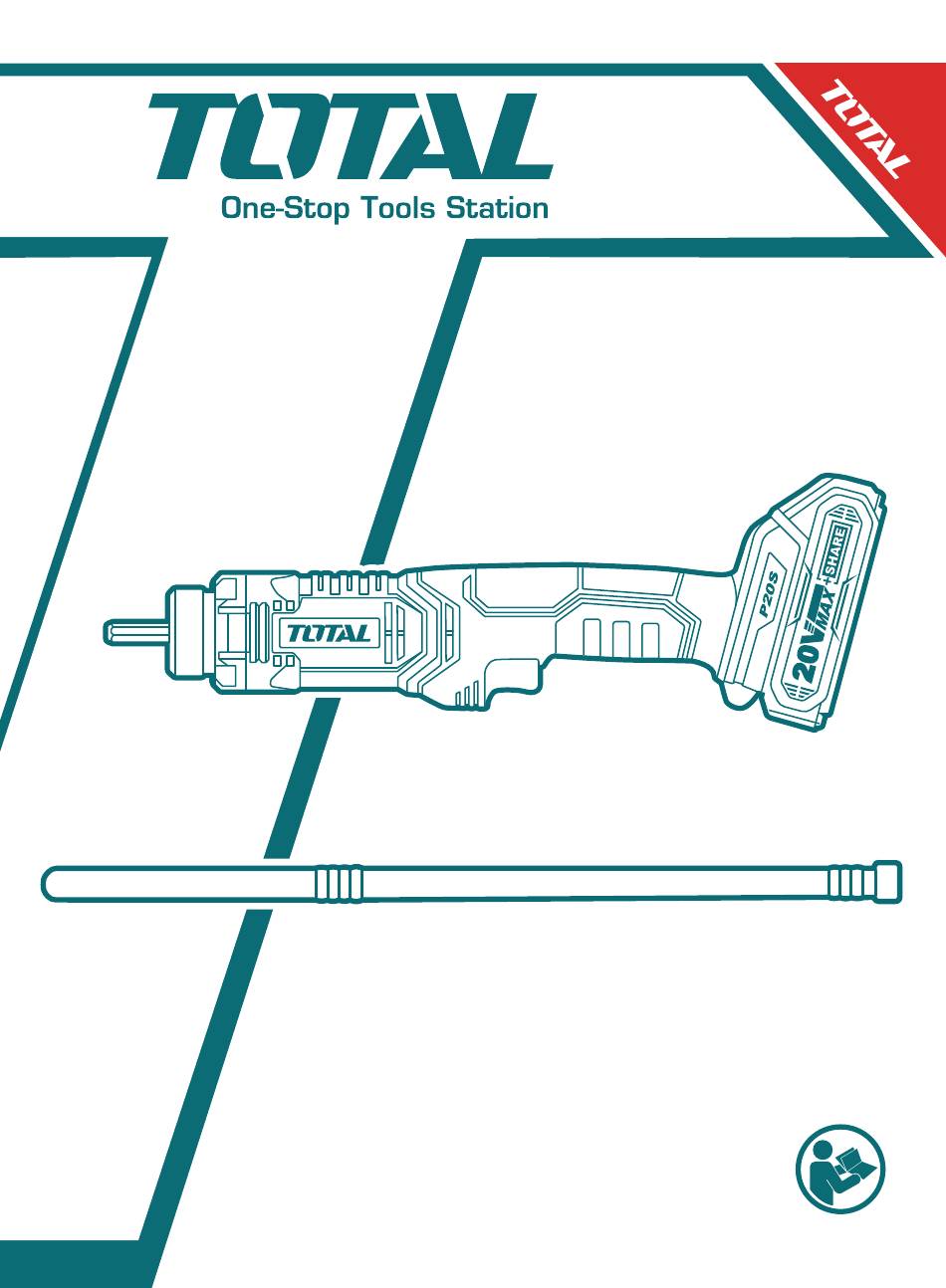

- Page 1 PRODUCT MANUAL LITHIUM-ION CONCRETE VIBRATOR TCVLI202301 UTCVLI202301 TCVLI202301xy UTCVLI202301xy x(blank,1,2,3,4,5,6,7,8,9, E, S,A,M) y(blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M)
-
Page 2: General Power Tool Safety Warnings
| English Original Instructions GENERAL POWER TOOL SAFETY WARNINGS ⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. - Page 3 | English 3) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
- Page 4 | English pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
- Page 5 | English Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130 °C may cause explosion.
- Page 6 | English BATTERY TOOL SAFETY WARNINGS Save these instructions. ⚠ CAUTION Only use genuine original batteries. Use of non-genuine batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury, and damage. It will also void the warranty for the tool and charged and dark areas invite accidents.
- Page 7 | English dirty. Secondary cells and batteries need to be charged before use. Always use the correct charger and refer to the manufacturer's instructions or equipment manual for proper charging instructions. Do not leave a battery on prolonged charge when not in use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries times to obtain maximum performance.
- Page 8 | English Do not expose battery cartridge to water or rain. A battery short can cause a large current flow, overheating, possible burns and even a breakdown. Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 50°C (122°F). Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out.
- Page 9 | English that its activities comply with the applicable regulations. Protecting the environment Separate collection. This product must not be disposed of with normal household waste. Should you find one day that your product needs replacement, or if it is of no further use to you, do not dispose of it with household waste.
- Page 10 | English THE SYMBOLS IN INSTRUCTION MANUAL Double insulated for additional protection Read the instruction manual before using. CE conformity. Safety alert. Please only use the accessories supported by the manufacturer. Wear safety glasses, hearing protection and dust mask. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist.
-
Page 11: Residual Risks
| English ADDITIONAL SAFETY WARNING Cordless concrete vibrator safety warnings Always keep your hands and face away from vibrating head when operating. Switch off the tool immediately if you notice abnormal noise or something faulty during operation. Inspect the tool carefully for breakage, cracks or deformation if you accidentally drop it or strike it against something. -
Page 12: Intended Use
| English ⚠ WARNING! This power tool produces an electromagnetic field during operation. This field may under some circumstances interfere with active or passive medical implants. To reduce the risk of serious or fatal injury, we recommend persons with medical implants to consult their physician and the medical implant manufacturer before operating this power tool. -
Page 13: Specifications
| English SPECIFICATIONS Trigger Head Handle Flexible shaft Symbols The followings show the symbols used for tool. volts direct current .../min revolutions or reciprocation per minute r/min... - Page 14 | English Technical specifications UTCVLI202301 TCVLI202301 TCVLI202301xy UTCVLI202301xy x (blank, 1,2,3,4,5,6,7,8,9, E, S,A,M) x (blank, 1,2,3,4,5,6,7,8,9, E, Model No. y (blank, -1,-2,-3,-4,-5,-6,-7,-8,-9, E, S,A,M) S,A,M) y (blank, -1,-2,-3,-4,-5,-6,-7,- 8,-9, E, S,A,M) Drill voltage Non-load 2.5A 2.5A current Load current 8-10A 8-10A No-load 0-2300/min...
- Page 15 | English ⚠ Warning! Only use original battery pack and battery charger as below for this power tool: x (blank, 1, 2, 3, 4, 5, 6, 7, 8, 9, E, S, A, M) y (blank, -1, -2, -3, -4, -5, -6, -7, -8, -9, E, S, A, M) Product Battery pack TFBLI2001...
- Page 16 | English OPERATION PICTURE...
-
Page 17: Functional Description
| English FUNCTIONAL DESCRIPTION ⚠ CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge See Figure A 1. Recessed part in the battery cartridge cover See Figure B 1. -
Page 18: Operation
| English OPERATION Hold the tool straight when inserting/operating. Use the tool within the effective vibrations range at equidistant intervals. The effective air bubble removal range is about ten times diameter of the vibrating head, or around 250 mm (9-27/32"). Do not use this tool to move concrete within a form. - Page 19 | English MAINTENANCE&MALFUNCTIONS Possible malfunctions and methods of their eliminations Malfunction Probable causes Actions ● Switch failure ●The power cord or wiring is broken, Disconnect When the machine is turned power cord plug malfunction; machine from the on, the electric motor does ●...
- Page 20 TOTAL TOOLS WORLD MADE IN CHINA T0923.V04 NEWWAY TECHNOLOGY (SUZHOU) CO.,LIMITED No.20 Dagang Road, Fuqiao Town, Taicang City, China...
