Summary of Contents for Proxima Proxisky UMi 17R

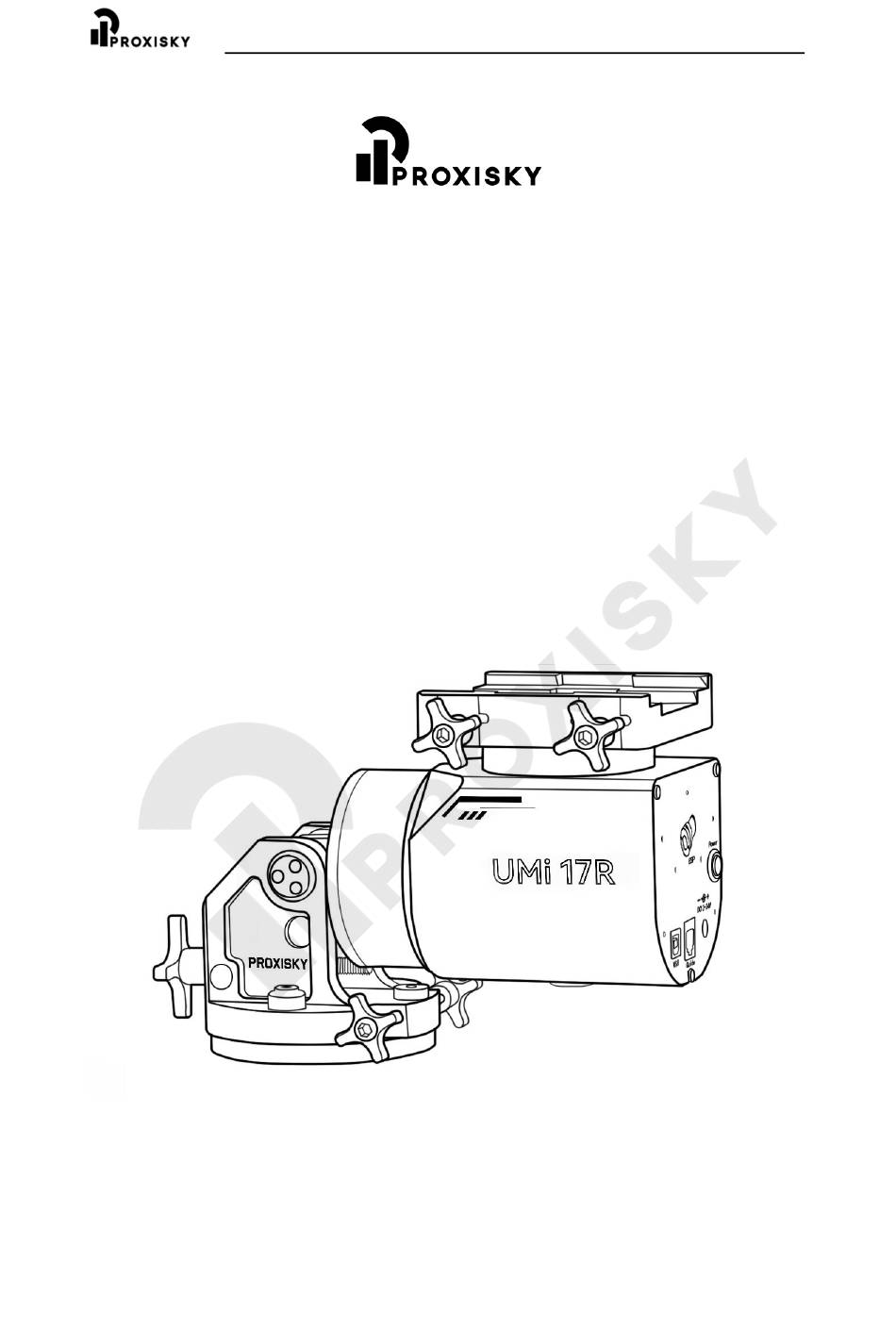

- Page 1 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 UMi 17R Servo Direct Drive Strain Wave Gear Equatorial Mount User Manual Copyright ◎ 2023 Proxima Build Smart Technology (Hong Kong) Co., Ltd. All right reserved...
-
Page 2: Revision Log
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 Revision Log Date Version Details 2024.06 V1.0 Initial Release 2024.07 V1.1 FRAM & E-Home Update 2024.07 V1.2 GOTO Speed Update 2024.07 V1.3 AltAz Installation Update... -
Page 3: Preface
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 Preface Thank you very much for choosing the UMi 17R Servo Direct Drive Strain Wave Gear Equatorial Mount (hereinafter referred to as the UMi 17R). At Proxisky, we have always been dedicated to simplifying the observation of deep space celestial objects and making astrophotography accessible. -
Page 4: Table Of Contents
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 Table of Contents Revision Log ........................1 Preface ..........................2 1. Safety Tips ......................4 2. Equipment Installation and Handling ..............4 3. Standard Operation ....................5 4. Troubleshooting ...................... 5 II. -
Page 5: Safety Instructions
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 I. Safety Instructions We highly value the safety of our users. To ensure your personal and financial safety, we strongly recommend that you carefully read and understand all the safety items in this guide before using the equatorial mount. -
Page 6: Standard Operation
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 fall and cause damage. 3. Standard Operation ▲ Operating Steps: Refer to the product’s operation manual for use and operation of the equatorial mount, strictly following the operating procedures without arbitrarily changing the equipment’s position or installation method. -
Page 7: Product Overview
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 II. Product Overview 1. Introduction This product is an equatorial mount using strain wave gearing, featuring high precision and payload capacity, ultra-portability, and dual modes. It can be used as both a German equatorial mount and an alt-azimuth mount, suitable for astronomical observation, astrophotography, and celestial tracking. -
Page 8: Specifications
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 2. Specifications Type German Equatorial Mount Weight 3.4kg Material 6061 Aluminum Alloy, 304 Stainless Steel Finishing Anodized with Rust-proof Coating Platform OnStepX Modes German Equatorial/Alt-Az Supported Software ASIAIR, NINA, KStars and more... -
Page 9: Packaging
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 3. Packaging (CW shaft optional) -
Page 10: Item List
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 4. Item List Note: This user manual may not be updated with changes in factory configurations. If the product you receive differs from the list below, please refer to the order configuration information at the time of purchase or contact us. -
Page 11: Installation
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 III. Installation Note: Please do not attempt to adjust or take out any of the 4 screws shown below and the other 4 on the opposite side, as they are assembled with specific torque. -
Page 12: Body Installation
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 1. Body Installation (Both Configs) a. Equatorial Config (with Proxisky CF40 carbon fiber tripod) Expand the tripod, and unscrew the tripod’s center plate as shown below: Fix the silver connection plate of the tripod to the bottom of UMi 17R with... -
Page 13: Alt-Az Config
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 b. Alt-Az Config (with Proxisky CF40 carbon fiber tripod, PE149 pier extension, similar for PE210) Loosen the M6*10 altitude limit screws on both sides, as shown below: Manually adjust the UMi 17R to the highest pitch, and tighten the altitude... - Page 14 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 Continue to adjust the mount to 90° with the altitude adjustment screw, as shown below: Expand the tripod, and unscrew the tripod’s center plate as shown below: Fix the silver connection plate of the tripod to the bottom of PE149 with...
- Page 15 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 three M6*10 screws, as shown below: Unscrew the 6 fixing screws on the side of PE149, with three short screws being M4*8 and the other three long screws being M4*12, as shown below:...
- Page 16 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 M6*10 screws, as shown below: Align the lower half of PE149 with the upper half’s screw holes and secure with 6 screws, as shown below:...
- Page 17 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 Note: The positions for the three short M4*8 screws are shown ① below: ② The positions for the three long M4*12 screws are shown below: Align the bottom silver connection plate with the holes on the tripod and...
- Page 18 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 After powerup, point the Dec axis North via UMi Mount app, as shown below: In the app’s settings, “mount mode”, switch to “AltAzm”, and restart.
-
Page 19: Connection
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 2. Connection a. Power Insert one end of the 12V male-male power cable into the mount’s DC connection. Connect the other end of the 12V male-male power cable to 12V DC power output. -
Page 20: Umi Mount Mobile App
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 app. Once activated, to reset the home position, manually return the mount to home and click “At Home”. Note: If E-Home (FRAM) is enabled, please click “At Home” to reset the stored home position when switching between Northern and Southern hemisphere. -
Page 21: Wireless Connection
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 b. Wireless Connection Reminder: Wireless connection has been tested to be potentially unstable with first and second generation ASIAIR. Switch on ASIAIR and launch the APP, then select OnStep’s Wi-Fi for Wi-... -
Page 22: Appendix
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 IV. Appendix 1. Related Drawings 2. FAQs a. Why doesn’t the equatorial mount rotate when polar aligning with ASIAIR? Reason: When connecting OnStep equatorial mount to ASIAIR and controlling the mount to rotate for polar alignment, there’s a small chance the mount won’t rotate (due... -
Page 23: What Do The Status Lights Represent
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 area, or even pointing the telescope to the ground) Reason: If the coordinates are inaccurate before GOTO (no calibration or parsing error), the GOTO will be inaccurate. Solution: Check the following items for accuracy: First: The target is above the horizon. -
Page 24: After-Sales Services
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 V. After-sales Services If you have any questions or need further information, please feel free to visit our official website: https://www.proxisky.com/ Or call our customer service hotline: 400-7799-812 Official email: info.cn@proxisky.com... -
Page 25: Warranty
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 VI. Warranty We offer a comprehensive two-year warranty service to ensure you enjoy worry-free protection during use. The warranty period begins on the actual date you receive the product, covering all possible quality issues to ensure your interests are fully protected. - Page 26 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 covered by the warranty; (7) Products without purchase records are not covered by the warranty. For products beyond the free warranty scope, we can offer paid repair services. For product quality issues, we provide warranty service for products within the warranty period.
- Page 27 Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 customers, ensuring you receive the highest level of protection while using our products.
-
Page 28: Works Collection
Proxima Build Smart Technology (Hong Kong) Co., Ltd. Ver 1.3 VII. Works Collection We sincerely invite you to share your outstanding images using UMi 17R or to showcase your setup with it. You can submit your portfolio or take high-resolution photos of UMi 17R, and let us witness the exceptional imaging experience it brings.
