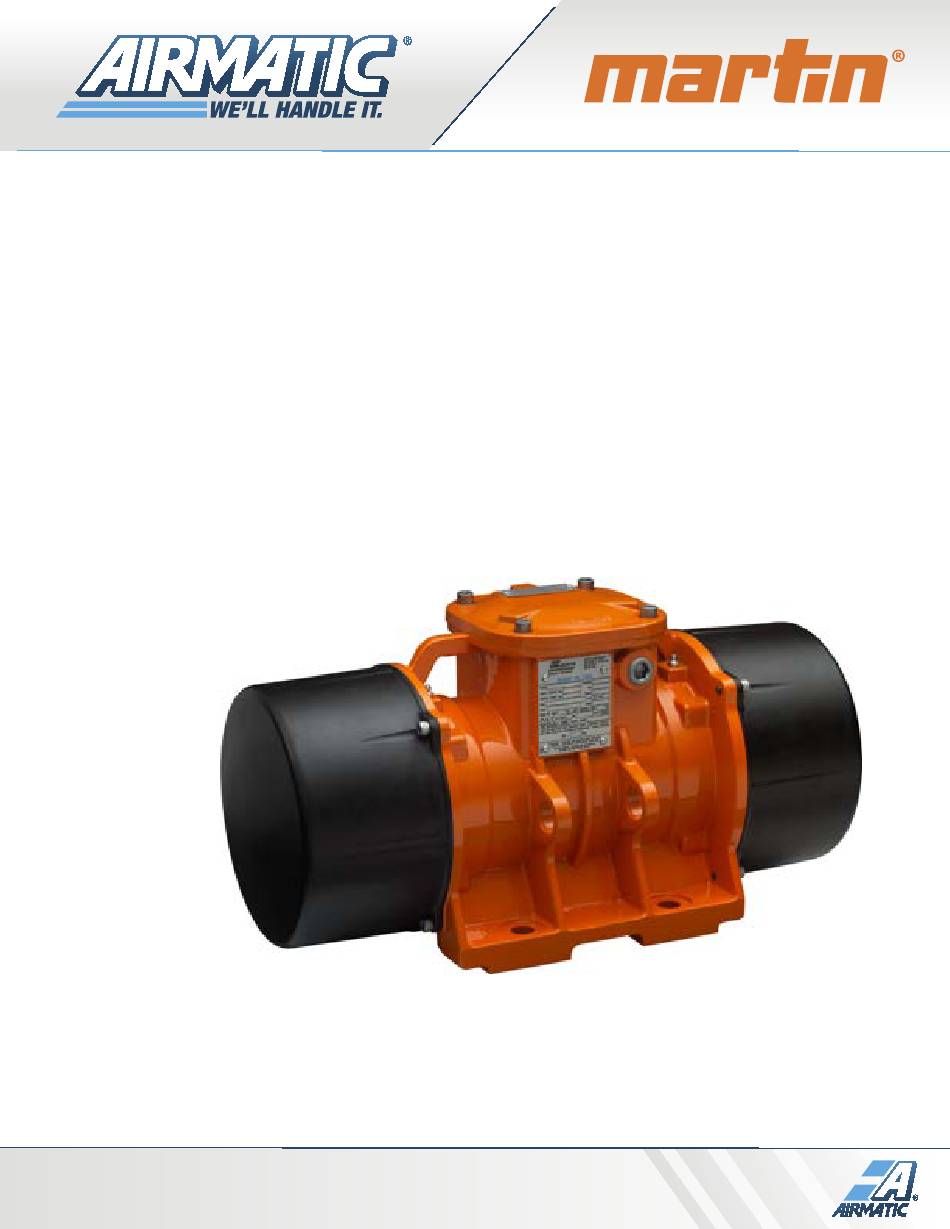

- Page 1 Martin ® MMX, MIX, & MVX Electric Vibrators Operator’s Manual M3882 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 2 Caution: Hazards or unsafe practices that could result in product or property damages. IMPORTANT Important: Instructions that must be followed to ensure proper installation/operation of equipment. NOTE Note: General statements to assist the reader. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 3: Table Of Contents
Part Numbers ..............17 AIRMATIC INC airmatic.com |... - Page 4 Electric Vibrator MXX175X04-T4 Part Numbers ..... . . 32 ® Martin Engineering M3882-11/15 Martin MMX, MIX, MVX Electric Vibrators AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 5: Introduction
Store vibrator in an ambient temperature not less than 41°F (5°C) with a relative humidity not more than 60%. If the vibrator has been stored for 2 or more years, remove bearings, wash them, and repack them with new grease (see “Lubricating Vibrator”). AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 6: Before Installing Vibrator
(This will minimize internal stress to vibrator casting when tightening mount bolts. Welding in the area of the mounting surface could affect flatness.) 7. Make sure mounting surface and vibrator are clean and free of debris, paint, and oxidation. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 7: Installing Vibrator
2. Position vibrators so bolts are free in holes. (There should be no side load on bolts.) While holding unit in position, torque bolts per torque specifications in Table I or contact fastener manufacturer. 4 Bolts 6 Bolts Figure 1. Mounting Bolt Tightening Sequence AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 8: Nut And Cap Screw Torque
Cap Screws ft/lb (kgm) ft/lb (kgm) Block Nuts 7 (1) 0.87 (0.12) 16.5 (2.3) 1.45 (0.20) 35 (4.8) 2.17 (0.30) 58 (8) 4.70 (0.65) 94 (13) 9.80 (1.35) 137 (19) 195 (27) 275 (38) AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 9: Markings On Vibrators
Markings on The following nameplates are attached to the vibrators: vibrators Stainless Nameplate P/N 820002 Stainless Nameplate P/N 820001 Stainless Nameplate P/N 820009 Stainless Nameplate P/N 820010 Figure 2. Vibrator Nameplates AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 10: Connecting Power To Vibrator
On applications where moisture is present, leave enough slack in power cable to prevent moisture from running down cable into vibrator. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 11: Installing Wire Connector
All cable entry devices and blanking elements shall be certified in type of explosion protection flame-proof enclosure ‘d’ and ‘tD’, suitable for the conditions of use and correctly installed. Unusual apertures shall be closed with suitable blanking elements. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 12: Thermostats
1. Determine overload, short-circuit, and ground-fault protection according to NEC Article 430. 2. Have qualified electrician install overload, short-circuit, and ground-fault protection. 3. If overload trips during operation, fix problem before resetting. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 13 Failure to properly interlock vibrators could result in damage to equipment if one vibrator fails. 4. If using two vibrators, interlock the two vibrators and install separate overload protection for each. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 14: After Installing Vibrator
To reverse rotation of three-phase vibrator, reverse any two of the three power supply wires. 4. Replace weight cover, taking care not to pinch O-ring. Figure 6. Top-Mounted Shaker AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 15: Side-Mounted Shaker
Figure 7. Side-Mounted Shaker AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 16: Adjusting Eccentric Weights
4. See Figure 8. Rotate adjustable eccentric weight to proper setting. To produce more force, move weight to higher setting (i.e., higher number). When set, tighten cap screw or nut according to Table II. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 17: Adjustable Weights Set At 80% (Fixed Weight Shaded)
7. Repeat steps 2 through 5 for second set of weights. Set both sets of weights to same setting number so they are mirror images, as shown in Figure 10. INCORRECT CORRECT Figure 10. Setting Sets of Eccentric Weights to Mirror Images AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 18: Initial Start-Up/Checking Line Current
If reading is higher than nameplate, consult inverter manual. If necessary, adjust inverter. After making adjustment, check line current again to ensure line current does not exceed nameplate rating. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 19: Maintenance
Clean vibrator at each pipe plug in housing to remove dirt and debris. Remove pipe plug. Insert 1/8 in. NPT grease fitting. Add grease. Remove grease fittings; tightly replace pipe plugs. (Use anti-seize compound on threads.) AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 20: Repairing Vibrator And Replacing Bearings
(see Table II). 4. Make sure all nuts on connections on terminal block are tightened to proper torque. Do not overtighten (see Table II). 5. Check mounting bolt torque (see Table I). AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 21: Part Numbers
Part Numbers This section provides part numbers for the MMX Series Electric Vibrators. Please reference part numbers when ordering parts. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... -
Page 22: Martin ® Electric Vibrator, P/N Mxx70X06
SECTION A–A WEIGHT COVERS, WEIGHTS, WEIGHT COVER & TERMINAL BOX COVER REMOVED AND ADJUSTMENT DISK REMOVED ® Figure 11. Martin Electric Vibrator, P/N MXX70X06 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 23 513004 34 Screw SHC M8 x 1.25 x 20 CL 12.9 BO 515507 35 Washer Schnorr D10 VS Series ZPY 513005 36 Screw SHC M10 x 1.5 x 25 CL 12.9 ZP 515513 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 24 42 Wiring Diagram 518372 43 Operator’s Manual M3882 ® Table IV. Martin Electric Vibrator MXX70X06 Part Numbers Part Number Part Number Item 1 Item 2 MIX70X06 801004-MI MXX70C06 810004-06 MMX70X06 801004-MM MXX70F06 810004-06F MVX70X06 801004-MV AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 25: Martin ® Electric Vibrator, P/N Mxx75X06
SECTION A–A WEIGHT COVERS, WEIGHTS, WEIGHT COVER & TERMINAL BOX COVER REMOVED AND ADJUSTMENT DISK REMOVED ® Figure 12. Martin Electric Vibrator, P/N MXX75X06 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 26 33 Screw SHC M12 x 1.75 x 30 CL 12.9 BO 822002 34 Washer Schnorr D8 VS Series ZPY 513004 35 Screw SHC M8 x 1.25 x 20 CL 12.9 BO 515507 36 Washer Schnorr D10 VS Series ZPY 513005 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 27 43 Wiring Diagram 518372 44 Operator’s Manual M3882 ® Table V. Martin Electric Vibrator MXX75X06 Part Numbers Part Number Part Number Item 1 Item 2 MIX75X06 801004-MI MXX75C06 810004-06 MMX75X06 801004-MM MXX75F06 810004-06F MVX75X06 801004-MV AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 28: Martin ® Electric Vibrator, P/N Mxx165X04
SECTION A–A WEIGHT COVERS, WEIGHTS, WEIGHT COVER & TERMINAL BOX COVER REMOVED AND ADJUSTMENT DISK REMOVED ® Figure 13. Martin Electric Vibrator, P/N MXX165X04 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 29 515588 34 Screw SHC M10 x 1.5 x 25 CL 12.9 ZP 515513 35 Washer Schnorr D6 VS Series ZPY 513003 36 Screw SHC M6 x 1.0 x 20 CL 12.9 BO 515504 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 30 Table VI. Martin Electric Vibrator MXX165X04 Part Numbers Part Number Part Number Item 1 Item 2 Item 10 MILX165A04 801001-MIL MMX165A04 810002-04 807001-50F MIX165C04 801001-MI MMX165C04 810002-04 807001-60F MMX165F04 801001-MM MMX165F04 810002-04F 807001-60F MVX165X04 801001-MV AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 31: Martin ® Electric Vibrator, P/N Mxx175X04
SECTION A–A WEIGHT COVERS, WEIGHTS, WEIGHT COVER & TERMINAL BOX COVER REMOVED AND ADJUSTMENT DISK REMOVED ® Figure 14. Martin Electric Vibrator, P/N MXX175X04 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 32 513004 34 Screw SHC M8 x 1.25 x 20 CL 12.9 ZP 515507 35 Washer Schnorr D10 VS Series ZPY 513005 36 Screw SHC M10 x 1.5 x 25 CL 12.9 ZP 515513 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 33 Electric Vibrator MXX175X04 Part Numbers Part Number Part Number Item 1 Item 2 Item 25 MIX175X04 801004-MI MVX175A04 810004-04 807004-50F MMX175X04 801004-MM MVX175C04 810004-04 807004-60F MVX175X04 801004-MV MVX175F04 810004-04F 807004-60F MVX175Q04 810004-04Q 807004-50F AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
-
Page 34: Martin ® Electric Vibrator, P/N Mxx175X04-T4
SECTION A–A WEIGHT COVERS, WEIGHTS, WEIGHT COVER & TERMINAL BOX COVER REMOVED AND ADJUSTMENT DISK REMOVED ® Figure 15. Martin Electric Vibrator, P/N MXX175X04-T4 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com... - Page 35 33 Plug M10 x 10mm Socket Head 509008 34 Washer Schnorr D12 VS Series ZPY 513006 35 Screw SHC M12 x 1.75 x 30 CL 12.9 BO 822002 36 Washer Schnorr D8 VS Series ZPY 513004 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 36 45 Wiring Diagram 518372 46 Operator’s Manual M3882 ® Table VIII. Martin Electric Vibrator MXX175X04-T4 Part Numbers Part Number Item 2 Item 28 MXX175A04-T4 801004--04-T 807004-50F MXX175C04-T4 801004-04-T 807004-60F MXX175F04-T4 801004-04F-T 807004-60F MXX175Q04-T4 801004-04Q-T 807004-50F AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 37 Appendix Martin ® Electric Vibrator Dimensions AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 38 AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
- Page 39 “TM” and “SM” symbols. Brands, trademarks, and names of other parties, who may or may not be affiliated with, connected to, or endorsed by Martin Engineering Company, are identified wherever possible. Additional information regarding Martin Engineering Company’s intellectual property can be obtained at www.martin-eng.com/trademarks. AIRMATIC INC airmatic.com | 215.333.5600 | infocenter@airmatic.com...
