OMNI-VIEW WIFI SOLAR
SECURITY CAMERA
USER MANUAL
Brought to you by:
0861 77 88 88
www.tevo.co.za
SCAN to REGISTER YOUR WARRANTY
info@tevo.co.za
Switch on your mobile camera, point it at
the QR code and tap the link that pops up.
Model Number:
RBX-S74
Or download and use a QR code scanner
app from your phone's app store.
www.magnetopower.co.za
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tevo magneto RBX-S74
Summary of Contents for Tevo magneto RBX-S74

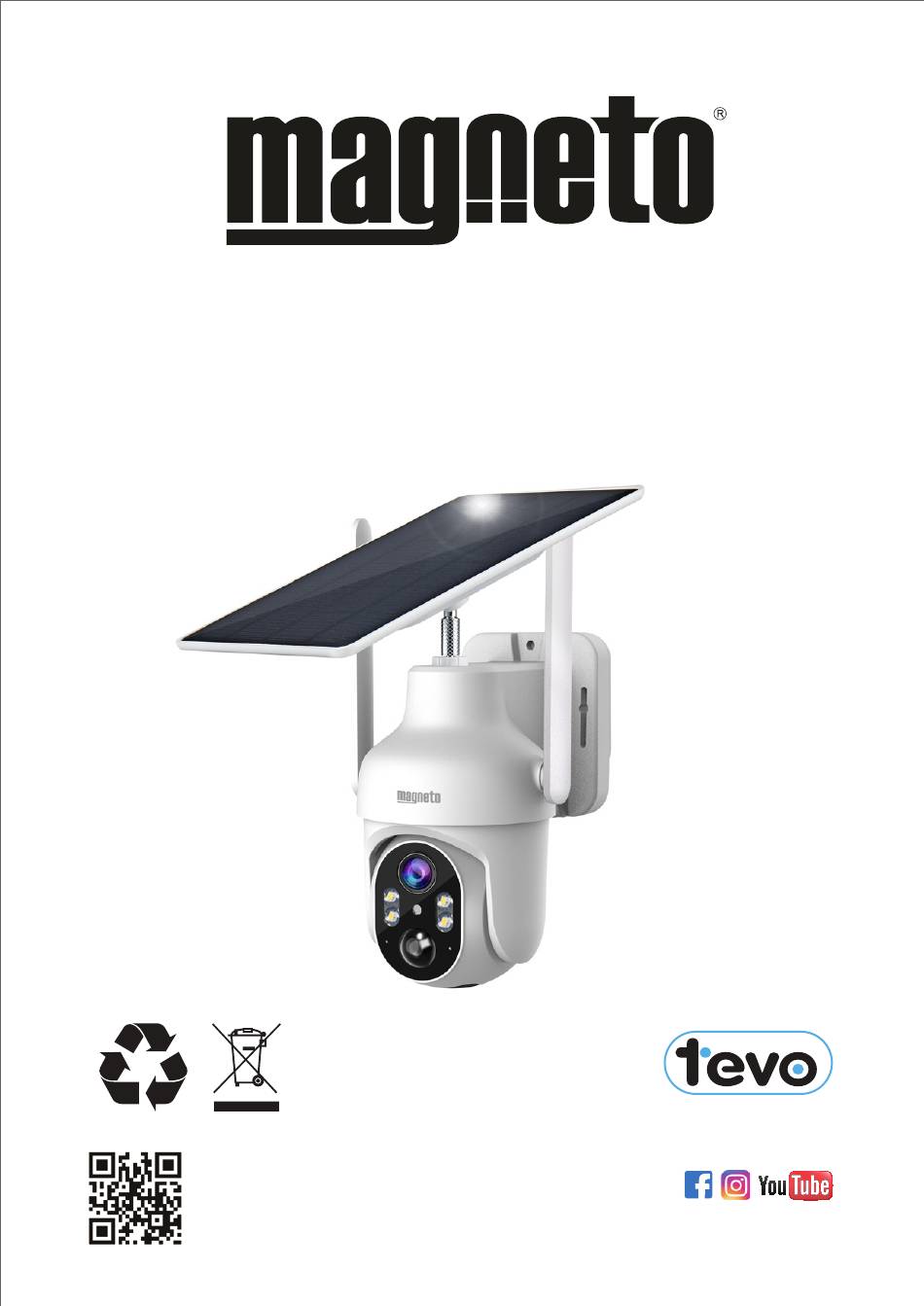

- Page 1 OMNI-VIEW WIFI SOLAR SECURITY CAMERA USER MANUAL Brought to you by: 0861 77 88 88 www.tevo.co.za SCAN to REGISTER YOUR WARRANTY info@tevo.co.za Switch on your mobile camera, point it at the QR code and tap the link that pops up.
-
Page 2: Product Introduction
POWER FOR PEACE OF MIND ® Congratulations on purchasing a MAGNETO OMNI-VIEW WIFI SOLAR SECURITY CAMERA. This product puts the power of home security in your hands. Powered by solar energy, it operates off-grid, with high efficiency and low power consumption, giving you ultimate peace of mind. -
Page 3: Product Overview
PRODUCT OVERVIEW Solar Panel Universal Bracket Easy-Slide Mounting Bracket Lens Infrared & LED Photosensitive Sensor Indicator Power Microphone Switch PIR Sensor Charge Port Silicon Flap Reset MicroSD Button Card Slot Solar Panel Mounting Bracket QUICK SETUP Insert the USB cable of the Solar Panel to the "USB" Silicon Flap on the bracket base for battery charging. -
Page 4: App Installation
INSTALLATION Before installation, make sure you complete all the APP INSTALLATION, APP REGISTRATION and WIFI CONNECTION instructions. • Install the Solar Panel onto the Camera by fastening the Universal Bracket into the slot above the Camera (Fig.1). Install the Easy-Slide Mounting Bracket and attach the camera to it. - Page 5 Return to the app and enter your login details to log in. Check that push notification permission has been granted. WIFI CONNECTION Connect the camera to a power supply and switch it ON. Make sure your mobile phone is connected to an available WiFi network. After powering on the camera, wait for the indicator to flash BLUE and for the camera to give a voice prompt.
- Page 6 The app will input the WiFi name automatically. Enter the WiFi password and press ‘Configure Devices’. You will now be required to scan the QR code displayed on your phone with the lens of the camera. Hold your phone with the QR code in front of the lens, at a distance of about 10 - 20cm.
-
Page 7: Device Settings
DEVICE SETTINGS Settings menu to delete selected camera from UBOX App and reinstall. Indicates whether the camera is ONLINE / OFFLINE. Activate / view Cloud storage subscription. Turn ON/OFF PUSH notifications. Share device with others that have the App. Access recorded Cloud Video. - Page 8 UBOX ACCOUNT SETTINGS Activate / view Cloud storage subscription. Arrange display order of multiple cameras. View who the camera has been shared with. Common device settings (refer to below): App notification settings. FAQs. FAQs. Show the UBOX application wizard at any stage.
- Page 9 DEVICE PREVIEW HD/SD selection options. Camera Settings (refer to next page). Wifi signal strength. Remaining camera battery percentage. Solar panel currently charging the battery. Number of mobile devices currently viewing the camera. Infrared / full colour night mode. Fullscreen display. Camera sound ON/OFF.
- Page 10 DEVICE SETTINGS Change the device name. Select video recording location: Cloud / MicroSD. Flip Image if necessary. Normal / Night vision. Motion detection sensitivity: LOW – activates after 7 sec of activity (low battery consumption). MEDIUM – activates after 5 sec of activity. HIGH –...
- Page 11 DEVICE INFORMATION AND FIRMWARE UPDATE Firmware Update for Solar security camera NOTE: The black bars are redacted information for the purpose of this manual. This is where your personal device information and settings will display.
- Page 12 SCHEDULE SETTINGS FOR MOTION DETECTION ACTIVATION Should you wish to arm your device from a certain time in the evening until the early hours of the following morning, please ensure you set TWO arming periods as displayed in the example. NOTE: When utilizing the arming time function, disarming time cannot be...
-
Page 13: Warranty
OMNI-VIEW WIFI SOLAR SECURITY CAMERA WARRANTY This warranty covers manufacturing faults for a period of 12 (twelve) months. Tevo undertakes to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period. This warranty excludes...
