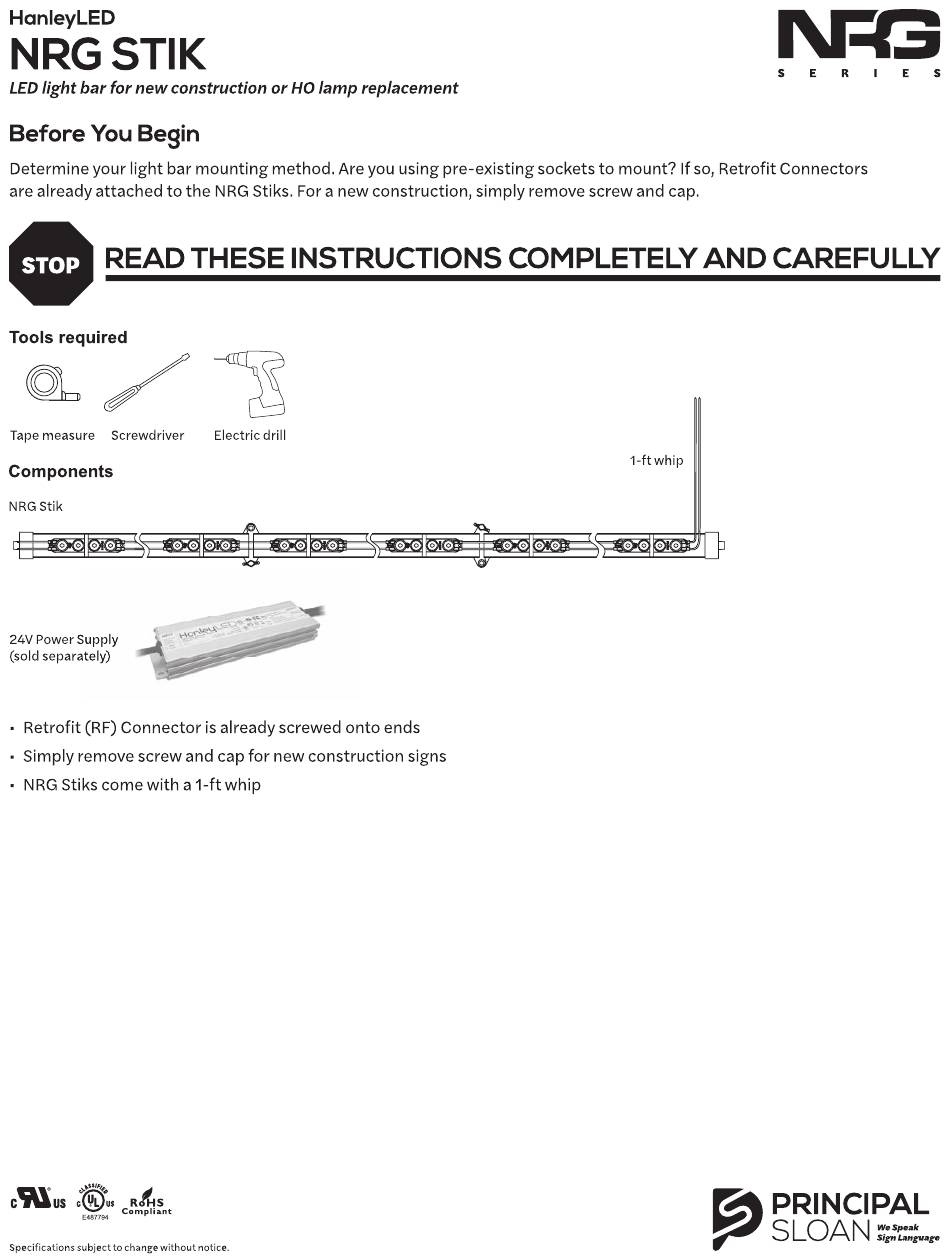

- Page 1 E476250...
- Page 2 HanleyLED NRG STIK LED light bar for new construction or HO lamp replacement Packaging Bars Bars NOTE: All materials removed must be disposed of in accordance with per box per case applicable local, state, and federal laws. HPEB-2S24 WARNING: Check polarity. All connections must be WHITE-TO-RED (+) HPEB-2S30 and BLACK-TO-BLACK (-).
- Page 3 HanleyLED NRG STIK LED light bar for new construction or HO lamp replacement Retrofit Installation Guide NRG Stik This guide is designed to aid in the installation of HanleyLED’s NRG Stik. Skilled trades people that are familiar with general construction, electrical, and sign installation techniques should do the installation. Licensed electricians should provide all installation and hook-up of both the primary and secondary input/outputs of the HanleyLED power supply.
- Page 4 HanleyLED NRG STIK LED light bar for new construction or HO lamp replacement Dimensions +1.5 3.89" HPEB-2S24, HPEB-2S30, HPEB-2S36, HPEB-2S42, HPEB-2S48 -0.5 3.89" HPEB-2S60, HPEB-2S64, HPEB-2S72, HPEB-2S84 3.89" HPEB-2S96, HPEB-2S108, HPEB-2S117, HPEB-2S120 All NRG Stik sizes Your NRG Stik is ready to go out of the package. Simply Nominal No.
-
Page 5: Layout Guidelines
HanleyLED NRG STIK LED light bar for new construction or HO lamp replacement Layout Guidelines Double-sided Max. space light box depth between bars 9" 12" 12" 15" 18" 20" 24" 22" NOTE: Lightbox size: 47" × 67". Tested with 3/16", 7328 white acrylic. Power Supply Options Power Supplies 24V Power... -
Page 6: Warranty
HanleyLED NRG STIK LED light bar for new construction or HO lamp replacement Warranty Warranty period HPEB-2S24, HPEB-2S30, HPEB-2S36, HPEB-2S42, HPEB-2S48, HPEB-2S60, HPEB-2S64, HPEB-2S72, 10-year product, 5-year limited labor HPEB-2S84, HPEB-2S96, HPEB-2S108, HPEB-2S117, HPEB-2S120 Above warranty period is only for products which are used inside of waterproof light boxes and valid only when used as a system with HanleyLED Premium Power Supplies.
