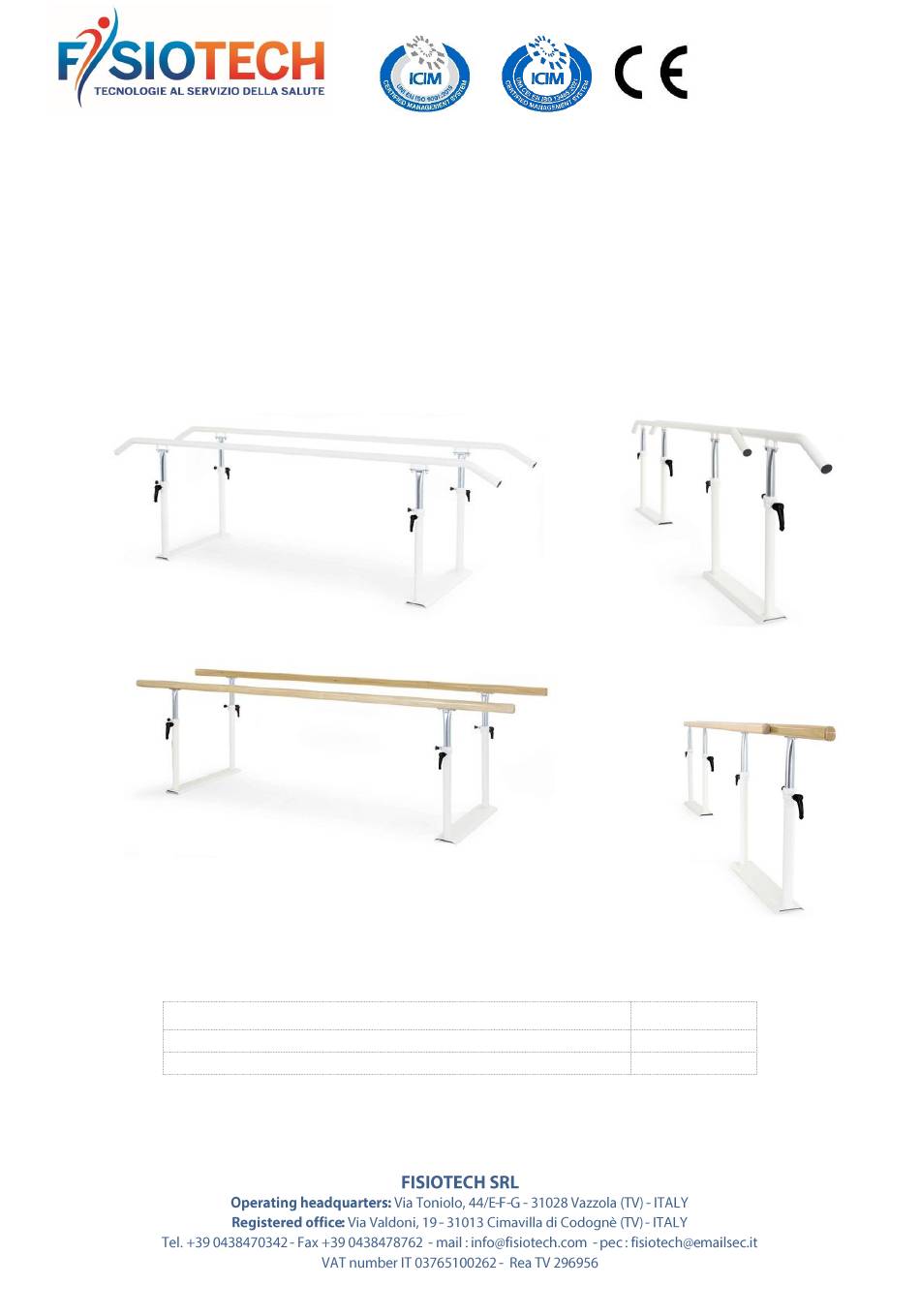

- Page 1 Rev.11 02/2024 USE AND MAINTENANCE MANUAL FOLDABLE PARALLEL BARS FOLDABLE PARALLEL BARS MODELS Description Code Painted steel handrails 1311010 Wooden handrails 1311020...
- Page 2 Table of contents INTRODUCTION p. 3 SAFETY – WARRANTY – UNPACKING – DISPOSAL p. 4 PRODUCT LABEL AND SYMBOLS p. 5 TECHNICAL SPECIFICATIONS AND MODELS p. 6 HOW TO USE THE PARALLEL BARS p. 7 ASSEMBLY INSTRUCTIONS p. 8 FORBIDDEN ACTIONS p.
- Page 3 90 % - temperature -10°C ÷ +50°C – Clean place. WARNING! Thoroughly read the manual before use. FISIOTECH SRL refuses any responsibility and is not liable in case any damage to people and/or goods caused by the improper use of the parallel bars, by negligent or not-qualified staff or by non compliance with these instructions occurs.
- Page 4 WARNING! Do not use the the parallel bars: On unstable floors or near inclined floors, steps, etc. If they have been tampered with or modified. If you have not adjusted and tightened Knobs/ratchet handles of the handrails WARNING! Do not adjust the handrails when the patient is using the parallel bars. The sliding and moving mechanical parts may harm the user.
- Page 5 Manufacturer Product Code Serial Number Date of manufacture Max working load Warning Temperature limit Humidity limitation Keep away from sunlight and heat sources Keep away from rain Read the instructions Differentiated collection 5 of 11...
- Page 6 D. Zinc-plated steel tube diameter 42 mm sliding tubes. Length 300 cm Handrails width 60 cm Base width 70 cm Code 1311010 From 77 to 107 cm Height adjustment steel handrails Code 1311020 From 75 to 105 cm Height adjustment wooden handrails Single handrail maximum load...
- Page 7 In order to adjust the height of the handrails unscrew the knobs/ratchet handles (3), lift or lower the zinc-plated sliding bars (2) moving the spring (4). Warning! The handrails must have the same height. Warning! When the height has been adjusted, fasten the Knobs/ratchet handles (3) before use.
- Page 8 A. Unpack all the parts of the parallel bar (see Unpacking page 4). B. Place the bases (5) on the floor as indicated in the image. C. Insert the zinc-plated sliding tubes (2) in the powder-coated uprights (5). The sliding tubes have the position rings and the spring (4) on them.
- Page 9 9 of 11...
-
Page 10: Maintenance
WARNING! The professional should never leave the patient unattended to prevent falls. The manufacturer is not liable for any damage to people and/or goods caused by negligent and/or not- qualified personnel. Maintenance must be carried out by a specialist, an electrician or someone who is familiar with the content of this manual. - Page 11 INSPECTION RECORD SHEET DEVICE MODEL / CODE: INSTALLATION DATE SERIAL No. ……………………………………… ……………………… ……………………. Inspection Maintenance Name of the inspector Signature Date 11 of 11...
