FLD0808N-V2
QUICK START GUIDE
FLD0808N-V2 is Digital Expansion model, which work
with FL series base PLCs. This device acts as a slave
device, which give information about the inputs to base
PLC model. This module is having 8 Digital Input (Bi
Directional) and 8 Digital Output (NPN Type).
For More Information, visit
https://www.renuelectronics.com
SPECIFICATIONS
Power Supply
24VDC (±15%) @ 80mA
Power Consumption
1.92W
Power LED (Green) , 8 Input and 8
LED
Output LED (Red)
Local IO Specifications
Digital Inputs
8 Digital Input (Bi Directional)
Input per channel
5mA @24VDC
Input Impedance
Minimum 4.8KΩ
Min. ON voltage
15VDC
Max. ON voltage
28VDC
Min. OFF voltage
- 3VDC
Max. OFF voltage
3VDC
OFF to ON: 10ms + Scan Time
Input response time
ON to OFF: 10ms + Scan Time
Optically isolated from the internal
Isolation
circuit. High isolation voltage
greater than 1.5 kV.
Digital Outputs
8 NPN type Transistor O/P
Output per channel
250mA @24VDC
Output Capacity
250mA max.
OFF to ON: 30µs + Scan Time
Response Time
ON to OFF: 30µs + Scan Time
96Ω/6W (resistive) @ 24VDC per
Nominal load
channel
Mechanical Dim.
100(H)mm X 26(W)mm X 70(D)mm
Environment & Approvals
Operating Temperature
0 to 55°C
Storage Temperature
-20 to 85°C
Humidity
10 to 95% (Noncondensing)
5 to 150Hz, displacement of
Vibration
0.3mm (peak to peak), 3G, 3
mutually perpendicular axes
Approvals
CE, UL ,RoHS , UKCA

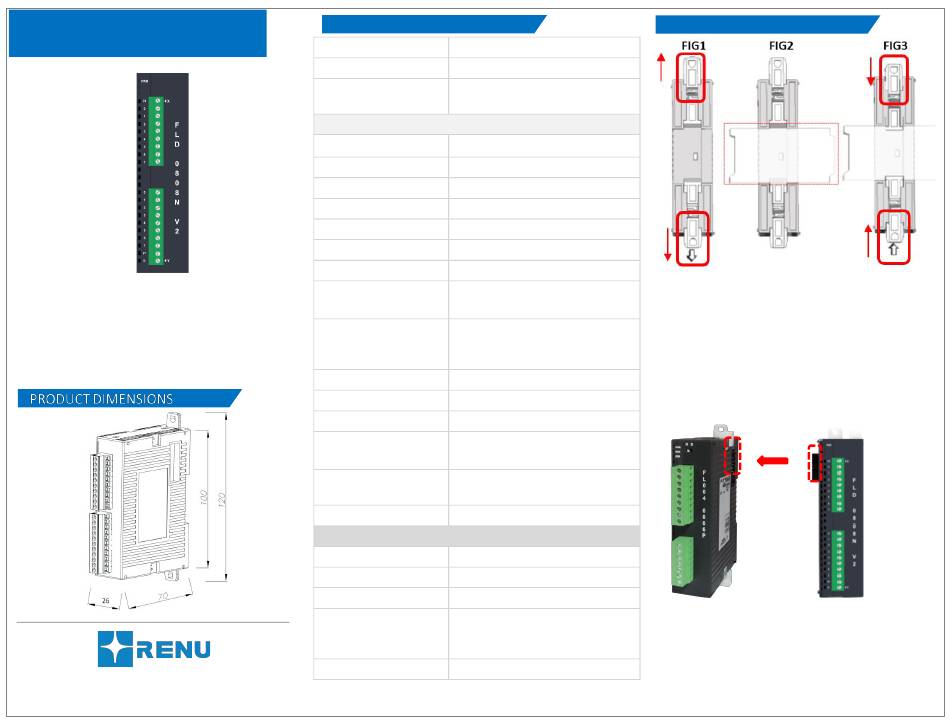

PANEL MOUNTING
FIG-1: Pull up the sliders (highlighted by red color)
provided with the unit towards outward direction.
FIG-2: Rest the unit on the DIN rail plate.
FIG-3: Pull down the slider (highlighted by red color) again
so that unit can fix up with the DIN rail plate.
Steps to lock the Expansion module with Base
module
FIG-1(Base Module)
FIG-2(Expansion Module)
The Expansion model fits into the Base model via
expansion connector (highlighted by dotted square).
