1. Warning USE RESPONSIBLY. READ ALL INSTRUCTIONS AND SAFETY INFORMATION BEFORE USE. Globalsat Worldcom Corporation / USGlobalsat, Inc., will not accept any responsibility whatsoever for accidents or violations of local Laws resulting from failure to observe common sense precautions and local laws. Your personal judgment, traffic regulations, and common sense must always take precedence over any directions produced by GPS receiver or the mapping software.

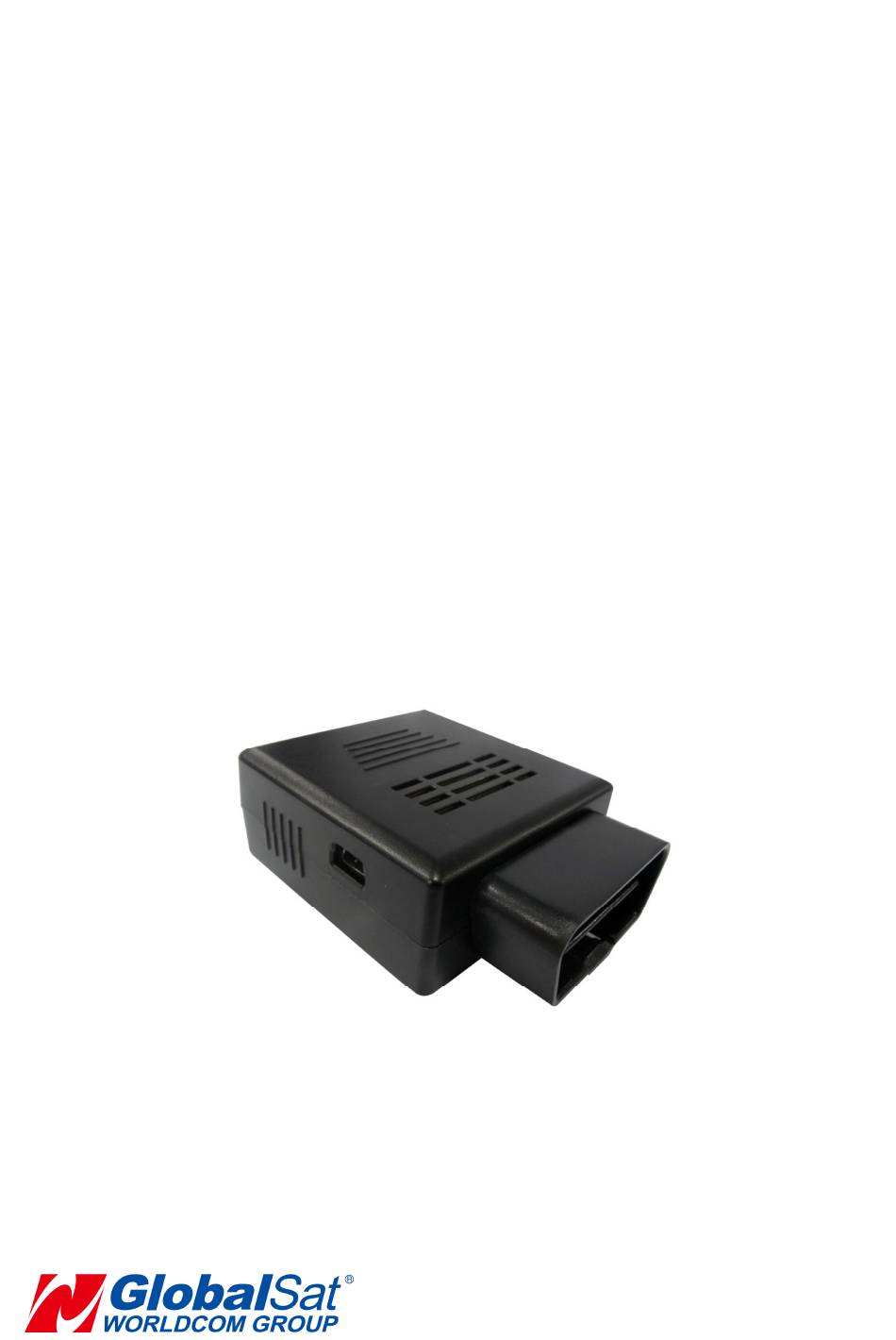

2. Welcome Thank you for purchasing the GlobalSat TR-900. The TR-900 is a compact and feature rich 3G OBD dongle vehicle tracking device. In addition to its telemetry abilities, the TR-900 unit incorporates a wide array of custom feature, including vehicle OBD data interpretation, driver behavior reporting, as well as configurable functions for unique client requirements.
3. Introduction and Features 3.1 Introduction TR-900 is a 3G OBD dongle vehicle tracking device with fast GPS acquisition time. It is capable to connect both GSM and GPRS wireless networks, interpret vehicle OBD data, and report telemetry as well as driver behavior back to the designated monitoring server. Users can easily and remotely configure TR-900 and display GPS locations on remote monitoring / tracking platforms.
3. Introduction and Features (Continued) 3.2 LED Indicators Ignition / CANBus Status LED Red Constantly Lit Red flash 3 times Red LED off State Vehicle ignition /ACC Transmitting Vehicle ignition OFF and no transmission ON detected OBD/CANBus data of OBD/CANBus data GSM LED ORANGE Blinking Quickly...
4. Device Operation 4.1 SIM Card Installation 1. Unscrew and remove the device cover. 2. Flip open the SIM card holder cover, with the metal contacts facing down, place the SIM card onto the SIM card holder compartment. 3. Replace the device cover in its original position and re-screw the cover. Note: Before installing or taking out the SIM card, please ensure the device is removed from the vehicle OBDII port.
4. Device Operation (Continued) 4.2 Vehicle Installation 1. Locate the OBDII port connector on the vehicle. 2. Directly plug TR-900 into the vehicle OBDII port connector. 3. Start the vehicle engine to allow TR-900 scan for the vehicle OBDII protocol. 4.
Page 9
4. Device Operation (Continued) 4.3 Developer Configuration 1. For developers accessing TR-900 COM port for configuration. Plug in the mini USB side of the configuration cable into TR-900 USB port, while plug in the other side directly to PC. 2. Run TR-900 Configuration Tool software from the PC. The Configuration Tool will automatically access device COM port for configuration.
5. Contact Information GlobalSat WorldCom Corporation Address: 16F., No.186, Jian 1st Rd., Jhonghe Dist., New Taipei City , Taiwan TEL: +886-2-82263799 FAX: +886-2-82263899 6. Safety Information • Please consult your airline prior to the operation of this product in the aircraft. . Operating this product in environments emitting intensive radio waves or radiation can affect the operation and functionality of this product.
7. Limited Warranty Globalsat/USGlobalsat (1) Year Limited Warranty FOR CONSUMERS, WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, IN THEIR COUNTRY OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND REGULATIONS.
equivalent to new in performance and reliability and is at least functionally equivalent to the original product or, (3) refund the purchase price of the product. Globalsat/ USGlobalsat may request that you replace defective parts with new or refurbished user-installable parts that Globalsat/ USGlobalsat provides in fulfillment of its warranty obligation.
Page 13
limited to scratches, dents, and broken plastic on ports; (c) to damage cause by use accident, abuse, misuse, flood, fire, earthquake or other external causes; (e) to damage caused by operating the product outside the permitted or intended uses described by Globalsat/ USGlobalsat; (f) to damage caused by service (including upgrades and expansions) performed by anyone who is not a representative of Globalsat/ USGlobalsat or an Globalsat/ USGlobalsat authorized service provider;...
DAMAGE TO OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING OR REPRODUCING ANY PROGRAM OR DATA STORED IN OR USED WITH THE GLOBALSAT/ USGLOBALSAT PRODUCT AND ANY FAILURE TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT.
Page 15
comparable products and parts that comply with local standards. In accordance with applicable law, Globalsat/ USGlobalsat may require that you furnish proof of purchase details and/ or comply with the registration requirements before receiving warranty service. Please refer to the accompanying documentation for more details on this and other matters obtaining warranty service.
