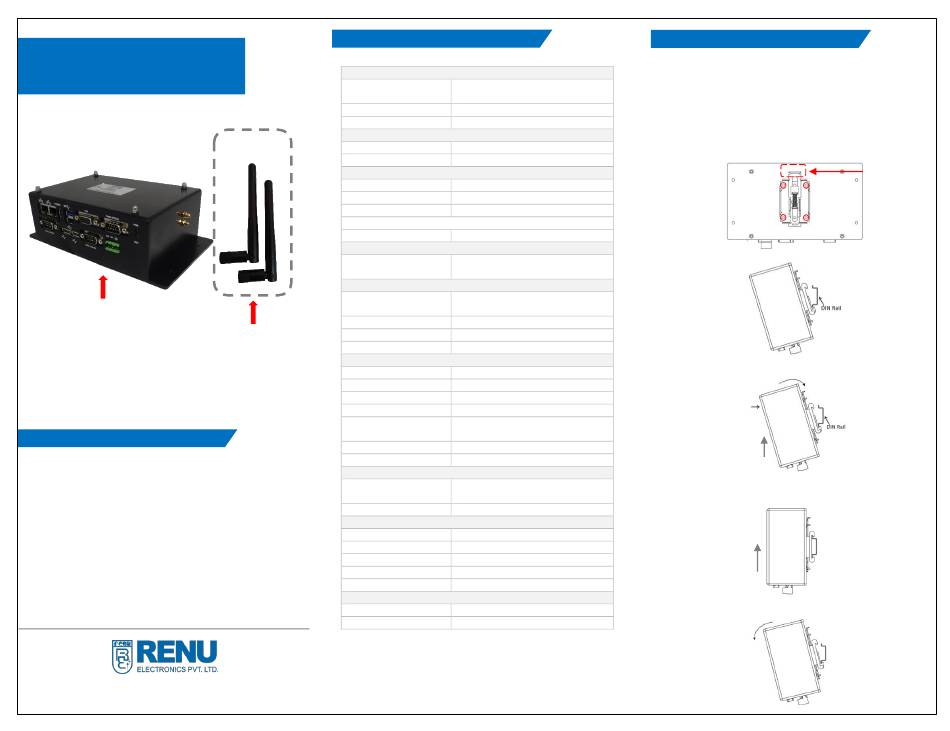

Renu PC6-B100 Quick Start Manual

PC6-B100
QUICK START GUIDE
PC6-B100
(optional Module)
INTRODUCTION
PC6-B100 is a new Box PC equipped with an Intel® Atom™
E3845 Quad-core Processor. The fanless design of PC6-B100
makes it a reliable product for different applications in the
machine industry.
OM-01 is an optional module which supports Wi-Fi &
Bluetooth functionalities. The wireless module complies with
IEEE 802.11a/b/g/n/ac. Wi-Fi supports dual band operation
for 2.4GHz & 5GHz. Bluetooth standard supports V4.1.
For More Information, Visit
https://www.renuelectronics.com
SPECIFICATIONS
SYSTEM
CPU
Chipset
BIOS
GRAPHICS
Controller
Display Mode
MEMORY
Technology
Capacity
Socket
STORAGE
SATA
EXPANSION SLOTS
Slots
INTERFACES
External Display
Serial Ports
OM-01
Ethernet
USB
ENVIRONMENT
Operating Temperature
Storage Temperature
Humidity
Ingress Protection
Shock
Vibration Protection
Surge
SUPPORTED OPERATING SYSTEM
Windows®
Linux®
MECHANICAL
Weight
Mounting
Dimensions
Input Voltage
Power Consumption
APPROVALS
CE
RoHS
Intel Atom E3845 Quadcore 1.91GHz
Processor
Valley view SOC Integrated
AMI
Intel® HD Graphics
2 Independent Displays
DDR3
Up-to 8GB DDR3L
SO-DIMM
2.5" SATA SSD / HDD
1 x mPCle (half size),
1 x mPCle (full size)
1 x HDMI (up-to 1920 x 1200), 1 x
VGA
1 x RS232, 1x RS232 / RS422 / RS485
2 x 10 / 100 / 1000 Mbps
1 x USB 3.0, 3 x USB 2.0
0~50°C
-40~75°C
10~90% RH, Non-Condensing
IP20
IEC 60068-2-27 25g, 11ms, 6 shocks
per axis, Total 18 shocks (XYZ)
5~150Hz, 1g peak, (X, Y, Z)
As per IEC61000-4-5
Windows® 7 / 8 /10, Windows® 10
IoT
Ubuntu®
950gm
Wall Mount/ DIN Rail Mount
113(W) x 62(H) x 200(D)mm
12~26VDC
20W max
Yes
Yes
MOUNTING DETAILS
This section provides information regarding mounting
details of this product.
DIN Rail Mount
Mounting Screws: 4
DIN Rail Clip: 1
Step 1: Place the clip (provided with the product) on the device (holes
highlighted as shown) and fix it with given screws.
Step 2: Place the clip bottom of the DIN Rail.
Step 3: Lift the device in the upward direction and press from the
front as shown below to mount it.
press
Removing or Releasing device from DIN Rail
Step 1: Lift the device in the upward direction as shown below.
Step 2: Tilt the device in front side as shown below to remove it from
DIN Rail.
Make sure that this
portion of the clip is
placed in the upper
section of the product
as shown.
