SONICAKE SONIC CUBE 2 User Manual

Usb audio interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

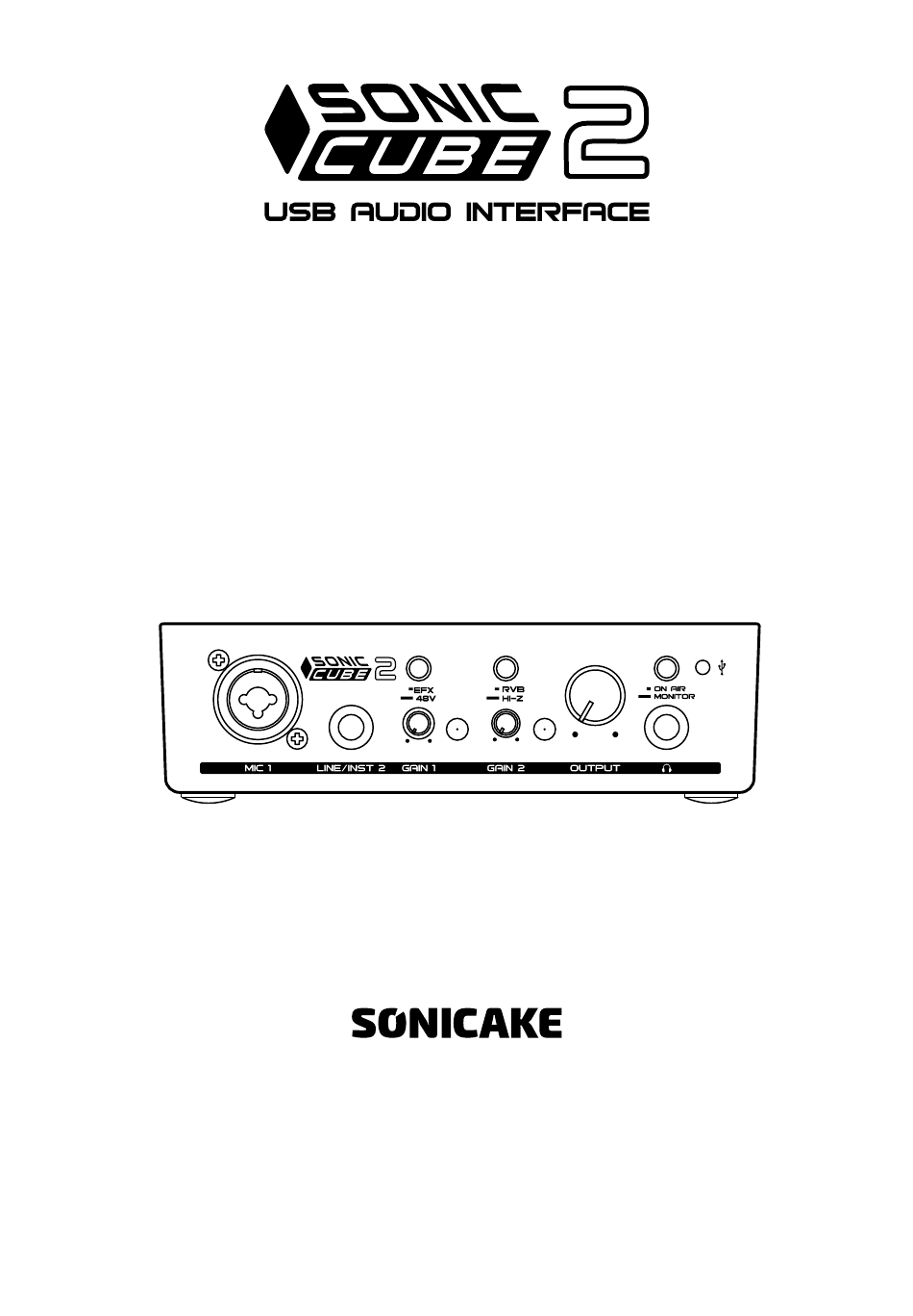

1
User Manual
For Firmware V1.0.0
www.sonicake.com
※In the interest of product improvement, the specifications and/or the content of products (including but not limited to appearances, packaging
design, manual content, accessories, size, parameters and display screen), are subject to change without prior notice. Please check with local
supplier for exact offers. Specifications and features (including but not limited to appearances, colors and size) may vary by model owing to
environmental factors, and all images are illustrative.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SONIC CUBE 2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SONICAKE SONIC CUBE 2

Summary of Contents for SONICAKE SONIC CUBE 2

  • Page 1 User Manual For Firmware V1.0.0 www.sonicake.com ※In the interest of product improvement, the specifications and/or the content of products (including but not limited to appearances, packaging design, manual content, accessories, size, parameters and display screen), are subject to change without prior notice. Please check with local supplier for exact offers.

  • Page 2: Table Of Contents

    Contents ······································································ Introduction ······························································· Getting Started ···················································· Important Information: ········································································· Mac Users ································································· Windows Users ··················································· Audio Settings in DAWs ································································ Usage Example ························································· Hardware Features ·································································· Specifications ········································································ EFFECT LIST...
  • Page 3 If the unit should malfunction, disconnect the AC adapter and turn the power OFF immediately. Then, disconnect all other connected cables. • Prepare information including the model name, serial number, specific symptoms related to the malfunction and contact SONICAKE support (support@sonicake.com).

  • Page 4: Introduction

    Introduction Introduction Thank you for choosing the Sonicake Sonic Cube II audio interface. This user guide provides detailed hardware descriptions to help you fully understand the product’s features. We recommend reading this guide thoroughly to grasp all the capabilities of Sonic Cube II and its accompanying software.

  • Page 5: Mac Users

    DAW using CoreAudio. Note that the DAW might not automatically select the Sonic Cube II as the default I/O device. In such cases, you must manually select Sonicake USB ASIO Device as the driver in the DAW’s audio settings page. If you are unsure where to select ASIO or Core Audio drivers, refer to the DAW’s help documentation.

  • Page 6: Usage Example

    Usage Example Usage Example For recording with DAW software on a computer, the following illustration represents a typical setup. In this example, both vocals (MIC1) and guitar (LINE/INST2) are recorded into the DAW, and playback is done through headphones or monitors.

  • Page 7: Hardware Features

    Hardware Features Hardware Features 1. MIC1: XLR Combo, widely compatible with most types of microphones. 2. LINE/INST 2: 6.35mm TRS jack for connecting instruments (TS unbalanced connection) or line inputs (balanced connection). 3. GAIN 1: Adjusts MIC 1 microphone signal gain. The right-side LED indicates signal level: Green indicates an input level of at least -60dBFS (signal presence), Yellow shows the signal approaching clipping at -6dBFS, and Red indicates digital clipping at 0dBFS.

  • Page 8: Specifications

    Passive speakers require a separate stereo amplifier; in this case, connect the rear panel outputs to the amplifier’s inputs. For drivers and software, please visit: www.sonicake.com Specifications Sampling Frequency: 44.1kHz/48kHz Sampling Precision: 16-bit/24-bit MIC 1: Combo balanced input (max input gain 50dB) LINE/INST 2: 1/4"...

  • Page 9: Effect List

    EFFECT LIST EFFECT LIST FX Title Description Parameters Based on the legendary Ross™ Compressor*, it offers a natural, Sustain: Adjust the compression COMP 1 warm, sweet, and highly dynamic amount compression tone with a signature VOL: Adjust the effect output ultra-long sustain.
  • Page 10 EFFECT LIST FX Title Description Parameters GAIN: Adjust the amp gain level Pres: Adjust the amp presence VOL: Adjust the amp output volume ® Based on the renowned ENGL Bass: Boost or cut the amp’s low HI-GAIN Powerball II E645/2* amp’s fourth frequencies channel simulation.
  • Page 11 EFFECT LIST FX Title Description Parameters 100Hz: Boost or cut the corresponding frequency range 500Hz: Boost or cut the corresponding frequency range 1kHz: Boost or cut the GT EQ 2 Custom guitar equalizer effect corresponding frequency range 3kHz: Boost or cut the corresponding frequency range 6kHz: Boost or cut the corresponding frequency range...
