Operation Guide

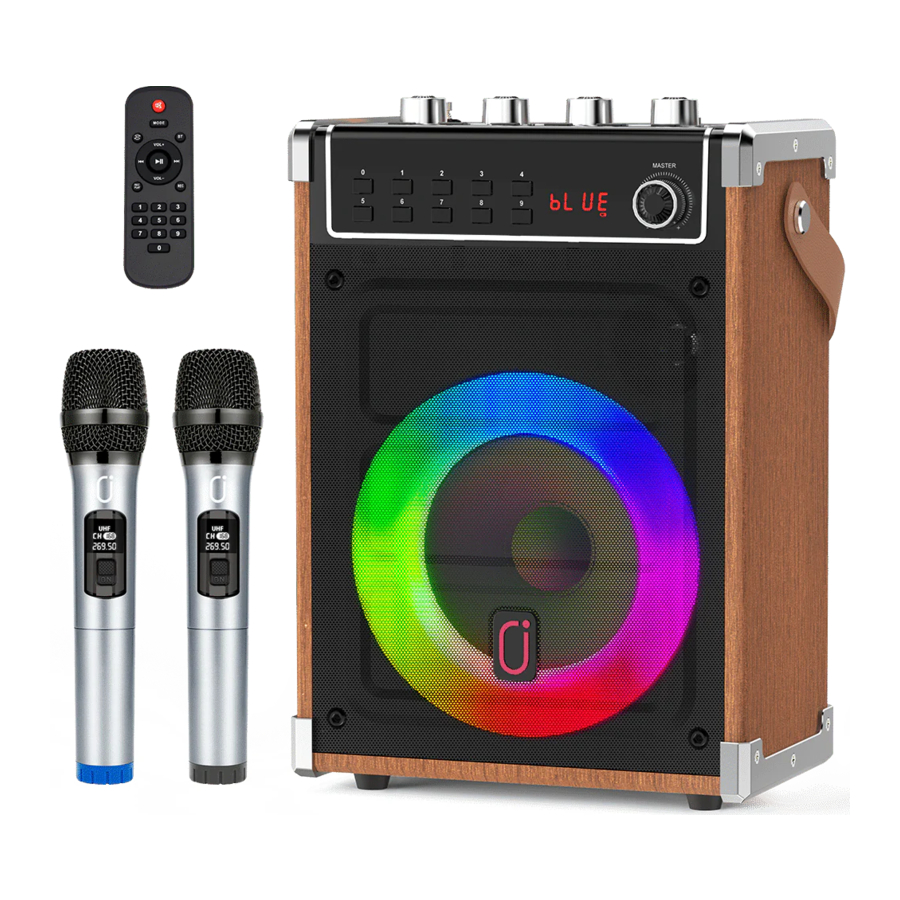

Operation Guide-Speaker
- Master: Main volume control knob
- Number Key: Press to choose the song(Only work for USB/TF/FM mode)
- Prev button: Press for prev song, long press for reverse(USB/TFcard);Press for prev channel(FM radio mode);Press for prev song(Bluetooth mode)
- Reverb: Adjust reverb.
- Play/Pause: Press to play/pause(USB flash disk/TFcard/Bluetooth),Press for silent mode, long press for searching(FM radio Mode)
- Next: Short press to switch to the nextsong,(USB/TF cardmode);Long press for fast forward. Short press for nextchannel(FM Radio mode);Press for prev song(Bluetooth mode)
- Bass: Adjust bass sound.
- REC: Long press to record audio, short press to stop and play the recording during the record process. Short press is to play the recording file when there is a recording file in the storage device.(The recording function is only available when a storage TF card/USB flash dish is plugged in)
- TWS: Short press for TWS connection, long press for disconnection(Under Bluetooth mode)
- Mode: Short press to switch between Bluetooth/USB flashdish/TF card/FM radio/AUX.Long press to disconnect under theBluetooth connection status. Long press for single cycle or allcycle.
- MIC VOL: Microphone volume adjustment
- Treble: Adjust treble sound
- LED: Press to turn on/off the LED light.
- Microphone 2
- Microphone 1
- AUX IN Jack
- TF Card Port
- Charging indicator: The light is red during charging and willbecome blue after fully charge.
- USB Port(For data transmission only)
- Type C charging port 5V 2A
- Power button
Operation Guide-Remote control
- Silent: Press for Silent ON,press again for Silent OFF
- Mode: Press to switch the system between USB,TF card, FM Radio, AUX IN and Bluetooth mode.
- BT:Press to switch to Bluetooth mode in any working state.
- Play/Pause: Short press to play/pause(USB/TF card mode); Short press to silent ON,long press is for searching radio stations(FM radio mode).
- Next: Short press for next song
- REC:short press for recording; Short press to stop and play the recording during the record process.(The USB flash dish or TF card needed during recording)
- Digital keys: Press to play the program with the corresponding serial number. For example, You want to play Second song, Press 2 button until 0002 show on the speaker screen, it will play second song after 3 seconds.
- All: switch to single cycle mode and all cycle mode
- Vol+
- PREV.
- Vol-
- REC Play: Press to play the recording audio.
USB and TF Input:
When insert USB or TF card into speaker, the speaker will play the audio from USB/TF card automatically.
REC:
- Plug in a TF card or flash card.
- Long press "REC" to start recording, short press to end recording.
- Short press "REC to play the recording audio.
TWS Function:
To use this feature, two JYX-69BT systems are required. By connecting two stereo systems, you can enjoy the True Wireless Stereo via bluetooth.
Turn on the two JYX-69BT and turn them both into bluetooth mode. Two machines will flash "BLUE" on screen. Then short press the "TWS" button of either of the two machines(Only need to press one button),the TWS function will be activated by then(Screens both stop flash).Long press TWS button to inactivate TWS function.
The way to reduce the noise of the microphone:
Turn off the "ECHO", "BASS" and "TREBLE" button, then turn on the microphone, Keep a distance of 2 meters from the speaker. Do not let the microphone face the speaker
