Summary of Contents for MODLOFT VENEZIA

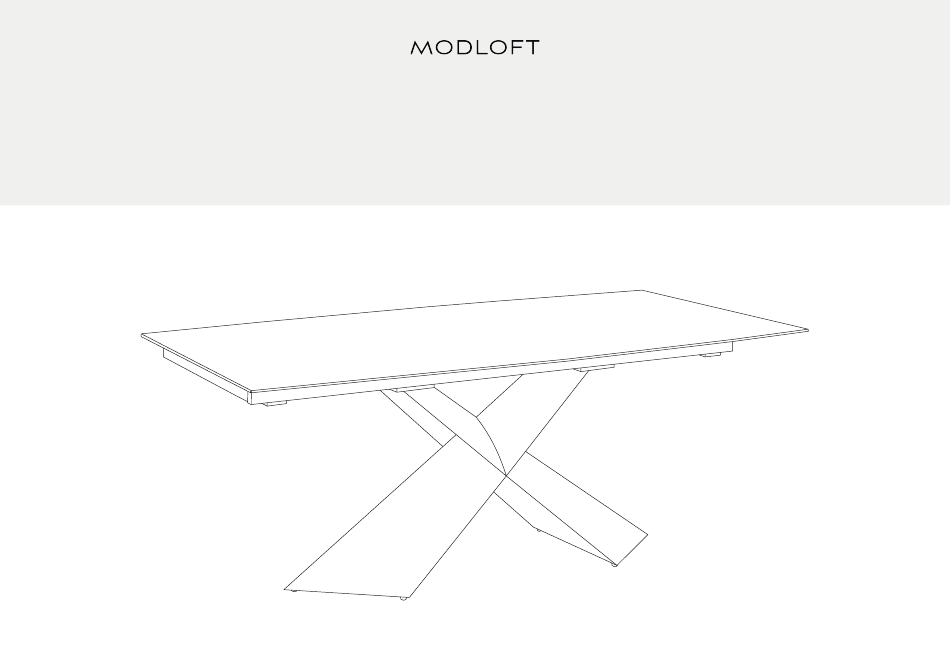

- Page 1 VENEZIA DINING TABLE A S S E M B L Y I N S T R U C T I O N S...
- Page 2 IF POSSIBLE, USE THE HELP REST THE PIECES ON SOFT SURFACES USE THE TOOLS INCLUDED OF SOMEONE ELSE TO AVOID DAMAGING THE ITEM...
- Page 3 CONVENTIONS PART 1 PART 4 PART 2 PART 3 HARDWARE TOOL MM 3 HEX KEYS M2.5, M8, M10 M8 x 30mm x8 M10 x 20mm x4 M8 x 22mm x8 M8 Wheel x8...
- Page 4 STEP 1 Unpack boxes #3 and #4 to retrieve the extension frame and base of the table. Align the extension frame with the base of the table. Using the provided allen key, securely fasten the frame to the base by locating and tightening with four screws #m10.
- Page 5 STEP 2 STEP 3 Unpack box #1, then place the center top of the table onto Unpack box #2 containing the side extensions, insert the the dining table frame, ensuring the pins align and fit secu- four m8 x 25 mm headless screws into each extension, and rely into the cylinders on the frame.
- Page 6 STEP 4 STEP 5 Place the adjusting wheel onto the screw; this wheel Carefully place each extension on the extension frame, then align the will set the glass height and later be used to align it sides and height using the adjusting wheel with the center top. with the glass top.
- Page 7 STEP 6 STEP 7 After adjusting the extension height and leveling it with the Tighten and secure the center top using the provided small center top, insert the cylindrical hex socket and tighten the allen key. extensions securely using the provided allen key. PART 2 PART 4 V E N E Z I A D I N I N G T A B L E...
- Page 8 VENEZIA DINING TABLE A S S E M B L Y I N S T R U C T I O N S...
