AMT 13 User Manual Contents Safety Information Overview Range and Accuracy Specifications Structure External structure Functional buttons LCD display Operating Instructions Power on/off Battery power checking Precision test of resistance Data hold/saving Backlight control Data reading/deletion Switching automatic and manual modes...
AMT 13 User Manual Safety Information To better use the product, please read the User Manual carefully and strictly follows all safety rules and precautions listed in the Manual. Pay special attention to the safety when using the Meter. Do not measure any energized object. Please be sure that the measured resistor or metallic object is not energized before measurement, otherwise it may pose a risk of damaging the Meter.
AMT 13 consists of the Meter (designed with large LCD), PC software, test leads, communication cable, etc. Up to 499 groups of data can be saved and the resistance measurement range is 0.001m...
AMT 13 User Manual 100.1m ~1000.0m 0.1m 100mA 1.001 ~10.0 0.001 10mA 10.01 ~100. 100.1 ~1000. 100uA 1.001K ~10.000k 0.001k 10uA 10.01K ~100.00k 0.01k 10uA 100.1K ~300.0k 0.1k 1 (ohm)=1000 m Overrange indication: “OL” is displayed if the measurement range is exceeded.
Page 7
AMT 13 User Manual Meter dimensions 161mm × 117mm × 63mm (Length × Width × Height) Length of test lead About 70cm (Red ×1; Black × 1) Measurement speed About 2 times/s USB port With Type-C port Communication cable Type-C cable (1 pc) 499 groups of data (“SAVE”...

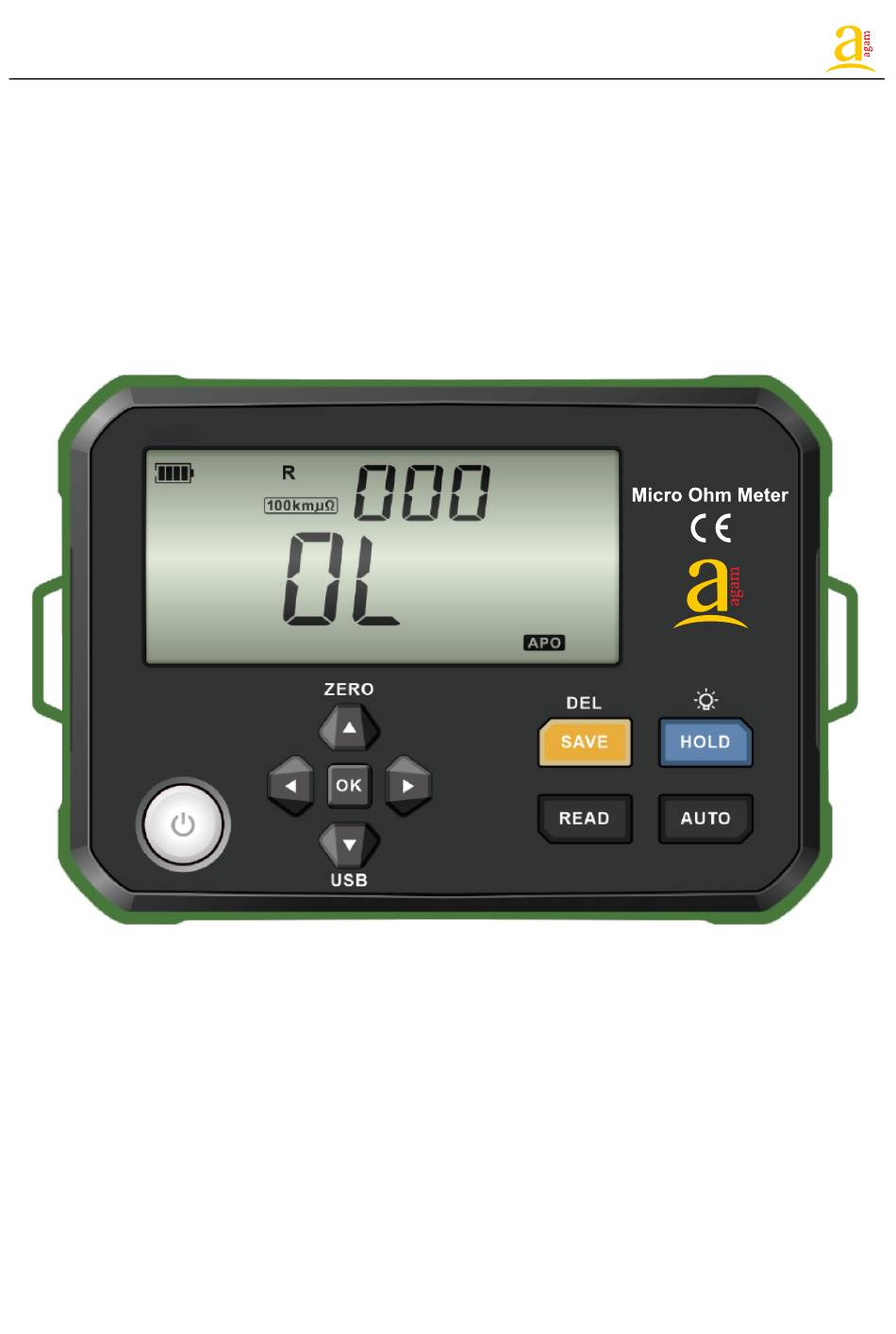

AMT 13 User Manual Structure 5.1 External structure AMT 13 1. Slider for opening the cover 8. Display screen 2. USB communication port 9. Functional buttons 3. Charging port 10. Black test clip 4. C2 terminal 11. Red test clip 5.
AMT 13 User Manual 8. Data reading 9. Data hold/Backlight 10. Auto/Manual mode switching 5.3 LCD display 1. Battery power indicator (Indicating real-time battery power) 2. Backlight lights up (This symbol appears when turning on the backlight) 3. Dangerous operation symbol (This symbol is displayed when measuring with an external AC current) 4.
AMT 13 User Manual 14. ZERO symbol (Flashing once when zeroing operation is completed) 15. SAVE symbol (Flashing once each time a set of measurement data is saved.) 16. READ symbol (Displayed in data reading mode) 17. APO symbol (Powering off automatically after 15 minutes of inactivity) 18.
Page 11
AMT 13 User Manual 4. The components and parts heat up significantly during operation for low resistance measurement (measured resistance: <100m It is recommended that the test time shall not exceed 2 minutes and the test interval shall be 10 seconds.
Page 12
AMT 13 User Manual Test the resistance between two metallic connectors. As shown in Figure 6-3. Test the contact resistance of relay. As shown in Figure 6-4.
AMT 13 User Manual 6.4 Data hold/saving In resistance measurement state, press the “HOLD” button to hold the currently measured resistance, release the fixture and the object to be measured, then the measured value will still be displayed. Press the “HOLD” button again to cancel holding the measured value.
AMT 13 User Manual save the currently held data, please press the “SAVE” button. After reading and saving the data, press the “HOLD” button to exit the data hold and saving functions for next measurement. 6.5 Backlight control Long press the “HOLD” button for 2 seconds to turn on/off the backlight when performing measurement in dark environments.
AMT 13 User Manual or exit the state of deleting a single set of data (with the symbol “DEL” blinking). If the “OK” button is pressed then, the currently displayed data will be deleted, and next set of data will be displayed automatically. After that, the user can still press the “OK” button to delete data or long press the “SAVE”...
AMT 13 User Manual 6.8 Data upload Connect the Meter to a computer via USB Type-C cable, power on the Meter, then run the PC software on the computer. After successful connection, long press the “ ” button to enter USB communication mode, then the symbol “USB” appears on the display screen.
AMT 13 User Manual 7. Battery Charging 1. If the remaining battery power is less than 25% of fully-charged battery power, please stop resistance measurement and charge the battery in time. The measurement accuracy can be affected by low battery, so please make sure that the battery power is sufficient to guarantee the measurement accuracy.
AMT 13 User Manual 8. Packing List Meter 1 pc Carrying case 1 pc USB-C cable 1 pc AMT 13 test leads 2 pcs (Red × 1; Black × 1) Charger 1 pc User manual 1 pc Straps 1 pc 9.
