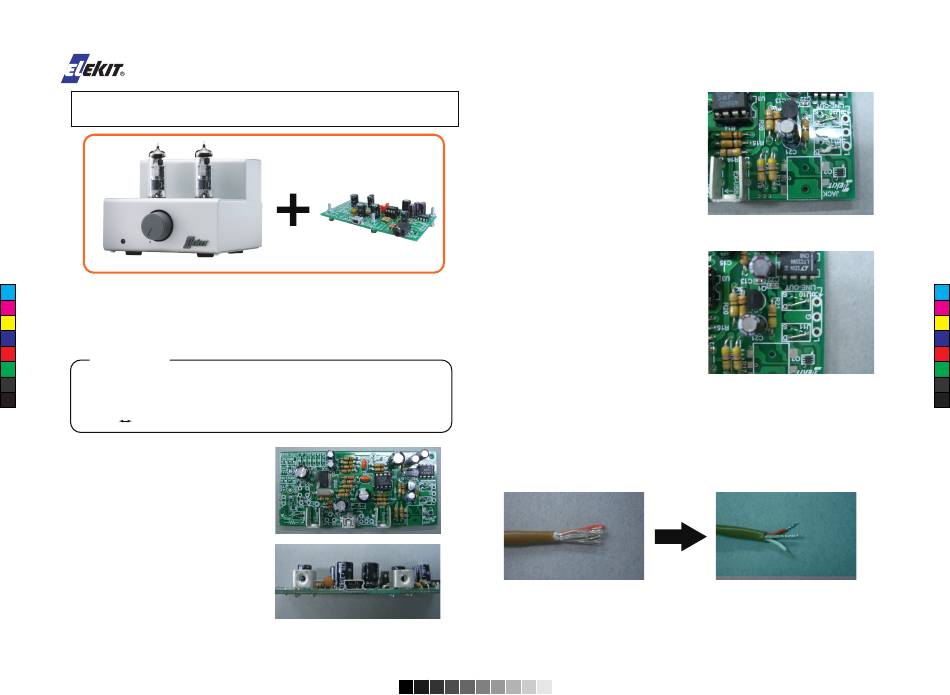

How to install PS-3249R USB-DAC module to TU-8100 PCL86
Single Stereo Power Amp Kit
USB-DAC module PS-3249R can be used connecting to other module but can also
C
be installed in ELEKIT TU-8100 PCL86 Single Stereo Power Amp Kit. Here is the
M
instruction on how to install PS-3249R to TU-8100.
Y
CM
First of all, prepare the items below.
MY
Items you need
CY
・USB-DAC module (PS-3249R)
CMY ・PCL86 Single Stereo Power Amp Kit (TU-8100)
・Two-conductor shielded cable ... Approx.17cm
K
* In addition, you need a sound source (PC), speakers, and a cable to connect them.
* Use A Mini-B type of USB cable to connect your PC and the USB-DAC module.
① Install the parts of PS-3249R as below.
・Set the fixing brackets to PS-3249R
as shown in the photo on the right.
Insert the 4 legs into the PCB so that
the threaded screw holes face
outward, and solder them on the
back side.
17:27:49
・Do not mount the mini jack.
・For "J10" and "J11", mount the jumpers
to "D" side.
②Preprocess the two-conductor shielded cable
Strip off the insulator of both ends of the two-conductor shielded cable for 1cm.
Now the braided wire, red and white wires are exposed.
Strip off the insulator of these red and white wires as well for 5mm on each end.
Twist each exposed end and solder plate.
