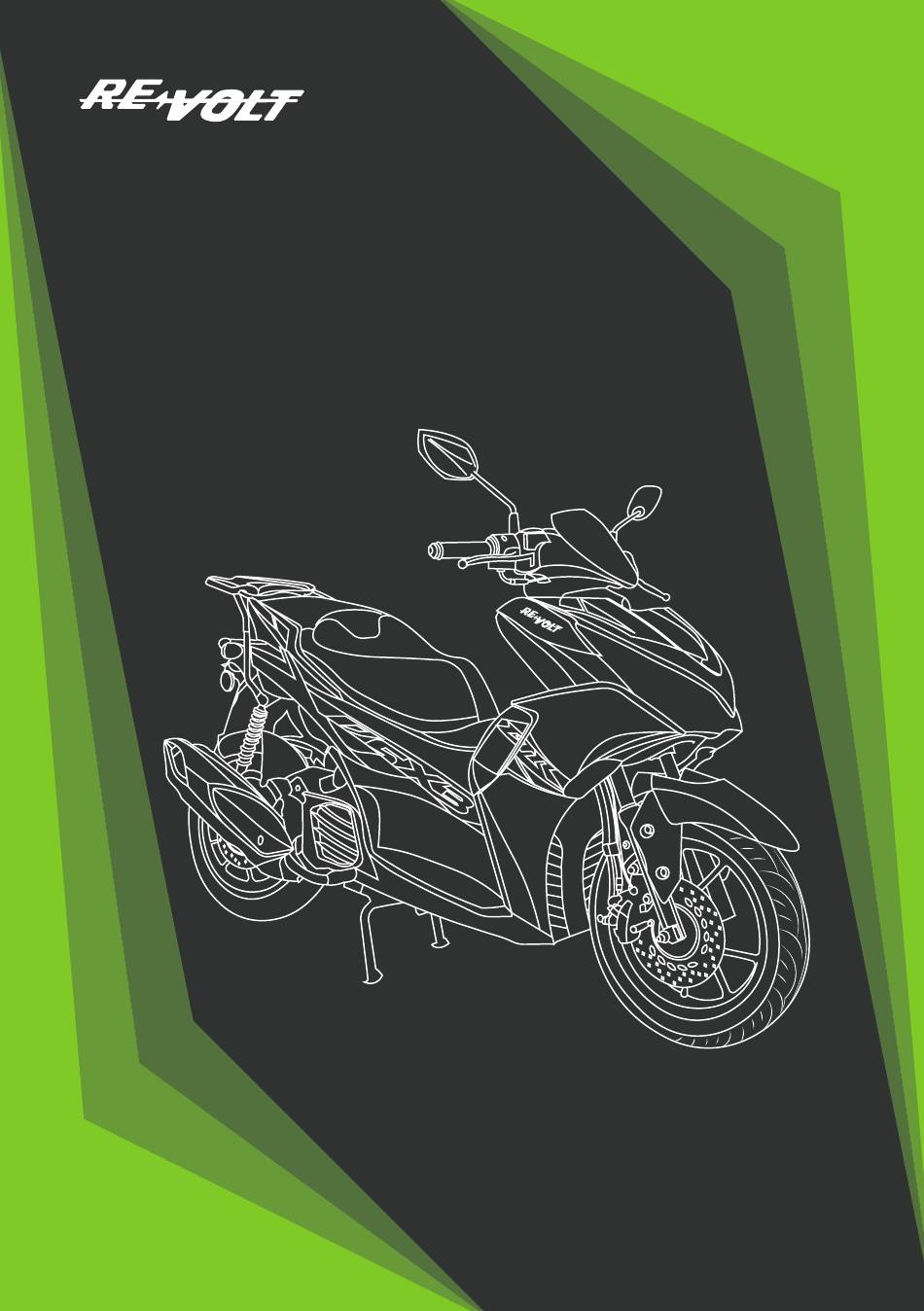

- Page 1 rsx3 TANITIM VE KULLANIM KILAVUZU Read this owner's manual carefully before moving your vehicle www.volta.com.tr...
- Page 2 PREFACE Thank you for choosing Revolt brand motorcycle and joining our family. Our products are manufactured using high quality equipment and advanced production technologies. This vehicle is equipped with electrostatic painted steel chassis, high torque and low fuel consumption engine,exhaust system that meets European standards, a hydraulic...
- Page 3 CONTENTS Safe Preface Contents Driving Maintenance General Actuation And Control View And Usage Storage Technicial Information Conditions Specifications Producer 20 22 23 Guarantee Final Inspection 24 25...
-
Page 4: Safe Driving
1. SAFE DRIVING Pre-Ride Instructions Check the condition of all the movable parts. • Check all rotating parts and add oil if it is missing. • Check whether the tyres are intact. • Check the tyre pressures • Kornanın çalışır vaziyette olduğunu kontrol ediniz. •... - Page 5 1. SAFE DRIVING Efficient Driving Instructions If the following efficient driving instructions are followed, your vehicle’s driving range and efficiency will increase; • Take your vehicle to service regularly. • Comply with the maximum load limits in the manual. • Be careful about using your vehicle in suitable weather and road conditions.
-
Page 6: General View
2.GENERAL VIEW 1. Front Tire 9. Fuel Tank 2. Front Brake Disc 10. Seat 3. Front Brake Caliper 11. Rear Luggage Rack 4. Headlight 12. Stop Light 5. Brake Lever 13. Rear Tire 6. Dashboard 14. Engine 7. Mirrors 15. Main Stand 8. - Page 7 2.1. DASHBOARD 1. Horn 6. Start/Stop Button 2. Rear Brake Lever 7. Throttle Lever 3. Right/Left Signal Button 8. Front Brake Lever 4. High/Low Beam Switch 9. Hazard Warning Light Button 5. Dashboard 10. Start Button Dashboard Indicators b. Engine Warning Light a.
- Page 8 3. ACTUATION AND USAGE Turn On / Turn Off Insert the key and turn it from the off position to the on position. The vehicle’s system will activate. If you do otherwise, the system will shut down. Steering Lock Your vehicle has a steering lock feature. Turn the handlebars to the far left and press the key on the ignition lightly to turn it to the lock position.
- Page 9 3. ACTUATION AND USAGE • Press the starter button while twisting the throttle downward to give gas. This will start your vehicle. Repeat this process until the vehicle starts. CAUTION • In certain conditions (climate conditions, air quality, fuel flow, etc.) the engine may not start immediately.
- Page 10 3. ACTUATION AND USAGE Braking Your vehicle is equipped with a front/rear hydraulic disc brake system. The front brake is activated with the brake lever on the right, and the rear brake is activated with the brake lever on the left. Grasp the brake lever with your fingers and gently squeeze it towards you. Slowly loosen the brake lever to stop braking.
-
Page 11: Maintenance And Control
4.MAINTENANCE AND CONTROL Fuel Tank Your vehicle's fuel tank capacity is 5.5 liters. The fuel tank cap is located under the seat. After turning the key to unlock the seat, you can open the fuel tank cap by turning it by hand. If the fuel gauge needle approaches the red zone, you should refuel as soon as possible. -
Page 12: Brake Maintenance
4.MAINTENANCE AND CONTROL Oil Level Check and Oil Filling • Insert the clean oil dipstick directly into its tube. • Remove the dipstick and check the oil level. If the oil level is at or below the lower limit, add oil until upper limit it reaches the upper limit. - Page 13 4.MAINTENANCE AND CONTROL Turn the key to Lift the side stand. the 'on' position. Pull the brake lever Lower the and press the start side stand button. If the engine stops: There is no issue with the side stand sensor. WARNING •...
- Page 14 4.MAINTENANCE AND CONTROL Air Filter Cleaning Dirty air filter disrupts the ideal air-fuel mixture ratio and increases fuel consumption. This also leads to an increase in exhaust emissions. Regularly clean the air filter. • Remove the air filter sponge from its box •...
- Page 15 4.MAINTENANCE AND CONTROL Spark Plug Inspection Dirty spark plugs or those with an unusually high gap between the electrodes cannot ignite. Bujiyi; • Clean the spark plug with a spark plug cleaner. • The gap between the two electrodes should be 0.6 to 0.7 mm. Adjust this gap as needed.
- Page 16 4.MAINTENANCE AND CONTROL Assembly of the Suspension • Lift the vehicle to the center stand. Push the rear axle back and forth by hand. If there is any play, tighten it again. Ensure that it is fully tightened and in the correct position. •...
- Page 17 4.MAINTENANCE AND CONTROL Periodic Maintenance Tables • Periodic maintenance should be done at authorized technical service stations. • Vehicles that are not regularly maintained (once every 4 months) will be evaluated out of warranty. www.volta.com.tr...
- Page 18 4.MAINTENANCE AND CONTROL 6 Aylık 2.000 4.000 6.000 8.000 10.000 12.000 14.000 16.000 18.000 20.000 22.000 24.000 26.000 28.000 30.000 500KM Bakım ** RODAJ 2.000KM Karter Tapa 2.000KM Pulu 4.000KM 4.000KM 6.000KM Hava 6.000KM Filtresi Üst Kapak 4.000KM Contası 6.000KM Ön 6.000KM Varyatör...
- Page 19 4. MAINTENANCE AND CONTROL First Use (Running-in) • Do not push the vehicle during the running-in period. The running-in period of your vehicle is the time until the first maintenance. • The initial use is the phase where the parts of your gasoline motorcycle adjust to each other.
-
Page 20: Storage Conditions
5.STORAGE CONDITIONS Storage If you are not going to use your vehicle for a long time during periods such as winter , you should take some precautions to protect your vehicle from malfunctions and corrosions. It would be better to make some repairs before storage. - Page 21 5.STORAGE CONDITIONS • All loads on the vehicle must be evenly distributed. The vehicle's center of gravity is precisely adjusted. Disruption of this balance may cause instability, leading to accidents or damage. • The rear carrier is designed only for carrying light items. Please do not carry heavy items.
-
Page 22: Technical Specifications
6. TECHNICAL SPECIFICATIONS Parameters Length 1966 mm Width 755 mm Height 1138 mm Wheelbase 1332 mm Weight 120 kg Max Carrying Capacity 150 kg Engine Capacity 124.6 cm Max Net Power 8.91 PS Max Net Torque 8.5 Nm Cylinder Number Cylinder Arrangement Bore/Diameter 52.4 MM... -
Page 23: Manufacturer Information
7. MANUFACTURER INFORMATION The service life of your Volta brand vehicle is 10 years, and the maximum repair period is 45 working days. If you encounter any problems with your vehicle, you can visit our website www.volta.com.tr and access information about authorized services and spare parts. - Page 24 +90 850 222 28 65 +90 850 222 28 65 +90 850 222 28 65 +90 850 222 28 65 PRODUCT Gasoline Vehicle Type Commercial Name Revolt RSX3 Model Delivery Date and Place 45 Working Days Maximum Reprair Time 2-Year Warranty Period...
-
Page 25: Son Kontrol
9.SON KONTROL Teslimat Öncesi yapılması Gereken Kontroller; Elektrik devresinde kısa devre yok 2. Araç nakliye hasarı yok 3. Akü şarjı yapıldı / tamam 4. Jant/Teker hareketleri normal, balans yok 5. Şasi Motor no kontrol edildi 6. Motor yağ seviyesi normal Lastik hava basınçları... -
Page 26: Service Center
Service Center You can go to the web address where you can search for the nearest SERVICE You can go to the web address where you can search for the nearest SALES... - Page 27 0380 731 25 25 0380 731 25 35 info@volta.com.tr...
- Page 28 NOTLAR...
- Page 29 NOTLAR...
- Page 30 www.volta.com.tr DÜZCE/TÜRKİYE DÜZCE/TÜRKİYE GEBZE/TURKIYE Selamlar Koyu, Selamlar Mevkii, Tubitak MAM Teknoloji Serbest Bölgesi Yaka Mah. 401 Sk. No:19 Gumusova OSB 1. Sk. No:10 Baris SB. Mh. 5001 Sk. No:3 A/B Cumayeri/Düzce/TÜRKİYE Gumusova/DUZCE/TURKEY Gebze/KOCAELI /TURKEY 0850 222 28 65 info@volta.com.tr 0850 222 28 65 0850 222 28 65 info@volta.com.tr info@volta.com.tr...
