Summary of Contents for PAR Drive-Thru Clear Digital Microphone

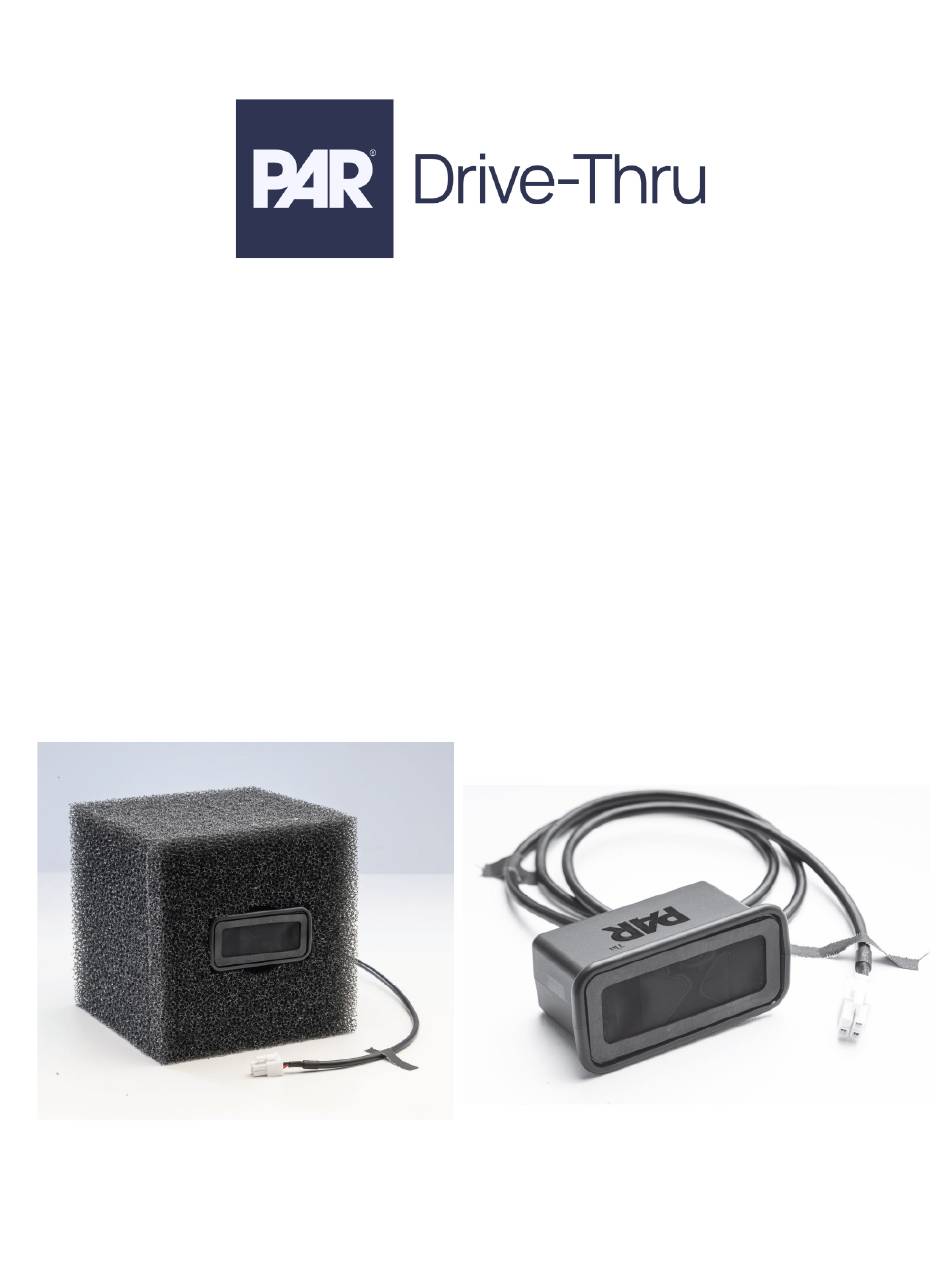

- Page 1 PAR Clear Digital Microphone Quick Reference Installation Guide...
- Page 2 Page | 2 770509501 Rev C. - K7802 Quick Reference / Install Guide...
-
Page 3: Table Of Contents
Tools and Materials Required* ....................4 Design the Installation: ......................4 Install the Digital Microphone ....................6 Inspect and Test the Digital Microphone to Finalize Install ..........8 PAR Digital Microphone Specifications ................10 Physical ............................ 10 Electrical ..........................10 Functional..........................10 Version History ...........................12... -
Page 4: Digital Microphone Installation
*Assuming all other system components will be or have been installed such as the LAi, Speaker, Basestation, Transceiver, POE, and Network Cable • PAR Acoustic Kit, part # 70071544665 as needed. • Basic tool kit: screwdrivers, zip ties, scissors, hand drill (as needed) - Page 5 The car’s position in front of the speaker post’s microphone, at the recommended distance, depends on the following: • Where the Speaker post is located at the drive thru and • A car’s turn radius SOUND PRESSURE is the determining factor in the quality of sound collected from the microphone.
-
Page 6: Install The Digital Microphone
If the menu sign or speaker post you are working with is different than those shown in the instructions, you may need to modify the procedure. The PAR Digital Microphone box and Foam Assembly may only be mounted inside a post. - Page 7 Front View of Speaker Post Back View of Speaker Post Page | 7 770509501 Rev C. - K7802 Quick Reference / Install Guide...
-
Page 8: Inspect And Test The Digital Microphone To Finalize Install
Inspect and Test the Digital Microphone to Finalize Install Inspect the speaker post to see if: • The microphone has moved out of position. • Any speaker post acoustic treatment material has slipped in front of the microphone. • The microphone is angled in such a way that its perpendicular axis is no longer in line with the customer in the vehicle. - Page 9 Adjust the gains accordingly to the site and environment using the DT (Use the other quick reference guides as needed for the Headset, Transceiver, and Portal. Basestation and/or the complete PAR Clear System Installation Manual) Inbound (headset speaker, menu microphone) 2.
-
Page 10: Par Digital Microphone Specifications
PAR Digital Microphone Specifications Physical Parameter Specification or Requirement Dimensions (l x w x d) 3” L x 1 5/8” W x 1.5” D Weight 2.6 oz. (73.7 grams) Electrical Parameter Specification or Requirement Frequency Range 150-7000 Hz Microphone MEMS-High dynamic range... - Page 11 While ParTech, Inc. (“PAR”) takes great care to ensure the accuracy of these materials, all material is provided “as is” without warranty of any kind, either express or implied, including, but not limited to, warranties of merchantability or fitness for a particular purpose.
-
Page 12: Version History
Version History Date Version Notes 1/5/24 Initial Release 6/24/24 Delete Input power specs 11/25/24 C General formatting/layout updates Page | 12 770509501 Rev C. - K7802 Quick Reference / Install Guide...
