NOSHOK IDE30 Series User Manual

Analog input process meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
IDE30 Series
Analog Input Process Meter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IDE30 Series and is the answer not in the manual?

Questions and answers

Related Manuals for NOSHOK IDE30 Series

Summary of Contents for NOSHOK IDE30 Series

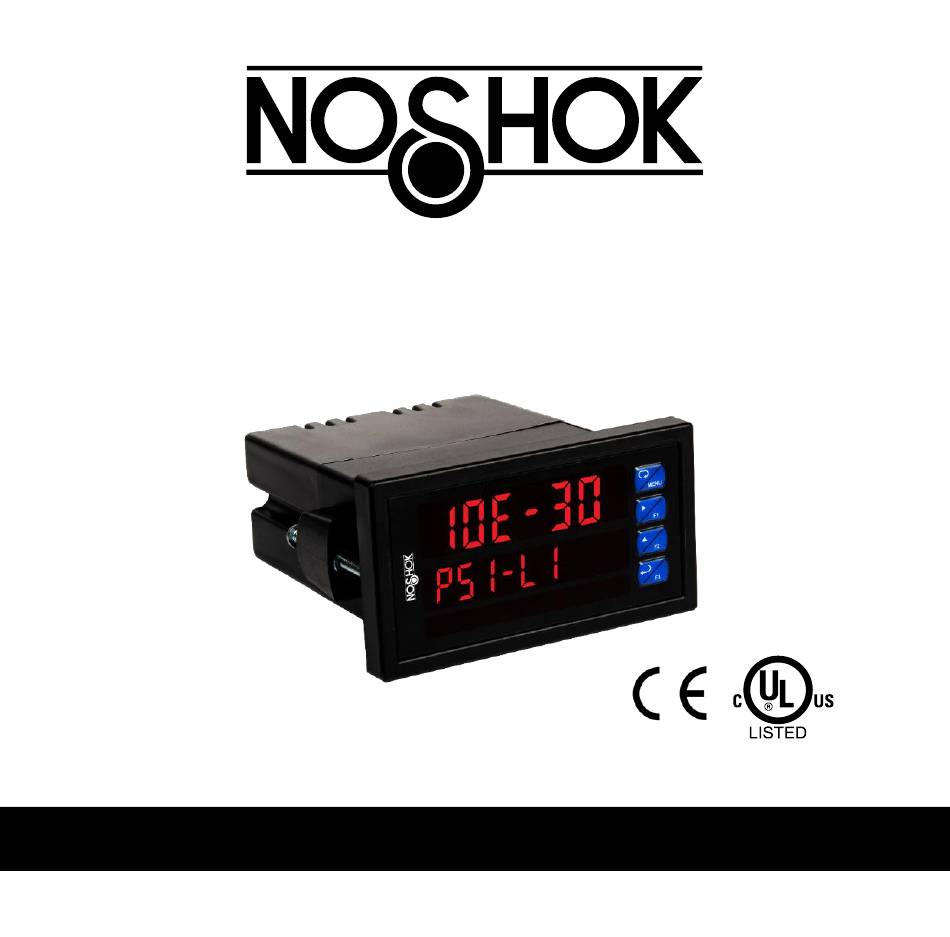

  • Page 1 IDE30 Series Analog Input Process Meter User Manual...
  • Page 2 Warnings, Warranty, and Configuration Software Disclaimer The information contained in this document is subject to change without notice. NOSHOK makes no representations or warranties with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose. See Warranty Information and Terms &...
  • Page 3 Warnings, Warranty, and Configuration Software FREE Configuration Software The meter can be powered from the USB connection. When using the USB connection, DO NOT apply AC or DC power to the meter. The easiest and quickest way to program your IDE30 meter is to use the FREE Configuration Software.

  • Page 4: Table Of Contents

    Table of Contents Introduction ..........................9 Ordering Information ......................10 Specifications ........................11 General..........................11 Process Input ........................14 Relays ..........................16 Isolated 4-20 mA Transmitter Output ................17 USB Connection ....................... 18 On-Board Digital Input (F4) ..................... 18 Configuration Software ....................18 Safety ..........................
  • Page 5 Table of Contents 4-20 mA Output Connections ..................41 Analog Output Power Supply ..................41 Setup and Programming ..................... 42 Overview ........................... 42 Front Panel Buttons and Status LED Indicators ............43 Display Functions & Messages ..................45 Main Menu ........................49 Setting Numeric Values ....................
  • Page 6 Table of Contents Relay Operation Details ....................78 Overview........................78 Relays Auto Initialization....................78 Fail-Safe Operation ...................... 79 Front Panel LEDs ......................80 Latching and Non-Latching Relay Operation ..............81 Non-Latching Relay (Auto) ................... 82 Non-Latching Relay with Manual Reset (A-nman) ............82 Latching Relay (LatcH)....................
  • Page 7 Table of Contents Meter Operation ......................... 112 Front Panel Buttons Operation ..................112 Function Keys Operation ....................113 F4 Operation ........................113 Maximum/Minimum Readings ..................114 Troubleshooting ........................ 115 Diagnostics Menu (diag) ....................115 Testing the Display LEDs ................... 115 Determining Software Version ..................
  • Page 8 Table of Figures Figure 1. 1/8 DIN Panel Cutout Dimensions ..............23 Figure 2. Panel Mounting Details ..................23 Figure 3. Meter Dimensions - Side View ................24 Figure 4. Meter Dimensions - Top View ................25 Figure 5. Transmitter Supply Voltage Selection .............. 30 Figure 6.

  • Page 9: Introduction

    Introduction Introduction Front, back and in between, the IDE30 meter boasts specifications, features and functionality that make it the only 1/8 DIN process meter you will ever need. The number one feature that makes the IDE30 such a useful device is its built-in 24 VDC @ 200 mA power supply to drive the transmitter.

  • Page 10: Ordering Information

    Ordering Information Ordering Information 85-265 VAC 12-24 VDC Options Installed Model Model IDE30-A-1-2-0 IDE30-A-2-2-0 No options IDE30-A-1-2-1 IDE30-A-2-2-1 2 relays IDE30-A-1-2-2 IDE30-A-2-2-2 4-20 mA output IDE30-A-1-2-3 IDE30-A-2-2-3 4 relays IDE30-A-1-2-4 IDE30-A-2-2-4 2 relays & 4-20 mA output IDE30-A-1-2-5 IDE30-A-2-2-5 4 relays & 4-20 mA output Replacement Option Cards Model Options Installed...

  • Page 11: Specifications

    Specifications Specifications Except where noted all specifications apply to operation at +25°C. General Line 1: 0.60" (15 mm) high, red LEDs, Line 2: 0.46" (12 mm) high, red LEDs Display 6 digits each (-99999 to 999999), with lead zero blanking Display Eight user selectable intensity levels.
  • Page 12 Specifications Rounding Select 1, 2, 5, 10, 20, 50, or 100 (e.g. rounding = 10, value = 123.45, display = 123.50). Tare Tare function zeros out the meter to remove the weight of a container. Tare function can be assigned to a function key, or F4 digital input. Three programmable passwords restrict modification of programmed settings.
  • Page 13 Specifications Tightening Screw terminal connectors: 5 lb-in (0.56 Nm) Torque Overall 4.68" x 2.45" x 5.64" (119 mm x 62 mm x 143 mm) Dimensions (W x H x D) Weight 9.5 oz (269 g) Warranty 3 years parts & labor.

  • Page 14: Process Input

    Specifications Process Input Inputs Field selectable: 0-20 mA, 4-20 mA 10 V (0-5 V, 1-5 V, 0-10 V) Terminals P+ & P-: 24 VDC 10%. Isolated Transmitter All models selectable for 24, 10, or 5 VDC supply (internal jumper J4). 85-265 VAC Power Supply models rated @ 200 mA max, 12-24 VDC powered models rated @ 100 mA max.
  • Page 15 Specifications Input Voltage ranges: greater than 500 k Current ranges: 50 - 100  (depending on internal resettable fuse impedance) Impedance Input Current input protected by an internal resettable fuse, 30 VDC max. Fuse resets Overload automatically after fault is removed. HART The meter does not interfere with existing HART communications;...

  • Page 16: Relays

    Specifications Relays 2 or 4 SPDT (Form C) internal and/or 4 SPST (Form A) external; rated 3 A @ 30 VDC Rating and 125/250 VAC resistive load; 1/14 HP (≈ 50 W) @ 125/250 VAC for inductive loads Noise Noise suppression is recommended for each relay contact switching inductive loads. Suppression See Switching Inductive Loads on page 39 for details.

  • Page 17: Isolated 4-20 Ma Transmitter Output

    Specifications Isolated 4-20 mA Transmitter Output Output Process variable (PV), max, min, set points 1-4, or manual control mode Source Scaling 1.000 to 23.000 mA for any display range Range Calibration Factory calibrated: 4.000 to 20.000 = 4-20 mA output Analog Out 23.000 mA maximum for all parameters: Programming...

  • Page 18: Usb Connection

    3.3 VDC on contact. Connect normally open contacts across F4 to COM Logic Levels Logic High: 3 to 5 VDC Logic Low: 0 to 1.25 VDC Configuration Software Availability Download directly from meter or from noshok.com ® ® System Microsoft Windows...

  • Page 19: Compliance Information

    Compliance Information Safety UL & C-UL Listed USA & Canada UL 508 Industrial Control Equipment UL File Number E540504 Front Panel UL Type 4X, NEMA 4X, IP65; panel gasket provided Low Voltage EN 61010-1 Directive Safety requirements for measurement, control, and laboratory use Electromagnetic Compatibility Emissions EN 55022...

  • Page 20: Eu Declaration Of Conformity

    Testing was conducted on meters installed through the covers of grounded metal enclosures with cable shields grounded at the point of entry representing installations designed to optimize EMC performance. EU Declaration of Conformity For reference, a Declaration of Conformity is available on our website www.noshok.com.

  • Page 21: Safety Information

    Safety Information Safety Information CAUTION Read complete instructions prior to installation and operation of the meter. WARNINGS Risk of electric shock or personal injury. Hazardous voltages exist within enclosure. Installation and service should be performed only by trained service personnel.

  • Page 22: Installation

    Installation and Unpacking Installation There is no need to remove the meter from its case to complete the installation, wiring, and setup of the meter for most applications. Instructions are provided for changing the transmitter power supply to output 5 or 10 VDC instead of 24 VDC.

  • Page 23: Figure 2. Panel Mounting Details

    Installation and Unpacking 3.622" (92 mm) Square Corners to 0.060" (1.5mm) Max Radius 1.772" Panel Cutout (45mm) to DIN 43700 Tolerances: A: +0.032 (+0.8mm) -0.000 (-0.0mm) B: +0.024 (+0.6mm) -0.000 (-0.0mm) Figure 1. 1/8 DIN Panel Cutout Dimensions DO NOT apply AC or DC power to the meter when using the USB connection. Figure 2.

  • Page 24: Mounting Dimensions

    Installation and Unpacking Mounting Dimensions Figure 3. Meter Dimensions - Side View...

  • Page 25: Figure 4. Meter Dimensions - Top View

    Installation and Unpacking Figure 4. Meter Dimensions - Top View...

  • Page 26: Installation Overview

    Installation and Unpacking Installation Overview We recommend the following sequence for getting the meter into service: DO NOT apply AC or DC power to the meter. Connect the meter to the PC with the USB cable provided. DO NOT use a different USB cable.

  • Page 27: Configuration Software Installation

    Installation and Unpacking The programming software is intuitive, and most customers can get their meter programmed as they like without even looking in the manual. Configuration Software Installation Connect one end of the provided USB cable to the meter and the other end to the computer.
  • Page 28 Installation and Unpacking Double-click on the file named “MAStart.” The program will open a few windows and install two programs on your computer. Simply follow the on-screen instructions until you see one of the dialogs below. If you receive a “User Account Control” warning, click “Yes.”...
  • Page 29 Installation and Unpacking Note: If you decide to update your programming software, once the installation has completed, you will be asked if you want to update the setup files located on the meter itself. This way, you will always have the most current version on the meter for future installs.

  • Page 30: Transmitter Supply Voltage Selection (P+, P-)

    Installation and Unpacking Transmitter Supply Voltage Selection (P+, P-) All meters, including models equipped with the 12-24 VDC power option, are shipped from the factory configured to provide 24 VDC power for the transmitter or sensor. If the transmitter requires 5 or 10 VDC excitation, the internal jumper J4 must be configured accordingly.

  • Page 31: Connections

    Connections Connections All connections are made to removable screw terminal connectors located at the rear of the meter. CAUTION Use copper wire with 60°C or 60/75°C insulation for all line voltage connections. Observe all safety regulations. Electrical wiring should be performed in accordance with all applicable national, state, and local codes to prevent damage to the meter and ensure personnel safety.

  • Page 32: Connectors Labeling

    Connections Connectors Labeling The connectors’ label, affixed to the meter, shows the location of all connectors available with requested configuration. Note: # on the following figures refers to the power option. (Example: IDE30-A-1-2-5) 1 2 3 4 5 6 7 8 Figure 6.

  • Page 33: Figure 8. Ide30-A-#-2-2 Connectors Label

    Connections MA OUT 24 V SIGNAL 1 2 3 4 5 6 7 8 M-LINK POWER Figure 8. IDE30-A-#-2-2 Connectors Label 1 2 3 4 5 6 7 8 Figure 9. IDE30-A-#-2-3 Connectors Label...

  • Page 34: Figure 10. Ide30-A-#-2-4 Connectors Label

    Connections MA OUT RELAY2 RELAY1 24 V SIGNAL 1 2 3 4 5 6 7 8 M-LINK POWER Figure 10. IDE30-A-#-2-4 Connectors Label 24 V 1 2 3 4 5 6 7 8 Figure 11. IDE30-A-#-2-5 Connectors Label WARNING DO NOT connect any equipment to the RJ45 M-LINK connector. Damage will occur to the equipment and the meter.

  • Page 35: Power Connections

    Connections Power Connections Power connections are made to a two-terminal connector labeled POWER. The meter will operate regardless of DC polarity connection. The + and - symbols are only a suggested wiring convention. There are separate models for low voltage and high voltage power. See Ordering Information on page 10 for details.

  • Page 36: Signal Connections

    Connections Signal Connections Signal connections are made to a six-terminal connector labeled SIGNAL. The COM (common) terminal is the return for the 4-20 mA and the 10 V input signals. Current (mA) Connections The following figures show examples of current connections. There are no switches or jumpers to set up for current inputs.

  • Page 37: Figure 15. Voltage Input Connections

    Connections The current input is protected against current overload by an internal resettable fuse. The display may or may not show a fault condition depending on the nature of the overload. The fuse limits the current to a safe level when it detects a fault condition, and automatically resets itself when the fault condition is removed.

  • Page 38: Relay Connections

    Connections Relay Connections Relay connections are made to two six-terminal connectors labeled RELAY1 – RELAY4. Each relay’s C terminal is common only to the normally open (NO) and normally closed (NC) contacts of the corresponding relay. The relays’ C terminals should not be confused with the COM (common) terminal of the INPUT SIGNAL connector.

  • Page 39: Switching Inductive Loads

    Connections Switching Inductive Loads The use of snubbers to suppress electrical noise is strongly recommended when switching inductive loads to prevent disrupting the microprocessor’s operation. The snubbers also prolong the life of the relay contacts. Suppression can be obtained with resistor-capacitor (RC) networks assembled by the user or purchased as complete assemblies.

  • Page 40: F4 Digital Input Connections

    Connections Use a diode with a reverse breakdown voltage two to three times the circuit voltage and forward current at least as large as the load current. Figure 18. Low Voltage DC Loads Protection F4 Digital Input Connections A digital input, F4, is standard on the meter. This digital input should be connected with a normally open contact across F4 and COM, or with an active low signal applied to F4.

  • Page 41: 4-20 Ma Output Connections

    Connections 4-20 mA Output Connections Connections for the 4-20 mA transmitter output are made to the connector terminals labeled mA OUT. The 4-20 mA output may be powered internally or from an external power supply. 24 V Internal Power Supply 24 V and Analog Output Active Output Loop...

  • Page 42: Setup And Programming

    Setup and Programming Setup and Programming There is no need to recalibrate the meter when first received from the factory. The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards. Overview There are no jumpers to set for the meter input selection.

  • Page 43: Front Panel Buttons And Status Led Indicators

    Setup and Programming Front Panel Buttons and Status LED Indicators Button Symbol Description Menu Right arrow/F1 Up arrow/F2 Enter/F3...
  • Page 44 Setup and Programming State Indication Steady Alarm condition based on set and reset points, independent of relay status in certain configurations. (Available on all meter configurations, including those without relays installed) 1-4 & M Flashing Relay in manual control mode Flashing Meter in Tare mode Flashing...

  • Page 45: Display Functions & Messages

    Setup and Programming Display Functions & Messages The meter displays various functions and messages during setup, programming, and operation. The following table shows the main menu functions and messages in the order they appear in the menu. Display Functions & Messages Display Parameter Action/Setting Description...
  • Page 46 Setup and Programming Display Functions & Messages Display Parameter Action/Setting Description dsplay Display Enter the Display menu Line 1 Display Line 1 Press Enter to assign the Main display parameter (default: PV) Line 2 Display Line 2 Press Enter to assign the small display parameter (default: engineering units) d-Inty Display...
  • Page 47 Setup and Programming Display Functions & Messages Display Parameter Action/Setting Description DeLAY Delay Enter relay Time Delay menu DLY 1 Delay 1 Enter relay 1 time delay setup On 1 On 1 Set relay 1 On time delay OFF 1 Off 1 Set relay 1 Off time delay DLY 2...
  • Page 48 Setup and Programming pass Password Enter the Password menu Pass 1 Password 1 Set or enter Password 1 Pass 2 Password 2 Set or enter Password 2 Pass 3 Password 3 Set or enter Password 3 unloc Unlocked Program password to lock meter locd Locked Enter password to unlock meter...

  • Page 49: Main Menu

    Setup and Programming Main Menu The main menu consists of the most commonly used functions: Setup, Reset, Control, and Password. • Press Menu button to enter Programming Mode then press the Up arrow button to scroll main menu. • Press Menu, at any time, to exit and return to Run Mode.

  • Page 50: Setting Numeric Values

    Setup and Programming Setting Numeric Values The numeric values are set using the Right and Up arrow buttons. Press Right arrow to select next digit and Up arrow to increment digit value. The digit being changed is displayed brighter than the rest. Press and hold Up to auto-increment the display value. If negative numbers are allowed, the first digit position will include a negative symbol (-) after the 9.

  • Page 51: Setting Up The Meter (Setup)

    Setup and Programming Setting Up the Meter (setup) The Setup menu is used to select: Input signal the meter will accept Dual-scale feature for some level applications Select the display units/tags Decimal point position Programming Menu Display parameter and intensity Relay operation 4-20 mA analog output scaling...

  • Page 52: Setting The Input Signal (Input)

    Setup and Programming Setting the Input Signal (Input) Enter the Input menu to set up the meter to display current (nmA) or voltage (Volt) inputs. The current input is capable of accepting any signal from 0 to 20 mA. Select current input to accept 0-20 mA or 4-20 mA signals.

  • Page 53: Setting The Display Units Or Custom Tags (Units)

    Setup and Programming Setting the Display Units or Custom Tags (units) Enter the display unit or custom tag that will be displayed if d unit is selected as the line 2 parameter. See the Setting the Display Parameter & Intensity (dsplay) flow chart on page 61 to access the display menu to show the unit or tag on display line 2.

  • Page 54: Setting The Decimal Point (Dec Pt)

    Setup and Programming Setting the Decimal Point (dEc pt) The decimal point may be set with up to five decimal places or with no decimal point at all. The decimal point selection should be made prior to scaling, calibrating or programming the meter.

  • Page 55: Programming The Meter (Prog)

    Setup and Programming Programming the Meter (prog) The meter may either be scaled (SCALE) without applying an input or calibrated (Cal) by applying an input. The meter comes factory calibrated to NIST standards, so for initial setup, it is recommended to use the (SCALE) function. The Program menu contains the Scale (SCALE) and the Calibrate (Cal) menus.
  • Page 56 Setup and Programming Program Menu for Single Scale Process Program Menu for Dual-Scale Level Applications Additional parameters, not needed for most applications, are programmed in the Advanced Features menu. See Advanced Features Menu on page 93. Multi-Point Calibration & Scaling The meter is set up at the factory for 2-point linear calibration.
  • Page 57 Setup and Programming Scaling the Meter (SCALE) The process input (4-20 mA, 10 VDC) can be scaled to display the process variable in engineering units. A signal source is not needed to scale the meter; simply program the inputs and corresponding display values.
  • Page 58 Setup and Programming Scaling the Input for PV1 (SCAL 1) Scaling the Input for PV2 (SCAL 2)
  • Page 59 Setup and Programming Error Message (Error) An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to the input prior to the failure during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.
  • Page 60 Setup and Programming Calibrating the Meter with External Source (Cal) Note: To scale the meter without a signal source SCALE refer to Scaling the Meter ( ) on page 57. The meter can be calibrated to display the process variable in engineering units by applying the appropriate input signal and following the calibration procedure.

  • Page 61: Setting The Display Parameter & Intensity (Dsplay)

    Setup and Programming Setting the Display Parameter & Intensity (dsplay) The main display (Line 1) can be programmed to display: Process value 1 (PV1) Process value 2 (PV2)* Percent of PV1 (PCT)* Relay set points Max & min values Display reading and units Display gross Toggle net &...

  • Page 62: Display Intensity (D-Inty)

    Setup and Programming After setting up the input and display, press the Menu button to exit programming and skip the rest of the setup menu. Display Intensity (d-Inty) The meter has eight display intensity levels to give the best performance under various lighting conditions.
  • Page 63 Setup and Programming Display Parameter Menu...
  • Page 64 Setup and Programming Dual-Scale Display Feature The dual-scale feature is of particular value in level applications where a second scaled display can represent the measured input in a different form (i.e. gallons & height). Both displays are independently scaled and are based on the 4-20 mA input signal.

  • Page 65: Setting The Relay Operation (Relay)

    Setup and Programming Setting the Relay Operation (relay) This menu is used to set up the operation of the relays. WARNING During setup, the relays do not follow the input and they will remain in the state found prior to entering the Relay menu. Relay action Automatic reset only (non-latching) Automatic + manual reset at any time (non-latching)
  • Page 66 Setup and Programming...

  • Page 67: Setting The Relay Action

    Setup and Programming Setting the Relay Action Operation of the relays is programmed in the Action menu. The relays may be set up for any of the following modes of operation: Automatic reset (non-latching) Automatic + manual reset at any time (non-latching) Latching (manual reset only, at any time) Latching with Clear (manual reset only after...

  • Page 68: Programming Set And Reset Points

    Setup and Programming Programming Set and Reset Points High alarm indication: program set point above reset point. Low alarm indication: program set point below reset point. The deadband is determined by the difference between set and reset points. Minimum deadband is one display count. If the set and reset points are programmed with the same value, the relay will reset one count below the set point.

  • Page 69: Programming Time Delay

    Setup and Programming Programming Time Delay The On and Off time delays may be programmed for each relay between 0 and 999.9 seconds. The relays will transfer only after the condition has been maintained for the corresponding time delay. The On time delay is associated with the set point. The Off time delay is associated with the reset point.
  • Page 70 Setup and Programming The following graph shows the loop break relay operation for a high alarm relay.

  • Page 71: Relay And Alarm Operation Diagrams

    Setup and Programming Relay and Alarm Operation Diagrams The following graphs illustrate the operation of the relays, status LEDs, and ACK button. High Alarm Operation (Set > Reset) For Manual reset mode, ACK can be pressed anytime to turn "off" relay. To detect a new alarm condition, the signal must go below the set point, and then go above it.

  • Page 72: Low Alarm Operation (Set < Reset)

    Setup and Programming Low Alarm Operation (Set < Reset) For Manual reset mode, ACK can be pressed anytime to turn "off" relay. For relay to turn back “on”, signal must go above set point and then go below it.

  • Page 73: High Alarm With Fail-Safe Operation (Set > Reset)

    Setup and Programming High Alarm with Fail-Safe Operation (Set > Reset) Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

  • Page 74: Low Alarm With Fail-Safe Operation (Set < Reset)

    Setup and Programming Low Alarm with Fail-Safe Operation (Set < Reset) Note: Relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.

  • Page 75: Time Delay Operation

    Setup and Programming Time Delay Operation The following graphs show the operation of the time delay function. When the signal crosses the set point, the On time delay timer starts and the relay trips when the time delay has elapsed. If the signal drops below the set point (high alarm) before the time delay has elapsed, the On time delay timer resets and the relay does not change state.

  • Page 76: Pump Alternation Control Operation

    Setup and Programming Pump Alternation Control Operation...

  • Page 77: Relay Sampling Operation

    Setup and Programming Relay Sampling Operation When the signal crosses the set point, the relay trips and the sample time starts. After the sample time has elapsed, the relay resets. The cycle repeats every time the set point is crossed, going up for high alarms and going down for low alarms. The sample time can be programmed between 0.1 and 5999.9 seconds.

  • Page 78: Relay Operation Details

    Setup and Programming Relay Operation Details Overview The relay capabilities of the meter expand its usefulness beyond simple indication to provide users with alarm and control functions. These capabilities include front panel alarm status LEDs as well as either 2 or 4 optional internal relays. Typical applications include high and low temperature, level, pressure or flow alarms, control applications such as simple on/off pump control, and pump alternation control for up to 4 pumps.

  • Page 79: Fail-Safe Operation

    Setup and Programming Fail-Safe Operation The following table indicates how the relays behave based on the fail-safe selection for each relay: Fail-Safe Non-Alarm State Alarm State Power Failure Selection Open Closed Closed Open Relays go to non-alarm state Closed Open Open Closed Relays go to alarm state...

  • Page 80: Front Panel Leds

    Setup and Programming Front Panel LEDs The alarm status LEDs on the front panel are available on all meters, even those without relays installed, and provide status indication for the following: Status Alarm 1 Alarm 2 Alarm 3 Alarm 4 The meter is supplied with four alarm points that include front panel LEDs to indicate alarm conditions.

  • Page 81: Latching And Non-Latching Relay Operation

    Setup and Programming Latching and Non-Latching Relay Operation The relays can be set up for latching (manual reset) or non-latching (automatic reset) operation. Relay terminology for following tables Terminology Relay Condition Alarm (Tripped) Normal (Reset) Acknowledged The On and Off terminology does not refer to the status of the relay’s coil, which depends on the fail-safe mode selected.

  • Page 82: Non-Latching Relay (Auto)

    Setup and Programming Non-Latching Relay (Auto) In this application, the meter is set up for automatic reset (non-latching relay). Acknowledging the alarm while it is still present has no effect on either the LED or the relay. When the alarm finally goes away, the relay automatically resets and the LED also goes off.

  • Page 83: Latching Relay (Latch)

    Setup and Programming Latching Relay (LatcH) In this application, the meter is set up for manual reset at any time. Acknowledging the alarm even if the alarm condition is still present resets the relay and turns off the LED. Manual reset any time Condition Relay Normal...

  • Page 84: Acknowledging Relays

    Setup and Programming Acknowledging Relays There are two ways to acknowledge relays programmed for manual reset: Via the programmable front panel function keys F1-F3 (Example: F3 assigned to ACK). Remotely via a normally open push button wired to the F4 terminal at the rear of the instrument.
  • Page 85 Setup and Programming Application #1: Pump Alternation Using Relays 1 & 2 Relays 1 and 2 are set up for pump alternation. Relays 3 and 4 are set up for low and high alarm indication. Set and Reset Point Programming Relay Set Point Reset Point...
  • Page 86 Setup and Programming Application #2: Pump Alternation Using Relays 3 & 4 Relays 1 and 2 are set up for low and high alarm indication. Relays 3 and 4 are set up for pump alternation. Set and Reset Point Programming Relay Set Point Reset Point...
  • Page 87 Setup and Programming With the Pump Alternation feature activated, the next time the level reaches 6000 gallons, relay #3 transfers and starts the backup pump. If the backup pump is not able to keep up, and the level reaches 7000 gallons, relay #4 transfers and starts the main pump as well.
  • Page 88 Setup and Programming Relay #2 trips the High Level Alarm at 7500 gallons and resets at 6900 gallons. Relay #1 trips the Low Level Alarm at 495 gallons and resets at 750 gallons.

  • Page 89: Scaling The 4-20 Ma Analog Output (Aout)

    Setup and Programming Scaling the 4-20 mA Analog Output (Aout) The 4-20 mA analog output can be scaled to provide a 4-20 mA signal for any display range selected. No equipment is needed to scale the analog output; simply program the display values to the corresponding mA output signal.

  • Page 90: Manual Control Menu (Contrl)

    Setup and Programming Manual Control Menu (Contrl) The Manual Control menu is used to control the 4-20 mA analog output and the relays manually, ignoring the input. Each relay and analog output can be programmed independently for manual control. Selecting automatic control sets all relays and analog output for automatic operation.

  • Page 91: Setting Up The Password (Pass)

    Setup and Programming Setting Up the Password (pass) The Password menu is used for programming three levels of security to prevent unauthorized changes to the programmed parameter settings. Pass 1: Allows use of function keys and F4 digital input Pass 2: Allows use of function keys, F4 digital input, and editing set/reset points Pass 3: Restricts all programming, function keys, and F4 digital input.

  • Page 92: Disabling Password Protection

    Setup and Programming Disabling Password Protection To disable the password protection, access the Password menu and enter the correct password twice, as shown below. The meter is now unprotected until a new password is entered. If the correct six-digit password is entered, the meter displays the message unLoc (unlocked) and the protection is disabled until a new password is programmed.

  • Page 93: Advanced Features Menu

    Setup and Programming Advanced Features Menu To simplify the setup process, functions not needed for most applications are located in the Advanced Features menu. Press and hold the Menu button for three seconds to access the advanced features of the meter.
  • Page 94 Setup and Programming Advanced Features Menu & Display Messages Display Parameter Action/Setting Round Round Set the rounding value for display variables SelEct Select Enter the Select menu (function, cutoff, out) Functn Input signal Select linear, square root, programmable exponent, or round conditioning horizontal tank function Linear...
  • Page 95 Setup and Programming Advanced Features Menu & Display Messages Display Parameter Action/Setting break Break Set analog output value if input loop break is detected nmAx Maximum Program maximum mA output allowed nmin Minimum Program minimum mA output allowed Calib Calibrate Calibrate 4-20 mA output (internal reference source used for scaling the output) 4 nmA...

  • Page 96: Noise Filter (Filter)

    Setup and Programming Advanced Features Menu & Display Messages Display Parameter Action/Setting LED t LED test Test all LEDs (press menu to exit test) Info Information Display software number and version Erase Configuration SW stored in meter’s memory Erase Erase Noise Filter (filter) The noise filter is available for unusually noisy signals that cause an unstable process variable display.

  • Page 97: Rounding Feature (Round)

    Setup and Programming Rounding Feature (round) The rounding feature is used to give the user a steadier display with fluctuating signals. Rounding is used in addition to the filter function. Rounding causes the display to round to the nearest value according to the rounding selected.

  • Page 98: Select Menu (Select)

    Setup and Programming Select Menu (SElect) The Select menu is used to select the input signal conditioner applied to the input (linear, square root, programmable exponent, or round horizontal tank), low-flow cutoff, and analog output programming. The multi-point linearization is part of the linear function selection.

  • Page 99: Input Signal Conditioning (Functn)

    Setup and Programming Input Signal Conditioning (Functn) The Function menu is used to select the input signal conditioner applied to the input: linear, square root, programmable exponent, or round horizontal tank volume calculation. The multi- point linearization is part of the linear function selection. Meters are set up at the factory for linear function with 2-point linearization.
  • Page 100 Setup and Programming Multi-Point Linearization (Linear) Meters are set up at the factory for linear function with 2-point linearization. Up to 32 linearization points can be selected for PV1 under the linear function. The multi-point linearization can be used to linearize the display for non-linear signals such as those from level transmitters used to measure volume in odd-shaped tanks or to convert level to flow using weirs and flumes with complex exponent.
  • Page 101 Setup and Programming Round Horizontal Tank Linearization (rHt) This function automatically calculates the volume in a round horizontal tank with flat ends. Set the display for the desired decimal point and engineering units before entering the round horizontal tank function. Select units, inches or cm for the tank dimensions. Enter the diameter and the length in inches and the results are calculated automatically in US gallons.

  • Page 102: Low-Flow Cutoff (Cutoff)

    Setup and Programming Changing the Volume from Gallons to Liters In the above graphic, entering the 48" for the diameter and 120" for the length of the round horizontal tank, the meter automatically calculates that the volume of the tank is 940.02 gallons.

  • Page 103: Analog Output Programming (Aoutpr)

    Setup and Programming Analog Output Programming (AoutPr) The Analog Output Programming menu is used to program the behavior of the 4-20 mA output. The following parameters and functions are programmed in this menu: Source: Source for generating the 4-20 mA output (e.g. PV) Overrange: Analog output value with display in overrange condition Underrange: Analog output value with display in underrange condition Break: Analog output value when loop break is detected...
  • Page 104 Setup and Programming Analog Output Calibration To perform the analog output calibration, it is recommended to use a milliamp meter with a resolution of at least 0.1 µA to measure the output current. The values saved internally during this procedure are used for scaling the 4-20 mA output in the Setup menu. Analog Output Calibration Procedure Wire the IDE30 4-20 mA output to a current loop that includes a power supply (internal or external 12 to 24 VDC), and the mA input on the digital meter.

  • Page 105: Programmable Function Keys User Menu (User)

    Setup and Programming Programmable Function Keys User Menu (user) The User menu allows the user to assign the front panel function keys F1, F2, and F3, and the F4 digital input (located on the input signal connector) to access most of the menus or to activate certain functions immediately (e.g.
  • Page 106 Setup and Programming Function Keys & F4 Digital Input Available Settings Display Description Rly d Disable all relays until a button assigned to enable relays (Rly E) is pressed Rly E Enable all relays to function as they have been programmed O Hold Hold current relay states and analog output as they are until a button assigned to enable relays (Rly E) is pressed...
  • Page 107 Setup and Programming The tare function zero’s out the display. In the case of scale weight, tare is used to eliminate container weight and provide net weight readings. There are two tare functions; Capture Tare and Reset Tare. When the capture tare function is used, the display reading is offset by the displayed amount to make the displayed value zero.

  • Page 108: Internal Source Calibration (Ical)

    Setup and Programming Internal Source Calibration (ICAL) The meter is factory calibrated prior to shipment for milliamps and volts with calibration equipment that is certified to NIST standards. The use of calibrated signal sources is necessary to calibrate the internal source of the meter.
  • Page 109 Setup and Programming The Internal calibration menu is part of the Advanced Features menu. Press and hold the Menu button for three seconds to access the advanced features of the meter. Press the Up arrow button to scroll to the Internal calibration menu (ICAL) and press Enter.
  • Page 110 Setup and Programming The following graphic shows the calibration of the current input. The voltage input is calibrated in a similar way. Tips: • Low and high input signals can be any valid values within the range of the meter. •...
  • Page 111 Setup and Programming Error Message (Error) An error message indicates that the calibration or scaling process was not successful. After the error message is displayed, the meter reverts to the input prior to the failure during calibration or scaling and to input 1 during internal calibration, allowing the appropriate input signal to be applied or programmed.

  • Page 112: Meter Operation

    Setup and Programming Meter Operation The meter is capable of accepting current (0-20 mA, 4-20 mA) and voltage signals (0-5 V, 1-5 V, 0-10 V, 10 V) and displaying these signals in engineering units from -99999 to 999999 (e.g. a 4-20 mA signal could be displayed as -50.000 to 50.000). The dual-line display can be customized for the user’s specific application.

  • Page 113: Function Keys Operation

    Setup and Programming Function Keys Operation During operation, the programmable function keys operate according to the way they have been programmed in the Advanced Features – User menu. See Programmable Function Keys User Menu (user) on page 105 for details. The table above shows the factory default settings for F1, F2, and F3.

  • Page 114: Maximum/Minimum Readings

    Setup and Programming Maximum/Minimum Readings The max & min readings (peak & valley) reached by the process can be displayed either continuously or momentary: Display briefly by assigning to the F1-F3 function keys or to the F4 terminal in the User menu.

  • Page 115: Troubleshooting

    Setup and Programming Troubleshooting The rugged design and the user-friendly interface of the meter should make it unusual for the installer or operator to refer to this section of the manual. However, due to the many features and functions of the meter, it’s possible that the setup of the meter does not agree with what an operator expects to see.

  • Page 116: Determining Software Version

    Setup and Programming Determining Software Version To determine the software version of a meter: Go to the Diagnostics menu (diAG) and press Enter button. Press Up arrow button and scroll to Information menu (Info). Press Enter to access the software number (SFT) and version (UER) information. Write down the information as it is displayed.

  • Page 117: Reset Meter To Factory Defaults

    Setup and Programming Reset Meter to Factory Defaults When the parameters have been changed in a way that is difficult to determine what’s happening, it might be better to start the setup process from the factory defaults. Instructions to load factory defaults: Enter the Advanced Features menu.

  • Page 118: Factory Defaults & User Settings

    Setup and Programming Factory Defaults & User Settings The following table shows the factory setting for most of the programmable parameters on the meter. Parameter Display Default Setting Input Input type 4-20 mA d-SCAL Dual-scale feature No (Single scale) filter Filter bypass Bypass...
  • Page 119 Setup and Programming Parameter Display Default Setting Set 1 Relay 1 set point 1.000 RSt 1 Relay 1 reset point 0.500 Act 2 Relay 2 action Automatic Set 2 Relay 2 set point 2.000 RSt 2 Relay 2 reset point 1.500 Act 3 Relay 3 action...
  • Page 120 Setup and Programming Parameter Display Default Setting Off 4 Off delay relay 4 0.0 sec ignore Loop break relay 1 Ignore ignore Loop break relay 2 Ignore ignore Loop break relay 3 Ignore ignore Loop break relay 4 Ignore Dis 1 Display 1 analog out 4.000 Out 1...

  • Page 121: Troubleshooting Tips

    Setup and Programming Troubleshooting Tips This meter is a highly sophisticated instrument with an extensive list of features and capabilities. If the front panel buttons are used to program the meter, it may be a difficult task to keep everything straight. That is why we strongly recommend the use of the free Configuration Software for all programming activities.
  • Page 122 Setup and Programming Display is unstable Check: Input signal stability and value Display scaling vs. input signal Filter and bypass values (increase) Display response is too slow Check filter and bypass values Display reading is not Check: accurate Input signal conditioner selected: Linear, square root, etc. Scaling or calibration Display does not respond to Check:...
  • Page 123 Setup and Programming Note: Certain sequences of events can cause unexpected results. To solve these issues, it is best to start fresh from factory defaults and use the manual as a step by step programming guide, rather than a random approach to programming. To reset the meter to factory defaults, see Reset Meter to Factory Defaults on page 117.
  • Page 124 Fax: 440.243.3472 E-mail: noshok@noshok.com Web: www.noshok.com For the latest version of this manual please visit www.noshok.com NOSHOK, Inc. I 1010 West Bagley Road I Berea, Ohio 44017 I P: 440.243.0888 I F: 440.243.3472 I www.noshok.com NK24IDE30UM LIM6000NS_A SFT039 Ver 4.010 & up...
