Alpha Elettronica S.r.l. - Manuale d’uso EN - User manual (rev. 1) 94-114 Strumento multifunzione PoE e Networking Multifunctional PoE and Networking tool...
Page 2
Conservare questo foglio istruzioni. Descrizione Il tester 94-114 è uno strumento digitale multifunzionale avanzato progettato per professionisti nel settore delle reti e delle telecomunicazioni. Offre una gamma completa di funzionalità per l’installazione, la manutenzione e la riso- luzione dei problemi di cablaggio di rete.
Page 3
• Batteria a lunga durata: Alimentato da una batteria ai polimeri di litio da 3,7V 1.500mAh, garantisce periodi di utilizzo prolungati, con ricarica comoda tramite USB Type-C. Informazioni sulla sicurezza • Si prega di leggere attentamente tutto il contenuto di questo manuale pri- ma di utilizzare il tester multifunzione. • Per evitare lesioni personali causate da scosse elettriche utilizzare il pro- dotto secondo le istruzioni contenute nel presente manuale, altrimenti la protezione fornita verrà disattivata o indebolita. • Non installare in luoghi soggetti a vibrazioni o oscillazioni. • Mantenere sufficiente spazio attorno per garantire una buona ventilazione.
Page 4
Specifiche tecniche Scansione cavo Modalità digitale / modalità analogica Spegnimento Sì automatico Avviso batteria Sì (per bassa potenza) LCD TFT a colori, retroillumina- Display to, 128x64 Test continuità cavo Ricevitore & Switch Range: 5~200m (±3m) Test lunghezza cavo STP/UTP (Cat5/5e/6/6a) RJ45, RG11 Test tracciamento ≤600m senza carico collegato cavo ≤1000m con carico collegato Test mappatura STP/UTP (Cat5/5e/6/6a/7/8) cavo Port Flashing 10M/100M/1000M IEEE 802.3at/af/bt Mid-Span/End-Span/AT-4 pairs Test di tensione PoE Trasmettitore Range: 5-55V DC POE Switch 10M/100M/1000M Velocità Modalità...
Page 5
Tempo di 6~8 ore (con singola carica completa della batteria) funzionamento Ricarica Caricabatterie USB-C da 5V/1A o 5V/2A (non incluso) Operativa: 0~45°C (20~70% senza condensa) Temperatura Stoccaggio: -10~45°C (10~70% senza condensa) Classe di IP20 protezione Peso 564g (con batterie) Panoramica Torcia LED Sonda Tracciamento RJ11 Indicatore alimentazione Porta Flash/ Lunghezza/ Switch Indicatore segnale PoE/ Indicatore NCV PING/ Regolazione sensibilità segnale Porta di ricarica Schermo Modalità...
Utilizzo del prodotto Icone del menu principale AUTO-OFF: l’utente può vedere l'icona " " in alto a sinistra dello schermo quando la funzione è ATTIVA, può scegliere di disattivarla in "Impostazioni". Livello di potenza: mostra il livello di potenza della batteria del dispositivo, diventerà...
Page 7
Istruzioni delle funzioni 1. CONT (Test di continuità del cavo) Modalità: Remote e Switch. Remote: può testare la continuità e la condizione incrociato/cortocircuito. Switch: può solo testare la continuità del cavo. Prendere la modalità remota come esempio. Inserire un’estremità del cavo nella porta “CONT” sul trasmettitore e l’altra estremità nella porta sul ricevitore, utilizzare i tasti SU/GIÙ per cambiare tra le due modalità e scegliere “Remote”, selezionare “Start” quindi premere il tasto “OK” per avviare il test. Il risultato del test è il seguente: Cavo incrociato Buono Cortocircuito...
Page 8
2. SCAN (Tracciamento cavi) Se il cavo è RJ45 inserire un’estremità nella porta “CONT/SCAN” del trasmettitore. L’altra estremità è connessa alla porta dello switch. Se il cavo è RJ11 inserire un’estremità nella porta “RJ11” del trasmettitore. Trasmettitore: Per impostazione predefinita è su Digital Mode, utilizzare i tasti SU/GIÙ per cambiare tra le due modalità: • Digital Mode (modalità digitale) • Analog Mode (modalità analogica) Modalità digitale Modalità digitale: anti-interferenza, quando si tracciano cavi (con carico) da switch 1000M, è consigliato di usare questa modalità. Modalità analogica: con poco disturbo, è consigliato di usare questa mo- dalità quando si tracciano cavi senza carico. Quindi avvicinare la sonda all’ estremità del cavo in prova. Si ricerca il cavo di rete con il suono più forte. La regolazione della sensibilità mediante la manopola, può aiutare a identificare il cavo più velocemente.
Page 9
Indicatore del segnale di scansione (stato del ricevitore) rimane acceso: è in modalità digitale lampeggia: è in modalità analogica Regolazione sensibilità Modalità scansione 3. PORT FLASH (Lampeggio porta switch) Dal menù principale selezionare “Port Flash”. Inserire un’estremità del cavo nella porta “Flash/Lenght” del trasmettitore e l’altra estremità nella porta dello switch. Il punto verde sullo schermo lampeggerà alla stessa frequenza dell’indicato- re della porta sullo switch.
Page 10
4. LENGHT (Misurazione lunghezza del cavo) Inserire un’estremità del cavo nella porta “Flash/Lenght” del trasmettitore (non collegare l’altra estremità del cavo), scegliere il tipo corretto di cavo (CAT5/CAT6), impostare l’unità di misura per il risultato (Me- tro/Yard/Piedi) premendo “OK”, quindi premi “OK” per misurare la lunghezza del cavo (la portata migliore è 5-200 m), il risultato verrà visualizzato in coppie di pin. Quando si misurano cavi rotti, se il punto rot- to è troppo vicino all’estremità vuota (meno del 3% della lunghezza totale), per motivi tecnici, il dispositivo mostrerà la lunghezza Misurazione totale del cavo, in tal caso si consiglia di lunghezza cavo...
Page 11
6. PING (Test Ping) Si consiglia di impostare IPV4 la prima volta per utilizzare la funzione di test Ping. Dopo aver inserito l’indirizzo Ping, l’utente può utilizzare i pulsanti SU/GIÙ per scegliere “Set IP” per impostare IP locale, Subnet Mask e Gateway; dopo averli impostati, l’utente deve salvare le impostazioni dopodiché è possibile tornare a utilizzare le funzioni di scansione Ping. Test Ping Impostazione IP 7. IP SCAN (Scansione IP) Utilizzare i pulsanti SU/GIÙ per selezionare “Set IP” e impostare IP locale, Subnet Mask e Ga- teway, dopo avere impostato questi parametri, l’utente deve salvare le impostazioni dopodi- ché...
Page 12
Alpha Elettronica S.r.l. si riserva la possibilità, nel rispetto delle norme in vigore, di apportare modifiche tecniche e dimensionali per migliorare le caratteristiche e le pre- stazioni del prodotto senza preavviso. Limitazione di responsabilità L’installazione, l’uso e la manutenzione del tester multifunzione codice 94-114 (di seguito indicato come “dispositivo”) è di esclusiva responsabilità dell’utente. Alpha Elettronica s.r.l. non è responsabile per eventuali danni diretti o indiretti derivan- ti dall’uso o dal malfunzionamento del dispositivo. Alpha Elettronica s.r.l. declina ogni responsabilità se il dispositivo viene danneggiato a causa di fattori umani che...
Page 13
causano danni, lesioni o perdite. Alpha Elettronica s.r.l. declina ogni responsa- bilità per danni o lesioni derivanti da un uso improprio o da una mancata manu- tenzione del dispositivo. Alpha Elettronica s.r.l. non è responsabile per alcun tipo di danno, sia diretto che indiretto, morale, incidentale, speciale o consequenziale, come perdita di dati, interruzioni di attività o danni finanziari. La responsabilità di Alpha Elettronica s.r.l. è limitata al prezzo di acquisto del dispositivo. Si consiglia di seguire attentamente le istruzioni fornite nel manuale.
Page 14
Smaltimento di batterie In accordo con il Regolamento (UE) 2023/1542, iI simbolo del ce- stino barrato riportato sull’apparecchio indica che la batteria, alla fine della propria vita utile, deve essere trattata separatamente dai rifiuti domestici e essere conferita negli appositi contenitori. Per informazioni sui punti di raccolta, contattare il proprio Comune di residenza o i servizi di smaltimento locali. Per ulteriori informazioni visitare il sito web www.alphaelettronica.com oppu- re scansionare il QR-CODE per accedere alla pagina internet del prodotto. IT - 13...
Page 15
The device described in this manual is intended only for the use for which it was specifically designed. Any oth- er use is considered improper and dangerous. Keep this instruction sheet. Description The 94-114 tester is an advanced multifunctional digital instrument designed for professionals in the network and telecommunications industry. It offers a full range of features for installing, maintaining and troubleshooting network cabling. With its color LCD screen and intuitive interface, it represents a com- plete solution for managing and diagnosing networks, making it an indispen- sable tool for professionals in the industry.
Page 16
• Long-lasting Battery Life: powered by a 3.7V 1,500mAh polymer lithium battery, it ensures extended usage periods, with convenient USB type-C charging for easy recharging. Safety Information • Please read the entire contents of this manual carefully before using the multifunction tester. • To avoid personal injury caused by electric shock, use the product accord- ing to the instructions in this manual, otherwise the protection provided will be deactivated or weakened. • Do not install in places subject to vibration or oscillation. • Keep sufficient space around to ensure good ventilation. • Both the transmitter and receiver are powered by a lithium battery. • Do not use the product if it is damaged. • Do not disassemble the device.
Page 17
Technical specifications Cable scan Digital mode / Analog mode Auto OFF Low power notice LCD TFT color screen with Display back light,128x64 Cable continuity test Remote & Switch Range: 5~200m (±3m) Cable length test STP/UTP (Cat5/5e/6/6a) RJ45, RJ11 Tracking test ≤600m without load ≤1000m with load Wiremapping STP/UTP (Cat5/5e/6/6a/7/8) function Port Flash 10M/100M/1000M IEEE 802.3at/af/bt Mid-Span/End-Span/AT-4 pairs PoE voltage test Transmitter Range: 5-55V DC POE Switch 10M/100M/1000M Duplex mode Link speed (full duplex / half duplex) Input voltage 60V DC protection Max working current...
Page 18

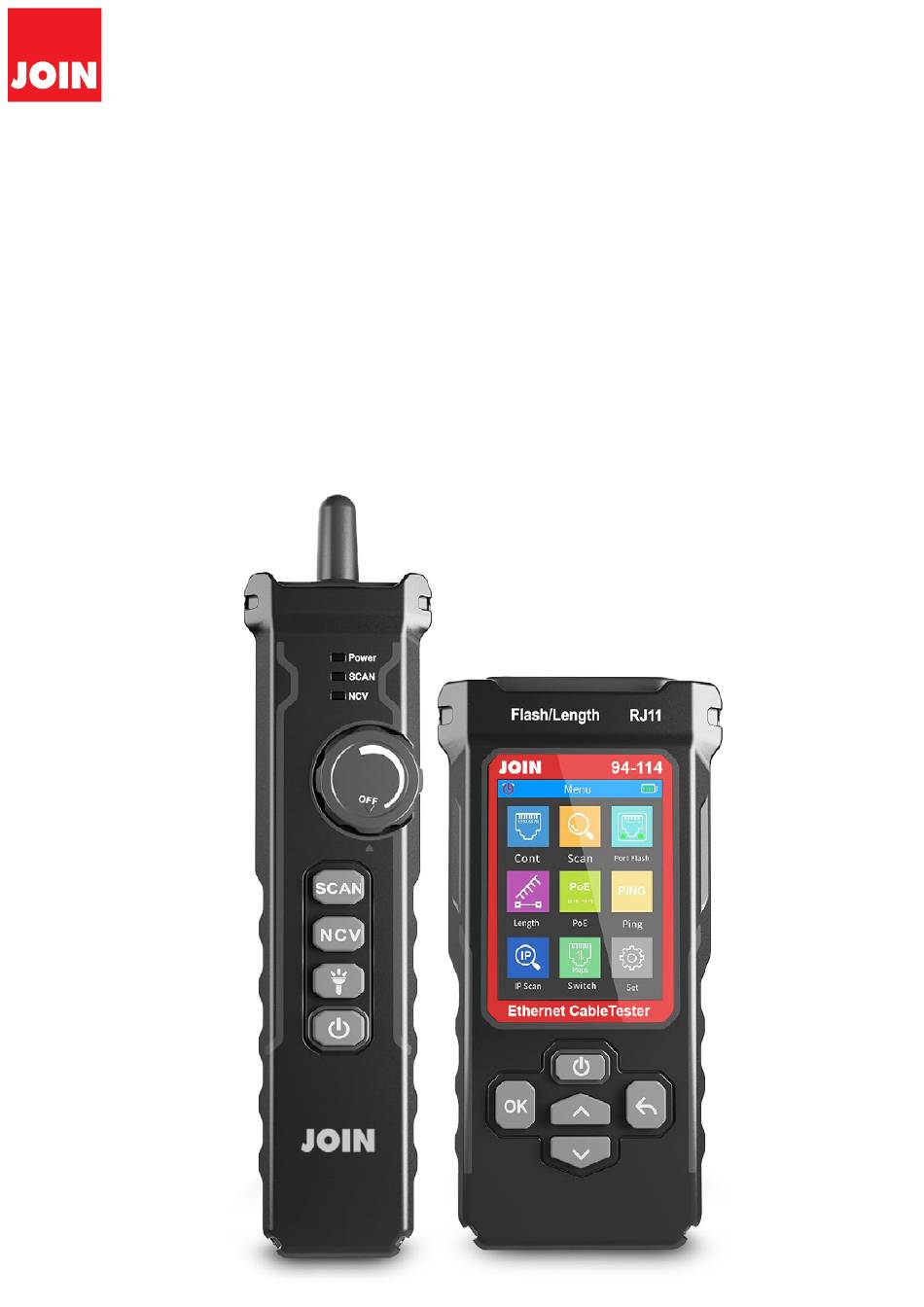

Overview LED light Probe RJ11 Tracking Port Flash/ Power Indicator Lenght/ Switch Signal Indicator PoE/ NCV Indicator PING/ Signal Sensitivity Switch Charging Port Scan Screen Mode Switch CONT/ SCAN Light Earphone ON/OFF ON/OFF Confirm Return Down Charging Port CONT (Continuity test port) Transmitter Receiver Battery Charging...
Product usage Main menu icons AUTO-OFF: Customers can see the icon " "on the left top of the screen when the function is ON, Customers can choose to turn it off in "Set". Power Level: Show the battery power level of the device, it will turn to Green when charging, and stays white when in use.
Function instructions 1. CONT (Cable Continuity Test) Modes: Remote and Switch. Remote: Can test cable continuity, Cross/ Short Condition. Switch: Can only test cable continuity. Take remote mode as an example. Insert one end of the cable into the “CONT” port on the transmitter and the other end into the port on the receiver, use the UP/DOWN buttons to change between the two modes and choose “Remote”, turn to “Start” then press “OK” to test. Testing result as following: Cable Cross Good Short Circuit Cable Open EN - 19...
Page 21
2. SCAN (Cable Tracking) If the cable is RJ45, insert one end into the “CONT/ SCAN” port on the transmitter. The other end is connected to the switch port. If the cable is RJ11, insert one end into the “RJ11” port on the transmitter. Transmitter: By default it is set to Digital Mode, use the UP/ DOWN buttons to change between the two modes: • Digital Mode • Analog Mode Digital Mode Digital Mode: anti-interference, when tracking cables with load from 1000M switches, customers were suggested use this mode. Analog Mode: with little noise, customers were suggested to use this mode when tracking cables without load. Then bring the probe close to the end of the cable under test. The network cable with the loudest sound is searched for. Adjusting the sensitivity using the knob can help you identify the cable more quickly.
Page 22
Scan signal indicator (Receiver status) stays on: is in Digital mode blinks: is in Analog mode Sensitivity Switch Scan Mode Switch 3. PORT FLASH From the main menu select “Port Flash”. Plug one end of the cable into the “Flash/Length” port on the transmitter and the other end into the port on the switch. The green dot on the screen will flash at the same rate as the port indicator on the switch. Port Flash EN - 21...
4. LENGHT (Cable Length Measurement) Insert one end to the Length port of the device (Keep the other end empty), Choose the right type of the cable (CAT5/ CAT6), Set the unit for the result (Meter/ Yard/Feet) by pressing “OK”, then press “OK” to measure the cable length (Best range will be 5-200m), the result will be displayed in pin pairs. When measuring broken cables, if the broken point is too close to the empty end (less than 3% of the full length), due to technical reason, the device will show the full length of the cable, in that case customers were suggested Cable Length to measure the length from the other end to locate the broken point.
Page 24
6. PING (Ping test) It is recommended to set IPV4 for the first time to use Ping test function. After inputting Ping address, user can use UP/DOWN button to choo- se “Set IP” to set Local IP, Subnet Mask and Gateway, after setting them, user should save the settings, then can go back to use Ping scan functions.
Page 25
Alpha Elettronica S.r.l. reserves the right to make technical/dimensional changes to improve the features and the performance of the product without prior note. Limitation of liability The installation, use and maintenance of the multifunctional tester item code 94-114 (hereinafter referred to as the “device”) are the sole responsibility of the user. Alpha Elettronica s.r.l. is not responsible for any direct or indirect damages resulting from the use or malfunction of the device. Alpha Elettron- ica s.r.l. declines all responsibility if the device is damaged due to human factors that cause damage, injury or loss. Alpha Elettronica s.r.l. declines all responsibility for damage or injury resulting from improper use or failure to maintain the device. Alpha Elettronica s.r.l. is not responsible for any type...
Page 26
of damage, whether direct or indirect, moral, incidental, special or conse- quential, such as loss of data, business interruption or financial damage. The liability of Alpha Elettronica s.r.l. is limited to the purchase price of the device. It is advisable to carefully follow the instructions provided in the manual. It is important to comply with local regulations and follow the specific instructions for installation and use. Warranty This device is covered by a 24 months warranty from the purchase date in case of any defect on the materials or during the production. The warranty is not valid in case of improper use or misuse or alteration of any kind. The product must be returned to the retailer in order to arrange the repair. The warranty is valid only in case the damaged product is sent back with the invoice or receipt.
Page 27
Battery Disposal According to the European Directive 2012/19/EU (Legislative De- cree 49/2014 EN62321:2009) and European Law 2018 - Law 3 May 2019, n. 37, the mark of the crossed bin on the product indicates that at the end of its life this product must be handled separately from household waste. It must be disposed of in a responsible manner to a collection point in order to enter the recycling process. For any information about the collecting points please contact the local authority or the local recycling areas. For further information, visit the website www.alphaelettronica.com or scan the QR-CODE to access the product’s web page. EN - 26...
Page 28
Imported by Alpha Elettronica S.r.l. Strada Antolini 2/A 43044 Collecchio (PR) Italia www.alphaelettronica.com Made in China EN - 27...
