Amika WK 341 220 S Installation Instructions Manual

Hide thumbs

page of 15

/ 15
Bookmarks

Quick Links

Download this manual

- 120 -

Need help?

Do you have a question about the WK 341 220 S and is the answer not in the manual?

Questions and answers

Summary of Contents for Amika WK 341 220 S

Page 1 - 120 -...
Page 2 EN: The plinth must be cut out in order to ensure ventilation. In order to position the appliance, the glass door should be even with the furniture front. To ensure stability the adjustable feet should be screwed out until they appliance is touching the work top.

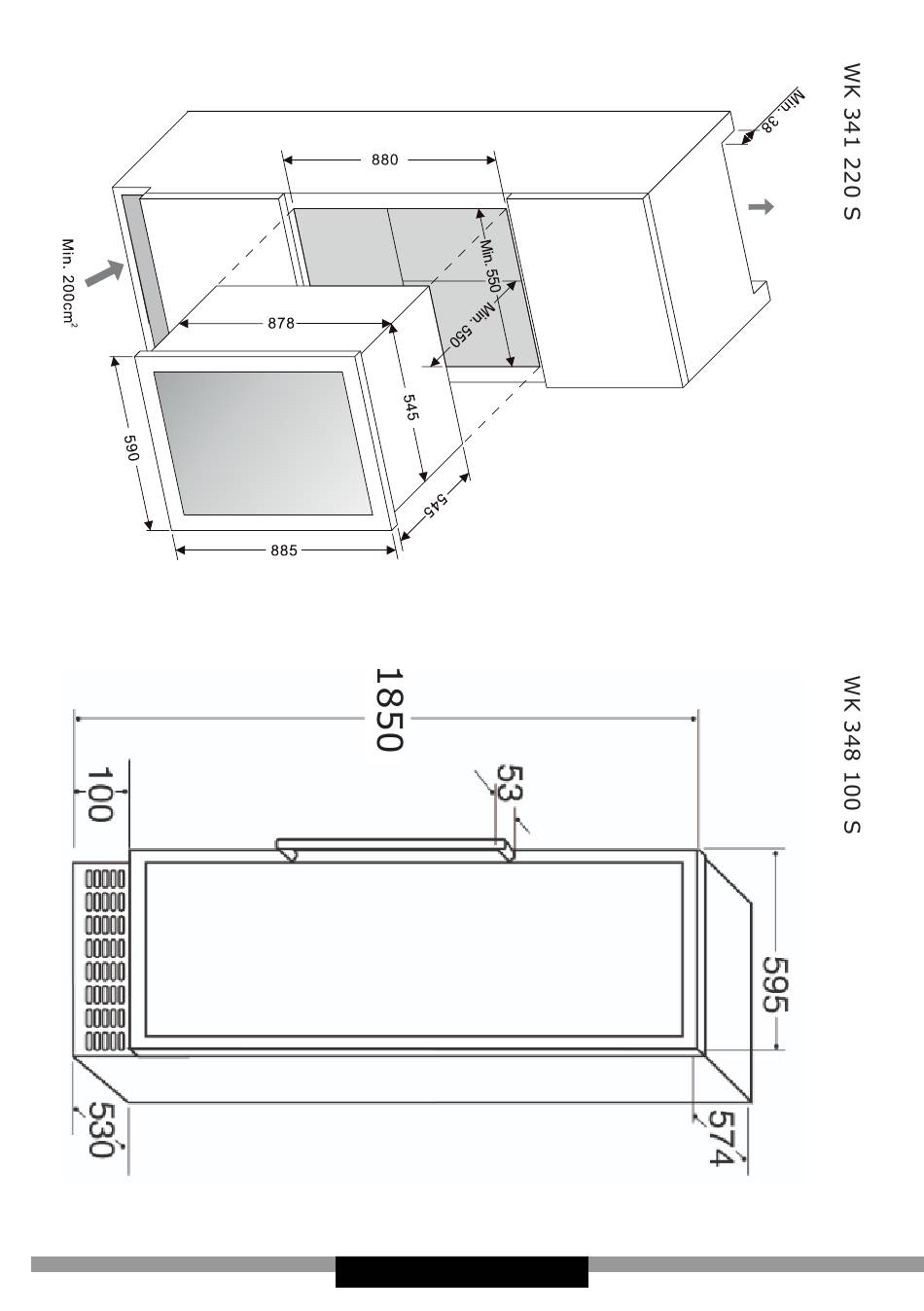

Page 3 Min. 300cm D=(B-C) ÷ 2 A [mm] B [mm] C [mm] WCB2K60B36.1 WK 341 220 S - 122 -...
Page 4 • Since the appliance will be built into a furniture unit, before installing the appliance, prepare a ventilation duct behind the appliance running from the floor to the top of the furniture unit. Ensure there is free space between the back of the appliance and the wall, which is not blocked by furniture.
Page 5 EN- Adjusting the plinth (according to the model) The pre-fitted plinth for some appliance comes with an adjustable lower section that is ini- tially seated behind the upper section. The process for adjusting the plinth trim is simple and is achieved by following the image and steps below. Remove the screws (1) from both the top left and top right hand sides.
Page 6 SL- Nastavitev nosilca (odvisno od modela) Izbrani modeli naprav imajo vnaprej namontiran nosilec. Na začetku se en del no- silca nahaja za drugim. Proces nastavitve ni kompliciran, izvedite spodaj opisane korake: 1. Odvijte zgornje vijake (1), ki se nahajajo na obeh straneh nosilca. 2.
Page 7 OPTION 1: - 126 -...
Page 8 EN- CHANGING THE DIRECTION OF THE DOOR OPENING / DE- WECHSEL DES TÜRANSCHLAGS / FR- INVERSION DE SENS D’OUVERTURE DE PORTE / PL- ZMIANA KIERUNKU OTWIERANIA DRZWI / ES- CAMBIO DEL SENTIDO DE APERTURA DE PUERTA / SL- SPREMEMBA SMERI ODPIRANJA VRAT / NL- OMDRAAIEN VAN DE DRAAIRICHTING VAN DE DEUR - 127 -...
Page 9 OPTION 2: - 128 -...
Page 10 EN- CHANGING THE DIRECTION OF THE DOOR OPENING / DE- WECHSEL DES TÜRANSCHLAGS / FR- INVERSION DE SENS D’OUVERTURE DE PORTE / PL- ZMIANA KIERUNKU OTWIERANIA DRZWI / ES- CAMBIO DEL SENTIDO DE APERTURA DE PUERTA / SL- SPREMEMBA SMERI ODPIRANJA VRAT / NL- OMDRAAIEN VAN DE DRAAIRICHTING VAN DE DEUR - 129 -...
Page 11 - 130 -...
Page 12 - 131 -...
Page 13 WK 348 100 S - 132 -...
Page 14 WCB2K60B36.1 JC-90WD/HC WK 341 220 S - 133 -...
Page 15 Amica S.A. ul . Mickiewicza 52 / 64-510 Wronki tel. 67 25 46 100 / fax 67 25 40 320 www.amica.pl Amica International GmbH Lüdinghauser Str. 52 D-59387 Ascheberg Tel: 0 25 93 - 95 67-0 www.amica-group.de...
