Universal Tool UT176RL Operator Instructions

Operator Instructions
Includes - Foreseen Use, Work Stations, Putting Into Service, Operating,
Dismantling, Assembly and Safety Rules
Manufacturer/Supplier
Universal Air Tool Company Limited
Unit 8
Lane End Industrial Park
High Wycombe
Bucks
HP14 3BY
Tel No (01494) 883300
Product Nett Weight
0.48 lbs
0.22 Kg
Air Pressure
Recommended Working
Recommended Minimum
Maximum
Personal Safety Equipment
Use - Safety Glasses
Use - Safety Gloves
Use - Safety Boots
Use - Breathing Masks
Use - Ear Protectors
Foreseen Use of the Tool
The air engraving pen is used to write/etch on hard steel, glass, stone,
ceramic and plastic, etc. The writing/etching is achieved by a
reciprocating/vibrating sleeve item (14) and is particularly useful to
identify jigs and fixtures and to personalise tools and other equipment in
the workshop.
Do not modify or use the tool for any other purpose or for its use as an
engraving pen without first agreeing any such modification with the
manufacturer or an authorised agent.
Work Stations
The tool should only be used as a handheld, hand operated tool. It is
always recommended that the tool is used when standing on a solid
floor. It can be
used in other
positions but
before any such
use, the
operator must
be in a secure
position having
a firm grip and
footing and be
aware of a
reaction force
on the hand as
result of the tool
doing work.
Fax No (01494) 883237
Recommended Use Of
Balancer Or Support
No
6.3 bar 90 PSI
n/a bar n/a PSI
7.0 bar 100 PSI
Yes
Page No 1
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible place.
Product Type
Engraving Pen
Model No/Nos
UT176RL
Recommended Hose Bore
Size - Minimum
3/8 Ins 10 M/M
Noise Level
Sound Pressure Level 78.0 dB(A)
Sound Power Level 90.0 dB(A)
Test Method Tested in accordance with Pneurop
test code PN8NTC1 and ISO Standard 3744
Vibration Level Less than 2.5
Test Method Tested in accordance with ISO
standards 8662/1
Putting Into Service
Air Supply
Use a clean lubricated air supply that will give a measured air pressure
at the tool of 90 p.s.i./6.3 bar when the tool is running with the trigger
fully depressed. Use recommended hose size and length. It is

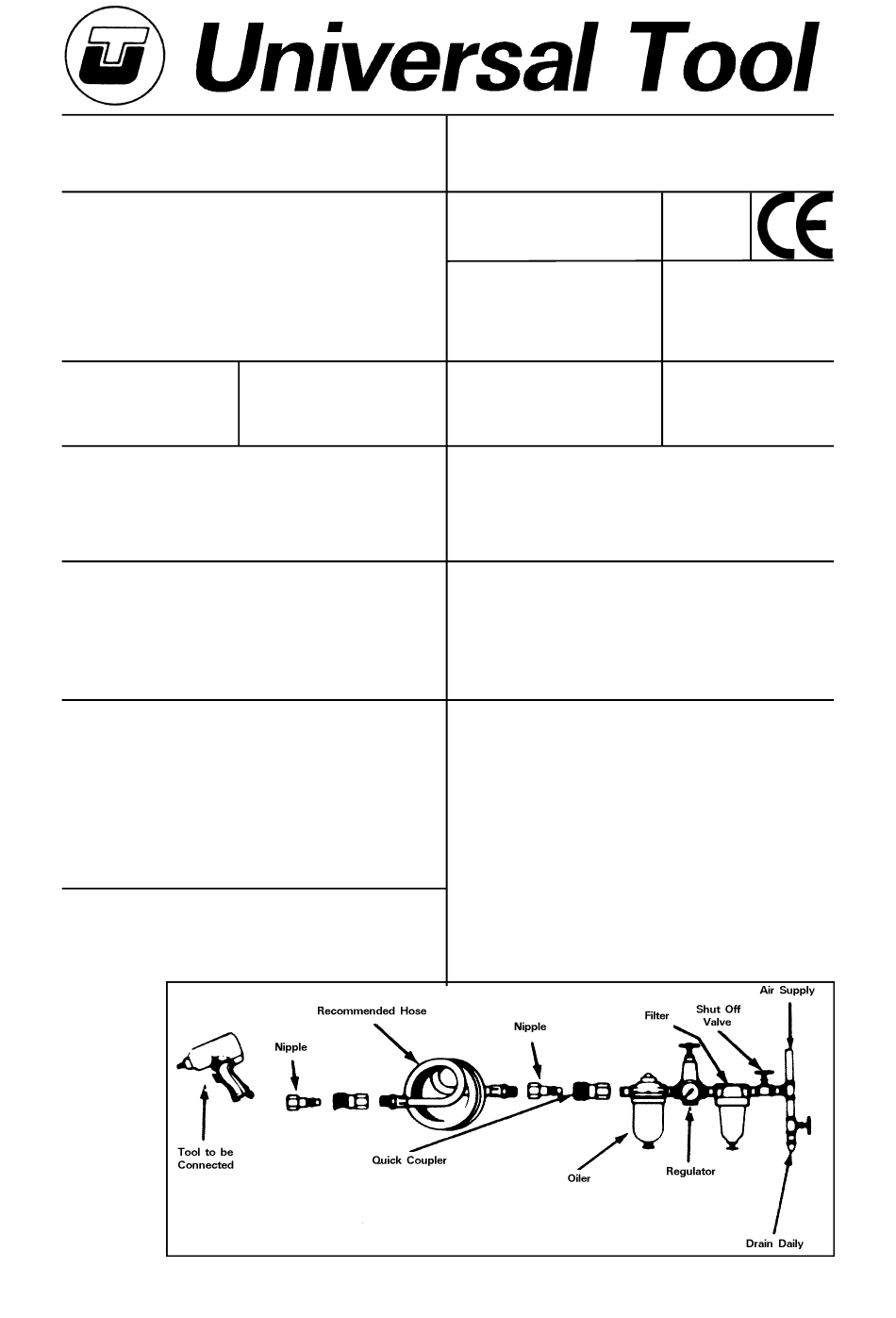

recommended that the tool is connected to the air supply as shown in
figure 1. Do not connect the tool to the air line system without
incorporating an easy to reach and operate air shut off valve. The air
supply should be lubricated. It is strongly recommended that an air filter,
regulator, lubricator (FRL) is used as shown in Figure 1 as this will supply
clean, lubricated air at the correct pressure to the tool. Details of such
equipment can be obtained from your supplier. If such equipment is not
used then the tool should be lubricated by shutting off the air supply to
the tool, depressurising the line by pressing the trigger on the tool.
RPM
N/A
Cycles Per Min
13,000
Serial No
Recommended Max.
Hose Length
30 Ft 10 M
Metres / Sec²
