Summary of Contents for DiGidot PXLNET TRANSCEIVER 2

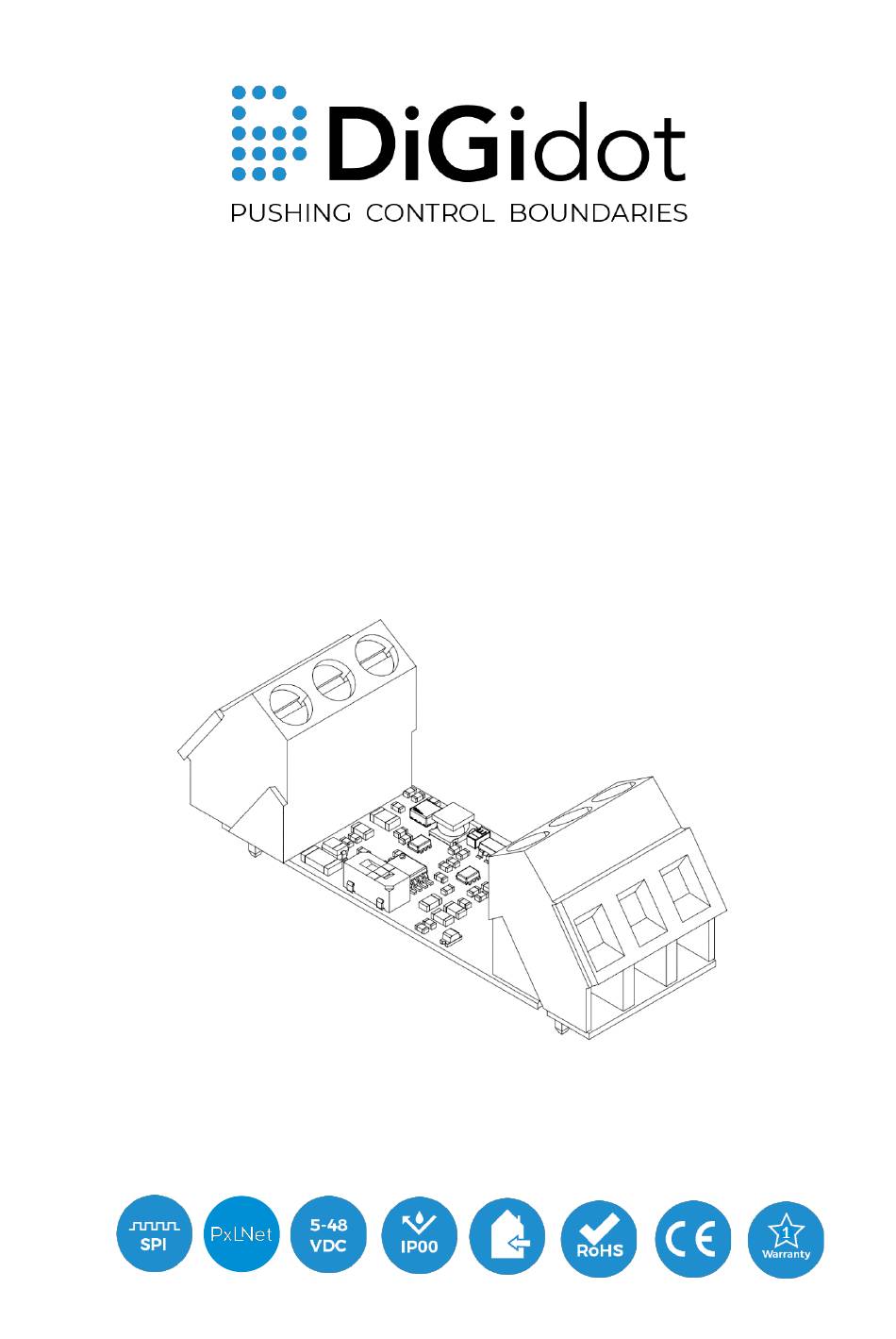

- Page 1 PXLNET TRANSCEIVER 2 Screw Terminal (ST) Art.#2035302 USER MANUAL...
-
Page 2: Thank You For Choosing Digidot
THANK YOU FOR CHOOSING DIGIDOT! DiGidot offers powerful products and solutions to control LED pixels. The DiGidot Controller is the heart of our control system and offers great flexibility. In order to benefit from all our system advantages and to keep your infrastructure easy, we offer some innovative accessories like our PxLNet range extending equipment. -
Page 3: Table Of Contents
TABLE OF CONTENTS THANK YOU FOR CHOOSING DIGIDOT! TABLE OF CONTENTS INTRODUCTION CONTENTS FEATURE LIST PXLNET TRANSCEIVER 2 TECHNICAL DRAWINGS PRODUCT DESCRIPTION TECHNICAL SPECIFICATIONS BEFORE INSTALLATION Safety instructions MOUNTING OPTIONS INSTALLATION & WIRING Solder instructions Power supply OPERATING MODES (Rx/Tx) -
Page 4: Introduction
LED strip or pixel-controlled product, it can be used as a transmitter when the Tx/Rx switch is flipped. A PxLNet Transceiver in Transmit mode can also be connected to a DiGidot Controller output port to convert the SPI signal to PxLNet. The PxLNet Transceiver can also be used to convert a DMX signal from a DiGidot Controller or a PxLNet Transmitter to DMX TTL. -
Page 5: Technical Drawings
PxLNet Data in/out - (same as 4) BUS I/O PxLNet Data in/out + (same as 5) Pin 6 (green) Pin 3 (green/white) Pin 4 (blue) Pin 5 (blue/white) Wire colors according to T-568B standard PxLNet Transceiver 2 ST Manual Version 3.0.0 5-18... -
Page 6: Technical Specifications
1 year carry in factory warranty Compliances: CE, RoHs, all components are UL pending Certification: ETL certification pending Applied standards: EN60950-1:2006 +A11:2009 + A1:2010 + A12:2011 + A2:2013, IEC60950-1 / EN60950-1, EN61006-6-3, EN55032 HS Code: 85176990 PxLNet Transceiver 2 ST Manual Version 3.0.0 6-18... -
Page 7: Before Installation
BEFORE INSTALLATION Before installing DiGidot products it is important to take notice of following safety and installation instructions. Safety instructions ‣ Before installation and using the product, read this manual carefully. ‣ Make sure that these instructions are handed over to the end-user and to those responsible for installation and usage. -
Page 8: Mounting Options
This product should not be subjected to higher temperatures than their specified range (risk of fatal damage)! Keep these products away from direct sunlight, rain or other moisture (short circuit risk). Do not use this product outdoors or in humid environments (short circuit risk). PxLNet Transceiver 2 ST Manual Version 3.0.0 8-18... -
Page 9: Installation & Wiring
This product is ESD sensitive. It is required to work in an ESD save environment and undertake all necessary ESD protective precautions before installing and soldering this product, to minimise the risk of ESD inflicted product damage. PxLNet Transceiver 2 ST Manual Version 3.0.0 9-18... -
Page 10: Power Supply
IMPORTANT Make sure to equalize the ground potentials. Always connect grounds (DC-) of DiGidot controller and every power supply, connected to every product that is controlled by a single DiGidot controller to each other. The ground connection between a DiGidot PxLNet Transmitter and a PxLNet Transceiver or multiple Transceivers are automatically established when using the RJ45 bus with network cable in between. -
Page 11: Operating Modes (Rx/Tx)
A cable can also be soldered to solder pads [11][12][13] on the underside (as indicated on page 5). The distance between two PxLNet Transmitters is max. 300 meters (984 ft). PxLNet Transceiver 2 ST Manual Version 3.0.0 11-18... -
Page 12: Wiring Schemes
Wiring scheme 1 Convert PxLNet to SPI Data DiGidot Controller with PxLNet Transmitter connected by Cat-5E network cables to PxLNet Transceivers which are connected by wires, to a pixel controlled LED strip. max. 3 m. (9.8 ft) max. -
Page 13: Wiring Scheme 3
Wiring scheme 4 Single port SPI range extension DiGidot Controller Data port connected directly to a PxLNet Transceiver in transmit mode, to send the PxLNet signal up to 300 meters away to the next PxLNet Transceiver. Please note that the operating mode switch is in Tx mode (white squares makes 1 line). -
Page 14: Wiring Scheme 5
Wiring scheme 6 Combine short & long range Data + Clock SPI DiGidot Controller with PxLNet Transmitter connected by Cat-5E network cables to PxLNet Transceivers which are soldered directly to a pixel controlled LED strip which is powered from an alternative section. -
Page 15: Wiring Scheme 7
DiGidot Controller with PxLNet Transmitter, connected by Cat-5E network cables to PxLNet Transceivers Please note that DMX TTL must be configured on the DiGidot Controller In/out configuration page. Configure all ports to DMX TTL in the DiGidot Controller In/out configuration. -
Page 16: Propagation Delay
DMX cable). These wires can be used for low voltage purpose up to 48 Vdc and a maximum current of 200 mA. Use solder pads [14][15][16][17] to make use of these wires. PxLNet Transceiver 2 ST Manual Version 3.0.0... -
Page 17: Tips & Troubleshooting
‣ Refer to further trouble shooting tips in the DiGidot Controller user manual. 11. Is your ground (DC-) from the DiGidot Controller output terminal connected to all the grounds of the LED products power supplies? The grounds run through the network cables. -
Page 18: Disposal And Recycling
Any form of unintended or misuse of this information and/or DiGidot products indemnifies DiGidot Technologies B.V. from liability and warranty obligations.
