SWP -RH4 Instruction Manual

Controllers for leds

Advertisement

Quick Links

Controllers for LEDs
Instruction manual
SWP-RH4
SWP-RH8
SWP-RH18
SWP-RH32
* remote control is not included in the package, sold separately
To our valued users:
Thank you for purchasing the RH4/ RH8/ RH18/ RH32 LED signage dynamic effects controllers. Please read this
manual carefully before installation and use in order to install and use it correctly, and at the same time, please
keep this manual for future maintenance and reference.
Functional features:
● 10 default light dynamic effect programmes for each controller;
● the ability to create your own effects (1 effect);
● control both with the remote control and the buttons on the controller;

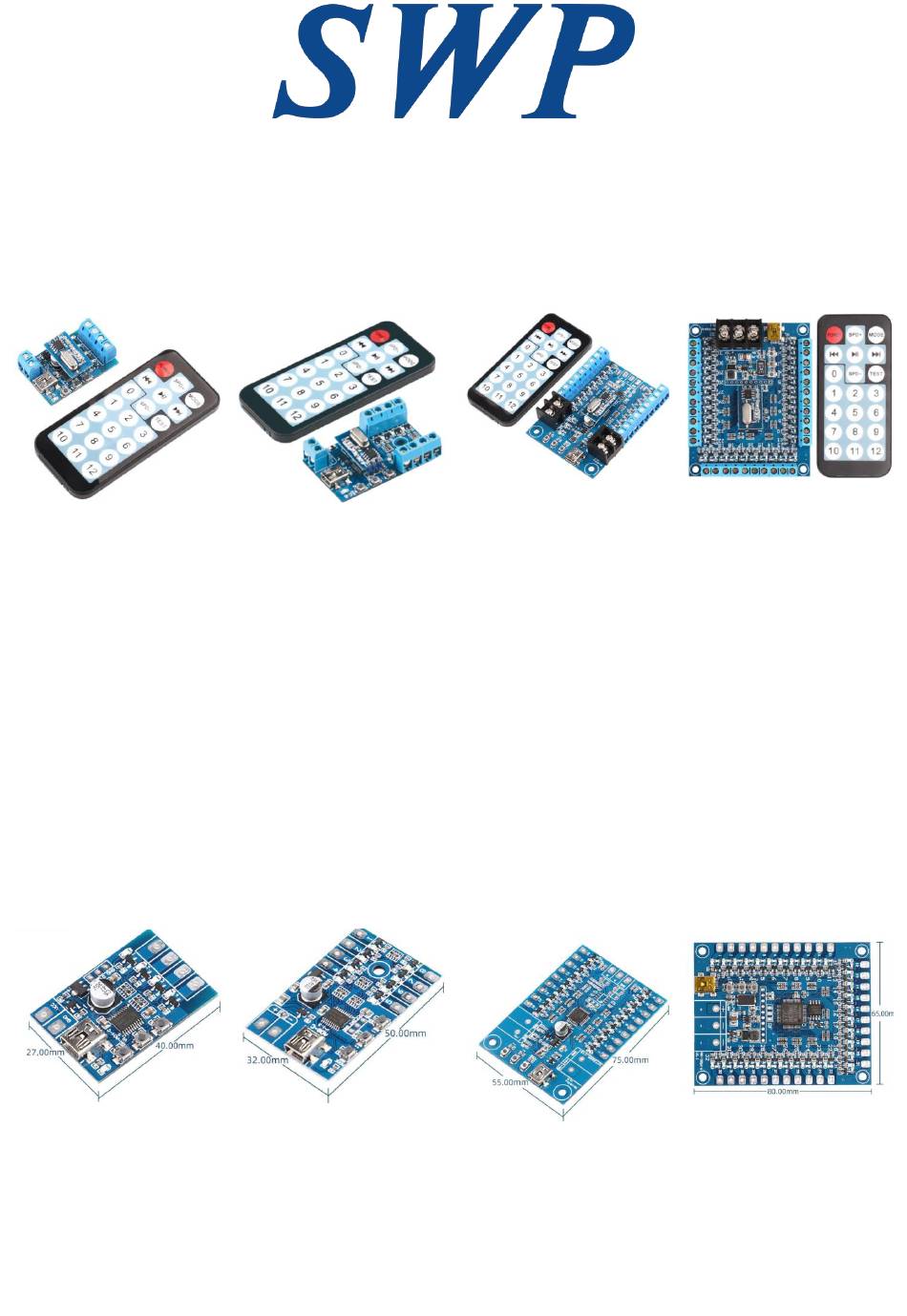

Dimensions of the controllers
SWP-RH4
SWP-RH8
SWP-RH18
SWP-RH32
