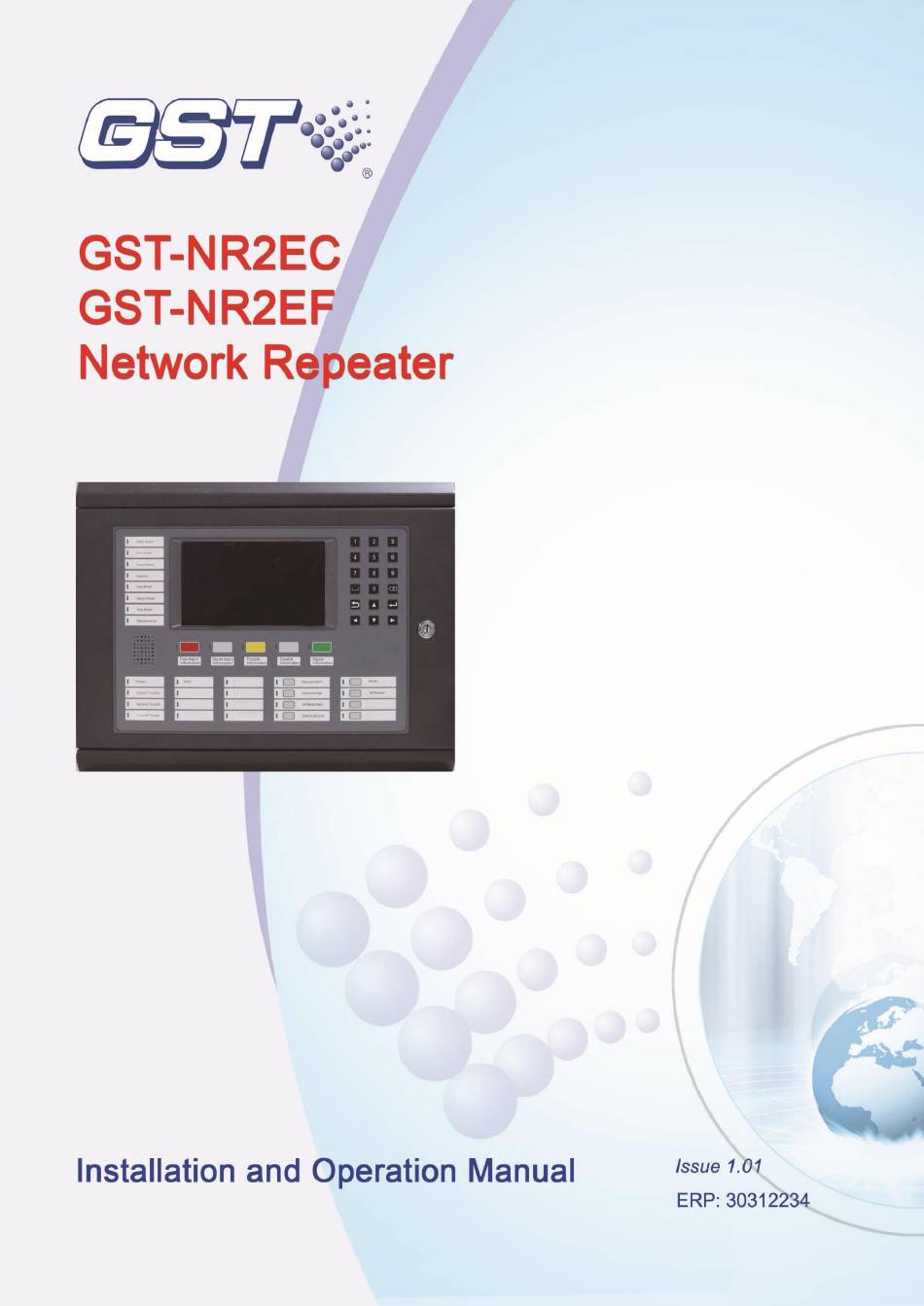

Summary of Contents for GST GST-NR2EC
-
Page 2: Table Of Contents
5.1 Setup on the repeater................. 13 5.1.1 Basic Setting ..................13 5.1.2 Advanced Setting ................. 16 5.2 Programming the repeater Through GST-IFPx-Def Software......18 5.2.1 Download thru Ethernet interface ............19 5.3 User Setup ....................20 5.3.1 Soft keyboard Setup................20 5.3.2 Display Setup .................. - Page 3 GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual 6 Operating Instructions ................... 26 6.1 Panel Control Keys ..................26 6.1.1 EVAC (User password)................. 26 6.1.2 ACKNOWLE DGE (User password)............26 6.1.3 SILENCE ALARM (User password) ............26 6.1.4 SILENCE BUZZER (User password) ............. 26 6.1.5 All RESOUND (User password) ............
-
Page 4: Installation Precautions
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Installation Precautions Adherence to the f ollowing will aid in problem-f ree installation with long-term reliability: Do not attempt to install, service, or operate this unit until this manual is read and understood. -
Page 5: Product Introduction
GST-NR2EC/GST-NR2EF Network Repeater is an Intelligent f ire repeater f or use with the GST-IFP4E. It complies to EN54-2 、 EN54-4 standard with f eatures of easy installation, operation, and maintenance. The repeater integrates an ARM7-Cotex CPU with inbuilt Linux OS. Its f riendly and graphical screen can be touchable in operation. -
Page 6: Technical Specifications
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual 2 Technical Specifications Electrical Specifications Voltage: 20VDC～28VDC Current is less than 200mA in standby mode and less than 400mA in fire alarm condition. Standby power consumption does not exceed 6W and maximum power ... -
Page 7: Installation
Install the cabinet. Power up the repeater and check if it can be normally started. Wiring and check the lines. Setup repeater and define by using GST-IFPx-Def Defining Tool on a PC and download them to the repeater. Component Inspection Before installation, check the following items: ... -
Page 8: Install The Cabinet
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Install the Cabinet The cabinet mounts using f our 12mm-diameter holes located in the back box. Caref ully unpack the system and check f or shipping damage. Mount the cabinet in a clean, dry, vibration-f ree area where extreme temperatures are not encountered. -
Page 9: Start-Up Check
Powering on the repeater, LCD doesn’t light and all LEDs are illuminated for 5s. As All LED go out, LCD displays Data Loading…… and GST logo. Initiation of the system takes about 85s~90s. Self-test of LEDs on the front panel. -
Page 10: External Connection
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual External Connection 3.4.1 Power Connection-Class B Use 1.5mm² or larger wire. Power supply wires should be connected to the terminal as shown in Fig.3-3 below. Fig. 3-3 3.4.2 Network Connection-Class A GST-NR2E C has a CAN type interface: Fig.3-4 is for CAN network... -
Page 11: Indication & Control
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual MAX 250 nodes • CALSS A • The distance between two neighbor nodes is less than 20000m, attenuation-10dB; • LC monomode fiber; • Maximum 250 Fiber Fiber Fiber NETWORK Repeaters or CARD panels for networking. - Page 12 Test Mode: It lights when the REPEATER enters test mode; it goes out as the REPEATER exits test mode. REPEATER enters and exits test mode by command sent by GST-IFP4E. Maintenance: It lights when the REPEATER enters panel setup menu or system update;...
-
Page 13: Functional Keys
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual RESET: It lights when the REPEATER is being reset; It goes out when the REPEATER completes reset. Fire Alarm Information: Red. It f lashes when an alarm message is not conf irmed. -
Page 14: Service / Program Keys
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Service / Program Keys: Description Number Key Press number keys to input numbers. of 0~9 UP cursor. Press this key to move the cursor to previous or scroll up lists in a continuous loop. - Page 15 GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual alarm) message with white words in red background, including alarm time, device address, device type and related description and so on. Alarm message taking the highest priority is displayed on the main screen and other messages are displayed the quantity on related tabs on the screen.
-
Page 16: Operations
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Trouble messages have many types such as internal fault and loop device fault. Clicking on the related types can view the details. DISABLED: there are disabled messages if some devices are disabled. Clicking DISABLE tab can view the details as shown in the figure below Fig3.6. - Page 17 GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual ➢ Device Type : clicking Dev Type in Basic Setting menu, the menu shown in Fig. 5- 2 pops up. Users can define the name and picture of the device type according to their needs.
- Page 18 Fig.5-4 for details. Fig. 5-4 Clicking Undefined can define LEDs and buttons as shown in Fig.5-5. Fig. 5-5 ➢ Others：Clicking Others enters the screen as shown in the figure below Fig.5-6. of Daylight Saving time adjust and GST-GMC function switch. Page 15...
-
Page 19: Advanced Setting
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Fig. 5-6 5.1.2 Advanced Setting Clicking Advanced Setting in Panel Setup menu enters the screen for senior setting. ➢ Network Setup: clicking Network Setup in Advanced Setting menu pops up the screen for setting the network on the right. Users can set up based on actual situation. - Page 20 GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Panel No.: input the number of the repeater here.= Click Update After filling up the panel ID , users can operate chart below.Refer to the table above for Event type be filtered. Those messages with no ticks will be filtered and refused to display.
-
Page 21: Programming The Repeater Through Gst-Ifpx-Def Software
Programming the repeater Through GST-IFPx-Def Software Configurations and definitions can be downloaded to the repeater through USB or Ethernet interfaces after they are programmed by using GST-IFPx-Def Software Download thru USB interface After programming the repeater using GST-IFPx-Def Software, save the configuration and definition to a USB stick, and then insert the USB stick into the USB port on the SD- 400 LCD Drive Board of the repeater. -
Page 22: Download Thru Ethernet Interface
Note that repeater’s IP address shall be in the same subnet as the programming computer. Fig. 5-11 Clicking Computer in Fig.5-9 pops up the screen as shown in Fig.5-12. At this time, the configurations and definitions can be downloaded to the repeater from GST-IFPx-Def Software. Fig. 5-12 Page 19... -
Page 23: User Setup
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual User Setup Clicking button enters User Setup menu by inputting user password. Messages about soft keyboard, display, PAS, clock, printer, day/night mode, language, project name, and so can be set in this screen. Refer to the figure below Fig.5-13. -
Page 24: Display Setup
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Fig. 5-14 5.3.2 Display Setup Clicking Display Setup in User Setup menu enters the screen for setting font size, LCD backlight time and so on. Refer to the figure below Fig.5-15. Fig. 5-15 5.3.3 Date/Time Setup... -
Page 25: Print Setup
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual by clicking Date/Time Setup in User Setup menu. Refer to the figure below Fig.5- Fig. 5-16 Clicking Set Date/Time button behind Modify System Clock can modify the system time as shown in the figure below Fig.5-17. -
Page 26: Day/Night Mode
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual cable between repeater and printer shall not be more than 3 meters. Both the printer and repeater shall be in the same room. Clicking Print Setup in User Setup menu enters the screen for setting the printer. Real - time print and printing types can be set. -
Page 27: Language Setup
5.3.6 Language Setup Clicking Language Setup in User Setup menu enters the screen for setting the language. GST-NR2EC Repeater provided ten languages for users, they can chose language they need from language list Refer to the figure below Fig.5-21. Page 24... -
Page 28: Project Information
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Fig. 5-21 5.3.7 Project Information Clicking Project Information in User Setup menu enters the screen for setting the project information. Refer to the figure below Fig.5-22. Fig. 5-22 Page 25... -
Page 29: Operating Instructions
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual 6 Operating Instructions Panel Control Keys 6.1.1 EVAC (User password) When the EVAC key is pressed, the f ollowing actions will be produced: Displaying a manual alarm message in LCD. ... -
Page 30: All Resound (User Password)
Turning of f all notif ication appliances. Resetting all loop devices. Writing system resetting record in history f ile. 7 Default Programming Program Option Factory Default GST CO., LTD. BANNER Maintenance Password Empty 111111 User Password PAS Timer Undefined... -
Page 31: Appendix A Basic System Connection
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Appendix A Basic System Connection GST-NR2E MAIN CARD CAN_H1 CAN_L1 CAN_H2 POWER INPUT CAN_L2 24V+ 24V- GST-NR2EF MAIN CARD FIBCARD POWER INPUT 24V+ 24V- Page 28... -
Page 32: Appendix B Electrical Specifications
GST-NR2EC GST-NR2EF Network Repeater Installation and Operation Manual Appendix B Electrical Specifications B.1 Electrical Specifications B.1.1 Input Power ➢ Class B. ➢ Rated voltage: 24VDC ➢ Voltage range: 20VDC~28VDC ➢ Standby current：200mA ➢ Max current：400mA ➢ Wire size: minimum 1.5mm² , maximum 550 m per line. -
Page 33: Appendix C Compliance Information
Network Repeater Installation and Operation Manual Appendix C Compliance information 2831-CPR-F4817 0832-UKCA-CPR- 548p/R01 GST-0204-01 F1600 (Available for product models：GST-NR2EC) 2831-CPR-F4817 0832-UKCA-CPR- 548p/R02 GST-0204-01 F1600 (Available for product models：GST-NR2EF) Recycling Information For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. -
Page 34: Limited Warranty
GST and KDSS are not responsible f or def ects or problems as a result of conditions or applications including normal wear and tear; catastrophe; f ault or negligence of any user or any party other than GST and KDSS;... - Page 35 Gulf Security Technology Co., Ltd. No. 80 Changjiang East Road, ETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502434 www.gst.com.cn...
