Summary of Contents for VonHaus G Series

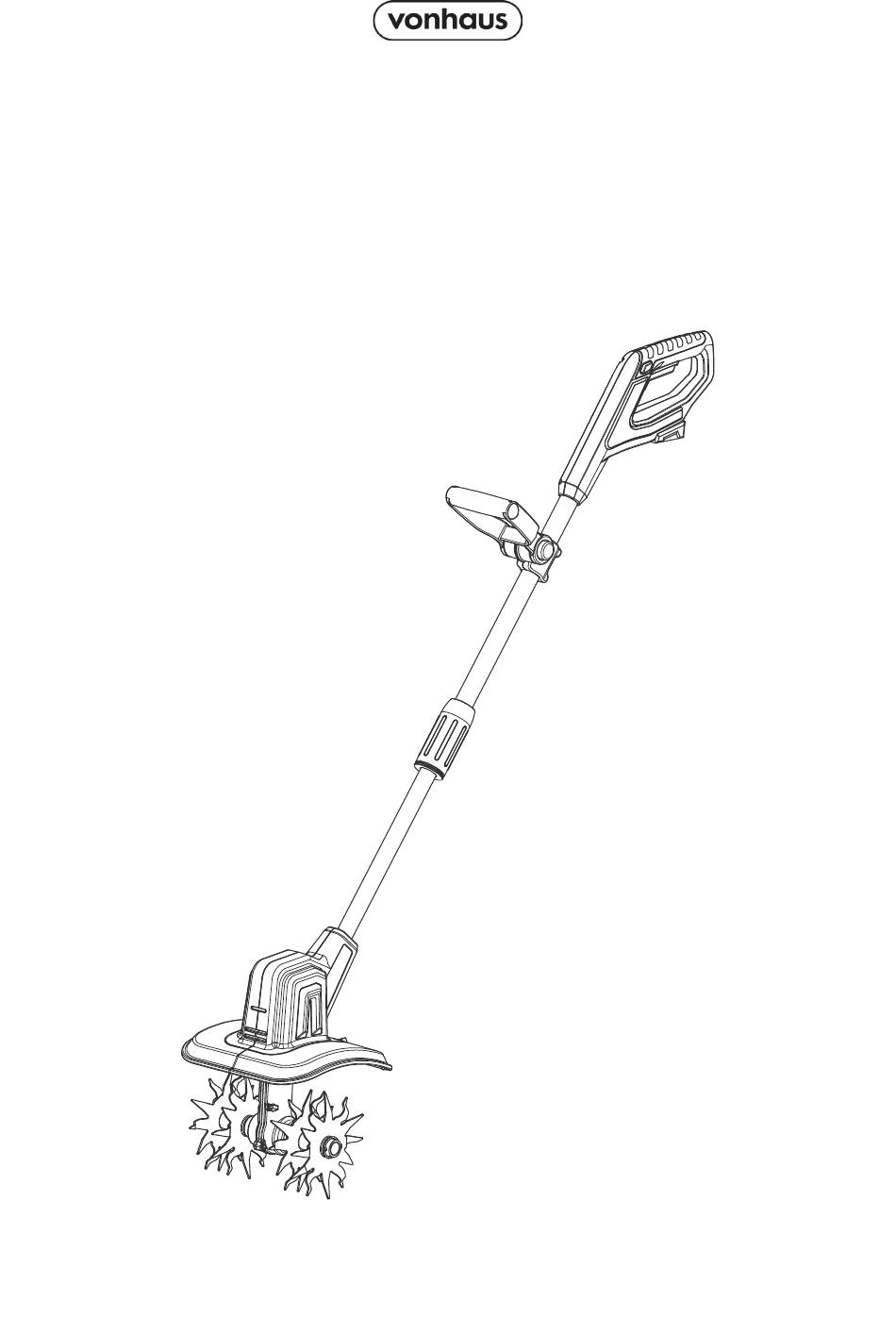

- Page 1 CORDLESS TILLER Setup Instructions Product No. 3519011...
- Page 2 Need further help? See our full range at support@vonhaus.com www.vonhaus.com Besoin d’aide supplémentaire ? Découvrez notre gamme complète sur support@vonhaus.com www.vonhaus.com Benötigen Sie weitere Hilfe? Entdecken Sie unser gesamtes Sortiment auf support@vonhaus.com www.vonhaus.com Necesita más ayuda? Descubra toda nuestra gama en support@vonhaus.com...
- Page 3 Safety Sharp edges Protect your ears Protect your eyes Protect your hands Wear suitable footwear Protective clothing must be worn Beware of Potential finger Maintain a safe distance kickback trap points from bystanders Do not use in wet conditions...
- Page 4 Components A. Safety Switch B. Operational Switch C. Handle D. Battery Slot E. Front Handle F. Handle Adjustment Button G. Upper Shaft H. Lower Shaft I. Safety Guard J. Motor Housing K. Blades L. Battery M. Charger...
- Page 5 Assembly Put the safety guard onto the motor housing. WARNING! The Metal Blades are Sharp! Always wear safety gloves when mounting and removing the metal blades.
- Page 6 Assembly Attach the safety guard with the screw. Tighten the screw with an allen wrench.
- Page 7 Assembly Insert the upper shaft into the lower shaft and tighten the shaft lock.
-
Page 8: Operation
Operation • Push and hold the handle adjust- • Release the handle adjustment ment button (A) button. Make sure that the front • Adjust the front handle (B) to an handle locks into place. applicable position. - Page 9 Operation • Hold the product tightly with both • Move the product slowly forward and hands. back in a rocking motion. Pull the pod- • Push and hold the safety switch (A). uct back towards you and let it move •...
- Page 10 Removing / Installing the Blades Remove the locking pin.
- Page 11 Removing / Installing the Blades Replace the blades. Make sure to attach the new blades the same way as the old ones.
- Page 12 Removing / Installing the Blades Insert the locking pin again. Put the ring of the locking pin around the axle.
-
Page 13: Tilling Pattern
Tilling Pattern Pattern A (Cross Pattern): The cross pattern is excellent for breaking up compacted soil and mixing in organic matter. • First pass: Till entire area • Second pass: Work at 90° angle to first pass Pattern B (Overlap Pattern): The overlap pattern ensures consistent soil preparation without missing any spots. -
Page 14: Working Position
Working Position Warning! • Maintain a safe distance when working. - Page 15 Information Safety Warnings Cordless Tiller Safety Essential Safety Rules: Essential Rules: • Read and save all instructions • Keep body away from cutting blades • Not for use by children or persons with • Switch off before clearing jams reduced capabilities •...
- Page 16 Information Operation & Maintenance Important Warnings Remove Battery When: Long-term use may cause vibration-related • Leaving product unattended health issues • Clearing blockages Product creates electromagnetic field - consult • Servicing/cleaning doctor if you have medical implants • Abnormal vibration occurs Watch for thrown objects Emergency Response Operation Rules:...
- Page 17 Information Battery Guide Troubleshooting If charging fails: Battery Installation: 1. Test outlet with another device • Remove battery before maintenance/trans- 2. Check if outlet is switch-controlled port 3. Ensure proper temperature range • Slide battery until it clicks 4. Contact service center if problems persist •...
- Page 18 To register your product and find out if you chase, please contact us: support@domu.co.uk qualify for a free extended warranty please go to www.vonhaus.com/warranty. VonHaus is a registered trademark of DOMU Brands Ltd. Please retain a proof of purchase receipt or statement as proof of the purchase date.
- Page 19 Product No. 3519011...
