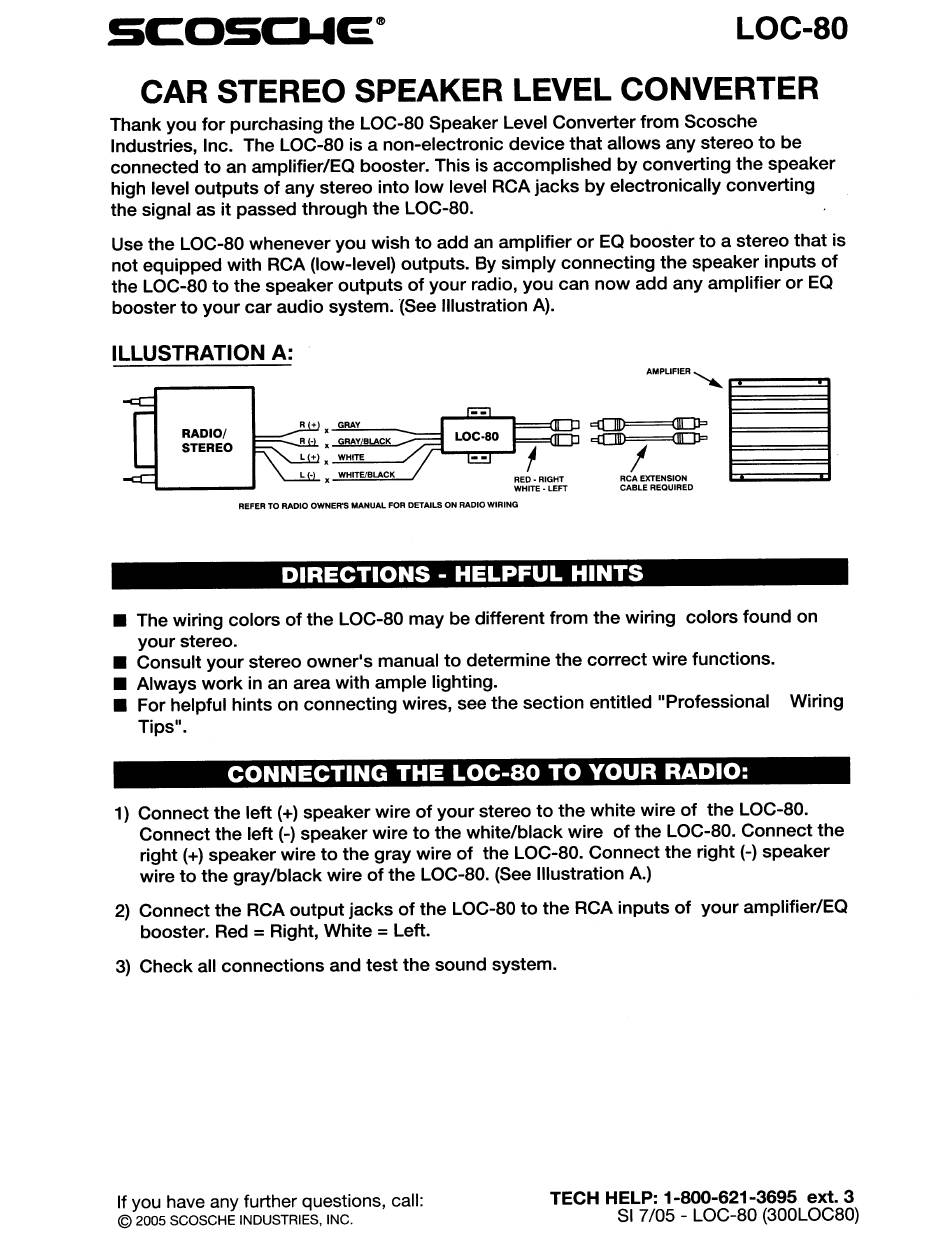

scosCl-le~
LOC-SO
CAR STEREO SPEAKER LEVEL CONVERTER
Thank you for purchasing the LOC-BO Speaker Level Converter from Scosche
Industries, Inc. The LOC-BO is a non-electronic device that allows any stereo to be
connected to an amplifier/EO booster. This is accomplished by converting the speaker
high level outputs of any stereo into low level RCA jacks by electronically converting
the signal as it passed through the LOC-BO.
Use the LOC-BO whenever you wish to add an amplifier or EO booster to a stereo that is
not equipped with RCA (low-level) outputs. By simply connecting the speaker inputs of
the LOC-BO to the speaker outputs of your radio, you can now add any amplifier or EO
booster to your car audio system. '(See Illustration A).
ILLUSTRATION A:
AMPLIFIER~
~
.----............... <=!LID
QIOP
rL-,.~r:4!~ ~
RCA EXTENSION
CABLE REQUIRED
REO- RIGHT
WHITE-LEFT
REFER TO RADIO OWNER'S MANUAL FOR DETAILS ON RADIO WIRING
RADIOI
STEREO
DIRECTIONS - HELPFUL HINTS
• The wiring colors of the LOC-BO may be different from the wiring colors found on
your stereo.
• Consult your stereo owner's manual to determine the correct wire functions.
• Always work in an area with ample lighting.
• For helpful hints on connecting wires, see the section entitled "Professional
Wiring
Tips".
CONNECTING THE LOC-SO TO YOUR RADIO:
1) Connect the left
(+)
speaker wire of your stereo to the white wire of the LOC-BO.
Connect the left (-) speaker wire to the white/black wire of the LOC-BO. Connect the
right
(+)
speaker wire to the gray wire of the LOC-BO. Connect the right (-) speaker
wire to the gray/black wire of the LOC-80. (See Illustration A.)
2) Connect the RCA output jacks of the LOC-BO to the RCA inputs of your amplifier/EO
booster. Red
=
Right, White
=
Left.
3) Check all connections and test the sound system.
If you have any further questions, call:
©
2005 SCOSCHE INDUSTRIES, INC.
TECH HELP: 1-800-621-3695 ext. 3
81 7/05 - LOC-BO (300LOCBO)
