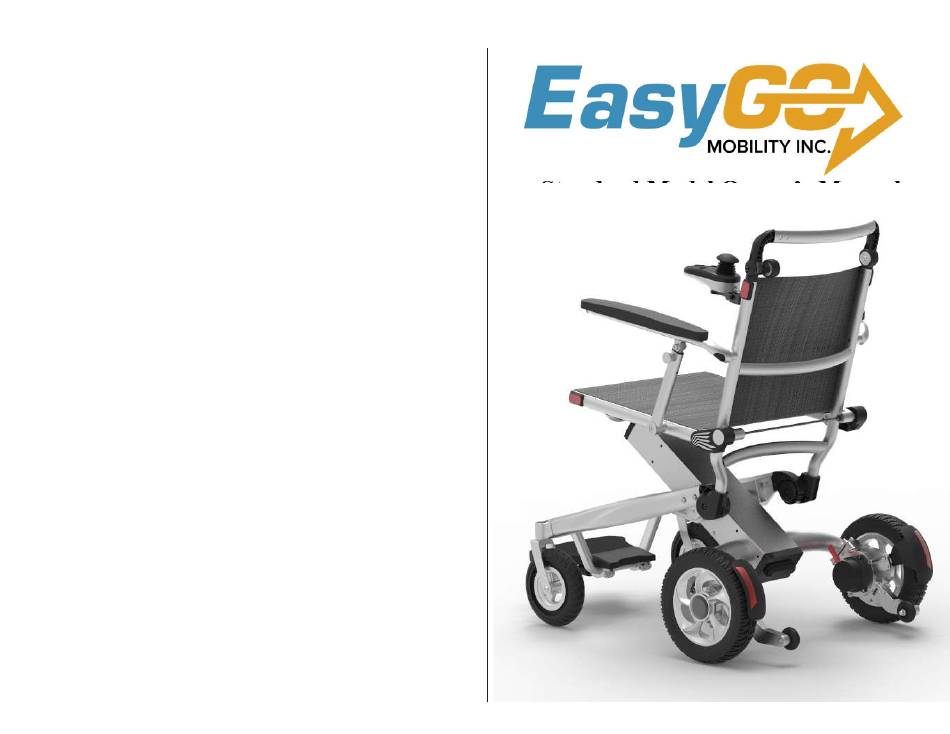

  • Page 1 Standard Model Owner’s Manual...
  • Page 2: Table Of Contents

    FOLDING ………………………………………………………………………………………………………………… EasyGo Mobility., Ltd for professional guidance and help, otherwise the users may cause bodily injury due to the improper use. GET ON FROM THE SIDE ………………………………………………………………………………………...
  • Page 3: Introduction

    Read and follow the instructions provided in this manual. The Standard Model will help you regain your mobility, and it will be your most trustworthy and dependable friend. ★Please read all instructions in this manual carefully before use for the first time. This manual will help you Safety warning sign or an indication of a dangerous operation that may endanger others or understand the performance, operation and proper maintenance of the power wheelchair.
  • Page 4: Features

    Features 构 Features 1. Backrest 2. Armrest Unlock Button 3. Joystick 9. Front Fork 10 Unlock Drawstring 11.Electromagnetic Unlock Valve 4. Seat Cushion 5. Battery 6. Motor 12. Anti-Tipping Wheel Unlock Button 13. Anti-Tipping Wheel Splash Guard 7. Front Wheel 8.
  • Page 5: Electromagnetic Interference Warning

    Technical Specifications Electromagnetic Interference Warning Mode STANDARD MODEL WARNING Dimensions (Unfolded): L x W x H 35.4” x 24.4” x 36.6” (900*620*930mm) Dimensions (Folded): L x W x H 31.4” x 24.4” x 12.6” (800*620*320mm) The power wheelchair may be affected by electromagnetic interference (EMI). Therefore, it’s quite essential for users to...
  • Page 6: Safety

    Safety Safety Users Control Panel WARNING WARNING Keep tools and other metal objects away from both ends of the battery. If contacted, short-circuit or electric Please be noted that you may need to adjust the settings of control panel (Fig. A1) to shock may occur and cause injury.
  • Page 7 Safety Safety Road Surfaces Driving Balance WARNING WARNING 1. The power wheelchair is designed optimally for level surfaces; such as concrete, asphalt and indoor Keep the balance and stability of the power wheelchair to avoid tipping over while driving forward and backward. ground flooring.
  • Page 8: Reverse Driving

    Safety Safety Body Inclination and Extension Crossing Over Obstacles WARNING WARNING You may need to overcome some obstacles in your daily use, including doorsills, elevators, slopes, pot Reaching out your hands or tilting your body will affect the weight balance of the holes and rough roads Improper use may result in damage to the wheelchair or causing bodily harm.
  • Page 9: Load Limit

    Safety Installation Guide Load Limit Seat Belt Installation WARNING WARNING The max load of the wheelchair is 120kg (264lbs),do not exceed the max load while using the Seat belt is designed to fix the user's body and prevent the user from sliding wheelchair.
  • Page 10: Control Panel Installation

    Installation Guide Operation Guide Control Panel Installation Control Panel The operation of the electric wheelchair is controlled by buttons and joystick on the control panel. The buttons Based on the users’ needs, the control panel can be mounted on the right or left armrest. (The control are described below panel is initially mounted on the right armrest, please contact the supplier if you want to change it to the left side...
  • Page 11: Power On/Off Button

    Operation Guide Operation Guide/Electromagnetic Unlock Valve Control Joystick Power-On/Off Button WARNING Press this power button to turn it on. 1. When learning to operate the electric wheelchair for the first time, you should choose a slower speed and gently tilt the joystick forward. This practice will help you learn how to control the electric wheelchair, let you slowly Press it again to turn it off.
  • Page 12: Trolly Wheel

    Do not use the wheelchair when the battery is being charged ★ 7. The electronic locking anti-drive device will Do not use non-standard power supplies (eg. be activated that prevents the chair from generator or inverter), even if their voltages and operating when battery is being charged.
  • Page 13: Over-Current Protector

    Battery Battery Mount/Remove Battery Over-discharge Protector WARNING ★ The lithium battery will be permanently damaged, if the battery’s capacity has been completely discharged. Therefore, wheelchair is equipped with an over-discharge protector. When the lithium battery is running out, the Ensure the wheelchair is powered off before mounting or removing the battery. protector will cut off the circuit automatically and the controller will stop working.
  • Page 14: Unfolding

    Unfolding Folding Folding Steps Unfolding Steps For storing and transporting the wheelchair, please follow these steps to fold it after using If you need to unfold the wheelchair after the first unpacking or folding, follow these steps: Step 1: Pull the lock pin Step 1: hold point A in the picture and fold the anti-tipping with one hand, Lightly push the chair...
  • Page 15: Get On From The Side

    Get on from the Side Controller Controller Step 1: Press the unlock button There are three external interfaces for controllers in all, which are described as follows: Interface 1 is for the right-side motor. When the right motor fails to drive, please check if the right-side interface is tightened.
  • Page 16: Troubleshooting

    Troubleshooting Troubleshooting Problem Cause Solution Troubleshooting Table Check if there is something in the lock head that causes the locking assembly Problem Cause Solution operation jam and can’t move. Unable to fold 1. Faulty connection of the control panel and Re-plug the 5-pin plug into the socket on the Check if the front wheel is caught in the frame during front wheel interference...
  • Page 17: Warranty

    Warranty Packing List Warranty: Packing List Items Incorrect use, damaged or modified by the Items Main Frame 3 years user will void the warranty and the repair costs will be charged. Main Frame Damaged due to overload or privately Lithium Battery Motor 1 year disassembled by the user will void the...
  • Page 18: Guidance And Manufacturer's Declaration

    This electric wheelchair needs special precautions regarding EMC and put into service according to the EMC information Discharge ±2kV, ±4kV, ±8kV, ±15kV air provided in the user manual; The equipment conforms to this IEC 60601-1-2:2014 standard for both immunity and emissions. 10V/m, 80MHz-2.7GHz, 1kHz, 80% AM Radiated RF EM field...
  • Page 19 Guidance and Manufacturer’s Declaration ISO 7176-3 Table 4 – Input a.c. power Port Table 2 Results of brake tests Immunity test levels Phenomenon Basic EMC standard Parking brake tests Home healthcare environment 23.7° ±2 kV Electrical fast transients/burst IEC 61000-4-4...
  • Page 20 Guidance and Manufacturer’s Declaration ISO 7176-7 Dimension Fixed or minimum Maximum value, if Measurement value relevant Seat plane angle 4° ° Effective seat depth 420mm Seat width 475mm Effective seat width 475mm Seat surface height at front edge 540mm Backrest angle 80°...
