- Page 1 INSTR-H-ECO I N S T R U C T I O N M A N U A L HIGHLINE ECO-POWER ™...
-
Page 2: Table Of Contents
Setting up the system Operating the system Jet washing nozzle guidance Malfunctions & Troubleshooting Malfunctions & Troubleshooting Maintenance System Maintenance Storing the HIGHLINE™ Eco-Power Disposing of Machine Declaration of Conformity Why Streamline™? Warranty Information www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 3: Responsibilities
Varitech Systems Ltd, the manufacturer of Streamline™, holds 12-months warranty on all machines and equipment from the date of purchased (see Warranty section 2) Varitech Systems Ltd, the manufacturer of Streamline™, is in no case responsible for failures or errors caused by modifications to the unit by customer or other persons. -
Page 4: Technical Specifications
Dry weight 169kg Flow rate 10lpm Pressure 110 bar Battery type 24v Lithium-ion Battery Run time 3 hours continuous Pump speed Single speed Return to tank Hose reel length 30 metres Storage tank 250ltr www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 5: Highline™ Eco-Power Diagram

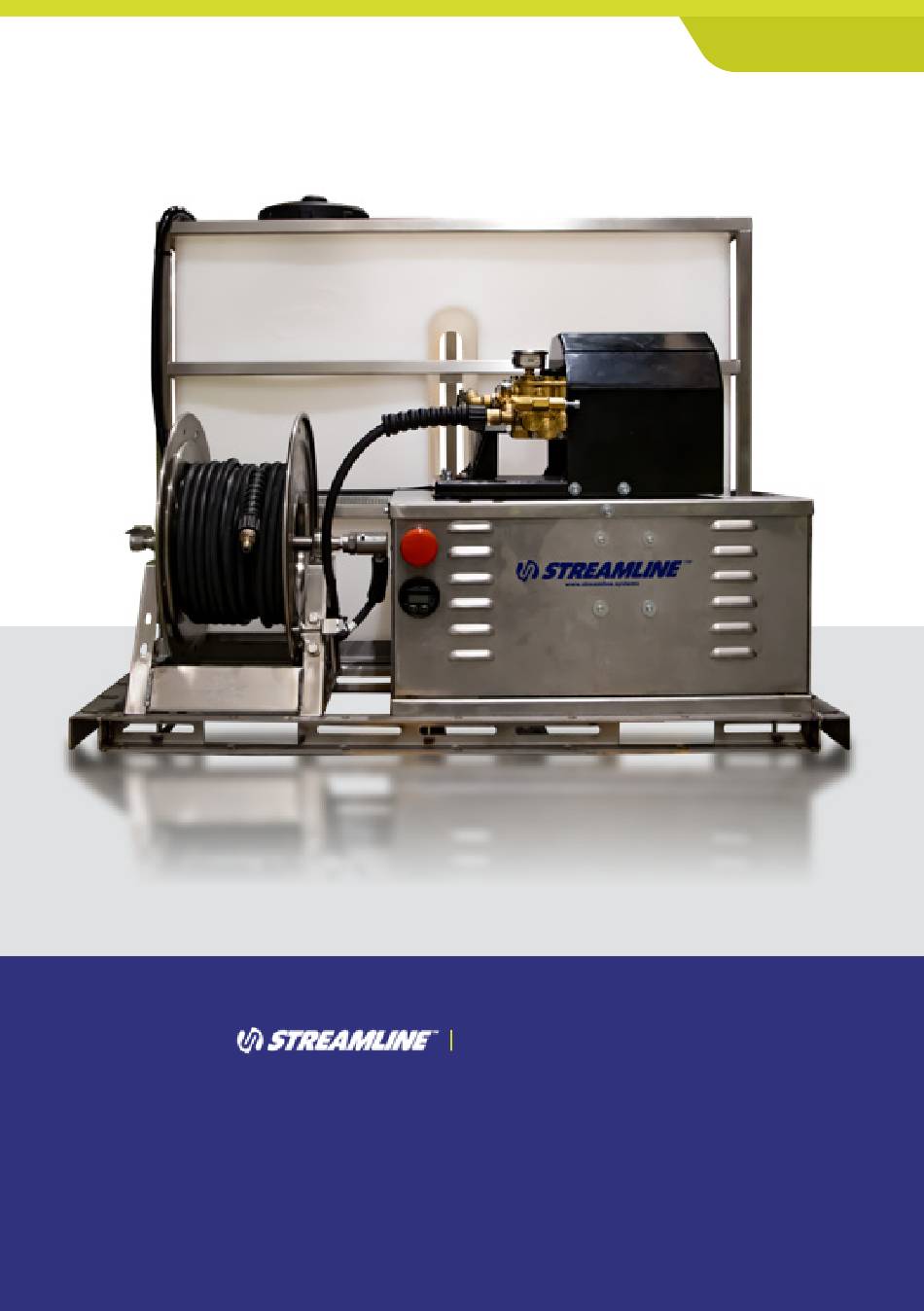

250ltr Baffled Pressure Gauge water tank Stainless steel High pressure tank frame pump Inline debris filter On/Off Button Battery level display screen Dump Valve Stainless Steel hose reel with 30 metres high pressure hose www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 6: Safety Regulations
30 mA for 30ms or a device that will prove the earth circuit. Varitech Systems Ltd, the manufacturer of Streamline™ , declines all liability for damage caused by faulty earthing of the appliance. -
Page 7: Safety Precautions
Do not use the HIGHLINE™ Eco-Power with telescopic poles in the vicinity of power lines, • junction boxes, power sockets – Please read Streamline™ OVA8® operating instructions. • Do not attempt to modify the HIGHLINE™ Eco-Power as this could cause a safety hazard or system breakdown. -
Page 8: System Safety
To avoid all mechanical hazards, ensure the HIGHLINE™ Eco-Power system is safely secured in position before filling the water tank. PINCH RISK • Keep hands and fingers clear of folding parts during operation to avoid injury. www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 9: Operating The Highline™ Eco-Power Setting Up The System
2. Plug the mains lead into a 13-amp power supply, then connect the red plug to your HIGHLINE Eco-Power unit start charging your system. 3. The battery percentage will be clearly displayed on the dial located on the side of your pressure washing unit. -
Page 10: Operating The System
™ Operating the System 1. Once the battery is fully charged, pull the red button to power on your HIGHLINE Eco-Power pressure washing system. 2. Release the lance safety catch which is located behind the trigger. 3. Point the lance towards the object being cleaned www.streamline.systems... - Page 11 4. Squeeze the trigger to start the high pressure jet. You can adjust the working pressure by turning the pressure regulator + or – to suit your application. 5. Release the trigger to stop the high pressure jet. www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830...
- Page 12 1. Release the trigger to stop the high pressure jet 2. Press the red button to turn off your HIGHLINE Eco-Power pressure washer. 3. Once your HIGHLINE Eco-Power is switched off, depress the lance by squeezing the trigger this will release the pressure in the hose.
-
Page 13: Jet Washing Nozzle Guidance
Please note: Lower angulation means higher concentration and more powerful pressure washing these are suggestions only and should be tested before use. Streamline accepts no responsibility for any damage caused. Product Code: HP-NP045 Red Spray Nozzle 0°... -
Page 14: Malfunctions & Troubleshooting
Water supply low – check adequacy of water supply. Ensure suction filter is below water level. Ingress of air into suction line – check integrity of suction hose and connections Contact service centre www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 15: Maintenance
Overall system if there is any physical damage 12 month inspections • Change the oil in Gearbox, Engine and high pressure pump • Inspect Gearbox and replace if damaged • Change high pressure jet • Change air filter www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 16: Storing The Highline™ Eco-Power
The HIGHLINE™ Eco-power high pressure system is classified as special waste. It must be taken apart and divided into uniform sections which should be disposed of according to current legislation. Do not use the components removed as spare parts. www.streamline.systems sales@streamline.systems +44 (0) 1626 830 830... -
Page 17: Declaration Of Conformity
The HIGHLINE™ Eco-Power System has been designed and produced by STREAMLINE® in accord- ance with the above mentioned EC Directives. The technical documents are complete. The complete EC Declaration of Conformity with all standards applied can be requested on the STREAMLINE® Website or directly from STREAMLINE®. -
Page 18: Why Streamline
• Streamline™ is backed by a comprehensive range with massive stocks providing you with a ‘one stop shop’ for all your requirements. Manufactured In The Checked &... -
Page 19: Warranty Information
This warranty constitutes the exclusive remedy replace normal maintenance items. THIS LIST of any purchaser of a Streamline™ unit and is in IS NOT EXHAUSTIVE. lieu of all other warranties, express or implied, including without limitation any implied war- If Streamline™... - Page 20 ™ HIGHLINE ECO-POWER ™ INSTR-H-ECO...
