Magna-Matic MAG-200 Series Original Instructions Manual
Dust collectors (generation 3)
Hide thumbs
Also See for MAG-200 Series:
- Original instructions (2 pages) ,
- Installation instructions (2 pages)
Related Manuals for Magna-Matic MAG-200 Series
Summary of Contents for Magna-Matic MAG-200 Series

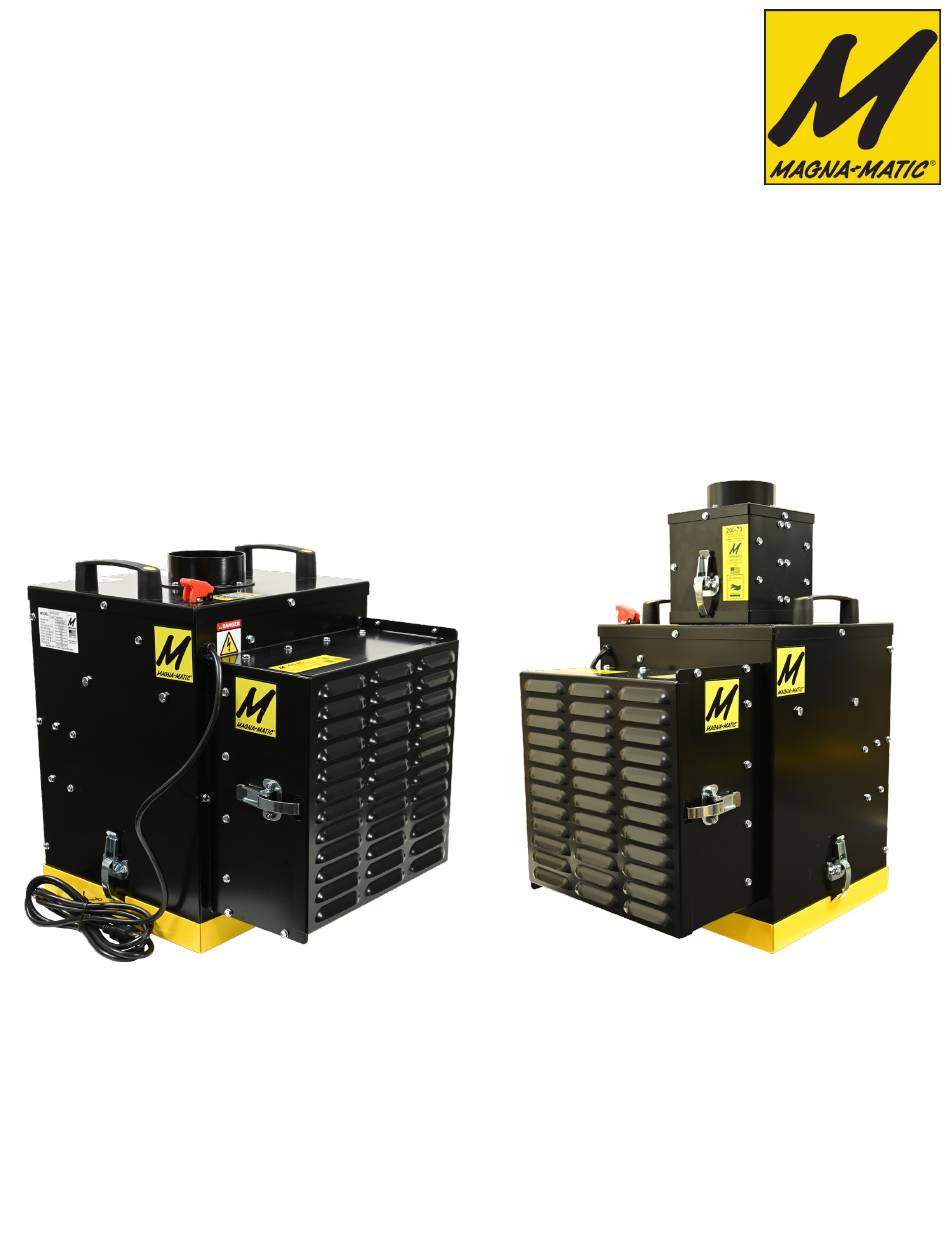

- Page 1 Original Instructions MAG-200 SERIES Dust Collectors (Generation 3) MAG-200 MAG-200-4K...
-
Page 2: Warning / Caution
THE SAFE WAY IS THE ONLY WAY TO GRIND! WARNING WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAU- TIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL INJURY. CAUTION BLADES HAVE SHARP EDGES - ALWAYS WEAR PROTECTIVE GLOVES AND SAFETY GLASSES! Before handling any equipment read and understand the instructions. -
Page 3: Safety Labels
SAFETY LABELS SAFETY COLOR DEFINITION WARNING DANGER Interaction with the hazard will cause severe injury or death. NEVER ALTERNATE A MAG-200 BETWEEN A SHARPENER AND WARNING Interaction with the hazard could THE MAG-12008 BLADE CLEANER cause severe injury or death. SPARKS MAY IGNITE GRASS AND DEBRIS GENERATED BY CAUTION... - Page 4 ASSEMBLY & TESTING CAUTION TURN OFF AND UNPLUG BEFORE SERVICING! Installation Instructions 1. We strongly recommend using the installation video, scan the QR code for the Quick Start Videos. 2. Unplug the MAG-200 3. Remove the four self-tapping screws. See Fig.1 4.
- Page 5 Fig.2 Fig.1 Fig.4 Fig.3 Fig.5...
- Page 6 Installation Instructions for the 200-70 Spark Box 1. If you ordered a spark box install the base of the spark box to the top of the dust collector as shown in Fig.6 and then secure it with the catch clamps. Install the inlet on top of the spark box. 2.
- Page 7 Cleaning the Metal Mesh Filter 1. Remove the bottom cover from the MAG-200, empty the contents in a trash can. See Fig.9 2. Slide the metal mesh filter out of the rails and shake it out over a trash can or blow out with compressed air.
- Page 8 MAG-200 SPECIFICATIONS MAG-200 (North America) gen3 LxWxH 18” x 13.5” x 19” Weight 70 lbs Ship Weight 65 & 15 lbs Motor Specs US MOTORS® Horse Power Motor RPM 3450 Duty Cycle Continuous Hertz Volts Phase Single Amps (run) Motor Type Industrial - Totally Enclosed Insulation Class F...
-
Page 9: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION Fan guard bent/dam- Motor fails to start aged and contacting Replace fan guard fan. Motor has been running, Fuse or circuit breaker Replace fuse or reset the breaker. then fails to start tripped. Motor has been running, Motor overloaded or Inspect to see that the load is free. -
Page 10: Warranty
WARRANTY MAGNA-MATIC CORPORATION (the “Manufacturer”) warrants Manufacturer’s products (the “Products”) will be free from defects in manufacture by Manufac- turer (the “Warranty”). The Warranty will be effective and valid for a period of one (1) or two (2) years, as indicated on the Warranty certificate or Manufacturer’s website (http://www.magna-matic.com), beginning on the date in which Manufacturer ships the Product (the “Warranty Period”) from manufacturer’s facility...
