Summary of Contents for X-Vision Impact Rangefinder 100

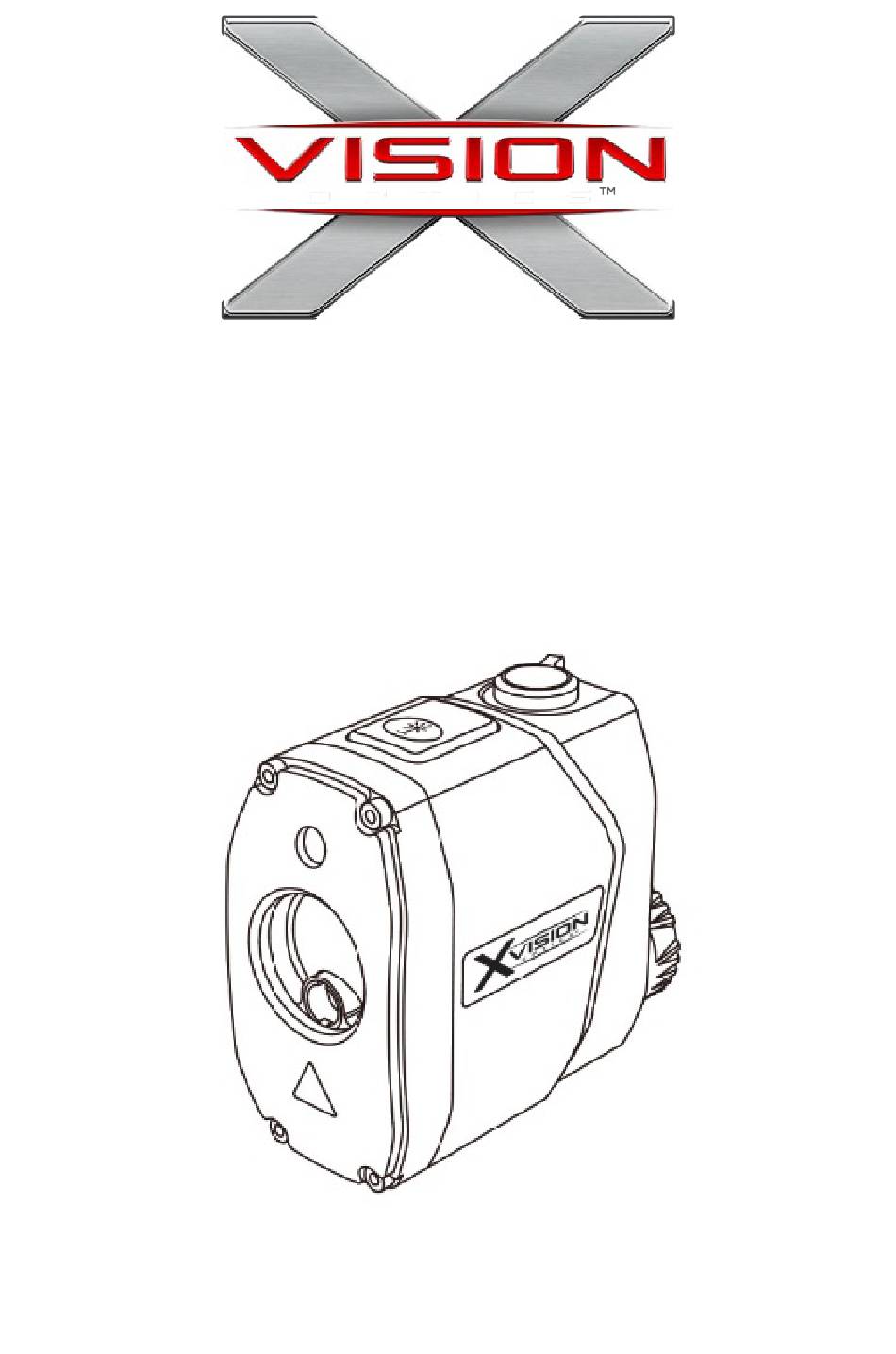

- Page 1 Impact Rangefinder 100 Thermal Laser Rangefinder TSR100...
-
Page 2: Table Of Contents
- Contents - FCC Warning Product Overview Important Notes Precautions Mounting the Rangefinder Instructions and Operations Troubleshooting Specifications... -
Page 3: Fcc Warning
FCC WARNING Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 4: Product Overview
Product Overview Power on/off button Ranging button Important Notes This Manual is organized for the convenience of users to use and understand our products. We will do our best to ensure the accuracy of the contents of this Manual. However, we still cannot guarantee the completeness of the contents thereof. As our products are subject to continuous upgrading, we reserve the right to modify this Manual from time to time without prior notice. -
Page 5: Precautions
Throwing is not allowed. Mounting the Rangefinder Attach the provided Picatinny rail to the side of the X-Vision thermal scope using the provided screws. Attach the rangefinder to the Picatinny rail. -
Page 6: Instructions And Operations
Instructions and Operation: Buttons Current Device Operation Response Status Power on/ Power off Move left Power on and automatically connect the off button device Power on Move right Power off and turn off the power of the rangefinder Ranging Ranging on Short press Refresh the distance button Long press Switch between single/continuous ranging... -
Page 7: Specifications
Bluetooth: Yes Mount: Picatinny Recoil Grade: 800 G IP Rating: IP67 Weight: 0.37 lb Dimensions: 2.8 x 1.3 x 2.4” Compatible: X-Vision Optics Impact Series (TS150, TS250, TS350) Accessories: Rechargeable 16340 Battery, Picatinny Mounting Rail, 4 Screws (to mount), Allen Wrench... - Page 8 Contact us support@xvisionoptics.com 833-993-2383 5140 Moundview Dr Red Wing, MN 55066...
