Dinan G8X M2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
G8X M2/M3/M4 &
F9X X3M/X4M

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G8X M2 and is the answer not in the manual?

Questions and answers

Related Manuals for Dinan G8X M2

Summary of Contents for Dinan G8X M2

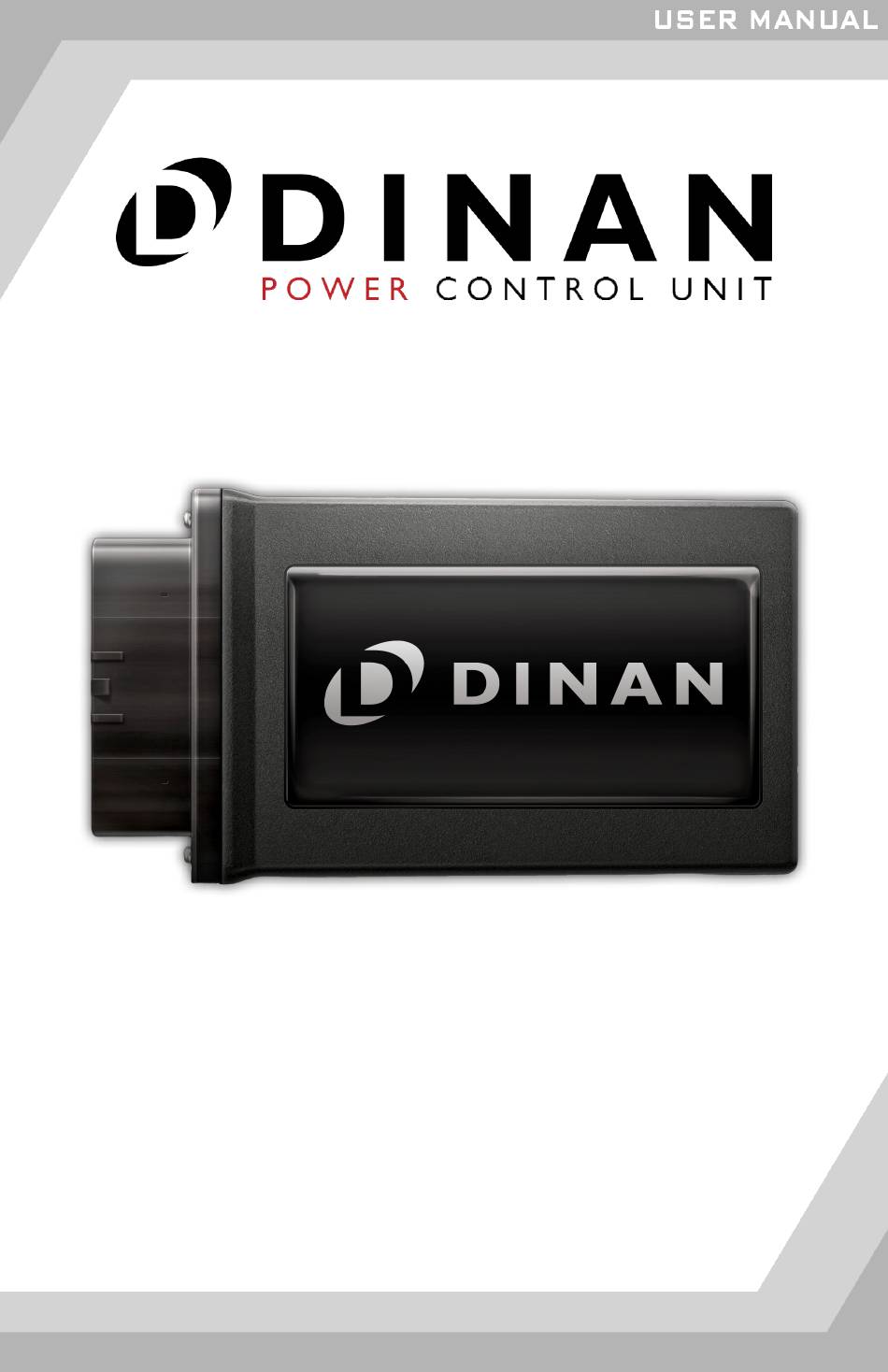

  • Page 1 G8X M2/M3/M4 & F9X X3M/X4M...

  • Page 2: Table Of Contents

    Safety/Warning Indicators & Messages Safety Guidelines & CARB/EPA Compliance FCC & Industry Canada Compliance Warranty Information Factory Matching Warranty Coverage Installation of PCU for G8X M2/M3/M4 (Car) Included Materials Required Tools G8X Installation Installation of PCU for F9X X3M/X4M (SUV)

  • Page 3: Read Me

    Read Me Safety/Warning Indicators & Messages Throughout this User Manual you will see important messages regarding your safety or the protection of your vehicle. These messages are designated by the words WARNING, CAUTION, or NOTE. WARNING WARNING indicates a hazardous situation which, if not avoided, will result in death or serious injury.

  • Page 4: Safety Guidelines & Carb/Epa Compliance

    WARNING Safety Guidelines & CARB/EPA Compliance Before using device, read and understand the user manual, including these additional safety instructions. Failure to do so could result in DEATH or SERIOUS INJURY. • Do not exceed legal speed limits on public roadways. Violating traffic laws is dangerous and could result in injury or vehicle damage or both.

  • Page 5: Fcc & Industry Canada Compliance

    Factory Matching Warranty Coverage Factory matching warranty coverage (4yr/50k) (if applicable) is contingent on verification of purchase of a Dinan+ PCU variant in the form of a valid proof of purchase at time of submission. Your warranty is tied to the VIN (vehicle identification number) of the first vehicle the PCU App is used with (see page 2 for App install and usage).

  • Page 6: Installation Of Pcu For G8X M2/M3/M4 (Car)

    Installation of PCU for G8X M2/M3/M4 (Car) Included Materials Harness Manifold Absolute Pressure & Intake Boost Pressure Air Temp Sensor Sensor (MAP) Exhaust Module Position Sensor Battery CAN/OBDII Fuel Rail Pressure Sensor (FRP) PCU Module Required Tools - 6mm, 8mm, 10mm, 13mm, 15mm Socket/Wrench...

  • Page 7: G8X Installation

    G8X Installation Harness Routing / Sensor Locations Boost EXH Cam STEP 1 - Pull the hood latch twice and open the hood, then take the key fob away from the vehicle and wait 5 minutes. To prevent any DTCs, please do not enter the vehicle while any of the sensors are disconnected.
  • Page 8 G8X Installation Cont’d STEP 2a - Some models need the strut tower covers to be set aside in order to access the strut tower brace bolts. If you can access the strut tower bolts immediately, move on to step 3. To remove the covers, twist the locking tab on the side strut covers to unlock the symbol, then remove the cover and set it aside.
  • Page 9 G8X Installation Cont’d STEP 4 - To remove the intake, start by removing the two plastic clips holding the intake tube to the core support. Then lift the driver’s side intake box up removing them from the grommets. Using a pick tool, pull up on the wire clips securing the intake tube to the turbo inlet, then set the intake aside.
  • Page 10 G8X Installation Cont’d STEP 5 - Twist the locking tab on the driver’s side strut cover to the unlock symbol, remove the cover and set aside. STEP 6 - Connect the PCU harness to the PCU module and place it underneath the strut cover. Run the PCU harness through the opening in the rubber seal shown below.
  • Page 11 G8X Installation Cont’d STEP 7 - After routing the PCU harness under the seal, separate the boost sensor harness from the rest of the of the PCU harness. Take the boost sensor and route it behind the DME and down the driver’s side strut tower.
  • Page 12 G8X Installation Cont’d STEP 8 - Starting on the driver’s side of the engine bay, remove the 10mm nut holding down the auxiliary water pump to gain better access to the boost sensor. Pull the white tab back then depress it to disconnect the boost sensor pigtail.
  • Page 13 G8X Installation Cont’d STEP 9 - Next, route the MAP (Manifold Absolute Pressure) sensor harness on top of the intake manifold. Pull the white tab back and depress it to disconnect the MAP sensor pigtail. Connect the PCU harness to both connectors and secure the white tab back in place.
  • Page 14 G8X Installation Cont’d STEP 11 - Locate the positive battery post on the passenger side strut tower. Remove the plastic cover by pulling the plastic tabs located on the front and rear outward and lift up. Remove the 13mm nut and install the 12V power wire from the PCU, then replace 13mm nut and plastic cover.
  • Page 15 G8X Installation Cont’d OBDII Harness Installation This part is not necessary for the module to function but is required for datalogging and display gauges. Remove the two 8mm screws holding the panel underneath the dash on the driver’s side footwell and lower the panel. If your vehicle is equipped with an automatic transmission, locate the rubber grommet on the firewall left of the brake pedal.
  • Page 16 G8X Installation Cont’d AUTOMATIC Vehicles - OBDII Harness View from Cabin View from Engine Bay...
  • Page 17 G8X Installation Cont’d MANUAL Vehicles - OBDII Harness View from Cabin View from Engine Bay...
  • Page 18 G8X Installation Cont’d STEP 12 - Secure the harness away from any hot or moving components by tucking them away or by securing them to the vehicle harness using the included zip ties. Secure the PCU module to the vehicle’s harness and replace the strut tower cover. Reinstall the engine cover, intake, strut tower brace, and anything else that may have been removed during the install.

  • Page 19: Installation Of Pcu For F9X X3M/X4M (Suv)

    Installation of PCU for F9X X3M/X4M (SUV) Included Materials Harness Manifold Absolute Pressure & Intake Boost Pressure Air Temp Sensor Sensor (MAP) Exhaust Position Module Sensor Battery CAN/OBDII Fuel Rail Pressure Sensor (FRP) PCU Module Required Tools - 6mm, 13mm Socket/Wrench - Plastic Clip Removal Tool - Pick Tool - Precision Knife...

  • Page 20: F9X Installation

    F9X Installation Harness Routing / Sensor Locations Boost EXH Cam STEP 1 - Pull the hood latch twice and open the hood, then take the key fob away from the vehicle and wait 5 minutes. To prevent any DTCs, please do not enter the vehicle while any of the sensors are disconnected.
  • Page 21 F9X Installation Cont’d STEP 3 - Remove the strut tower brace by loosening the four 13mm nuts from each strut tower, then set aside. STEP 4 - Loosen the 4 intake and charge pipes from the engine cover using a 6mm socket and wrench. Then lift the engine cover and set aside.
  • Page 22 F9X Installation Cont’d Grommet Locations STEP 5 - Connect the PCU harness to the PCU module and place it underneath the strut cover. Run the PCU harness through the opening in the rubber seal shown below. Run the rest of the harness along the firewall.
  • Page 23 F9X Installation Cont’d STEP 6 - After routing the PCU harness under the seal, separate the boost sensor harness from the rest of the of the PCU harness. Take the boost sensor and route it behind the DME/ABS module and down the driver’s side strut tower. Boost STEP 7 - Route the exhaust cam sensor and FRP (Fuel Rail Pressure)
  • Page 24 F9X Installation Cont’d STEP 8 - Next, route the MAP (Manifold Absolute Pressure) sensor harness on top of the intake manifold. Pull the white tab back and depress it to disconnect the MAP sensor pigtail. Connect the PCU harness to both connectors and secure the white tab back in place.
  • Page 25 F9X Installation Cont’d STEP 9 - Locate the positive battery post on the passenger side strut tower. Remove the plastic cover by pulling the plastic tabs located on the front and rear outward and lift up. Remove the 13mm nut and install the 12V power wire from the PCU. Then, replace 13mm nut and plastic cover.
  • Page 26 F9X Installation Cont’d STEP 10 - Remove the driver front wheel to access the boost senor. STEP 11 - Remove five 10mm screws to remove the plastic shield and set aside.
  • Page 27 F9X Installation Cont’d STEP 12 - Locate the boost sensor on the charge pipe. Pull the white tab back then depress it to disconnect the boost sensor pigtail. Connect both connectors to the PCU harness and lock the white tabs back into place. STEP 13 - Replace the plastic shield and the wheel.
  • Page 28 F9X Installation Cont’d STEP 14 - Secure the harness away from any hot or moving components by tucking them away or by securing them to the vehicle harness using the included zip ties. Secure the PCU module to the vehicle’s harness and replace the strut tower cover.
  • Page 29 F9X Installation Cont’d OBDII Harness Installation This part is not necessary for the module to function but is required for datalogging and display gauges. Twist the two plastic tabs holding the panel underneath the dash on the driver’s side footwell and lower the panel. locate the hood latch release grommet on the firewall left of the brake pedal.
  • Page 30 F9X Installation Cont’d View from Cabin View from Engine Bay...

  • Page 31: Frequently Asked Questions

    Frequently Asked Questions Common Questions & Answers This product currently has no frequently asked questions. If you have any questions, concerns, or suggestions, please reach out to our technical support team. Contact information and hours can be found on the back of this manual.
  • Page 32 INANCARS.com DINAN is a brand of Holley Tuning Group For additional questions not found in the user guide, call: Holley Technical Support: 1-(800)-341-5480 Mon - Fri 8:00 am - 5:00 pm CDT To expedite your support call, please have your Vehicle Information, Part Number, and Serial Number ready prior to calling Technical Support.

This manual is also suitable for:

G8x m3G8x m4F9x x3mF9x x4m
