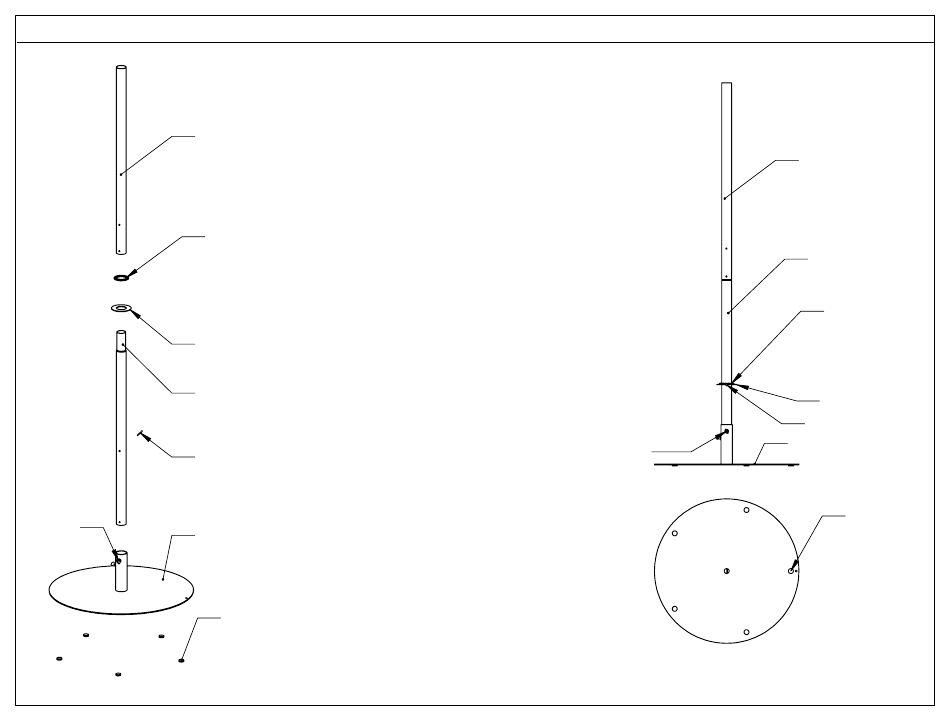

DECOPAC - 29225 CANDLE RACK-BLACK FLOOR SPINNER FULL
UPPER NON
SWAGED TUBE
BEARING
WASHER
LOWER
SWAGED TUBE
COTTER PIN
2X THUMB
SCREW
BASE
1. SET BASE ON FLOOR. PROVIDED BUMPERS
ARE OPTIONAL TO USE IF LEVELNESS IS A
PROBLEM.
2. PLACE THE SWAGED TUBE INTO THE BASE
TUBE. INSTALL AND TIGHTEN (2) THUMBSCREW
INTO THE BASE TUBE TO SECURE THE SWAGED
TUBE.
3. INSERT THE COTTER PIN INTO THE LOWEST
THRU HOLE. BEND ONE LEG OF THE COTTER
PIN SO IT WILL NOT PULL OUT OF THE HOLE.
4. SLIDE THE WASHER DOWN THE TUBE SO IT
RESTS ON THE COTTER PIN. SLIDE THE BEARING
DOWN THE TUBE UNTIL IT RESTS ON THE
WASHER.
5. SLIDE THE UPPER NON SWAGED TUBE ON
THE LOWER SWAGED TUBE.
BUMPERS (OPTIONAL)
2X THUMB
SCREW
UPPER NON
SWAGED TUBE
LOWER
SWAGED TUBE
BEARING
WASHER
COTTER PIN
BASE
BUMPERS
(OPTIONAL)
R008539 REV 1
Advertisement
Summary of Contents for DECOPAC 29225
- Page 1 DECOPAC - 29225 CANDLE RACK-BLACK FLOOR SPINNER FULL UPPER NON SWAGED TUBE 1. SET BASE ON FLOOR. PROVIDED BUMPERS UPPER NON ARE OPTIONAL TO USE IF LEVELNESS IS A SWAGED TUBE PROBLEM. 2. PLACE THE SWAGED TUBE INTO THE BASE TUBE.
- Page 2 DECOPAC - 29225 CANDLE RACK-BLACK FLOOR SPINNER FULL 4X PLASTIC SIGN HOLDER GRID PANEL FIG. A FIG. C 1/4-20 X 5/8 PHILLIPS SCREW ATTACH THE CENTER HUBS TO ONE GRID PANEL AS SHOWN IN FIG A. ATTACH THE REMAINING GRIDS ONE AT A TIME FIG.
