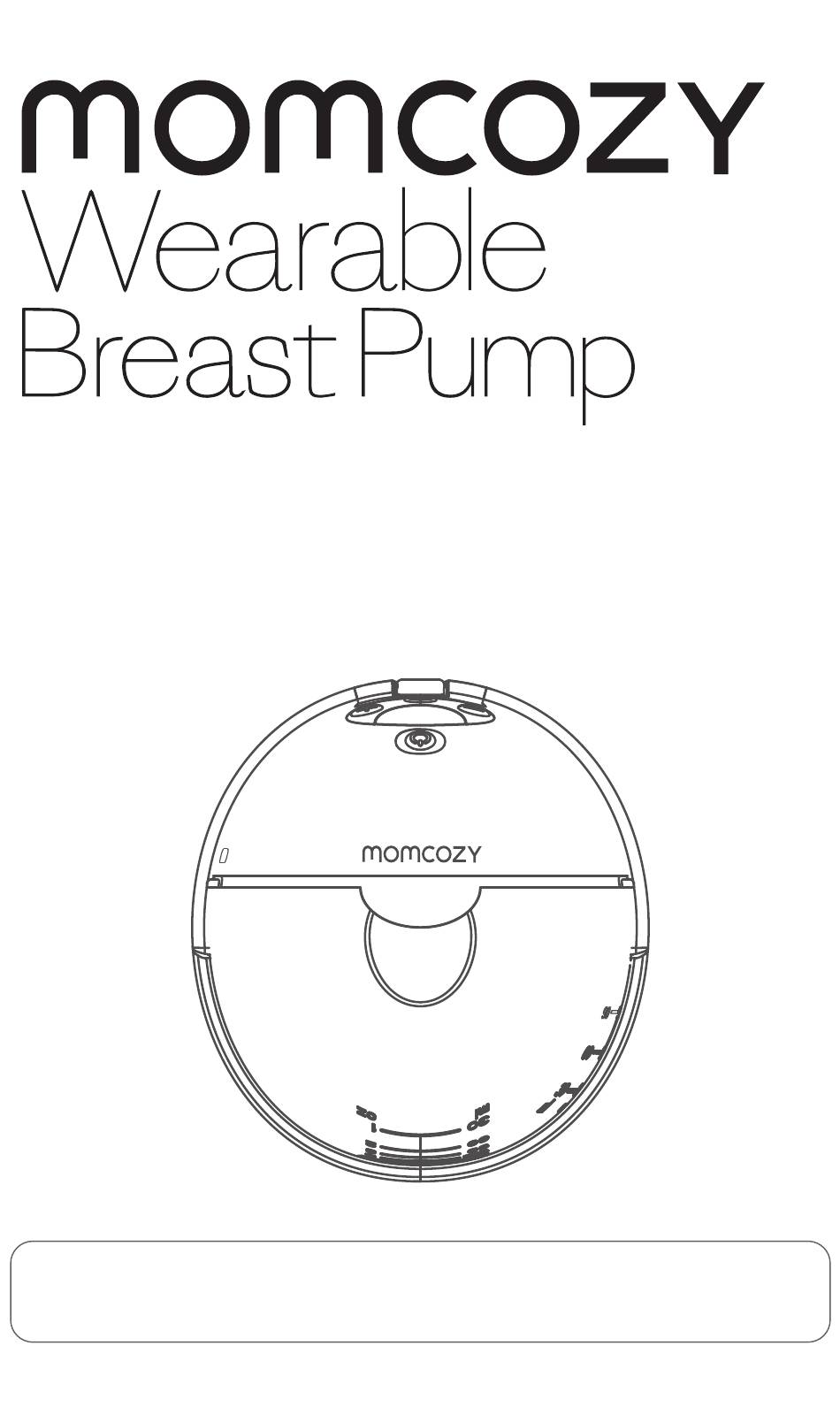

MOMCOZY M5 User Manual

Wearable breast pump
Hide thumbs Also See for M5:
Table of Contents

Advertisement

Quick Links

M5
User manual
(For OTC Type of Use)
Read this user manual carefully before using this device
and keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M5 and is the answer not in the manual?

Questions and answers

Related Manuals for MOMCOZY M5

Summary of Contents for MOMCOZY M5

  • Page 1 User manual (For OTC Type of Use) Read this user manual carefully before using this device and keep this manual for future reference.
  • Page 3 ENGLISH...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS 1. Product Introduction 2. Warning Instructions and Precautions 3. Indications for Use/Intended Use 4. Contraindications 5. Safety Information 6. Product Description 7. Operating Instructions 8. Storage Conditions 9. Speci cation 10. Maintenance and Replacement Parts 11. Declaration of Conformity 12.

  • Page 5: Product Introduction

    1. Product Introduction The Momcozy Wearable Breast Pump is intended to be used by lactating women to express and collect milk from their breasts. The Momcozy Wearable Breast Pump forms a vacuum around the nipple to express breast milk. The milk is collected in a milk collector.

  • Page 6: Symbol Description

    3. Indications for Use / Intended [Indications for Use / Intended use] The Momcozy Wearable Breast Pump (model: M5) is intended to express milk from lactating women in order to collect milk from their breasts. The device is intended for a single user.

  • Page 7: Contraindications

    • Do not reach for electrical product that has fallen into water, please unplug the power adapter from wall outlet immediately. 4) The Momcozy Wearable Breast Pump is a personal care item and for hygienic reasons should never be shared between mothers or resold from one mother to another.
  • Page 8 7) Use product only for intended use as described in this manual. 8) Do not use attachments or other milk collection components other than those recommended by manufacturer. 9) Check the power adapter before charging, never use the damaged power adapter. 10) Never leave it product unattended while charging.

  • Page 9: Product Description

    Precaution •Do not place or store where product can fall or be pulled into bathtub, sink or pool. •Do not place or drop product into water or other liquid. •Do not immerse in any liquid for any reason or subject the unit to extreme shocks, such as dropping the pump.
  • Page 10 Description of breast pump unit Item Description 24mm Double-sealed Flange Valve All of these components make up the milk collection set Diaphragm Milk collector (160ml) Main unit Pump motor USB Type-C Input end is USB 2.0 interface, the cable output end is Type-C interface Other Accessories Included: 17mm flange insert Flange cover...
  • Page 11 Description of control panel Buttons Functions and LEDs Long press and hold to turn on / off; Short press to pause, then press any button to continue your pumping session. Mode selection Decrease suction strength Increase suction strength Stimulation Mode: In this mode, the breast pump begins with a quick and short sucking pattern to get your milk to start flowing.

  • Page 12: Operating Instructions

    7. Operating Instructions 7.1 Charging battery Please charge the product before using it for the first time. The breast pump is powered using an internal rechargeable lithium battery. Our products are packaged with a Charging cable (USB2.0/Type-C line) but not with a power adapter. Please purchase the power adapter by yourself before charging.
  • Page 13 The breast pump cannot be used during charging! The Charging cable is only used to connect between the power adapter and the Momcozy Wearable Breast Pump unit for charging, please do not connect to other equipment, otherwise, it may cause...
  • Page 14 If the power adapter casing becomes loose, separated, or frayed, stop use of the power adapter immediately and contact the manufacturer of power adapter. If the Charging cable is damaged, broken or cracked, stop the use of the Charging cable immediately and contact the manufacturer to replace a new one (See the last page of this manual for contact information).
  • Page 15 1) BEFORE EVERY USE Inspect and assemble a clean pump kit. Clean pump motor with disinfectant wipes. 2) AFTER EVERY USE Store milk safely: Use breast milk storage bags or clean, food-grade containers to store expressed breast milk. Make sure the containers are made of glass or plastic and have tight-fitting lids, and label them with the date and time, and immediately place them in a refrigerator, freezer, or cooler bag with ice packs.
  • Page 16 Fig. 8 Fig. 7 4). Remove diaphragm from milk 3). Separate valve from flange. collector. Caution: Never put the main unit, charging cable or the adapter (If you have purchased an adapter) in water or a dishwasher, as this causes permanent damage to these parts.
  • Page 17 3) Wash milk collection parts: • Place parts of the milk collection set in a clean wash basin used only for infant feeding items. Do not wash directly in the sink because it may contain germs that could contaminate these items. •...
  • Page 18 After Cleaning: For extra germ removal, disinfect the parts of milk collection set, wash basin, and bottle brush at least once daily after they have been cleaned. Items can be disinfected using boiling water with a disinfection setting. Disinfection is especially important if your baby is less than 3 months old, was born prematurely, or has a weakened immune system due to illness or medical treatment.
  • Page 19 3) Remove items with clean tongs. Fig. 13 4) Air-dry thoroughly. Fig. 14 Step 3: Store safely Store dry items safely until needed. Ensure the clean pump parts, bottle brushes, and wash basins have air-dried thoroughly before storing. Items must be completely dry to help prevent germs and mold from growing. Store dry items in a clean, protected area to prevent contamination.
  • Page 20 7.2.3 Clean / Disinfect the other parts The shell of the main unit need to be cleaned and disinfected for the first time and after each use. The other parts, do not come into contact with the human body nor the milk during pumping, and only need to be cleaned when it is dirty.
  • Page 21 If the flange provided does not fit, you can find various flanges and flange inserts available for purchase on Amazon. Type "momcozy" in the search bar and find the flange size and flange insert that fits you. Fig.15 select right size 2.
  • Page 22 Good Fit Suitable fitting: During pumping, if your nipple moves smoothly without rubbing or touching the inner wall of the flange, and almost no areola is sucked inside, then this flange is right for you. Too Large Too large: During pumping, if a large area of areola is sucked inside, then this flange is too big for you.
  • Page 23 5. Recommend Posture Caution: Always sit or stand upright while pumping to prevent the milk from leaking. This pump is not to be used when lying down or sleeping to ensure the proper orientation is maintained during use. POSTURE Make sure the pump and the milk collector always stay at a vertical angle.
  • Page 24 Notes: · Correct placement of the Double-sealed Flange, Diaphragm, Milk collector, Valve, etc. is essential for the breast pump to form a proper vacuum. · Before each use visually inspect the individual components for cracks, chips, tears, discoloration, or deterioration. In the event that damage to the device is observed, please discontinue use until the parts have been replaced.

  • Page 25: Pumping Instructions

    Fig. 26 5. Assemble the pump motor and milk collector. The breast pump is now ready for use. 7.3.3 Pumping instructions Warning •Before you remove the pump body from your breast, always switch off the breast pump to release the vacuum. •Do not continue pumping for more than 5 minutes at a time if you do not succeed in expressing any milk.
  • Page 26 b. To align, hold the flange against your breast so you can see if your nipple is centered in the flange tunnel. You may need to bend forward. c. After you’ve aligned, look through the flange to confirm your nipple is centered before pumping. The tip of your nipple should NOT touch the top, sides or bottom of the flange tunnel.
  • Page 27 Short press the Mode Selection button to switch from 3 modes. C. Select the vacuum level Momcozy pump has 9 vacuum pressure settings for each mode, giving you control over what feels comfortable and works most efficiently in all modes.
  • Page 28 *Using a breast pump should not cause pain. Do not try to express with a vacuum pressure setting that is too high or uncomfortable. If excessive discomfort or pain is felt during pumping, stop pumping, break the seal around your nipple and discontinue the session.

  • Page 29: Storing Breast Milk

    Warning •Refrigerate or freeze expressed milk immediately or keep it at a temperature of 16 °C~ 25 °C for 2-4 hours before you feed your baby. 7.4 Storing breast milk 7.4.1 Proper storage of breast milk Following recommended storage and preparation techniques can maintain the safety and quality of expressed breast milk for the baby’s health.
  • Page 30 Storage Locations and Temperatures Type of Breast Milk Countertop Freezer Refrigerator 77 °F (25°C ) or colder 23 °F (-5°C ) or colder 40 °F (4°C ) (room temperature) Freshly Expressed or Within 2-4 hours Within 24 hours Within 3 months Pumped Thawed, Previously Use within 2 hours after the baby is finished feeding...

  • Page 31: Storage Conditions

    •If you thaw breast milk in the refrigerator, use it within 24 hours. Start counting the 24 hours when the breast milk is completely thawed, not from the time when you took it out of the freezer. •Once breast milk is brought to room temperature or warmed, use it within 2 hours.

  • Page 32: Maintenance And Replacement Parts

    Stimulation mode: 50~120(±2) cycle/min Cycle speed Expression mode: 23-57(±2) cycle/min Mixed mode: 6~16(±2) cycle/min Pump dimension 128mm X 117mm X 74mm Weight(with all 230g accessories) Product use life 500 hours Noise level ≤50dB Type of protection Internally powered equipment against electric shock Degree of protection Type BF applied part (milk collection set) against electric shock...

  • Page 33: Declaration Of Conformity

    Warning Warning: the replacement of lithium batteries by inadequately trained personnel could result in a hazard. Do not clean or maintain the device while the device is in use or while charging. 11. Declaration of Conformity Shenzhen Root Innovation Technology Co., Ltd. declares that the device conforms to the following standards IEC60601-1, IEC60601-1-2, IEC60601-1-11, IEC62304, ISO10993-5, ISO10993-10, ISO10993-1, ISO 14971.
  • Page 34 Use - Alignment): • Make sure to press the Momcozy pump firmly against breast during Stimulation phase. Feel • Tighten the bra to make sure the Momcozy pump discomfort is held firmly against the breast. while • Decrease suction strength.

  • Page 35: Disposal

    13. Disposal At the end of the product life cycle, do not throw this product into the normal household garbage, but bring it to a collection point for the recycling of electronic equipment and battery. Waste Electrical and Electronic Equipment may have potentially harmful effects on the environment.
  • Page 36 Essential Performance: Device- Detection/ Specific Device-Specific Pass/Fail Criteria Testi ng Function Method Suction levels (stimulation): -52mmHg to -113mmHg Vacuum Suction levels (Expression): Vacuum strength (error: -105mmHg to -240mmHg manometer ±5mmHg Suction levels (Mix): -52mmHg to Observation -240mmHg Cycle speed Suction levels (stimulation): 50-120 (cycles/min) Suction levels (Expression): 23-57 Observation...
  • Page 37 •Portable RF communications equipment (including peripherals such as antenna cables and external antennas) should be used no closer than 30 cm (12 inches) to any part of the Momcozy Wearable Breast Pump, including cables specified by the manufacturer. Otherwise, degradation of the performance of this equipment could result.
  • Page 38 Guidance and manufacture’s declaration – electromagnetic emission The Momcozy Wearable Breast Pump is intended for use in the electromagnetic environment specified below. The customer of the user of the Momcozy Wearable Breast Pump should assure that it is used in such an environment. Electromagnetic environment –...
  • Page 39 10V/m 10V/m (Home healthcare (Home healthcare Radiated RF EM environment), environment) fields 80MHz – 2.7GHz 80MHz – 2.7GHz IEC 61000-4-3 AM at 1kHz AM at 1kHz ±2kV AC power power quality supply lines; should be that of a Electrical fast ±2kV AC power ±1kV DC transients/bursts...
  • Page 40 The Momcozy Wearable Breast Pump is intended for use in the electromagnetic environment specified below. The customer or the user of the Momcozy Wearable Breast Pump should assure that it is used in such an environment. Electromagnetic IEC 60601-1-...
  • Page 41 Bluetooth, Pulse WLAN, 802.11 2450 2400 – 2570 modulation b/g/n, RFID 217 Hz 2450, LTE Band 7 5240 Pulse WLAN 802.11 5100 – 5800 modulation 5500 217 Hz 5785 NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the MEEQUIPMENT or ME SYSTEM may be reduced to 1 m.

  • Page 42: Travel Or International Use Statement

    ・Check the Momcozy Wearable Breast Pump to ensure that it is free from damage and ・Before each usage, check the status of your Momcozy Wearable Breast Pump to ensure it can operate normally.

  • Page 43: Fcc Compliance Statement

    18. FCC Compliance Statement Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
