VIGIL VIDEO SOLUTIONS | QUICK START GUIDE

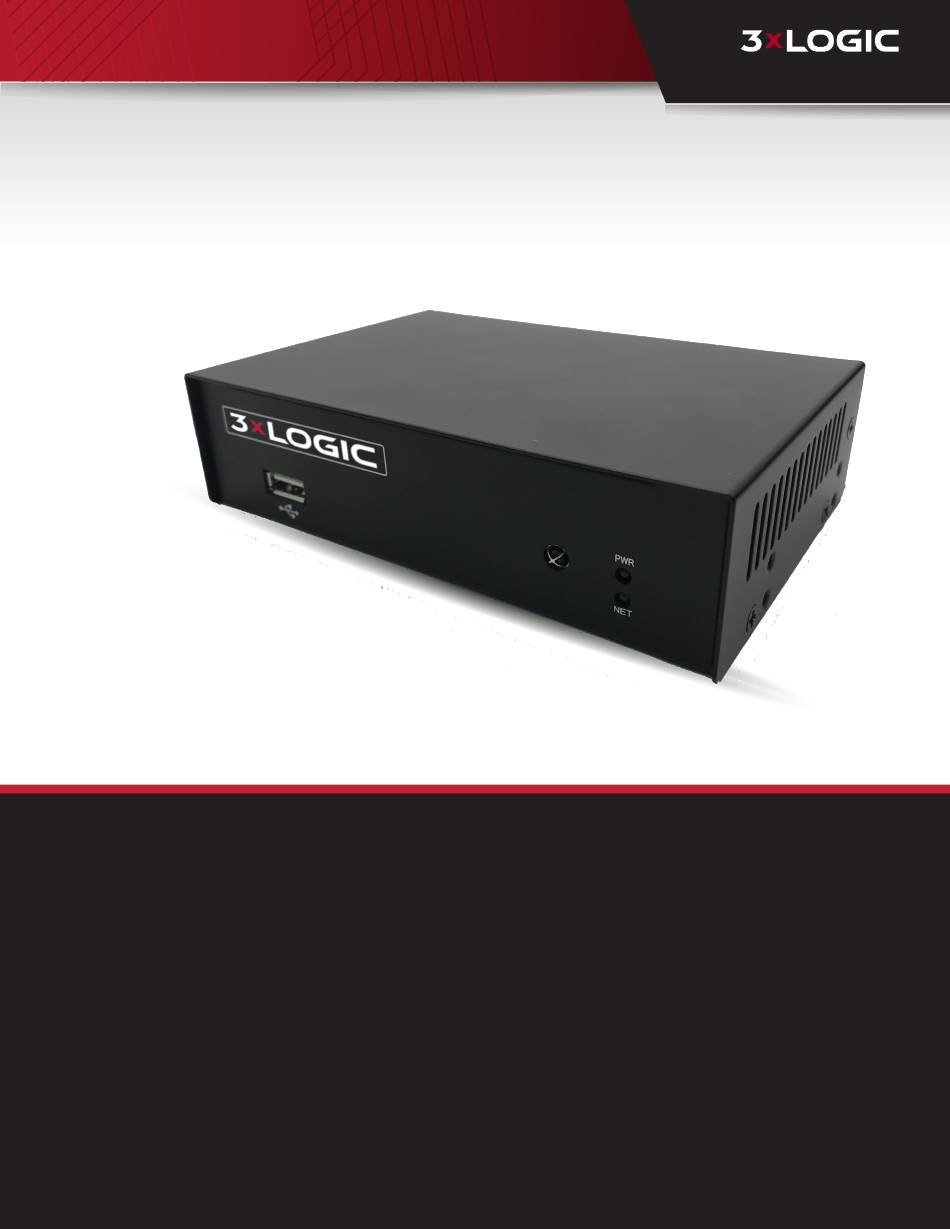

VIGIL VH-DECODER-4K
16-CHANNEL HD VIDEO DECODER
QUICK START GUIDE
V1.0.0
-
3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK |
EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND
©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT
NOTICE. 3XLOGIC AND THE 3XLOGIC AND VIGIL LOGOS ARE TRADEMARKS OF 3XLOGIC, INC. ALL OTHER TRADE-MARKS
ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS.
Advertisement
Related Manuals for 3xLogic VIGIL VH-DECODER-4K
Summary of Contents for 3xLogic VIGIL VH-DECODER-4K
- Page 1 QUICK START GUIDE V1.0.0 3XLOGIC, INC. | USA: 11899 EXIT 5 PARKWAY, SUITE 100 FISHERS, IN 46037 | UK: 15 COFTON RD, EXETER, EX2 8QW, UK | EU: ELIMAENKATU 13B, 00520 HELSINKI, FINLAND ©2023 3XLOGIC, INC. ALL RIGHTS RESERVED. INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.
-
Page 2: Product Overview
QUICK START GUIDE | VH-DECODER-4K 1 PRODUCT OVERVIEW FRONT PART NAME FUNCTION 1x USB 2.0 USB Port Power LED Display Power Status Network LED Network Connection Indicator BACK PART NAME FUNCTION BNC Output BNC (CVBS) Video Output VGA Output VGA Video Out HDMI Output HDMI Video Output USB Port... -
Page 3: Getting Started
2 GETTING STARTED 1. Open the VIGIL Decoder Setup Utility: a. The Decoder Utility must be installed on a PC or VIGIL Server system and can be found on 3xLOGIC website or through a 3xLOGIC Sales Representative. b. The utility is located at VIGIL Server Settings > Decoder tab (VIGIL Servers) or Start Menu > All Pro- grams >... - Page 4 Choose a camera layout from the right-side layout bar. 5. The Setup Utility will find all 3xLOGIC Servers and cameras available on your network. They will be dis- played in the left-hand list. Drag-and-drop cameras into the desired panes.
-
Page 5: Contact Information
QUICK START GUIDE VH-DECODER-4K 3 CONTACT INFORMATION 3xLOGIC has offices in Fishers, Indiana, USA as well as Exeter, UK and Helsinki, FInland. Please visit our 3xLOGIC website at www.3xlogic.com. Please contact us by e-mail at helpdesk@3xlogic.com (technical support), or using...
